BMER
Green Hydraulic
BMER
Standard export carton/plywood case
YES
ISO9001 CE
1 set
Product Description
High pressure resistance & stable high-speed flow distribution
Strong load capacity with tapered roller bearing structure
Smooth operation at both low pressure start and heavy load
Lightweight compact design, flexible installation
Customizable multi-spec options for diversified equipment
Strict ISO quality control for consistent durability
Specifications
Displacement range: 7.2 – 45.5 in³/rev
Continuous torque: 239.7 – 774.4 lbf.ft
Continuous working speed: 100 – 360 rpm
Core structure: Geroler gear set with high-speed flow distribution
Shaft bearing: Tapered roller bearings for high axial & radial load
Quality standard: ISO 9001-2000 certified manufacturing
Customization: Various optional configurations for multifunctional working conditions
Feature: Lightweight body, smooth running at low startup & high pressure heavy load
Applications
Agricultural machinery: harvesters, planters, fertilizer spreaders, rotary tillers
Small construction equipment: mini loaders, road rollers, compact excavators
Dump truck auxiliary drives: lifting accessories, side tipping devices
Road maintenance vehicles: road sweepers, asphalt repair machines
Sanitation equipment: garbage trucks, vacuum cleaners
Marine & industrial auxiliary hydraulic drives, lawn mowers and forestry machinery
Factory&FAQ
BMER Orbit Motor are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

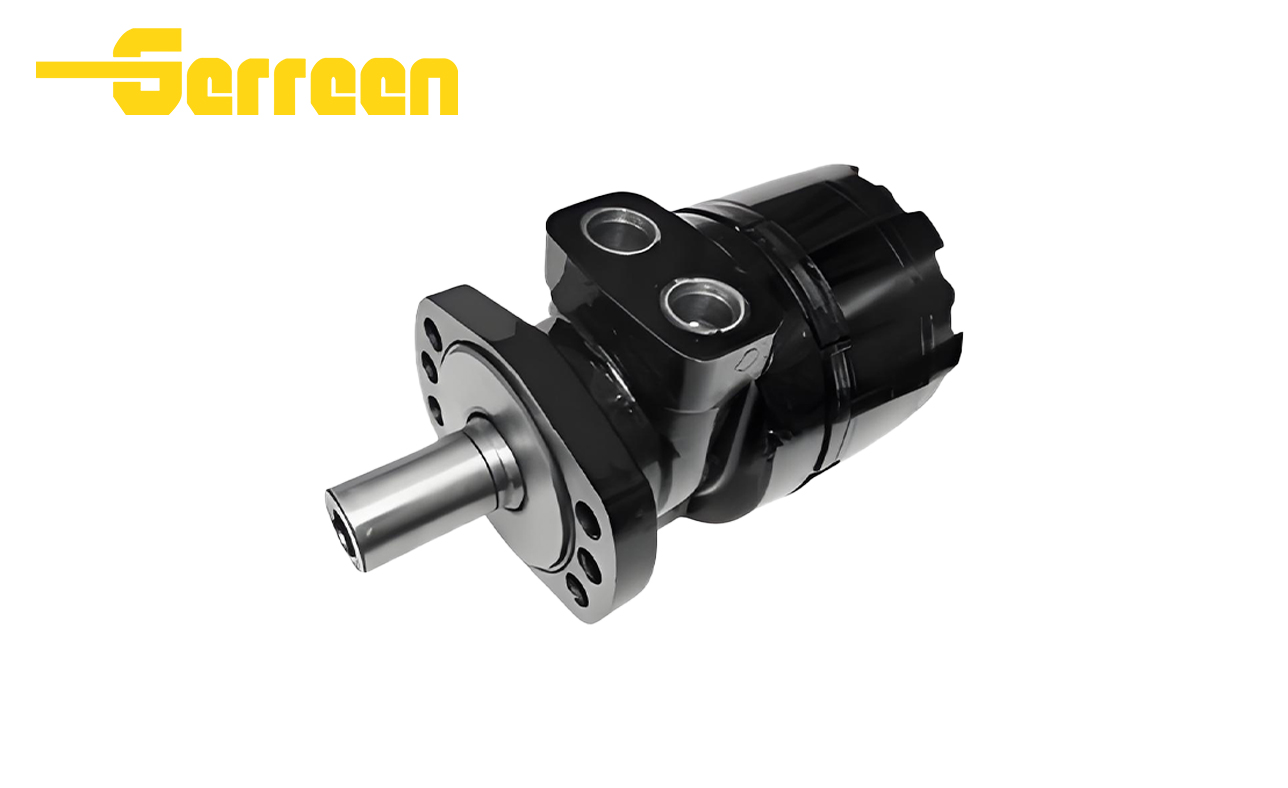

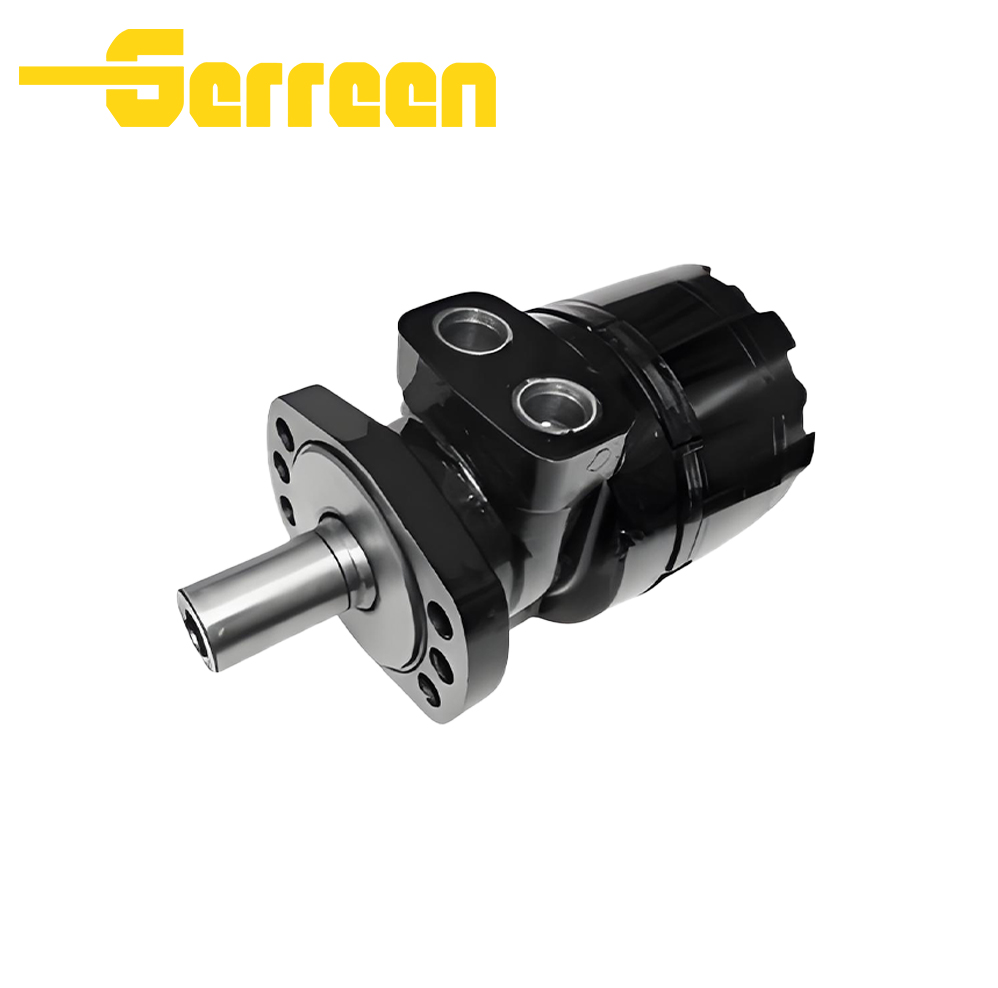

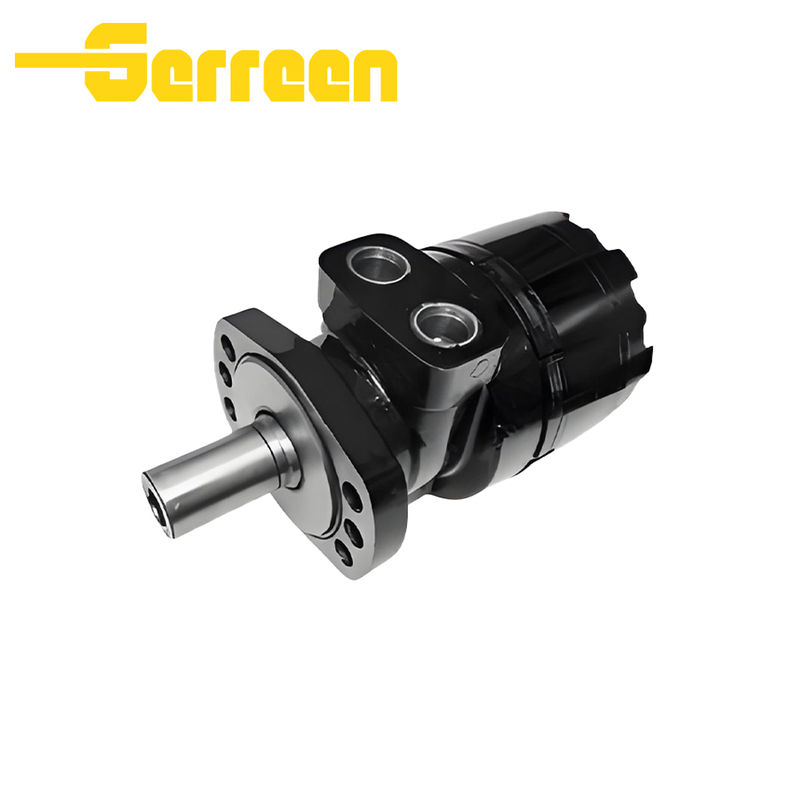

1. What is the BMER Orbit Motor?
Adopts Geroler gear set design with excellent high-speed flow distribution and high pressure resistance.
Output shaft fitted with tapered roller bearings to support large axial and radial loads.
Runs smoothly during low-pressure startup and stable operation under high-pressure heavy loads.
Lightweight compact structure with multiple optional configurations for diverse working demands.
Strictly manufactured in line with ISO 9001-2000 quality system for reliable performance.
3. What is the working pressure range of BMER Orbit Motor ?
Maximum continuous working pressure: 17.5 MPa (2537 psi) for long-duration stable operation.
Maximum intermittent peak pressure: 20.5 MPa (2973 psi) for short-period heavy load impact.
4. Can BMER Orbit Motor replace other brands?
Yes, the BMER orbit motor can serve as a direct drop-in replacement for many mainstream branded orbital motors, with full interchangeability on installation dimensions and performance parameters.
It perfectly replaces White Drive 500 / 530 RE series, Danfoss OMR/OMS, Eaton Char-Lynn low-speed high-torque orbit motors, and matching Geroler-type orbital motors from M+S and Parker. Multiple flange types (4-hole wheel mount, 6-hole magneto mount), tapered splined shafts and port sizes are optional to match original units.
Adopting the same Geroler roller gear set design as imported counterparts, it shares equivalent displacement, torque, speed and pressure ratings. Tapered roller bearings support heavy radial & axial loads, delivering identical smooth startup and stable heavy-load operation as original motors.
A wide range of displacements (7.2–45.5 in⊃3;/rev), shaft styles, mounting flanges and port configurations are available. We can match exact dimensional specs of your old motor to achieve plug-and-play replacement without modifying machine hydraulic circuits or mounting brackets.
6. What is the typical speed range of BMER Orbit Motor ?
The typical continuous speed range of BMER Orbit Motor is 100–360 rpm.
Stable torque output can be kept within this speed range.
Smooth running performance is guaranteed under continuous working pressure.
7. Do you provide OEM or customized services?
Yes, we support OEM and customized services for BMER orbit motors.
Multiple mounting flanges, shaft types and port sizes can be customized.
Displacement and functional accessories are adjustable as your requests.
Custom logo, color and packaging options are available.
We can adjust parameters to match your machine working conditions.
8. How can I get a quotation quickly
Please provide the following details:
Model or displacement
Working pressure
Speed
Quantity
We will reply within 12 hours with a competitive quotation.
BMER Orbit Motor are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
1.What's our advantages?
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
