TMT Series
Green Hydraulic
TMT Series
Standard export carton/plywood case
YES
ISO9001 CE
1 set
Product Description

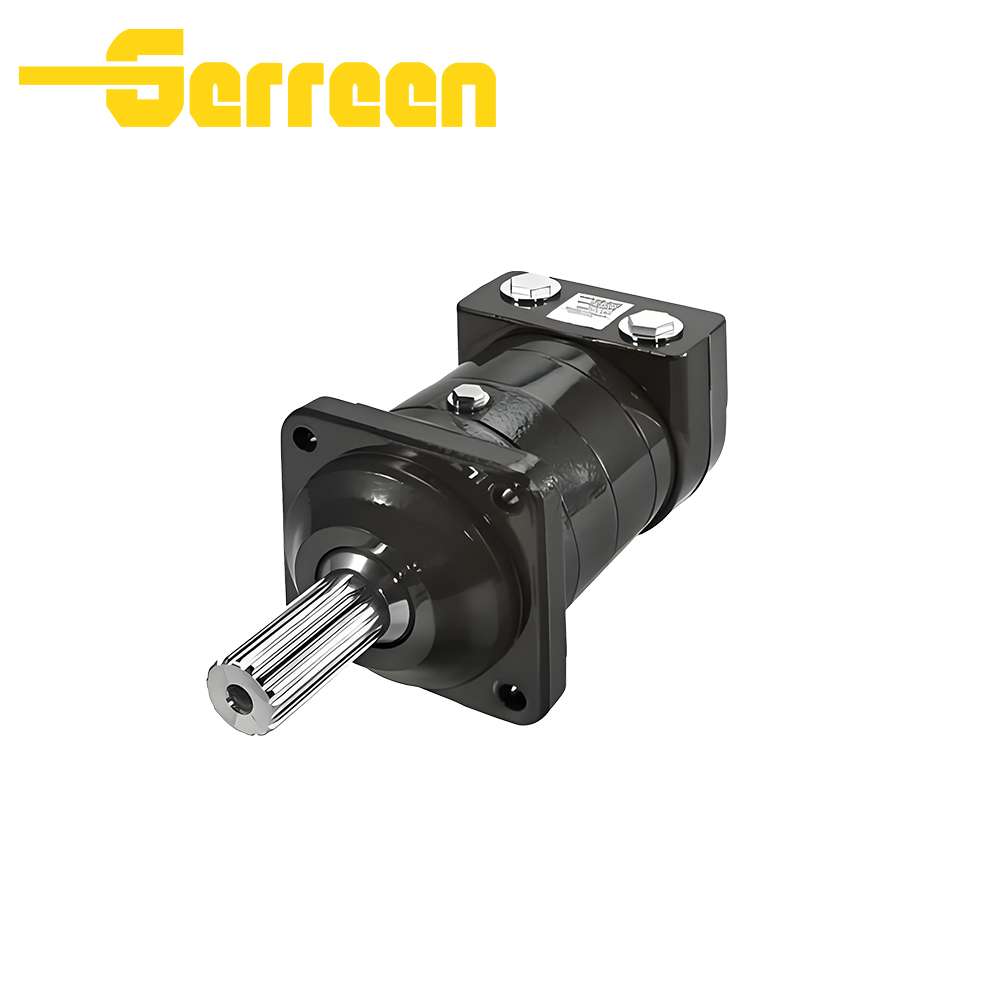

BMTJ series orbit motor is a heavy-duty low-speed high-torque geroler hydraulic motor with integrated built-in mechanical brake. Adopting disc distribution and automatic wear compensation structure, it features low starting pressure, stable low-speed operation and constant torque output. Reinforced heavy-duty bearings support large loads and instant pressure-relief locking. Fully interchangeable with Danfoss OMT brake series, ideal for equipment requiring positioning and anti-slip functions.
Super high starting torque, strong heavy-load driving performance
Ultra-high pressure resistance, max 350bar intermittent peak pressure
Reinforced heavy-duty bearing structure, anti-shock and anti-overload
Precision wear compensation system, long service life and stable efficiency
Smooth low-speed operation, no crawling or jitter under heavy load
Thickened cast iron housing, durable for harsh working conditions
Full interchangeability with original Danfoss TMT series
Large displacement design, suitable for high-torque heavy-duty scenarios
Specifications
Structure: Heavy-duty high-pressure geroler orbit hydraulic motor with wear compensation system
Displacement range: 250–630 cc/rev
Max continuous working pressure: 275 bar
Max intermittent peak pressure: 350 bar
Rated speed range: 100–600 rpm
Max flow rate: 125 L/min
Rotation mode: Bi-directional reversible
Bearing: Reinforced heavy-duty bearing assembly, strong impact & overload resistance
Standard seal: NBR; FKM high-temperature seal optional
Housing material: Thickened cast iron for harsh working conditions
Feature: Ultra-high starting torque, stable heavy-load operation
Interchangeability: 100% replaceable with Danfoss TMT series
Operating temperature: -20℃ ~ +80℃
Applications
Heavy construction machinery: Skid steer loaders, compactors, small road rollers, drilling equipment
Forestry machinery: Log grapples, wood harvesters, heavy-duty wood chippers
Mining & industrial equipment: Underground auxiliary hydraulic devices, heavy transmission units
Large sanitation machinery: Heavy snow blowers, large sweeping and cleaning vehicles
Other heavy-load hydraulic systems requiring high pressure and ultra-high torque output
Factory&FAQ
TMT Series Orbit Motor are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
1. What is the TMT Series Orbit Motor ?
TMT Series Orbit Motor is a heavy-duty high-pressure large-displacement geroler hydraulic motor with reinforced bearings and automatic wear compensation. It provides tremendous starting torque and can withstand peak pressure up to 350 bar. Fully interchangeable with Danfoss TMT series, it is engineered for heavy-load machinery including construction, forestry and mining equipment.
Heavy-duty high-pressure design, peak pressure up to 350 bar for extreme working conditions
Ultra-large displacement and outstanding starting torque for heavy-load driving
Reinforced thickened bearing assembly, excellent shock and overload resistance
Automatic wear compensation system to maintain stable efficiency and extend service life
Thickened cast iron housing with solid structure, durable against abrasion and impact
Smooth low-speed operation without crawling or vibration under heavy loads
Complete interchangeability with Danfoss TMT series for direct replacement
Multiple shaft and port options to meet different installation requirements
3. What is the working pressure range of TMT Series Orbit Motor ?
Max continuous working pressure: 275 bar / 3988.55 PSI
Max intermittent peak pressure: 350 bar / 5076.33 PSI
4. Can TMT Series Orbit Motor replace other brands?
Yes, the TMT Series orbit motor can serve as a direct replacement for equivalent hydraulic motors from other brands.
It matches the installation dimensions, displacement and interface standards of Danfoss TMT series perfectly, enabling plug-and-play installation without equipment modification.
Custom spline shafts, flat key shafts and different port thread specifications are available to fit motors of various other brands.
Its reinforced bearing and wear compensation structure deliver better load capacity and longer service life than many original motors.
Confirm displacement, flange size, shaft type and pressure parameters before replacement for optimal matching.
6. What is the typical speed range of TMT Series Orbit Motor ?
The typical operating speed range of TMT Series Orbit Motor is 100 rpm to 600 rpm.
It runs smoothly under heavy load at low speed without crawling or shaking.
The actual output speed can be adjusted by changing the input hydraulic flow.
7. Do you provide OEM or customized services?
We offer full OEM and customized services for TMT series orbit motors.
OEM options include custom brand logos, personalized nameplates and neutral export packaging.
Customizable parts: spline shafts, flat key shafts, special lengthened shafts and various oil port thread specifications.
Seal upgrade is available: replace standard NBR seals with FKM high-temperature resistant seals.
Custom flanges and matched auxiliary components can be produced according to customer drawings.
Small trial orders are supported, and bulk orders enjoy competitive wholesale prices.
8. How can I get a quotation quickly
Please provide the following details:
Model or displacement
Working pressure
Speed
Quantity
We will reply within 12 hours with a competitive quotation.
TMT Series Orbit Motor are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
1.What's our advantages?
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
