BMK2
Green Hydraulic
BMK2
Standard export carton/plywood case
YES
ISO9001 CE
1 set
Product Description
Disc distribution design ensures precise oil distribution and long service life.
Automatic wear compensation keeps high efficiency after long-time operation.
Excellent low-speed stability without crawling and shaking.
Strong bearing capacity, suitable for continuous heavy-duty work.
Solid cast iron shell, anti-shock and durable for harsh working conditions.
Bidirectional rotation, easy installation and flexible assembly.
Perfect interchangeability with Eaton 2000 series orbit motors.
Specifications

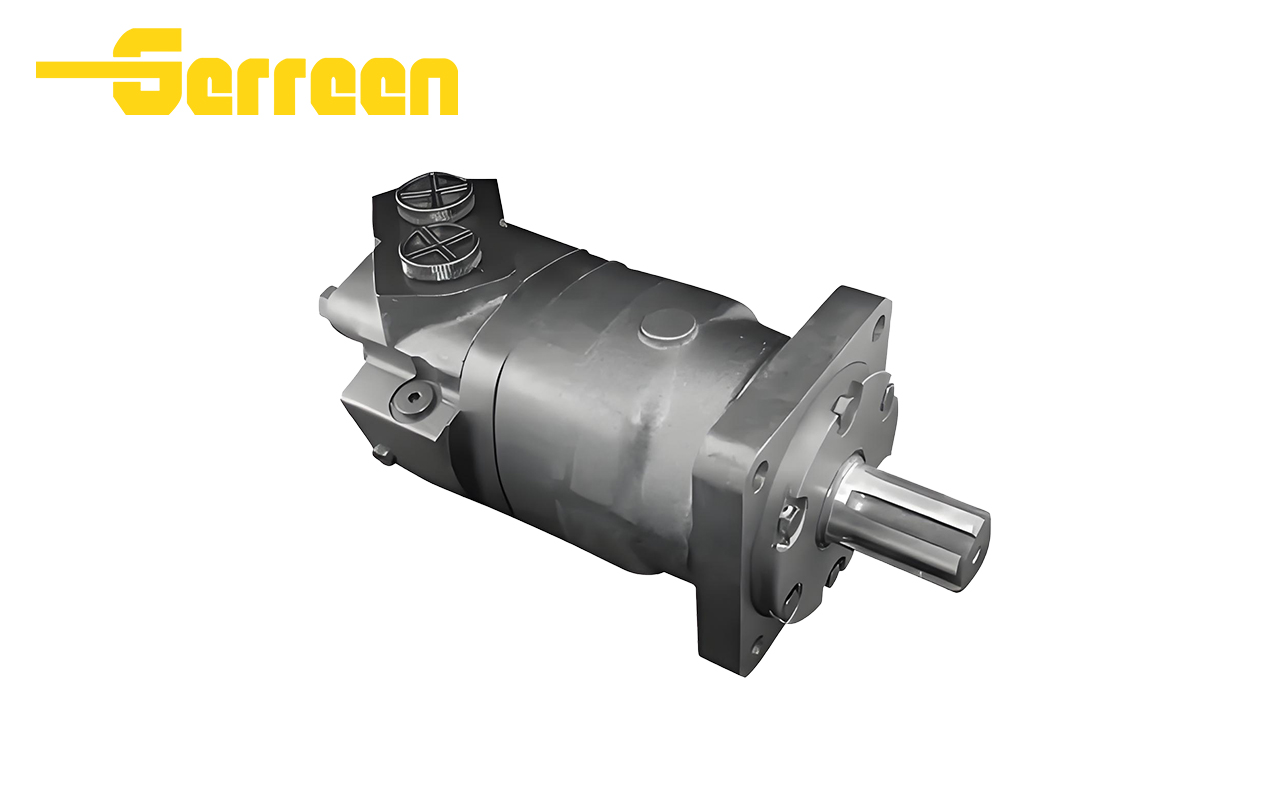

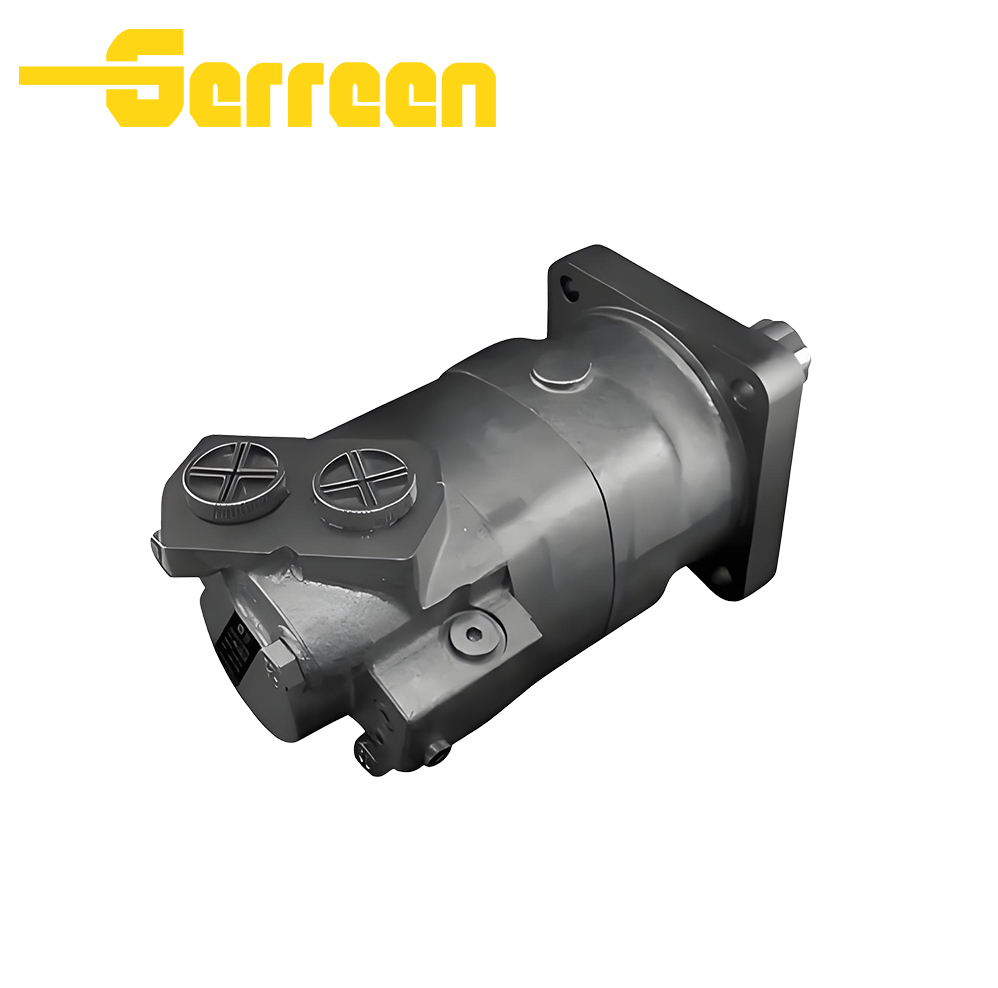

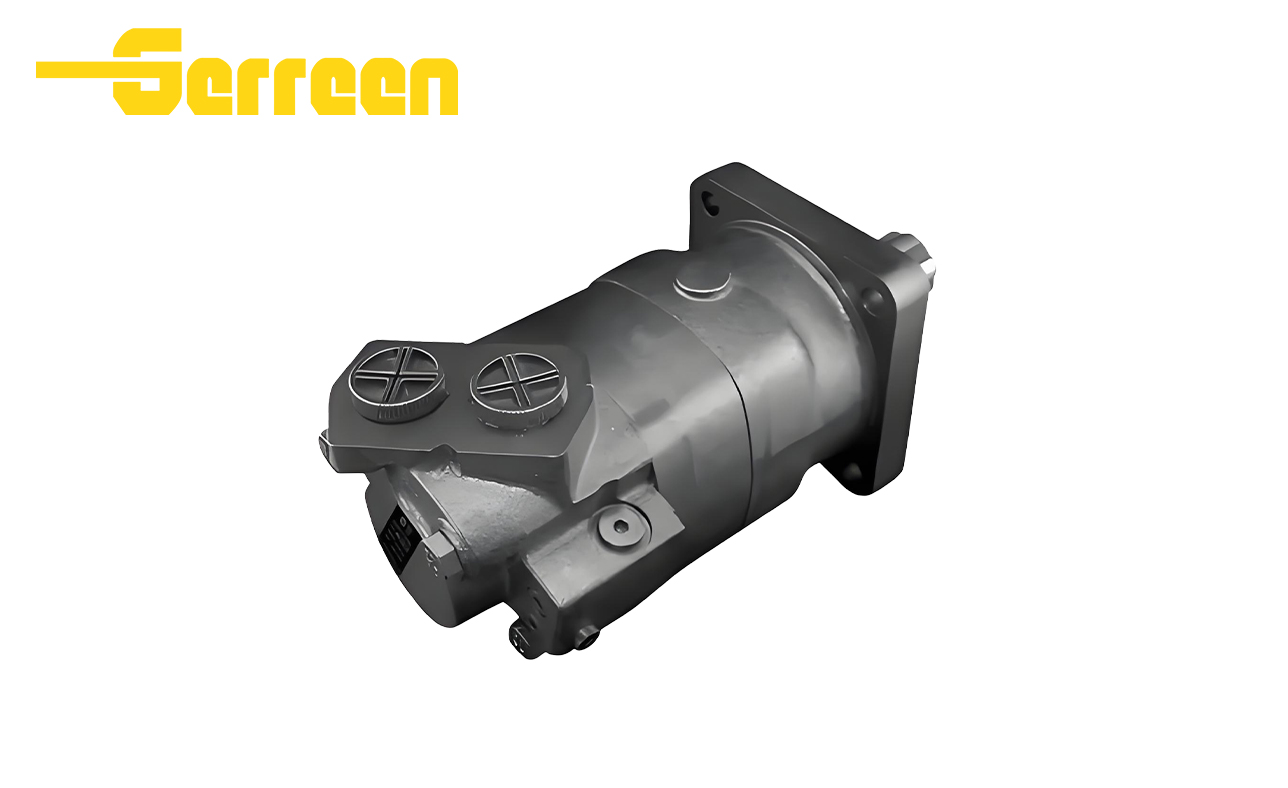

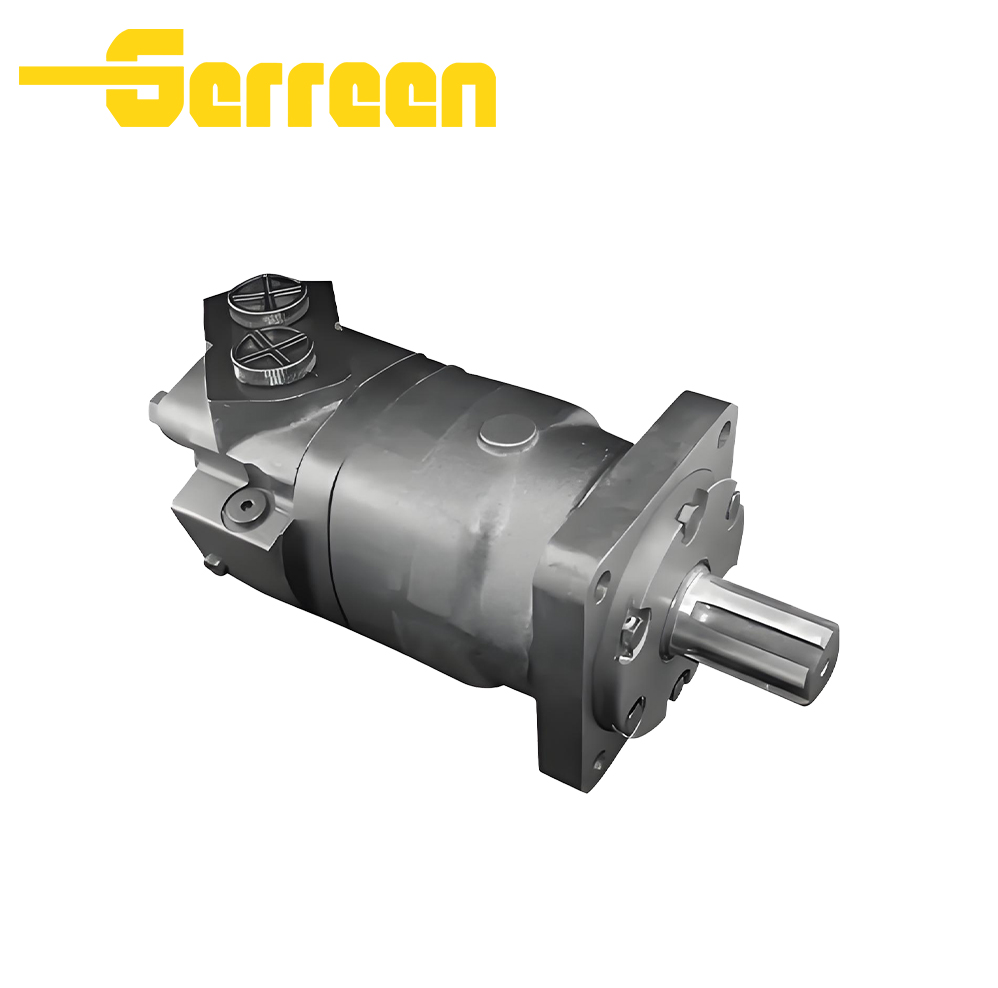

Structure: Disc-distributed geroler low speed high torque orbit hydraulic motor
Displacement range: 80–375 cc/rev
Max continuous working pressure: 210 bar
Max intermittent peak pressure: 250 bar
Rated speed range: 30–800 rpm
Rotation: Bi-directional reversible
Bearing: Heavy-duty tapered roller bearing for big radial & axial loads
Standard seal: NBR nitrile rubber; FKM fluorine rubber optional for high temperature
Housing: Cast iron, shock and wear resistant
Core design: Automatic wear compensation geroler group, low startup pressure
Mounting: Standard wheel flange, multiple spline and key shaft options
Applicable medium: Standard mineral hydraulic oil
Operating oil temperature: -20℃ ~ +80℃
Weight: Varies according to different displacement sizes
Applications
Agricultural machinery: mowers, fertilizer spreaders, hay balers and farm augers
Sanitation equipment: road sweepers, snow removers and garbage trucks
Small construction machines: mini loaders, compact rollers and pavers
Forestry equipment: brush cutters, log grapples and small wood chippers
Hydraulic auxiliary devices: light-duty winches, conveyors and wheel drive units
Other mobile machinery: aerial work platforms and small material handling equipment
Factory&FAQ
BMK2 Orbit Motor are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
1. What is the BMK2 Orbit Motor?
BMK2 orbit motor is a compact disc-distributed geroler hydraulic motor with automatic wear compensation. Fitted with heavy-duty tapered roller bearings, it handles large radial and axial loads. It delivers low starting pressure, smooth low-speed running and high efficiency under max 210 bar continuous pressure. It is interchangeable with Eaton 2000 series motors for agriculture, sanitation and small construction machinery.
It adopts disc distribution structure with automatic wear compensation to keep stable efficiency for long service.
Equipped with heavy-duty tapered roller bearings to bear large radial and axial shaft loads.
It owns ultra-low starting pressure and smooth rotation without crawling at low speed.
Max continuous working pressure reaches 210 bar, providing stable large torque and strong overload resistance.
Solid cast iron housing is shock-resistant and suitable for harsh outdoor working environments.
Multiple flange and shaft options, highly interchangeable with Eaton 2000 series orbit motors.
Bidirectional rotation design, compact layout for easy installation and maintenance.
3. What is the working pressure range of BMK2 Orbit Motor ?
The maximum continuous working pressure of BMK2 orbit motor is 210 bar (3045 PSI).
The maximum intermittent peak pressure can reach 250 bar (3626 PSI) for short-time heavy load impact.
4. Can BMK2 Orbit Motor replace other brands?
Yes, BMK2 orbit motor can directly replace many mainstream imported orbital motors.
It is fully interchangeable with Eaton Char-Lynn 2000 series, M+S and similar models.
Matching mounting flange, displacement, shaft and pressure allows plug-and-play installation without modifying equipment.
Various customized shafts and oil port threads are available to fit different original brand interfaces.
Its upgraded bearing and wear compensation structure provides better load capacity and longer service life.
Before replacement, confirm displacement, flange standard, shaft type and working pressure for perfect matching.
6. What is the typical speed range of BMK2 Orbit Motor ?
The typical operating speed range of BMK2 orbit motor is 30 rpm to 800 rpm.
It maintains steady rotation at the minimum speed of 30 rpm without crawling or vibration.
The maximum rated speed of 800 rpm works under standard rated hydraulic flow.
Adjust the input oil flow to flexibly change the actual output speed.
This wide speed range fits both low-speed heavy-load and high-speed light-load working conditions.
7. Do you provide OEM or customized services?
We supply full OEM and customized services for BMK2 orbit motors.
OEM service supports custom customer logos, exclusive nameplates and neutral export packaging.
Customizable output shafts: flat key shafts, spline shafts and lengthened special shafts.
Seals can be upgraded to FKM fluorine rubber for high-temperature working conditions.
Customize flange sizes, oil port threads and matched brake valve assemblies as customer drawings.
Small trial orders with simple modifications are acceptable, and bulk orders get competitive prices.
8. How can I get a quotation quickly
Please provide the following details:
Model or displacement
Working pressure
Speed
Quantity
We will reply within 12 hours with a competitive quotation.
BMK2 Orbit Motor are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
1.What's our advantages?
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
