Product Description

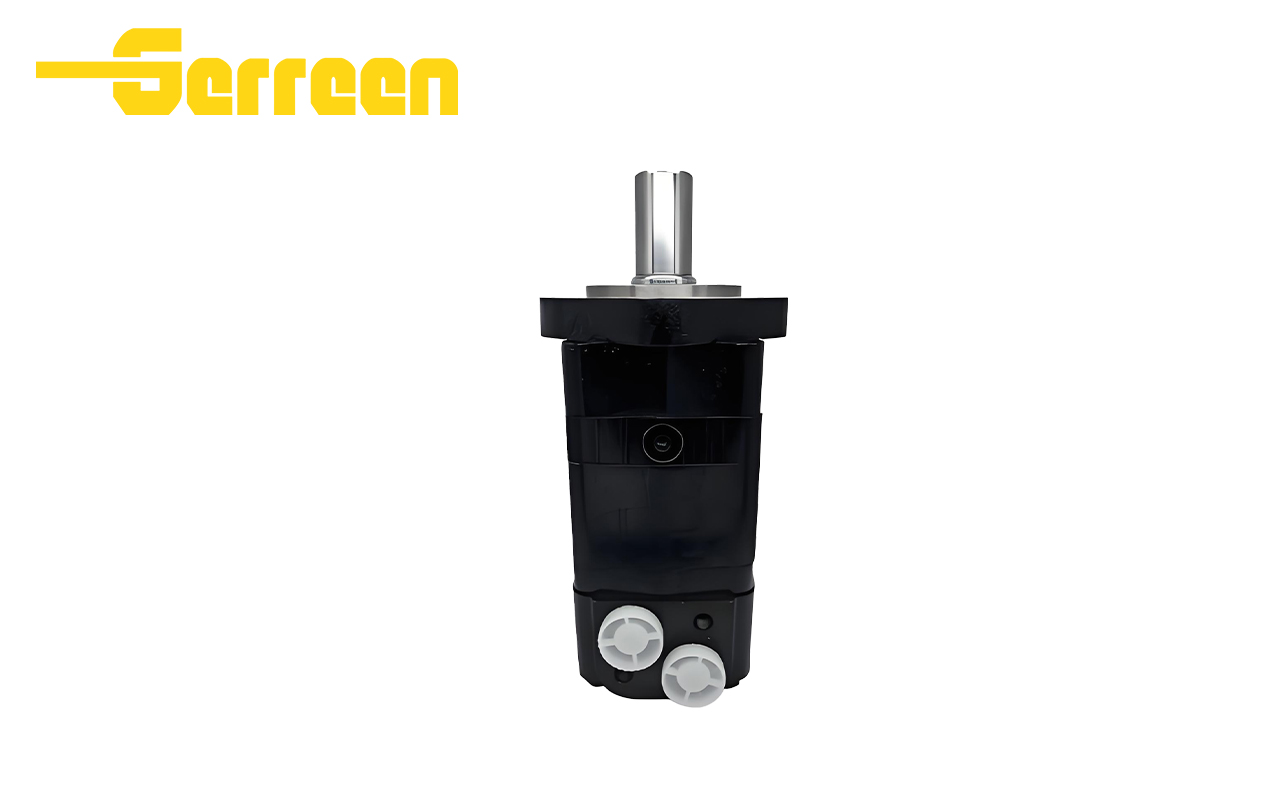

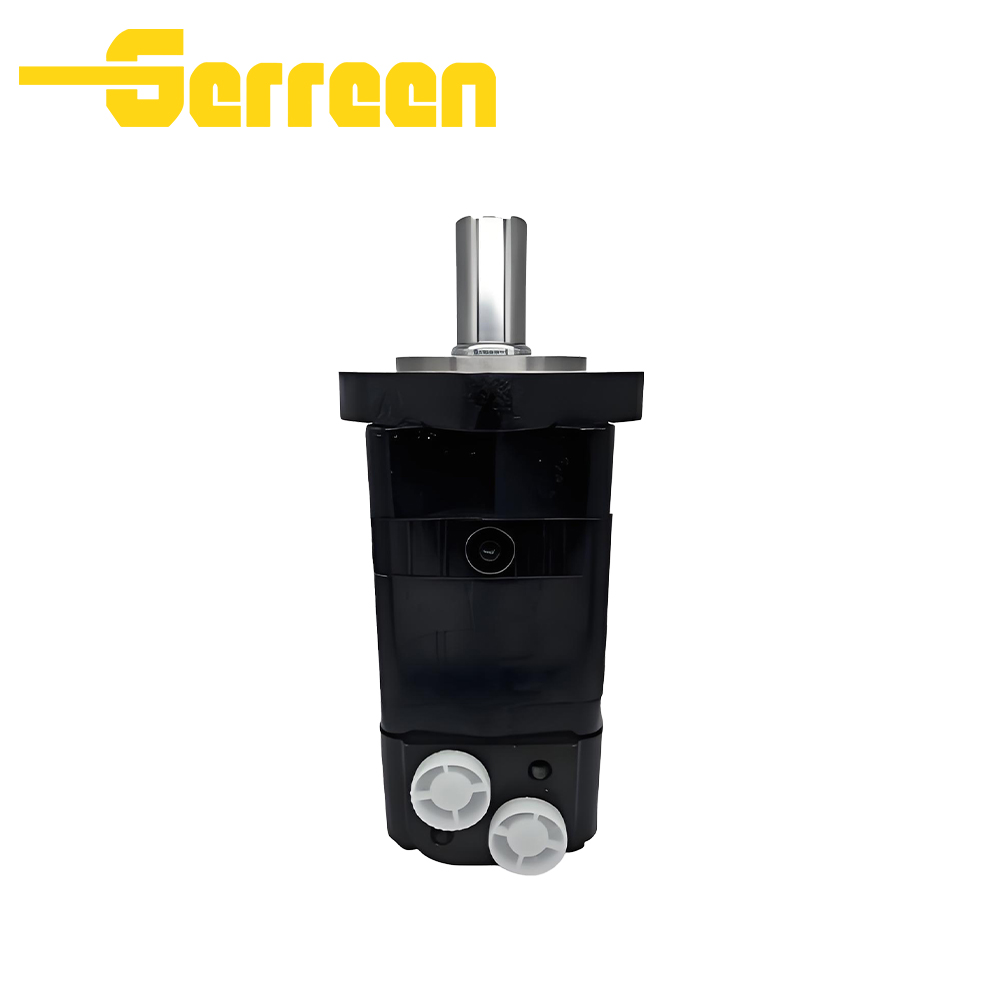

BMSY orbit motor is a high-performance low-speed high-torque geroler hydraulic motor with advanced disc flow distribution structure. Equipped with heavy-duty tapered roller bearings and wear-compensation stator-rotor pair, it features low starting pressure, high volumetric efficiency, stable torque output and long service life. Compact structure and strong load capacity make it widely used in various mobile hydraulic machinery.
Specifications
Type: Disc-distributed low-speed high-torque geroler orbital hydraulic motor
Displacement range: 100–395 cc/rev
Max continuous working pressure: 210 bar (3045 PSI)
Max intermittent peak pressure: 250 bar (3626 PSI)
Rated speed range: 25–800 rpm
Maximum output torque: up to 910 N·m
Rotation mode: Bi-directional reversible
Bearing: Heavy-duty tapered roller bearing for large radial & axial loads
Standard seal: NBR nitrile rubber; optional FKM fluorine rubber for high temperature
Housing material: Cast iron, impact & wear resistant
Circuit compatibility: Open hydraulic circuits
Core design: Automatic wear compensation geroler set, low startup pressure
Mounting: Standard 4-bolt rhombus flange, various spline/key shaft options
Applicable fluid: Standard mineral hydraulic oil
Operating oil temperature: -20℃ ~ +80℃
Weight range: 7.5–15 kg (varies by displacement)
Applications
Hydraulic winches, small lifting rollers, conveyor drives, aerial work platform accessories and light-duty rotary actuators
Factory&FAQ
BMSY Orbit Motor are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
1. What is the BMSY Orbit Motor?
The BMSY orbit motor is a high-pressure low-speed high-torque geroler hydraulic motor adopting advanced disc flow distribution structure with automatic wear compensation. Equipped with heavy-duty tapered roller bearings, it bears large radial and axial shaft loads, delivers low starting pressure, stable torque and smooth rotation without crawling. With max continuous pressure up to 210 bar and wide displacement options, it is widely used in agricultural, construction, municipal and forestry mobile hydraulic machinery, and highly interchangeable with mainstream imported orbit motors.
Disc valve distribution with automatic wear compensation, maintaining high efficiency after long-time operation.
Heavy-duty tapered roller bearings to withstand heavy radial and axial shaft loads, suitable for heavy-load working scenarios.
Ultra-low starting pressure, sensitive response and stable low-speed rotation without crawling or vibration.
High continuous working pressure up to 210 bar, providing large torque and strong overload resistance.
Solid cast iron housing with excellent wear and impact resistance for harsh outdoor operating environments.
Bi-directional reversible rotation, multiple flange and shaft options, highly interchangeable with imported orbit motors.
Compact overall layout, simple installation and convenient daily maintenance.
3. What is the working pressure range of BMSY Orbit Motor ?
Max continuous working pressure: 210 bar (3045 PSI) for long stable operation
Max intermittent peak pressure: 250 bar (3626 PSI) for short-term heavy load impact
4. Can BMSY Orbit Motor replace other brands?
Compatible equivalent models
It is fully interchangeable with Danfoss OMS series, Eaton Char-Lynn 2K series, M+S MS series and White orbital motors. Same flange, shaft, displacement and pressure specifications support plug-and-play installation without modifying equipment frames or pipelines.
Multiple customizable shaft & port options
We supply round key shafts, splined shafts, tapered shafts and different thread ports (BSP/UNC/NPT), matching various original brand motor interfaces perfectly.
Upgrade performance advantage
Equipped with heavy-duty tapered roller bearings and auto wear compensation valve set, BMSY offers stronger load capacity, higher efficiency and longer service life than many original standard motors.
Key replacement confirmation points
Before replacement, confirm four core specs: motor displacement, mounting flange standard, output shaft style, and continuous working pressure to guarantee seamless substitution.
6. What is the typical speed range of BMSY Orbit Motor ?
The typical operating speed range of the BMSY Orbit Motor is 25 rpm to 800 rpm.
It adopts geroler structure with automatic wear compensation design.
It runs stably at the minimum speed of 25 rpm without crawling or vibration.
The maximum rated speed can reach 800 rpm under standard rated flow.
Actual output speed can be adjusted by changing input hydraulic flow rate.
Wide speed range adapts to high-speed light-load and low-speed heavy-load working scenarios.
7. Do you provide OEM or customized services?
Yes, we provide complete OEM and customized services for BMSY orbit motors.
OEM service supports printing customer logos, exclusive nameplates and neutral packaging.
We customize output shafts: spline shaft, flat key shaft, extended shaft and special size shafts.
Seal customization is available, including FKM fluorine rubber seals for high temperature.
Customize flange sizes, oil port threads and integrated brake valve accessories as drawings.
Small trial orders with simple modifications are acceptable, bulk orders enjoy preferential prices.
8. How can I get a quotation quickly
Please provide the following details:
Model or displacement
Working pressure
Speed
Quantity
We will reply within 12 hours with a competitive quotation.
BMSY Orbit Motor are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
1.What's our advantages?
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
