BMR-BK01
Green Hydraulic
BMR-BK01
Standard export carton/plywood case
YES
ISO9001 CE
1 set

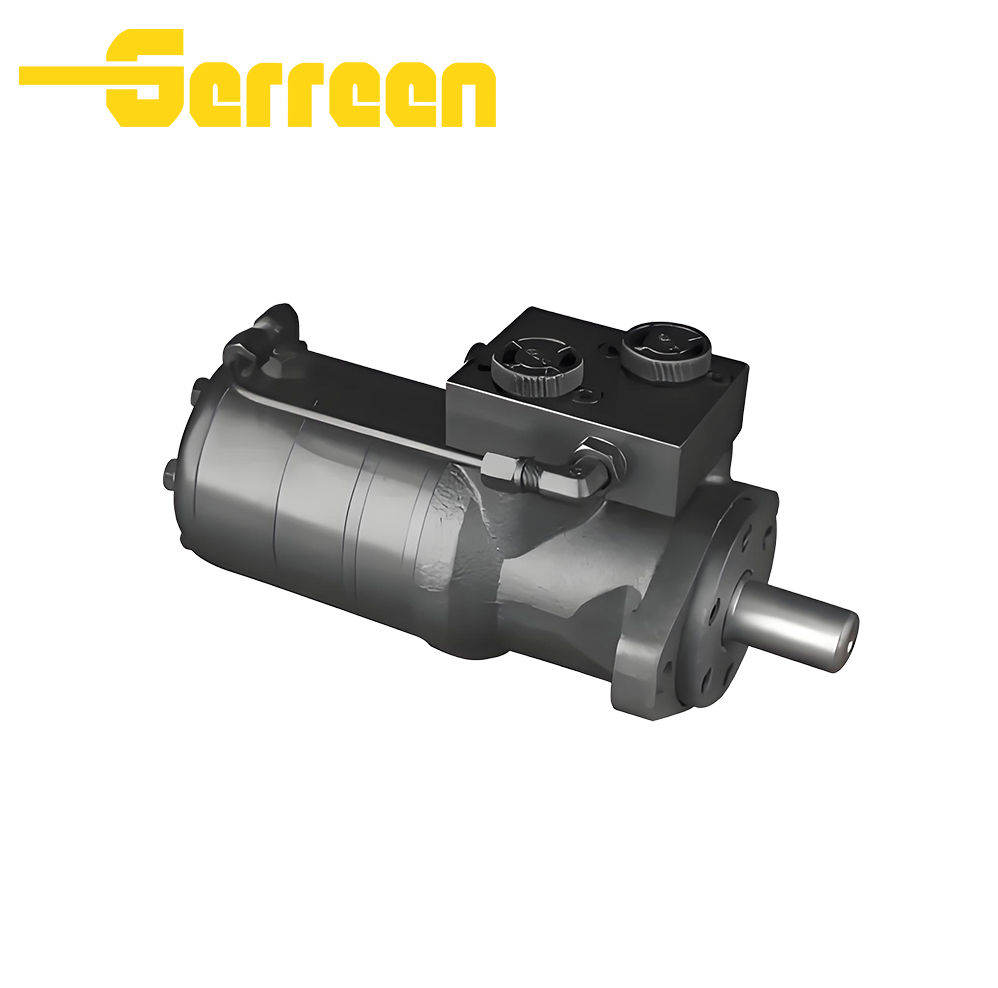

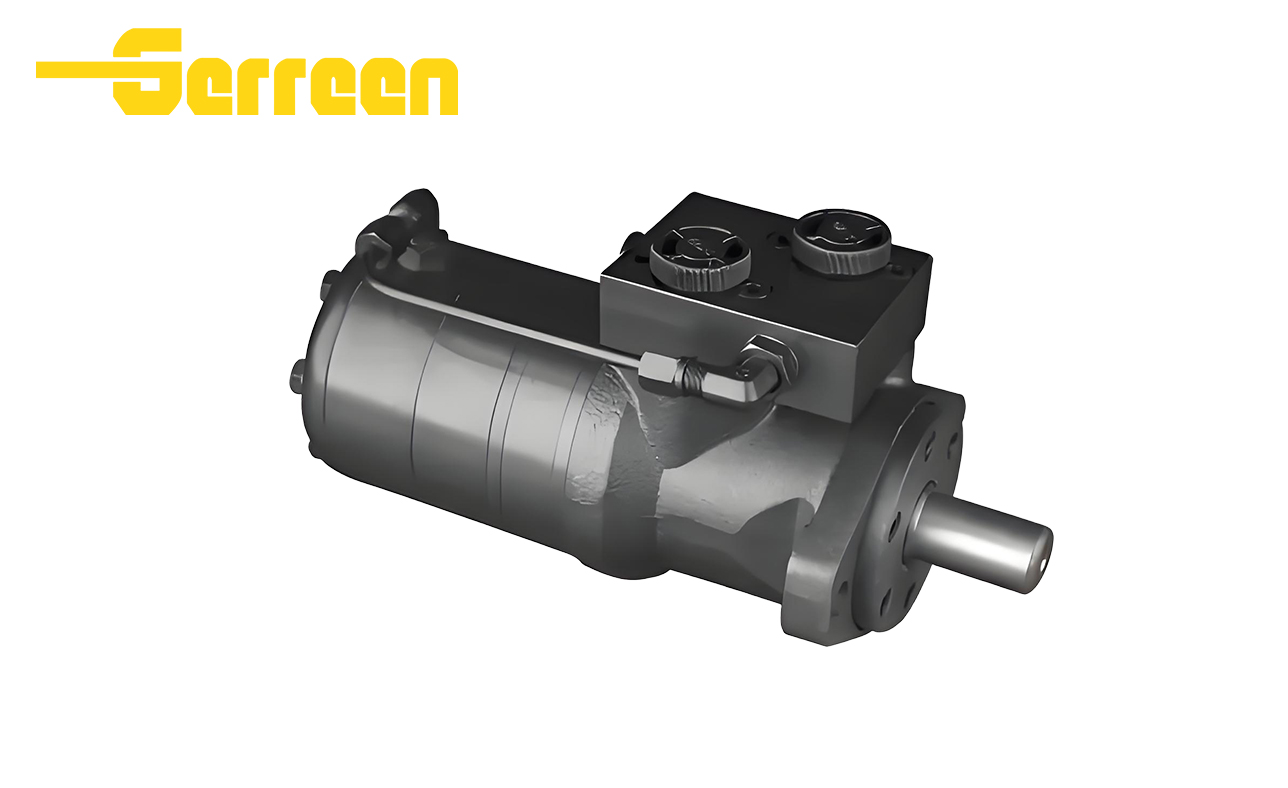

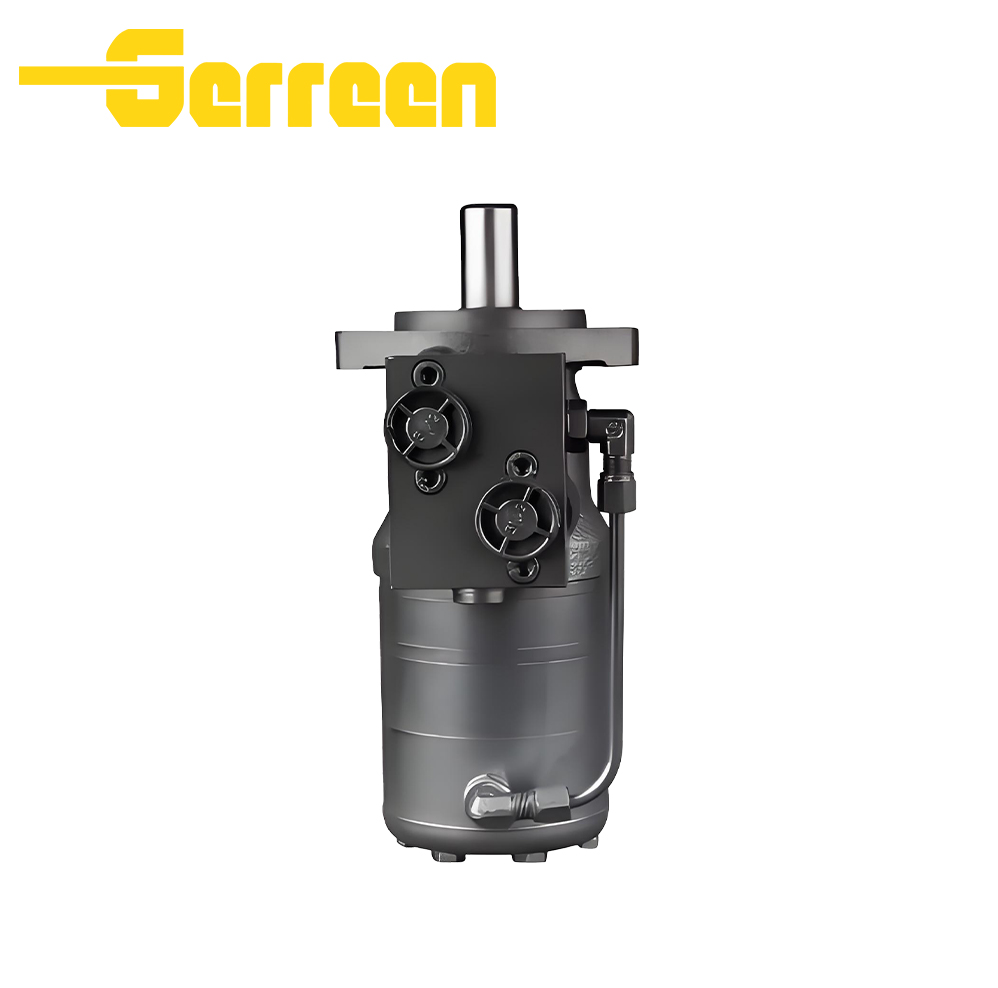

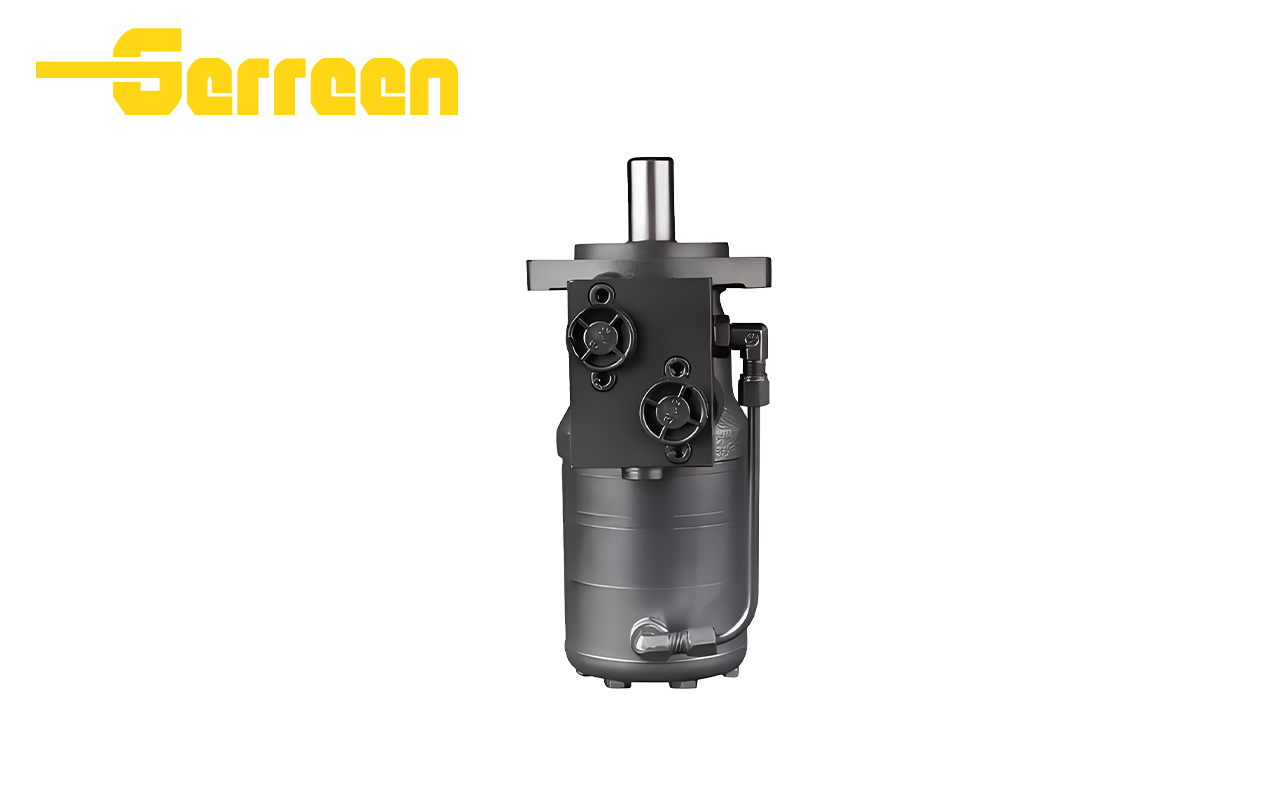

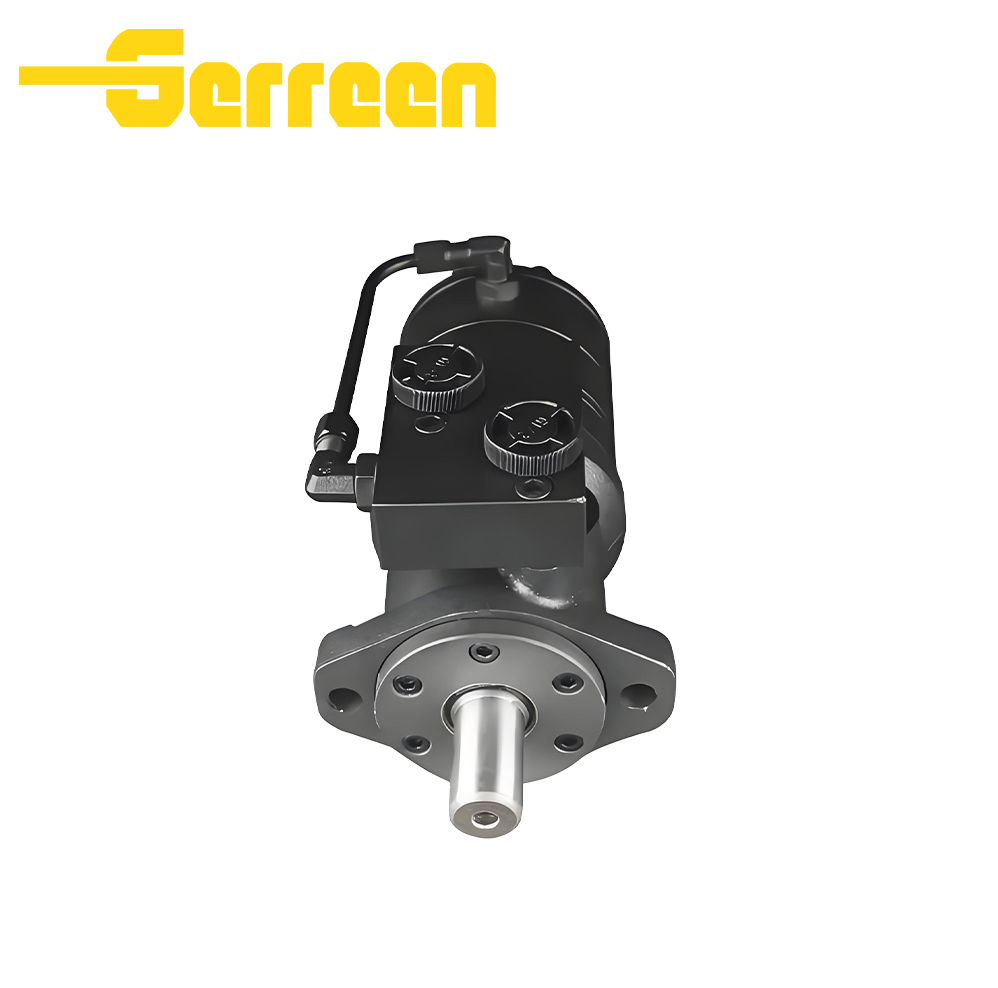

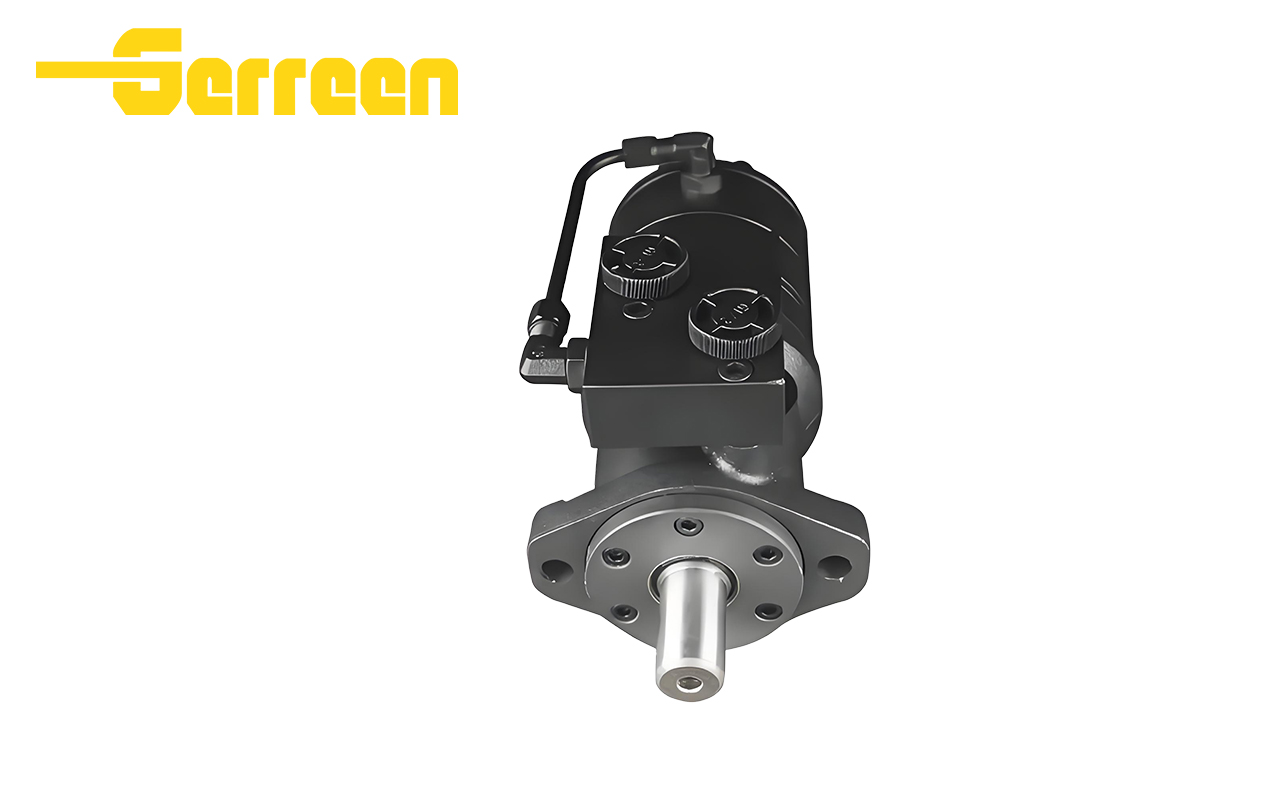

Product Description
Built-in mechanical brake lock, no sliding or drifting under load, higher safety
Disc valve distribution with automatic wear compensation, long service life and stable efficiency
Excellent low-speed performance without crawling and shaking
Heavy-duty bearing design for strong impact resistance and load capacity
Cast iron housing, durable and adaptable to harsh working conditions
Bidirectional rotation, easy installation and maintenance
Fully interchangeable with standard BMR-BK01 and OMR-BK01 series
Specifications
Structure: Disc-distributed geroler hydraulic motor with integrated mechanical brake lock
Displacement range: 80–370 cc/rev
Max continuous working pressure: 200 bar (2900 PSI)
Max intermittent peak pressure: 240 bar (3480 PSI)
Rated operating speed range: 40–750 rpm
Rotation mode: Bi-directional reversible
Bearing type: Heavy-duty tapered roller bearing for large radial & axial loads
Standard seal material: NBR nitrile rubber; FKM fluorine rubber optional for high temperature
Housing material: Integral cast iron, shock and wear resistant
Core design: Automatic wear compensation geroler group, ultra-low startup pressure
Unique function: Static locking brake, anti-slip positioning under load
Mounting: Standard flange, multiple spline & flat key shaft options
Applicable medium: Standard mineral hydraulic oil
Operating oil temperature: -20℃ ~ +80℃
Applications
Aerial work platforms: built-in brake prevents slipping during lifting positioning
Small lifting equipment & mini cranes: stable lock for suspended loads
Hydraulic winches: reliable static brake to avoid rope sliding
Sanitation machinery: road sweepers, snow removal vehicles
Garden & lawn equipment: riding lawn mowers, brush cutters
Agricultural machinery: fertilizer spreaders, farm augers, small harvesters
Forestry equipment: log grapples, small wood chippers
Mobile material handling machines: compact conveyors and wheel drive units
Other devices requiring anti-slide locking during operation
Factory&FAQ
BMR-BK01 Orbit Motor are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
1. What is the BMR-BK01 Orbit Motor?
It features an integrated mechanical brake lock, which locks position instantly and prevents slipping under load to boost operation safety.
Adopts disc distribution plus automatic wear compensation to maintain stable efficiency and extend service life.
Equipped with heavy-duty tapered roller bearings to withstand large radial and axial loads.
Ultra-low starting pressure ensures smooth rotation without crawling or vibration at low speed.
Solid cast iron housing is shockproof and wear-resistant for harsh outdoor working environments.
Supports bidirectional rotation with multiple flange and shaft options for flexible installation.
Fully interchangeable with mainstream BMR-BK01 and OMR-BK01 brake orbit motors for direct replacement.
3. What is the working pressure range of BMR-BK01 Orbit Motor ?
The maximum continuous working pressure of BMR-BK01 orbit motor is 200 bar (2900 PSI).
The maximum short-time intermittent peak pressure reaches 240 bar (3480 PSI).
4. Can BMR-BK01 Orbit Motor replace other brands?
Yes, the BMR-BK01 orbit motor can serve as a direct replacement for many well-known imported brake-type orbit motors.
It is fully interchangeable with Danfoss OMR brake series, Eaton JS brake orbit motors, M+S MR/MLHR brake models and other domestic BMR-BK01 equivalents.
Identified mounting flange, displacement, shaft size, oil port layout and built-in brake structure enable plug-and-play installation without modifying your equipment.
We supply optional customized spline shafts, flat key shafts and special port threads to match various original brand interfaces.
Our upgraded wear compensation and heavy-duty bearing design deliver better load capacity and longer service life than many original brand motors.
Before replacement, kindly confirm the displacement, flange standard, shaft specification and working pressure to achieve perfect matching.
6. What is the typical speed range of BMR-BK01 Orbit Motor ?
The typical operating speed range of BMR-BK01 orbit motor is 40 rpm to 750 rpm.
It maintains steady, vibration-free rotation at the minimum speed of 40 rpm without crawling.
750 rpm is its maximum rated speed under standard matched hydraulic flow.
You can adjust input oil flow to flexibly change its actual output rotating speed.
This wide speed range fits both low-speed heavy-load positioning work and high-speed light-load operation scenarios.
7. Do you provide OEM or customized services?
We offer full OEM and customized services for BMR-BK01 brake orbit motors.
OEM service supports customer exclusive logos, custom nameplates and neutral export packaging.
Customizable output shafts: flat key shafts, spline shafts and lengthened special shafts for special installation needs.
Seal upgrade available: replace standard NBR seals with FKM fluorine rubber for high-temperature working environments.
Customize flange dimensions, oil port thread types and matched auxiliary valve assemblies according to customer drawings.
Small trial orders with simple modifications are acceptable, and bulk orders enjoy competitive favorable prices.
8. How can I get a quotation quickly
Please provide the following details:
Model or displacement
Working pressure
Speed
Quantity
We will reply within 12 hours with a competitive quotation.
BMR-BK01 Orbit Motor are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
1.What's our advantages?
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
