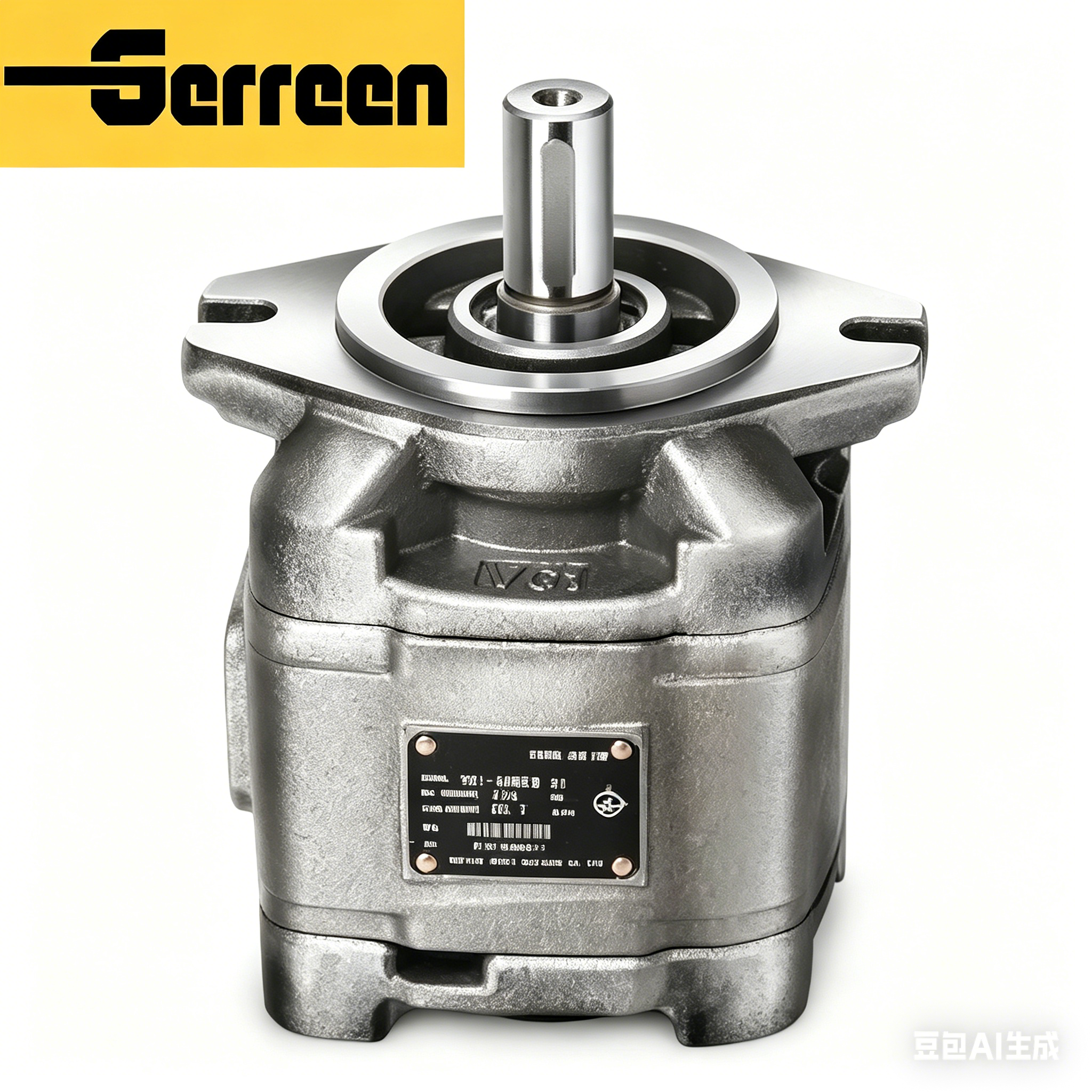

VG Series Gear Pump
Green Hydraulic
Yes
ISO9001，CE
1.Plastic machines 2.Shoe machines 3.Die-casting machinery 4.Forklifts
1.Plastic machines 2.Shoe machines 3.Die-casting machinery 4.Forklifts
Key Shaft and Spline shaft
1 set
Product Description

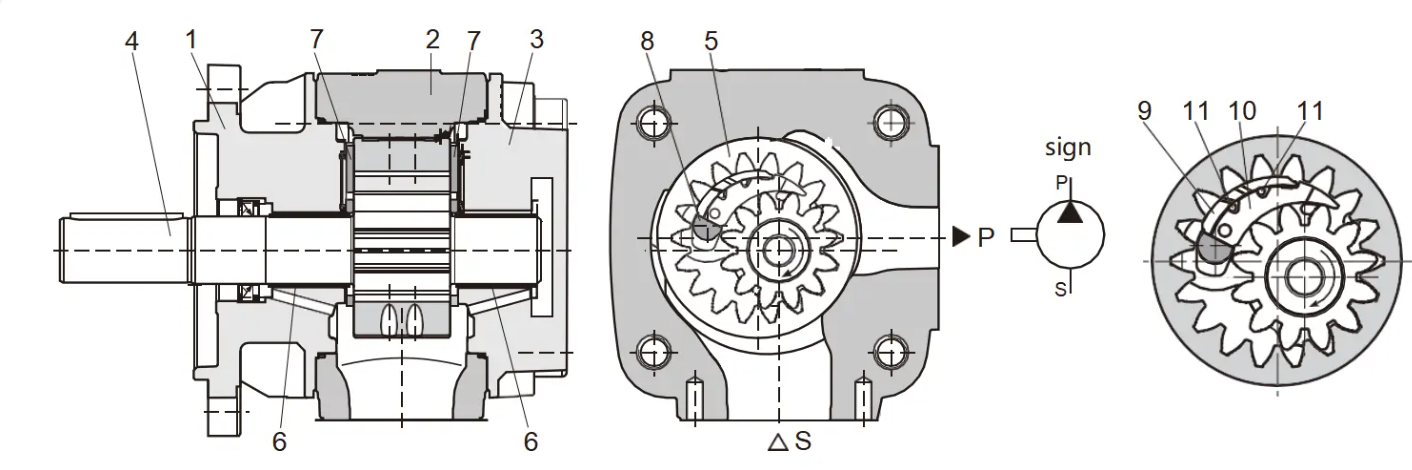

Adopts axial and radial pressure compensation design, ensuring high volumetric efficiency even at low speed and low viscosity.
Made of high-strength cast iron with optimized internal noise reduction structure, realizing ultra-low running noise.
Extremely low flow and pressure pulsation, maintaining stable pressure and flow output at low speed.
High-pressure design with maximum working pressure up to 35MPa.
Wide speed range, with the highest speed reaching 3000r/min.
Flexible combination design, can be arbitrarily assembled into a double pump.
Insensitive to hydraulic oil pollution, with excellent durability and long service life.
Widely applicable to hydraulic systems of plastic machines, shoe machines, die-casting machinery, forklifts and other equipment, especially suitable for servo inverter energy-saving drive systems.
Specifications
Item | Specification |
|---|---|
| Hydraulic oil | HLP - Mineral oil conforming to DIN 51524 Part 2 |
| HFC - Waterborne polymer solutions in accordance with DIN EN ISO 12922 1) 2) : Sealing design W | |
| HEES - Hydraulic oils according to DIN ISO 15380 1) | |
| HFD-U - Hydraulic fluid in accordance with VDMA 24317 1), DIN EN ISO 12922 1) | |
| Hydraulic oil temperature range | HLP hydraulic oil: -10 to +80 °C; For other temperature, please consult us |
| Special hydraulic oil: -10 to 50+ °C; For other temperatures, please consult us | |
| Ambient temperature range | -20 to +60 °C |
| Viscosity range (mm²/s) | 10 to 300 (to n = 1800 min⁻⊃1;) |
| 10 to 100 (to n = 3000 min⁻⊃1;) | |
| 2000 Allowable starting viscosity (400 to 1800 min⁻⊃1;) | |
| Maximum allowable contamination of hydraulic oil (ISO cleanliness grade of 4406) | Grade 20/18/15 |
Applications
Applications
1.Plastic machines
2.Shoe machines
3.Die-casting machinery
4.Forklifts
Factory & FAQ
VG pumps are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
The VG Series Gear Pump is widely used in construction machinery, agricultural equipment, forklifts, dump trucks, hydraulic power units, and industrial hydraulic systems. It is suitable for medium and high-pressure hydraulic transmission applications.

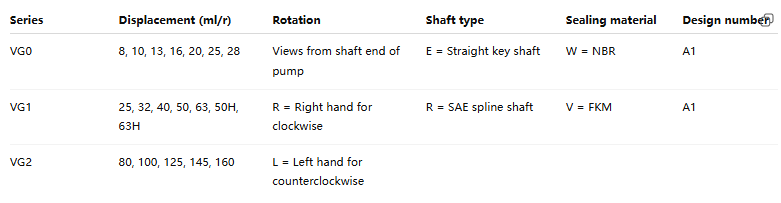

The VG Series offers multiple displacement options, including:
VG0: 8–28 ml/r
VG1: 25–63 ml/r
VG2: 80–160 ml/r
Different displacements can meet various flow and pressure requirements.
The VG Series supports both rotation directions:
R = Clockwise rotation
L = Counterclockwise rotation
Rotation direction is viewed from the shaft end of the pump.
The pump provides different shaft configurations, including:
Straight key shaft
SAE spline shaft
Customized shaft options may also be available according to customer requirements.
The VG Series is compatible with several hydraulic fluids, including:
Mineral hydraulic oil (HLP)
Waterborne polymer solutions (HFC)
Biodegradable hydraulic oil (HEES)
HFD-U hydraulic fluids
Different sealing materials such as NBR and FKM are available for different oil types and working conditions.
Recommended operating temperature ranges are:
Standard hydraulic oil: -10°C to +80°C
Special hydraulic oil: -10°C to +50°C
Ambient temperature: -20°C to +60°C
Standard mounting: ISO 3019/2 or SAE flange
Rotation direction: right-hand (clockwise)
No radial or axial load should be applied to the shaft
Proper installation is critical for performance and durability.
They are widely used in:
CNC machine tools
Injection molding machines
Hydraulic power units
Industrial automation systems
Press machinery
VG pumps are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.
All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.
To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.
Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
