CBD-F
Green Hydraulic
CBD-F
Standard export carton/plywood case
Yes
ISO9001，CE
• Industrial • Energy • Government (Non Aerospace) • HVAC • Mobile • Natural Resources • Transportation (Non Aerospace)
1. Industrial Hydraulic Systems 2. Mobile Equipment (Industrial Vehicles) 3. Construction and Engineering Machinery 4. Metallurgy Industry
Key Shaft and Spline shaft
1 set
Product Description

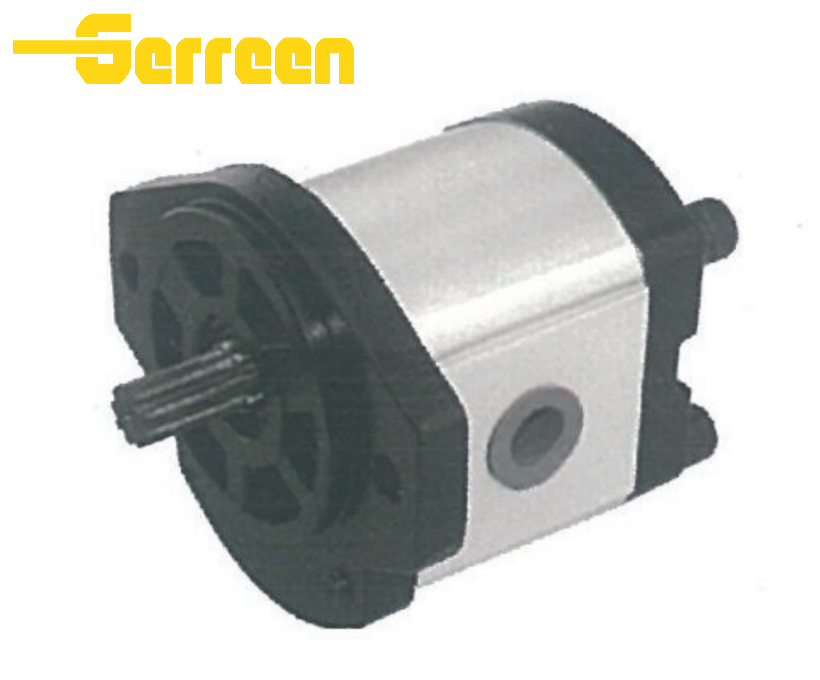

The CBD-F is a high-performance, fixed-displacement external gear pump engineered for compact hydraulic systems that demand reliable, cost-effective power delivery. Featuring a rugged, lightweight construction with high-efficiency gear geometry, the CBD-F is specifically designed to provide a strong power-to-weight ratio, making it an ideal choice for direct mounting to truck Power Take-Offs (PTOs) and mobile equipment where space is limited and dependable performance is critical.
Specifications
| Parameter | Specification |
| Pump Type | Fixed-displacement external gear pump |
| Construction | 3-piece, cast iron / high-strength aluminum alloy housing |
| Displacement Range | 1.1 – 100 cc/rev (0.067 – 6.10 cu in/rev) |
| Continuous Operating Pressure | Up to 20 MPa (2,900 psi) |
| Intermittent / Peak Pressure | Up to 22 MPa (3,200 psi) |
| Rated Speed Range | 500 – 3,000 rpm |
| Optimal Operating Speed | 1,500 – 2,500 rpm |
| Fluid Compatibility | Anti-wear (AW) mineral-based hydraulic oil |
| Recommended Viscosity | 20 – 30 cSt (100 – 150 SUS) at operating temperature |
| Cold Start Viscosity (Max) | 430 cSt (2,000 SUS) |
| Filtration Requirement | ISO 4406 18/16/13 cleanliness level or better |
| Mounting Flange Options | SAE “A” (2-bolt / 4-bolt), SAE “B” (4-bolt) |
| Shaft Options | 9T / 11T / 13T spline, keyed shaft |
| Port Orientation | Standard side and rear port configurations |
| Operating Temperature Range | -20 °C to +80 °C (-4 °F to +176 °F) |
| Efficiency (Volumetric) | ≥ 90% at rated pressure and speed |
| Noise Level | ≤ 75 dB(A) at 1,500 rpm |
Applications
Applications
Utility & Service Vehicles: Ideal for truck-mounted cranes, aerial lifts, and bucket trucks, where its compact design integrates seamlessly with Power Take-Off (PTO) units to deliver dependable lifting and positioning power.
Snow & Ice Control: Optimized for salt spreaders and snow plow systems, with durable construction that withstands corrosive environments and frequent duty cycles in winter maintenance operations.
Commercial Refuse & Recycling: Suited for small-frame garbage collectors and waste bin lifters, offering consistent high-cycle, high-pressure performance for rapid compaction and unloading tasks.
Small Material Handling: Perfect for truck tail-lifts, hydraulic ramp systems, and pallet jacks, providing a space-efficient, high-efficiency power source that maintains performance under heavy loads.
Agricultural Equipment: Commonly used in seeders, fertilizer spreaders, and farm implement systems, handling variable load shocks and fluid contamination typical of outdoor field environments.
Construction & Off-Road Machinery: Reliable power for small excavators, mini loaders, and concrete mixers, delivering stable flow for auxiliary hydraulic functions in compact equipment.
Factory&FAQ
CBD-F pumps are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
High-Strength Housing: Its rigid body minimizes internal deflection under pressure, maintaining tight clearances and extending service life in heavy-duty cycles.
Pressure-Balanced Bushing & Wear Plate Design: Advanced axial compensation reduces internal leakage and friction, improving efficiency and tolerance to fluid contamination compared to basic gear pump designs.
Flexible Installation Options: Standard with both side and rear ports, plus multiple SAE mounting configurations, the CBD-F offers greater installation flexibility in cramped chassis environments.
The CBD-F is a proven performer in medium-to-high pressure mobile systems. Depending on displacement, the series typically handles:
Continuous Pressure: Up to 2,900 PSI (200 bar).
Intermittent/Peak Pressure: Up to 3,200 PSI (220 bar).
This reliable pressure rating makes the CBD-F ideal for driving lifting, compaction, and auxiliary functions in utility and commercial vehicles.
Yes, the CBD-F is a high-quality, direct-fit alternative to many common gear pumps. It is often used as a replacement or upgrade for:
Parker PGP Series
Vickers G2 / G5 Series
Nachi IPH Series
Other popular SAE "A" / "B" flange gear pumps
To ensure a successful swap, verify the Mounting Flange (SAE A or B), Shaft Type (9/11/13-tooth spline or keyed), and Displacement (cc/rev) to match your existing system.
To protect the precision gears, bushings, and wear plates, the following is recommended:
Oil Type: Premium mineral-based hydraulic fluids with Anti-Wear (AW) additives.
Viscosity: ISO VG32 to VG68, with an optimal operating range of 20–30 cSt (100–150 SUS).
Filtration: A minimum cleanliness level of ISO 4406 18/16/13 is recommended to prevent abrasive particles from damaging internal components.
Yes, we support OEM and customization, including nameplate, packaging, and specific performance requirements. Send us your drawings or specifications for evaluation.
Please provide the following details:
Model or displacement
Working pressure
Speed
Quantity
We will reply within 12 hours with a competitive quotation.
CBD-F series pumps are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.
All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.
To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.
Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
