CBS-D Series Hydraulic Gear Pump Suppliers

The CBS‑D series are high‑pressure, compact hydraulic gear pumps designed as power units for medium‑duty hydraulic systems. Built with high‑precision gears, high‑strength aluminum alloy housing and floating shaft sleeves, they deliver high efficiency, low noise, light weight and reliable operation.

Model:
CBS-D
Brand:
Green Hydraulic
Model Number:
CBS-D
Packaging Details:
Standard export carton/plywood case
Testing Before Shipment:
Yes
Cartification:
ISO9001，CE
Markets:
• Industrial • Energy • Government (Non Aerospace) • HVAC • Mobile • Natural Resources • Transportation (Non Aerospace)
Application:
1. Industrial Hydraulic Systems 2. Mobile Equipment (Industrial Vehicles) 3. Construction and Engineering Machinery 4. Metallurgy Industry
Shaft Type:
Key Shaft and Spline shaft
MOQ:
1 set


Availability:



Inquiry

Product Description

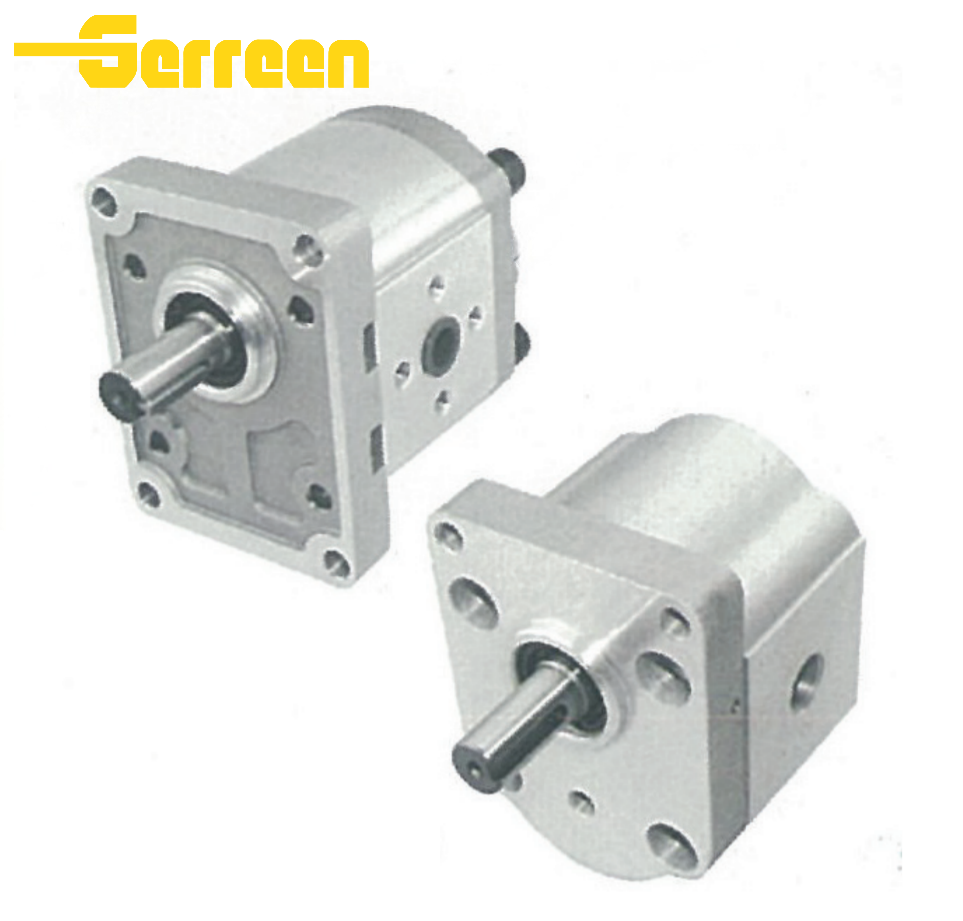

CBS-D Series Gear Pump Overview

The CBS‑D is a high‑efficiency, fixed‑displacement external gear pump engineered for reliable performance in compact hydraulic systems that demand cost‑effective, consistent power output. Built with a robust, lightweight aluminum alloy housing and precision‑ground gear sets, the CBS‑D delivers an excellent power‑to‑weight ratio, making it an ideal choice for direct mounting to truck Power Take‑Offs (PTOs) and other mobile equipment where space is at a premium and dependable operation is non‑negotiable.

CBS-D

Features and Benefits

Rugged High‑Strength Aluminum Alloy Construction:
The CBS‑D is built with high‑tensile, corrosion‑resistant aluminum alloy bodies and covers, providing superior structural rigidity while maintaining a light footprint. This construction minimizes internal deflection under high‑pressure duty cycles, ensuring stable performance and extended service life in harsh working environments.
High‑Performance Precision Gear Design:
Utilizing precision‑machined, hardened steel gears, the CBS‑D offers smooth, low‑noise operation and consistent volumetric efficiency. The tight‑tolerance gear design reduces internal leakage, delivering reliable flow even at elevated pressures and speeds.
Advanced Pressure‑Balanced Shaft Sleeve Technology:
Equipped with pressure‑compensated shaft sleeves, the CBS‑D automatically optimizes internal clearances between gear faces and the housing. This minimizes fluid bypass and friction, ensuring exceptional mechanical efficiency and consistent power delivery across all operating temperatures.
Superior High‑Pressure Capability:
Despite its compact footprint, the CBS‑D is engineered to handle continuous operating pressures of up to 1,450 psi (100 bar) (peak pressure up to 1,800 psi / 125 bar). Its high‑strength components allow it to power a wide range of hydraulic actuators and circuits with smooth, reliable flow.
Modular Versatility and Installation Flexibility:
The CBS‑D series offers a versatile range of displacements (from 4 to 25 cc/rev) and supports common mounting configurations, including standard threaded and SAE port connections. With multiple shaft options (keyed, splined, and flat) and both side and rear porting designs, it provides unmatched installation flexibility for cramped chassis environments and specialized mobile applications.

Specifications

Model Codes

Technical Data

Parameter	Value
Pump Type	Fixed-displacement external gear pump
Construction	High-strength aluminum alloy housing with pressure-balanced shaft sleeves
Displacement Range	4 – 25 cc/rev (0.24 – 1.53 in⊃3;/rev)
Continuous Pressure Rating	100 bar (1,450 psi)
Intermittent/Peak Pressure	125 bar (1,800 psi)
Rated Speed Range	600 – 3,000 rpm
Maximum Volumetric Efficiency	≥ 90% (at rated pressure and speed)
Operating Temperature Range	-20°C to +80°C (-4°F to +176°F)
Recommended Fluid Viscosity	20 – 30 cSt (100 – 150 SUS) at operating temperature
Filtration Requirement	ISO 4406 18/16/13 minimum
Shaft Options	Keyed, splined, or flat drive shafts
Port Configurations	SAE or threaded ports; side/rear porting available
Rotation	Bidirectional (clockwise or counter-clockwise)

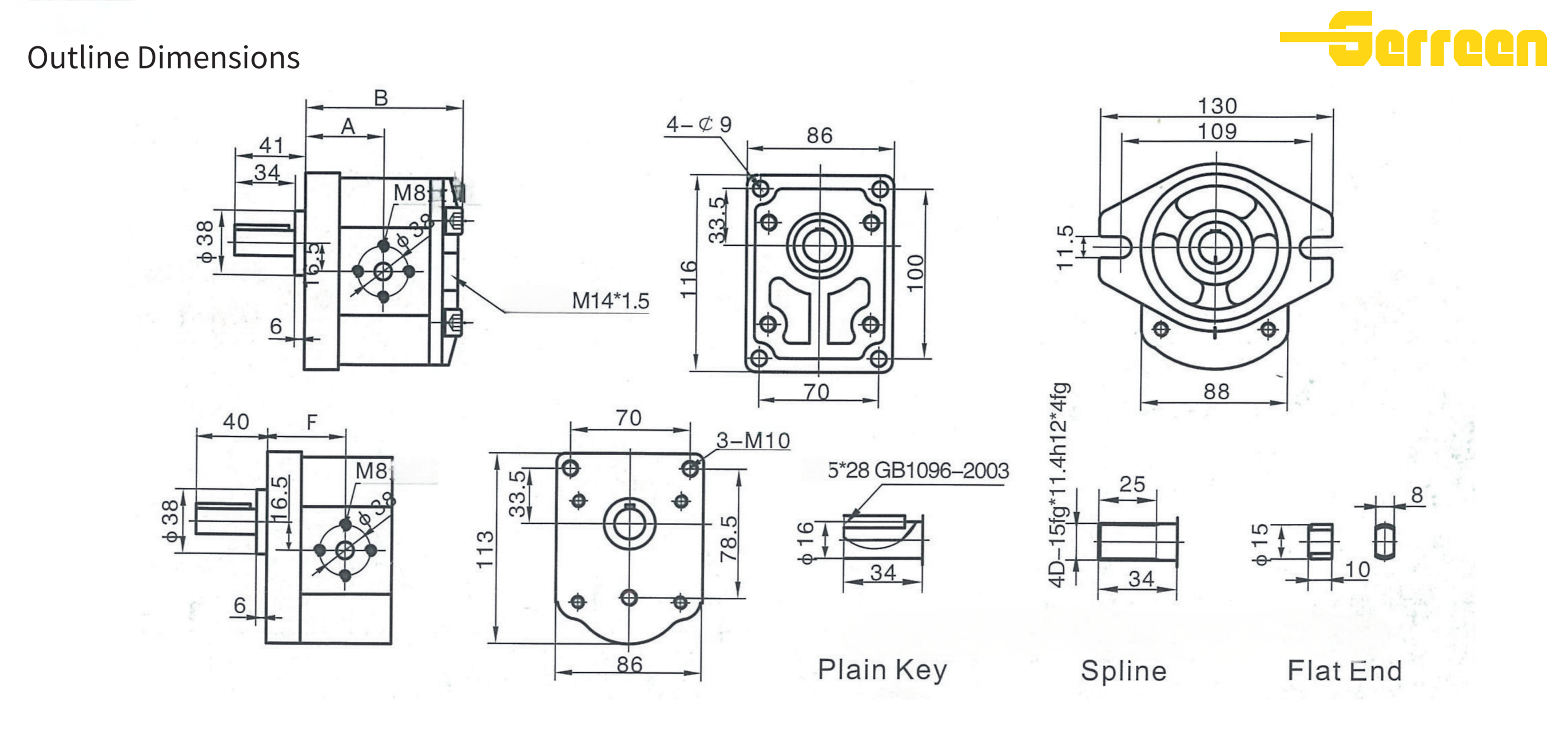

CBS-D Hydraulic Gear Pump Installation Dimensions

Applications

Applications

The CBS‑D series provides a compact, reliable hydraulic power solution specifically tailored for light‑to‑medium duty mobile and truck‑mounted applications where space is at a premium and consistent performance is required:

Utility & Service Vehicles:
A cost‑effective choice for light truck‑mounted cranes, bucket trucks, and small aerial lifts, where the compact CBS‑D footprint integrates easily with PTO units to deliver dependable lifting and positioning power.
Snow & Ice Control:
Optimized for small salt spreaders and light‑duty plow systems, where the robust aluminum construction and pressure‑balanced design ensure long‑term durability against moisture, temperature swings, and frequent winter‑use cycles.
Commercial Refuse & Recycling:
Widely used in small‑frame garbage collectors and waste bin lifters that require steady, high‑cycle pressure to manage compaction and unloading operations.
Small Material Handling:
Ideal for truck tail‑lifts, hydraulic ramp systems, and electric pallet jacks, offering a lightweight, space‑efficient power source that maintains high efficiency under repeated heavy‑load conditions.
Specialized Agricultural Equipment:
Frequently employed in seeders, fertilizer spreaders, and light implement steering systems, where the CBS‑D handles variable load shocks and moderate fluid contamination common in outdoor field environments.
Construction & Maintenance Tools:
Suitable for powering portable hydraulic tools, small concrete mixers, and light‑duty construction equipment, providing reliable flow for compact, on‑site hydraulic circuits.

Factory&FAQ

Packaging & Delivery

CBS-D pumps are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

CBS-D Series Gear Pump FAQ

1. What are CBS-D series gear pumps

The CBS‑D is a reliable, fixed‑displacement gear pump designed as a core component for compact, light‑to‑medium duty hydraulic systems. Featuring a lightweight, high‑strength aluminum alloy construction, it is specifically engineered for applications requiring a good power‑to‑weight ratio and dependable performance, particularly when direct‑mounted to truck Power Take‑Offs (PTOs).

2. What makes the CBS-D series pumps different from standard gear pumps

The CBS‑D is built for consistent performance and value in light‑to‑medium duty environments where cost and weight are key considerations:

Lightweight, Corrosion‑Resistant Housing: The high‑tensile aluminum alloy body offers an excellent balance of strength and low weight, making it ideal for mobile applications where payload is a concern.
Pressure‑Balanced Shaft Sleeve Design: It utilizes advanced, pressure‑compensated shaft sleeves that optimize internal clearances, minimizing leakage and maintaining high volumetric efficiency across varying pressures and temperatures.
Modular Installation Versatility: Available with multiple port configurations (side and rear) and mounting options, the CBS‑D offers greater installation flexibility in cramped chassis environments than basic fixed‑design pumps.

3. What is the working pressure range of CBS-D series pumps

The CBS‑D is a compact performer for medium‑pressure applications. Depending on the specific displacement, the series typically handles:

Continuous Pressure: Up to 1,450 PSI (100 bar).
Intermittent/Peak Pressure: Up to 1,800 PSI (125 bar).

This pressure rating makes the CBS‑D ideal for driving lifting, tail‑lift, and material handling systems on light‑duty utility vehicles and equipment.

4. Can CBS-D series pumps replace other brands

Yes, the CBS‑D is a cost‑effective alternative to many standard aluminum gear pumps. It is often used as a direct replacement or upgrade for pumps in similar displacement ranges, such as:

Parker PGP Series
Vickers VGP Series
Other common SAE‑mounted gear pumps

To ensure a successful swap, verify the Mounting Flange (SAE A or B), Shaft Type (keyed or splined), and Displacement (cc/rev) to match your existing system.

5. What hydraulic oil is suitable for CBS-D series gear pumps

To protect the precision gears and shaft sleeves, the following is recommended:

Oil Type: Premium mineral‑based hydraulic fluids with strong Anti‑Wear (AW) additive packages.
Viscosity: Standard ISO VG32 to VG68. The optimal operating range is 100 to 150 SUS (20 to 30 cSt), though it can handle cold starts up to 2,000 SUS (430 cSt).
Filtration: Cleanliness is vital for long pump life. A minimum filtration of ISO 4406 18/16/13 is recommended to prevent abrasive particles from damaging the gear faces and sleeves.

6. What is the typical speed range of CBS-D series pumps

The CBS‑D is designed for reliable operation at typical mobile equipment speeds. The standard operating range is 600 to 3,000 RPM, with maximum continuous speeds depending on the specific model and displacement.

7. Do you provide OEM or customized services

Yes, we support OEM and customization, including nameplate, packaging, and specific performance requirements. Send us your drawings or specifications for evaluation.

8. How can I get a quotation quickly

Please provide the following details:

Model or displacement
Working pressure
Speed
Quantity
We will reply within 12 hours with a competitive quotation.

Certifications & Quality Assurance

CBS-D series pumps are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.

FAQ

1.How does the variable displacement work?

The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.

2.What's our advantages?

Factory established in 2005;

With a great deal of production experience;

80+ employees become the professional team;

Constant updated ERP system ensure efficiency of work;

Sophisticated equipment ehanced the accuracy of products;

Professional salesmen provide the greast service;

With a large number of famous customers all over the world;

Great after-sales service;

With the long term cooperation with famous logistics and express company in China,provide the better goods service.

3.What is your payment terms?

Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.

4.Can you make my own brand on the products?

Of course we can. Just send me your logo we can make it for you.

5.What is our main export market?

America(40.5%):USA, Canada, Argentina, Brazil

Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.

Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.

Others(5.8%).

Unedited footage of the Green Hydraulic Factory

The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.

The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.

Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.

Unedited footage of the Green Hydraulic Factory3

All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.

Unedited footage of the Green Hydraulic Factory4

To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.

Unedited footage of the Green Hydraulic Factory5

Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
