CBW-F
Green Hydraulic
CBW-F
Standard export carton/plywood case
Yes
ISO9001，CE
• Industrial • Energy • Government (Non Aerospace) • HVAC • Mobile • Natural Resources • Transportation (Non Aerospace)
1. Industrial Hydraulic Systems 2. Mobile Equipment (Industrial Vehicles) 3. Construction and Engineering Machinery 4. Metallurgy Industry
Key Shaft and Spline shaft
1 set
Product Description

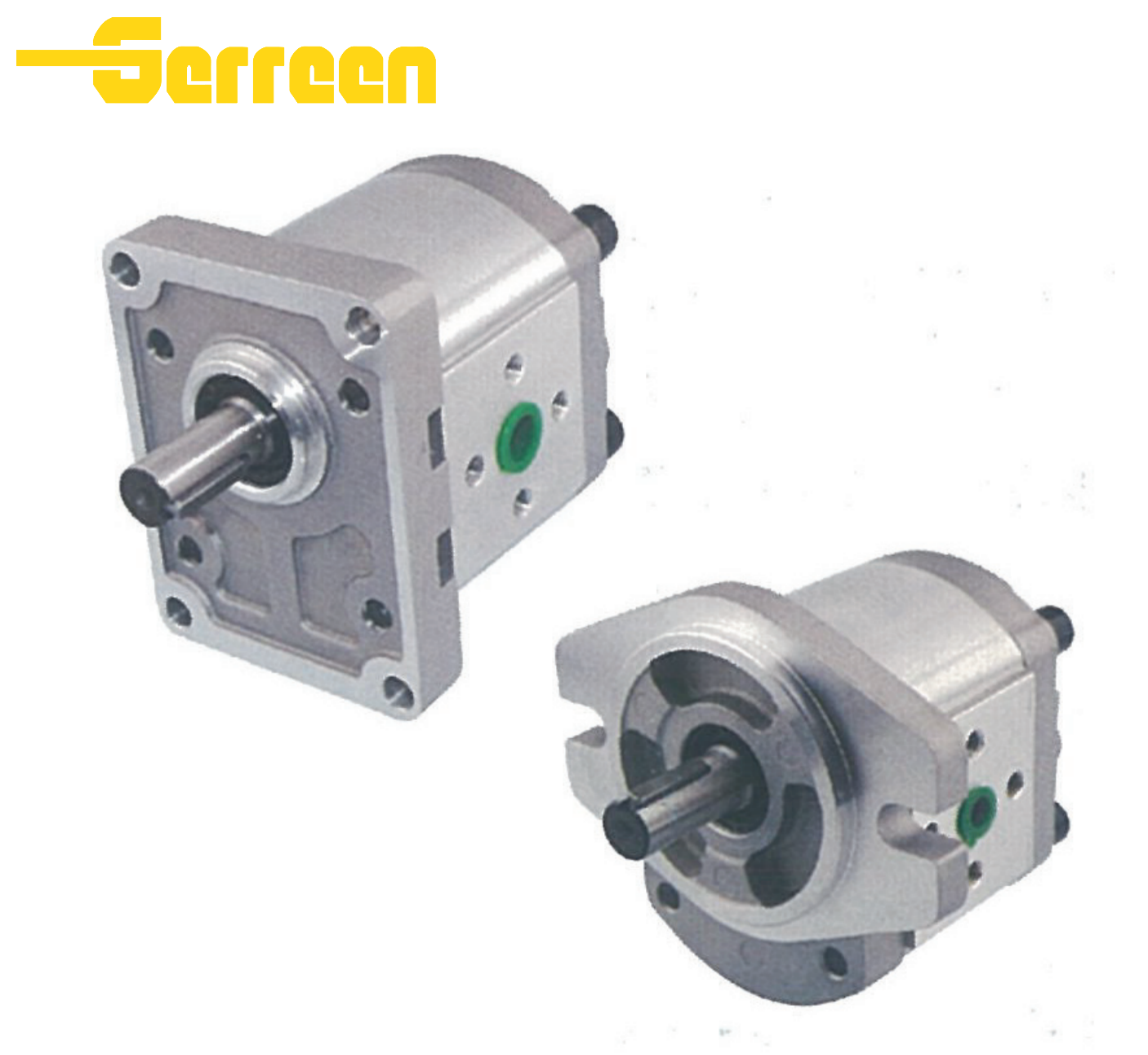

The CBW-F series is a high-performance, fixed-displacement external gear pump engineered for compact hydraulic systems requiring reliable medium-to-high pressure output. Featuring a rugged cast iron or high-strength aluminum alloy construction, the CBW-F is specifically designed to deliver a high power-to-weight ratio, making it an ideal choice for direct mounting in agricultural machinery, construction equipment, and material-handling systems where space is limited and dependable performance is non-negotiable.
Specifications
| Parameter | Specification |
| Type | Fixed-displacement external gear pump |
| Construction | 2-piece aluminum alloy housing, cast iron optional |
| Pressure Rating | Continuous: up to 20 MPa (2900 psi); Intermittent: 25 MPa (3625 psi) |
| Speed Range | 600–3000 rpm (standard) |
| Temperature Range | -20°C to +80°C (-4°F to +176°F) |
| Fluid Viscosity | 10–1000 cSt (optimum 20–100 cSt) |
| Filtration Requirement | ≤ 25 μm |

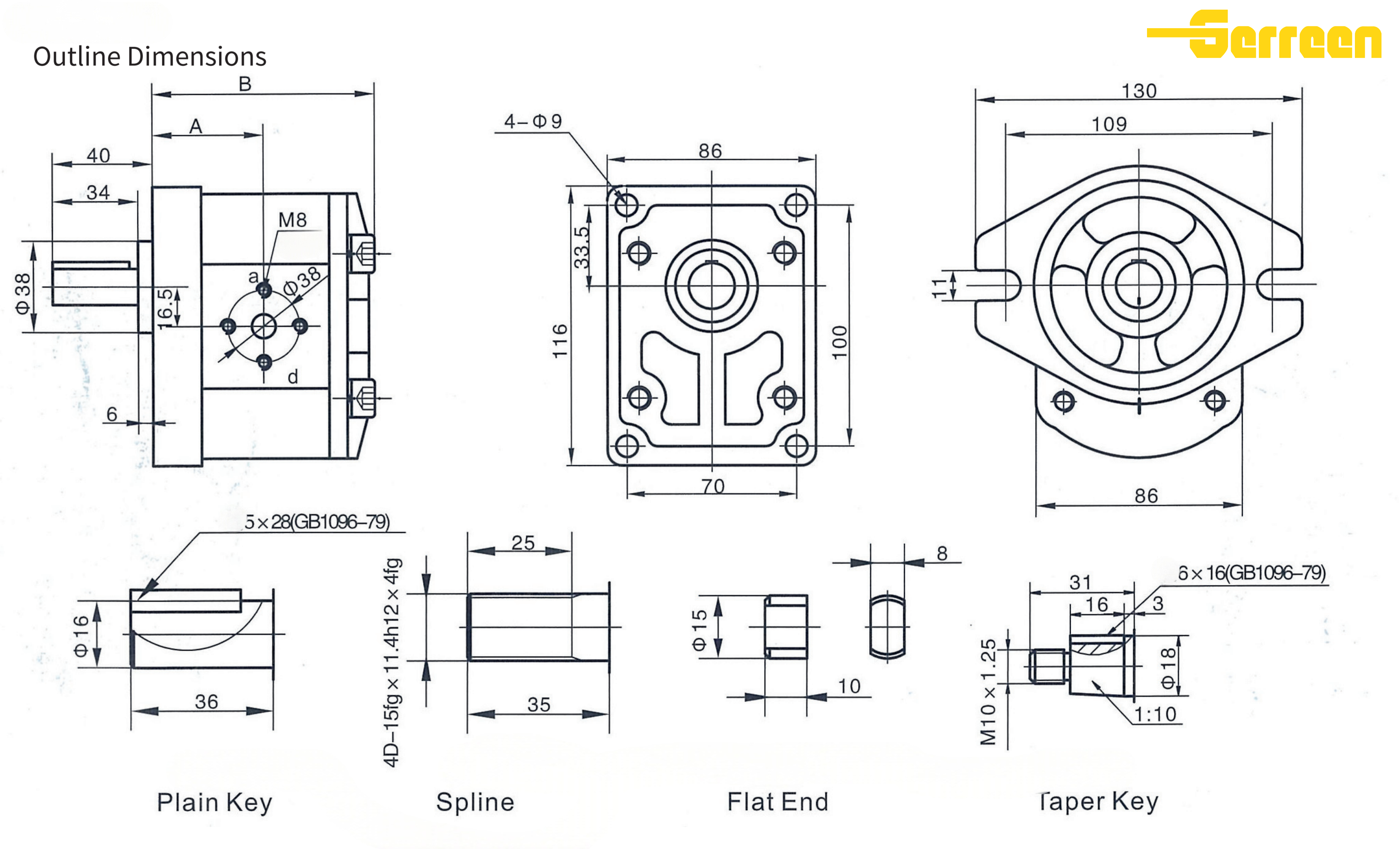

| Mounting Flange | SAE "A" / "B" standard or custom rectangular/diamond flange |
| Port Type | Side or rear threaded/SAE flange connections |
| Rotation | Clockwise (CW) or counterclockwise (CCW) |
Applications
Applications
Agricultural Machinery: A preferred choice for tractors, harvesters, seeders, and fertilizer spreaders, where the CBW-F delivers consistent power for steering, lifting, and implement control systems in demanding outdoor conditions.
Construction Equipment: Ideal for small excavators, skid-steer loaders, concrete mixers, and road maintenance machinery, offering durable performance under high-cycle, variable-load operations.
Material Handling Systems: Widely used in forklifts, pallet trucks, truck tail-lifts, and hydraulic ramp systems, providing efficient power for lifting and handling heavy loads in warehouses and logistics applications.
Utility & Service Vehicles: Suitable for truck-mounted cranes, aerial work platforms, and bucket trucks, where its compact design integrates seamlessly with PTO units to support lifting and positioning functions.
Industrial & Environmental Equipment: Commonly applied in small hydraulic presses, waste compactors, and recycling machinery, delivering stable pressure for compression, ejection, and material processing tasks.
Specialized Mobile Systems: Optimized for snow plows, salt spreaders, and light-duty utility vehicles, where its robust construction resists corrosion and maintains reliability in harsh, high-frequency operating environments.
Factory&FAQ
CBW-F pumps are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
Pressure-Balanced Design: Equipped with advanced wear plates that automatically compensate for axial clearance, minimizing internal leakage and maintaining high volumetric efficiency across all operating conditions.
High-Efficiency Gears: Precision-ground gears reduce noise and vibration, while optimized tooth profiles improve fluid flow and reduce pressure ripple.
Modular Versatility: Available with a wide range of displacements, port configurations, and mounting options, offering greater adaptability to different system requirements than many standard gear pumps.
Continuous Pressure: Up to 20 MPa (2,900 PSI).
Intermittent/Peak Pressure: Up to 25 MPa (3,625 PSI).
This robust pressure rating makes the CBW-F ideal for powering lifting, compacting, and actuation systems in agricultural, construction, and material-handling machinery.
Parker/Commercial PGP Series
Nachi IPH Series
Vickers VGP Series
To ensure a successful swap, verify the Mounting Flange (SAE A/B or other), Shaft Type (keyed, splined), and Displacement (cc/rev) to match your existing system’s specifications.
Oil Type: Premium mineral-based hydraulic fluids with strong Anti-Wear (AW) and anti-foam additive packages.
Viscosity: Standard ISO VG32 to VG68. The optimal operating range is 20–50 cSt, though it can handle cold starts up to 400 cSt.
Filtration: Cleanliness is vital for long service life. A minimum filtration of ISO 4406 18/16/13 (10–25 μm) is recommended to prevent abrasive particles from damaging the gear faces and bearings.
Minimum Speed: 600 rpm (to ensure proper lubrication and flow).
Rated Speed: 1500–2000 rpm (standard for optimal efficiency).
Maximum Speed: Up to 3000 rpm (depending on model and pressure).
Operating outside this range can reduce efficiency, increase noise, or shorten service life.
Yes, we support OEM and customization, including nameplate, packaging, and specific performance requirements. Send us your drawings or specifications for evaluation.
Please provide the following details:
Model or displacement
Working pressure
Speed
Quantity
We will reply within 12 hours with a competitive quotation.
CBW-F series pumps are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.
All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.
To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.
Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
