Product Description

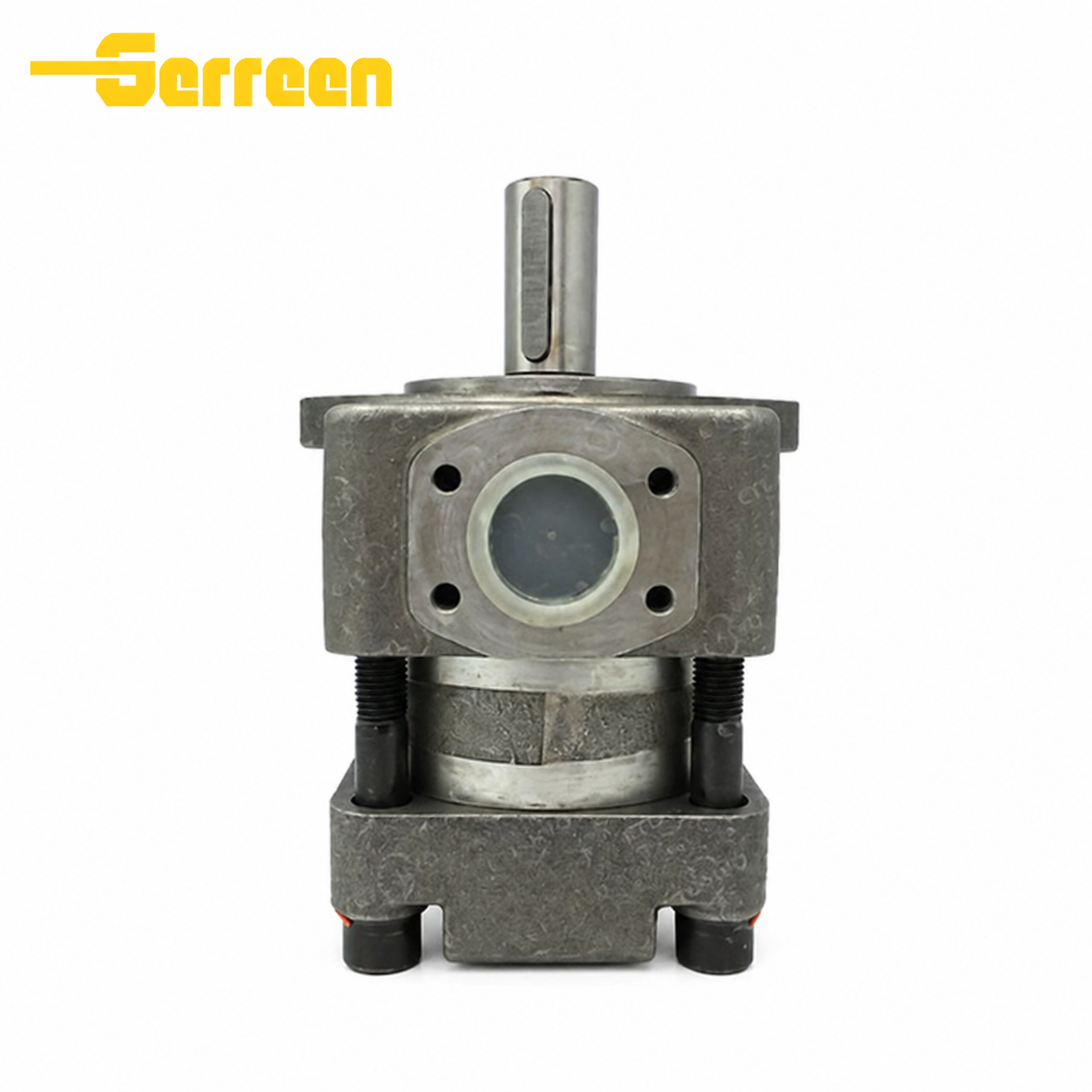

QT Internal Gear Pumps are engineered for high efficiency, stable pressure control, and long service life. Designed with a pressure-compensated variable displacement mechanism, these pumps automatically adjust output flow according to system demand, making them an ideal solution for modern energy-saving hydraulic systems.
Durable Design: Built with high-quality materials, the QT Internal Gear Pump ensures longevity and reliability in demanding industrial environments.
Compact and Efficient: Despite its compact design, the pump delivers high efficiency with minimal maintenance needs, making it ideal for systems where space and energy efficiency are critical.
Smooth Operation: The internal gear mechanism allows for quieter operation with low vibration, ensuring smooth functionality even at high speeds.

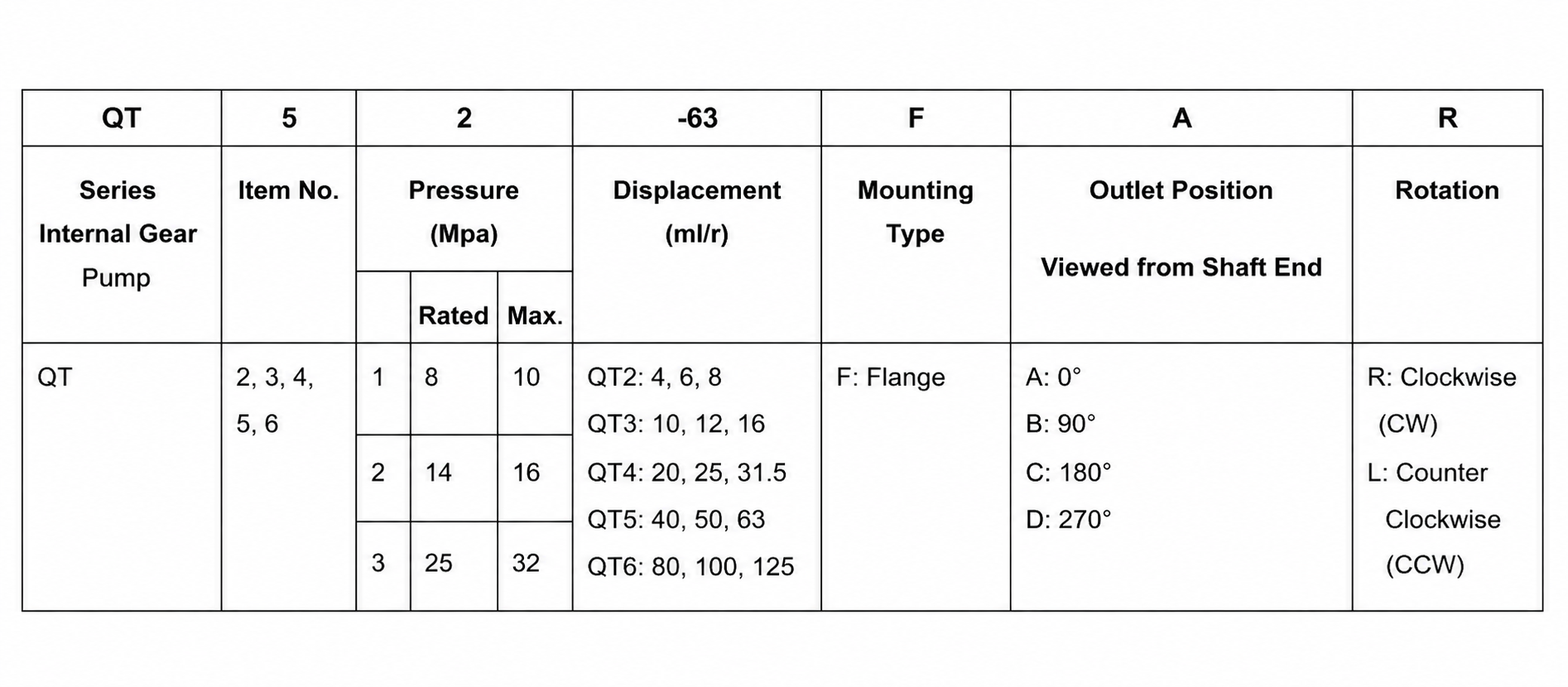

Model Codes
| Model | Work Pressure (kgf/cm²) | Power N KW | Flow/min when no loads | 60HZ | 50HZ |
|---|---|---|---|---|---|
| Rate PR | Max MP | Rate pressure and 1500rpm's | 6P motor | 4P motor | |
| Q23-4 | 250 | 320 | 3 | 1200rpm | 1800rpm |
| QT23-5 | 250 | 320 | 3.5 | 6.5 | 9.8 |
| QT23-6.3 | 250 | 320 | 4.3 | 7.9 | 11.9 |
| QT23-8 | 250 | 320 | 5.4 | 9.8 | 14.8 |
| QT33-10 | 250 | 320 | 6.8 | 11.9 | 17.9 |
| QT33-12.5 | 250 | 320 | 8.6 | 15 | 22.6 |
| QT33-16 | 250 | 320 | 10.6 | 18.6 | 26.2 |
| QT43-20 | 250 | 320 | 13.7 | 24.1 | 36.3 |
| QT43-25 | 250 | 320 | 16.8 | 29.9 | 45.9 |
| QT43-31.5 | 250 | 320 | 21.6 | 38.5 | 57.9 |
| QT53-40 | 250 | 320 | 26.1 | 45.7 | 70.3 |
| QT53-50 | 250 | 320 | 33.5 | 60.3 | 90.6 |
| QT53-63 | 250 | 320 | 41.9 | 75.9 | 114 |
| QT63-80 | 250 | 320 | 52.7 | 95.6 | 143.7 |
| QT63-100 | 250 | 320 | 66.1 | 120.3 | 181.2 |
| QT63-125 | 250 | 320 | 81.3 | 149 | 223.8 |
Applications
Compact Design: The QT gear pump’s small form factor makes it ideal for use in space-constrained environments, such as machinery and equipment.
Efficiency: The pump delivers high performance with low power consumption, making it ideal for continuous operations in industrial and agricultural settings.
QT Internal Gear Pumps are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
1. What industries use the QT Internal Gear Pump?
The QT Internal Gear Pump is widely used in industries such as construction, agriculture, manufacturing, material handling, marine, and oil & gas. Its versatility makes it suitable for hydraulic systems in machines like tractors, forklifts, excavators, and more.
The QT Internal Gear Pump can typically handle a maximum pressure of up to 320 bar (4640 psi), depending on the specific model and configuration. This makes it ideal for high-pressure applications in heavy-duty machinery.
High Efficiency: It offers high efficiency in hydraulic fluid flow, leading to better overall performance in various hydraulic systems.
Compact Design: Its compact size ensures that it can be used in space-constrained environments.
Durability: The robust design and high-quality materials ensure long-term reliability and minimal maintenance.
The QT Internal Gear Pump commonly uses flange mounting, which ensures easy installation and secure attachment to the hydraulic system. Some models may also offer other mounting configurations, depending on the application.
The QT Internal Gear Pump offers a wide range of displacements to meet various hydraulic system requirements. Displacement ranges typically vary from as low as 0.5 ml/r to 7.8 ml/r, depending on the model (QT2, QT3, QT4, etc.).
Yes, we support OEM and customization, including nameplate, packaging, and specific performance requirements. Send us your drawings or specifications for evaluation.
Please provide the following details:
Model or displacement
Working pressure
Speed
Quantity
We will reply within 12 hours with a competitive quotation.
The QT Internal Gear Pumps are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.
All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.
To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.
Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
