3PG
Green Hydraulic
Yes
ISO9001，CE
• Industrial • Energy • Government (Non Aerospace) • HVAC • Mobile • Natural Resources • Transportation (Non Aerospace)
1.Construction Equipment 2.Agricultural Machinery 3.Material Handling 4.Industrial Machinery
Key Shaft and Spline shaft
1 set
Product Description

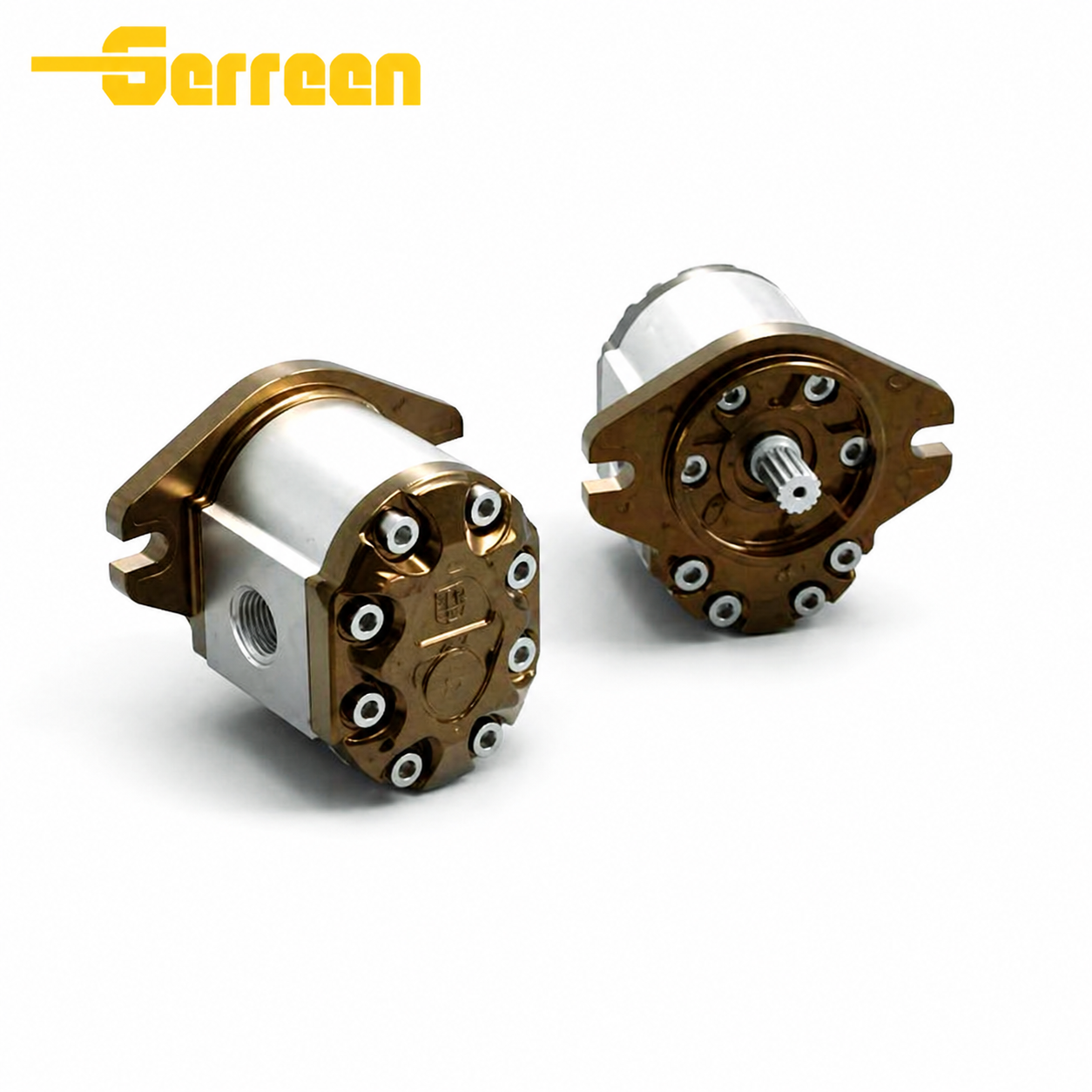

3PG Hydraulic Gear Pumps are engineered for high efficiency, stable pressure control, and long service life. Designed with a pressure-compensated variable displacement mechanism, these pumps automatically adjust output flow according to system demand, making them an ideal solution for modern energy-saving hydraulic systems.
Durable Construction: Made from high-quality materials to ensure long-lasting performance in demanding environments.
High Efficiency: Optimized for better fluid flow, improving the overall energy efficiency of the system.
Compact Design: Small and lightweight, making it ideal for applications where space is limited.
Increased System Longevity: The robust design minimizes wear and tear, extending the life of both the pump and the hydraulic system.
Cost-Effective: Energy-efficient design helps reduce operating costs over time.
GROUP | DISPLACEMENT (CM⊃3;/REV) | DISPLACEMENT (IN⊃3;/REV) | MAX. WORKING PRESSURE (P1) | MAX. WORKING PRESSURE (P2) | MAX. WORKING PRESSURE (P3) | MAX. SPEED (rpm) | MAX. FLOW (L/min) | MAX. FLOW (Gal/min) | MIN. SPEED (rpm) | MIN. FLOW (L/min) | MIN. FLOW (Gal/min) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 3GP 190 | 19.3 | 1.2 | 250 bar (3625 psi) | 270 bar (3915 psi) | 300 bar (4350 psi) | 3500 rpm | 67.6 L/min | 17.84 Gal/min | 700 rpm | 12.8 L/min | 3.39 Gal/min |
| 3GP 230 | 23.0 | 1.4 | 240 bar (3480 psi) | 260 bar (3770 psi) | 290 bar (4205 psi) | 3500 rpm | 80.3 L/min | 21.22 Gal/min | 700 rpm | 15.5 L/min | 4.03 Gal/min |
| 3GP 300 | 30.2 | 1.8 | 220 bar (3190 psi) | 240 bar (3480 psi) | 260 bar (3770 psi) | 3300 rpm | 99.7 L/min | 26.33 Gal/min | 700 rpm | 20.1 L/min | 5.31 Gal/min |
| 3GP 340 | 33.8 | 2.1 | 220 bar (3190 psi) | 230 bar (3335 psi) | 260 bar (3770 psi) | 3300 rpm | 111.6 L/min | 29.49 Gal/min | 700 rpm | 22.5 L/min | 5.94 Gal/min |
| 3GP 370 | 37.5 | 2.3 | 210 bar (3045 psi) | 230 bar (3335 psi) | 250 bar (3625 psi) | 3300 rpm | 123.6 L/min | 32.66 Gal/min | 700 rpm | 24.9 L/min | 6.58 Gal/min |
| 3GP 440 | 44.6 | 2.7 | 200 bar (2900 psi) | 220 bar (3190 psi) | 240 bar (3480 psi) | 3000 rpm | 133.8 L/min | 35.35 Gal/min | 700 rpm | 29.7 L/min | 7.84 Gal/min |
| 3GP 530 | 53.0 | 3.2 | 200 bar (2900 psi) | 210 bar (3045 psi) | 240 bar (3480 psi) | 3000 rpm | 159.1 L/min | 42.04 Gal/min | 700 rpm | 35.3 L/min | 9.32 Gal/min |
| 3GP 620 | 62.7 | 3.8 | 180 bar (2610 psi) | 190 bar (2755 psi) | 200 bar (2900 psi) | 2500 rpm | 156.8 L/min | 41.41 Gal/min | 700 rpm | 41.7 L/min | 11.01 Gal/min |
| 3GP 700 | 70.5 | 4.3 | 180 bar (2610 psi) | 200 bar (2900 psi) | 208 bar (3016 psi) | 2500 rpm | 176.3 L/min | 46.58 Gal/min | 700 rpm | 46.9 L/min | 12.39 Gal/min |
| 3GP 770 | 77.2 | 4.7 | 170 bar (2465 psi) | 190 bar (2755 psi) | 196 bar (2842 psi) | 2200 rpm | 169.8 L/min | 44.84 Gal/min | 700 rpm | 51.3 L/min | 13.56 Gal/mi |
Applications
The 3PG Hydraulic Gear Pump is highly versatile and used in a wide range of industries and applications where efficient and reliable hydraulic power is required.
3PG Hydraulic Gear Pumps are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
The maximum pressure varies depending on the model, but the 3PG series can handle pressures up to 250 bar (3625 psi) in different configurations, with some models offering even higher pressure capabilities.
The displacement for the 3PG Hydraulic Gear Pumps ranges from 19.3 cm³/rev (1.2 in⊃3;/rev) to 77.2 cm³/rev (4.7 in⊃3;/rev), making them suitable for a wide variety of flow requirements.
The 3PG series is used across multiple industries, including construction, agriculture, industrial machinery, material handling, mining, oil and gas, and marine, among others.
The 3PG Hydraulic Gear Pump offers a minimum volumetric efficiency of 95% for all models, ensuring high reliability and consistent performance in demanding applications.
Yes, the 3PG series is designed to handle high speeds, with maximum speed ratings up to 3500 rpm, depending on the specific model.
The minimum speed varies by model, but most pumps in the 3PG series operate at speeds as low as 700 rpm, making them suitable for low-flow, high-pressure applications.
Yes, we support OEM and customization, including nameplate, packaging, and specific performance requirements. Send us your drawings or specifications for evaluation.
Please provide the following details:
Model or displacement
Working pressure
Speed
Quantity
We will reply within 12 hours with a competitive quotation.
The 3PG Hydraulic Gear Pumps are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.
All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.
To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.
Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
