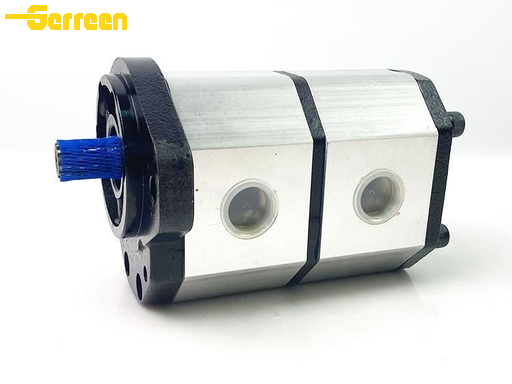

PGP517 Parker Hannifin Gear Pump

PGP517 SERIES Gear Pump  Overview

The Parker PGP517 is a high-efficiency, fixed-displacement external gear pump from the PGP500 Series, engineered for compact, high-performance hydraulic systems in mobile and industrial equipment. Built with a lightweight yet robust three-piece aluminum construction, the PGP517 delivers a superior power-to-weight ratio, making it ideal for space-constrained applications requiring reliable, low-noise operation at continuous pressures up to 250 bar.

Features and Benefits

• Rugged Three-Piece Aluminum Construction

  The PGP517 features high-strength, lightweight aluminum bodies and covers, offering a compact footprint and low weight compared to cast iron alternatives. This three-piece design ensures precise manufacturing tolerances, minimizing internal deflection under high-pressure duty cycles and delivering consistent performance with extended service life in demanding mobile environments.

• Low-Noise 13-Tooth Gear Profile

  Featuring an optimized 13-tooth gear design, the PGP517 reduces pressure pulsation and vibration, resulting in exceptionally quiet operation. This low-noise profile is ideal for noise-sensitive applications such as electric/hybrid vehicles and indoor industrial machinery, while maintaining high volumetric efficiency across the operating range.

• Pressure-Balanced Thrust Blocks & Journal Bushings

  Equipped with pressure-balanced thrust blocks and large-diameter journal bushings, the PGP517 automatically optimizes internal clearances under varying loads. This advanced design minimizes fluid bypass and friction, ensuring high mechanical efficiency at all operating pressures while protecting the pump from premature wear, even with moderate fluid contamination and thermal shock.

• Superior High-Pressure Capability

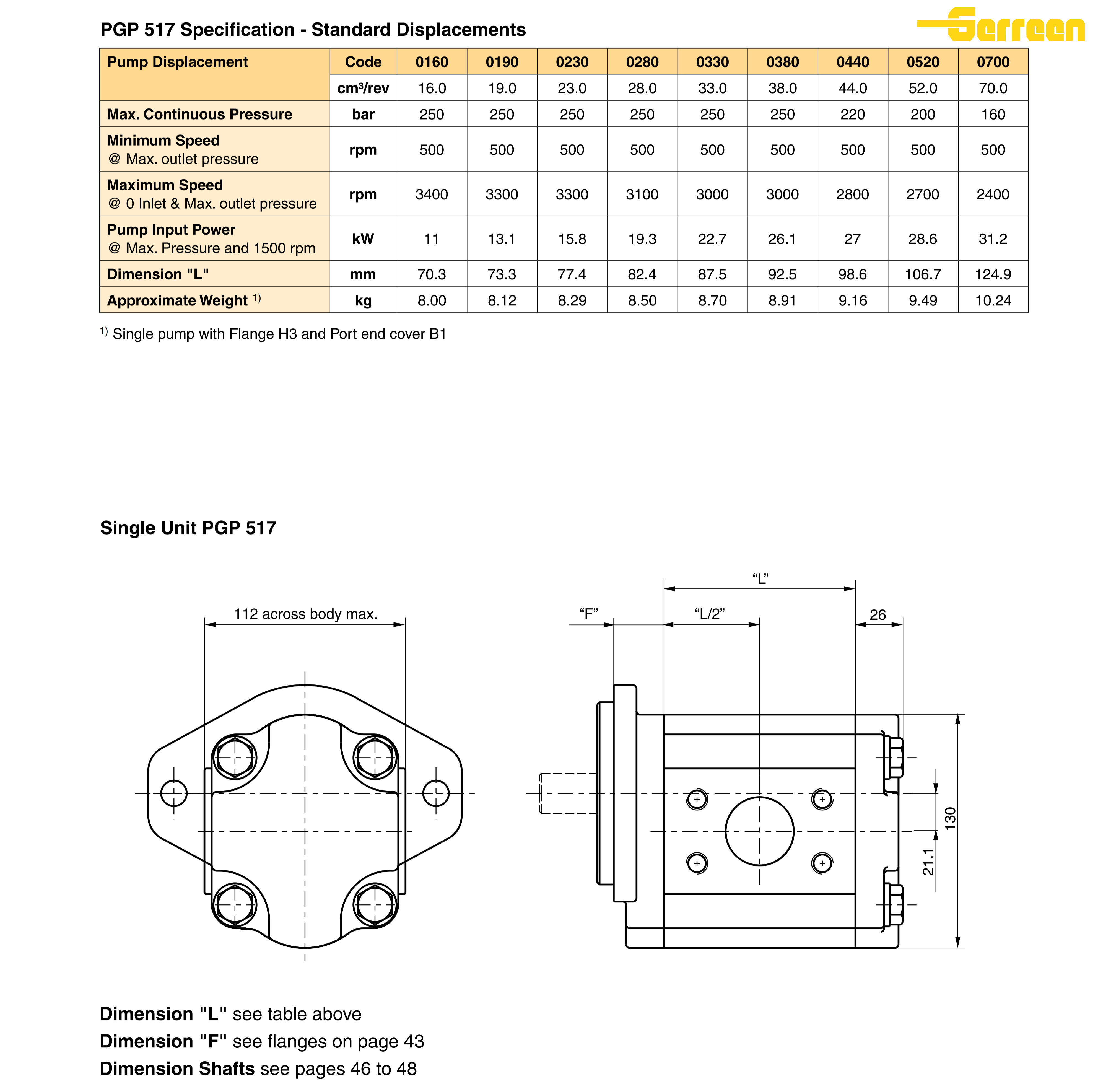

  Engineered for heavy-duty use, the PGP517 delivers continuous operating pressures up to 250 bar (3,625 psi) with peak pressures up to 275 bar. High-strength alloy steel gears and precision-machined components allow it to power high-force actuators and complex hydraulic circuits with smooth, consistent flow, supporting speeds up to 3,400 rpm.

• Modular Versatility & Installation Flexibility

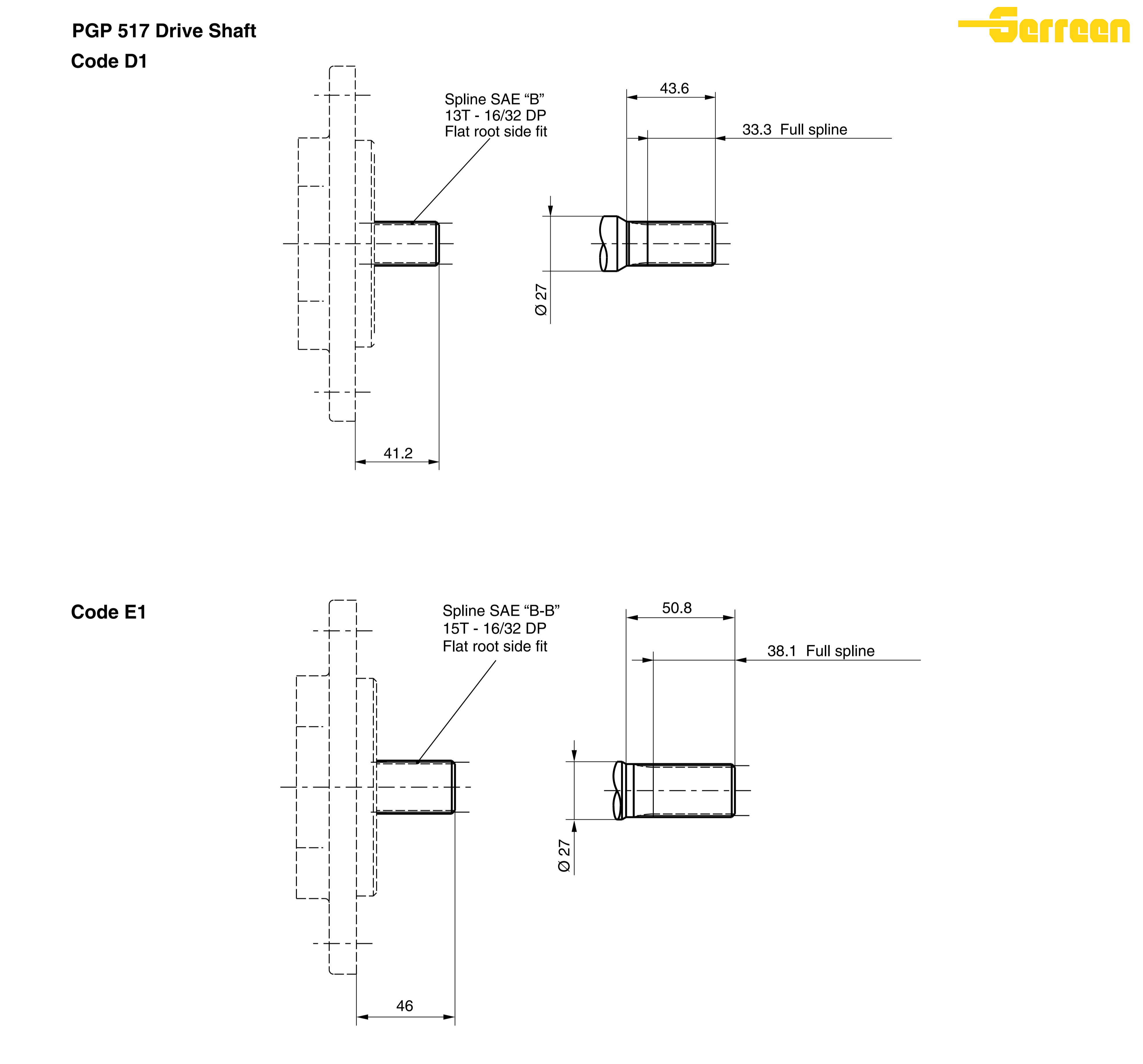

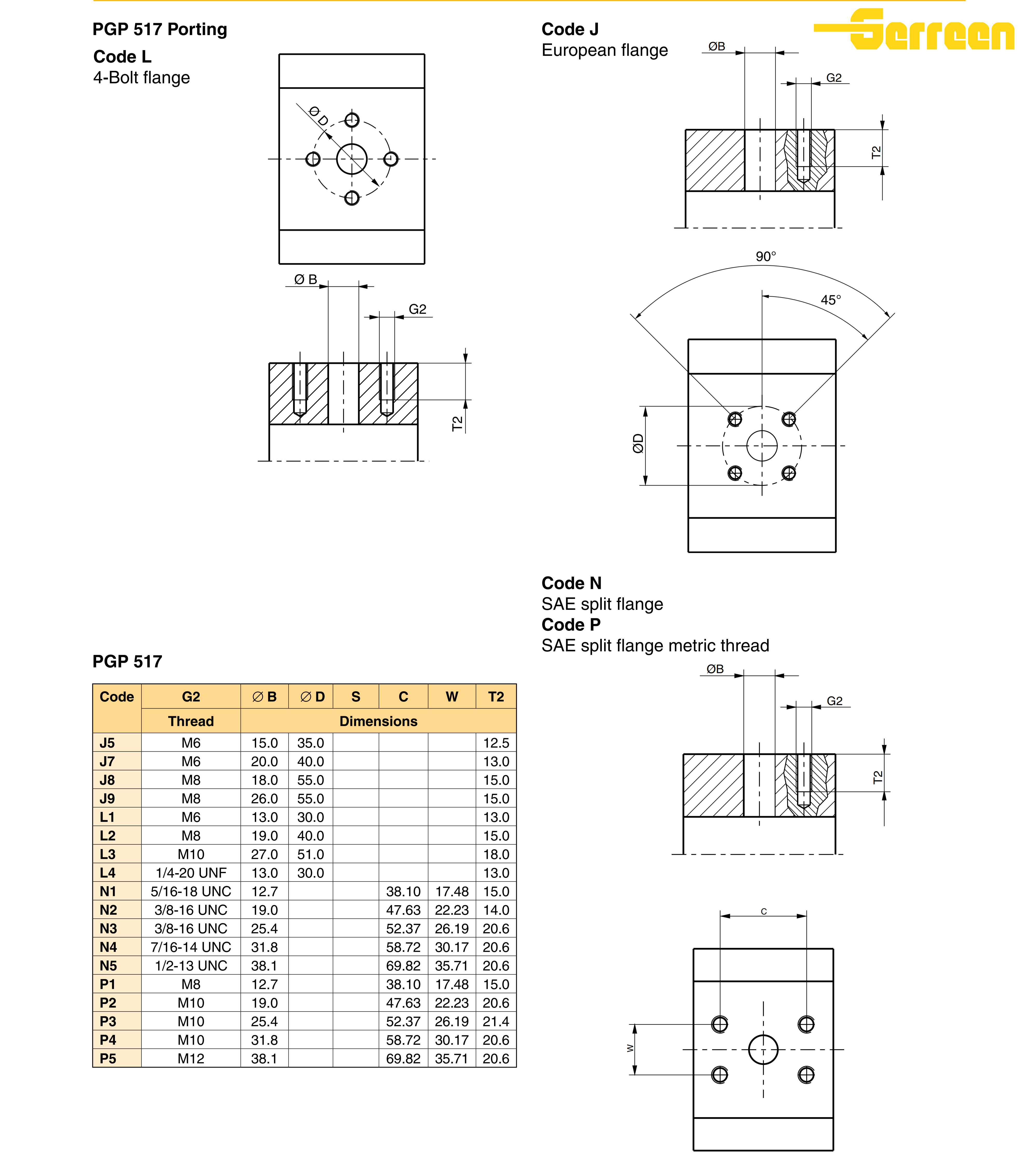

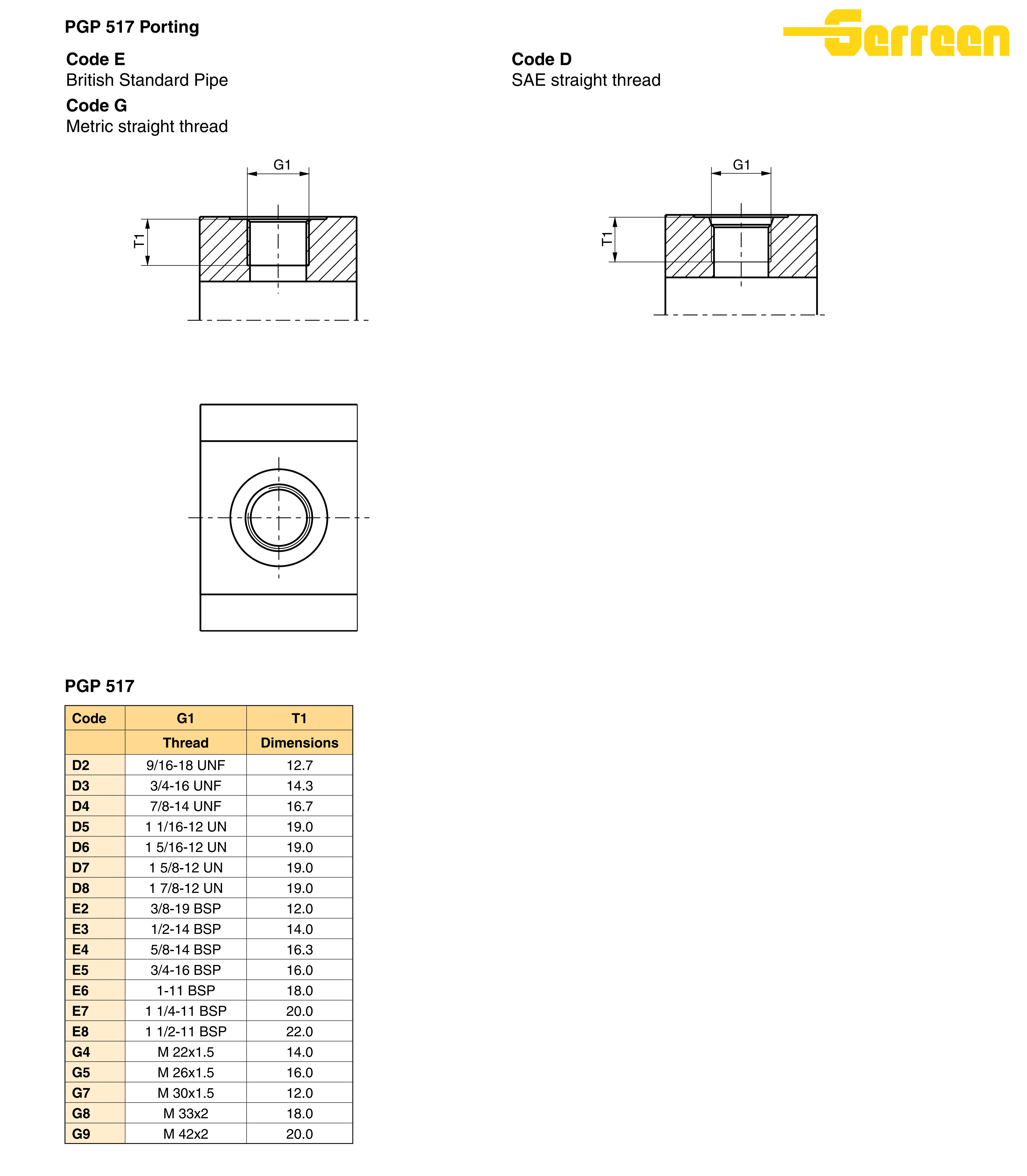

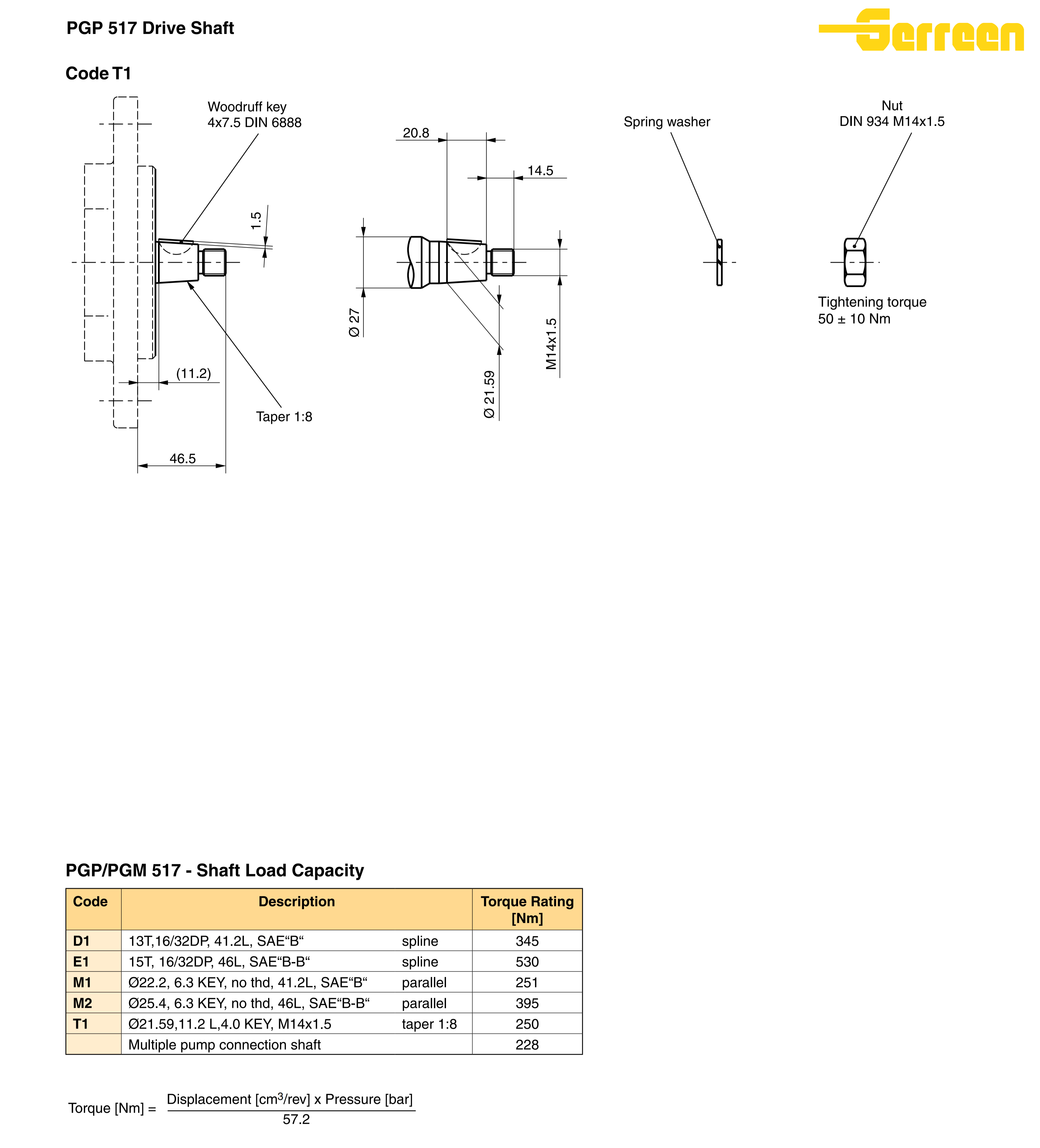

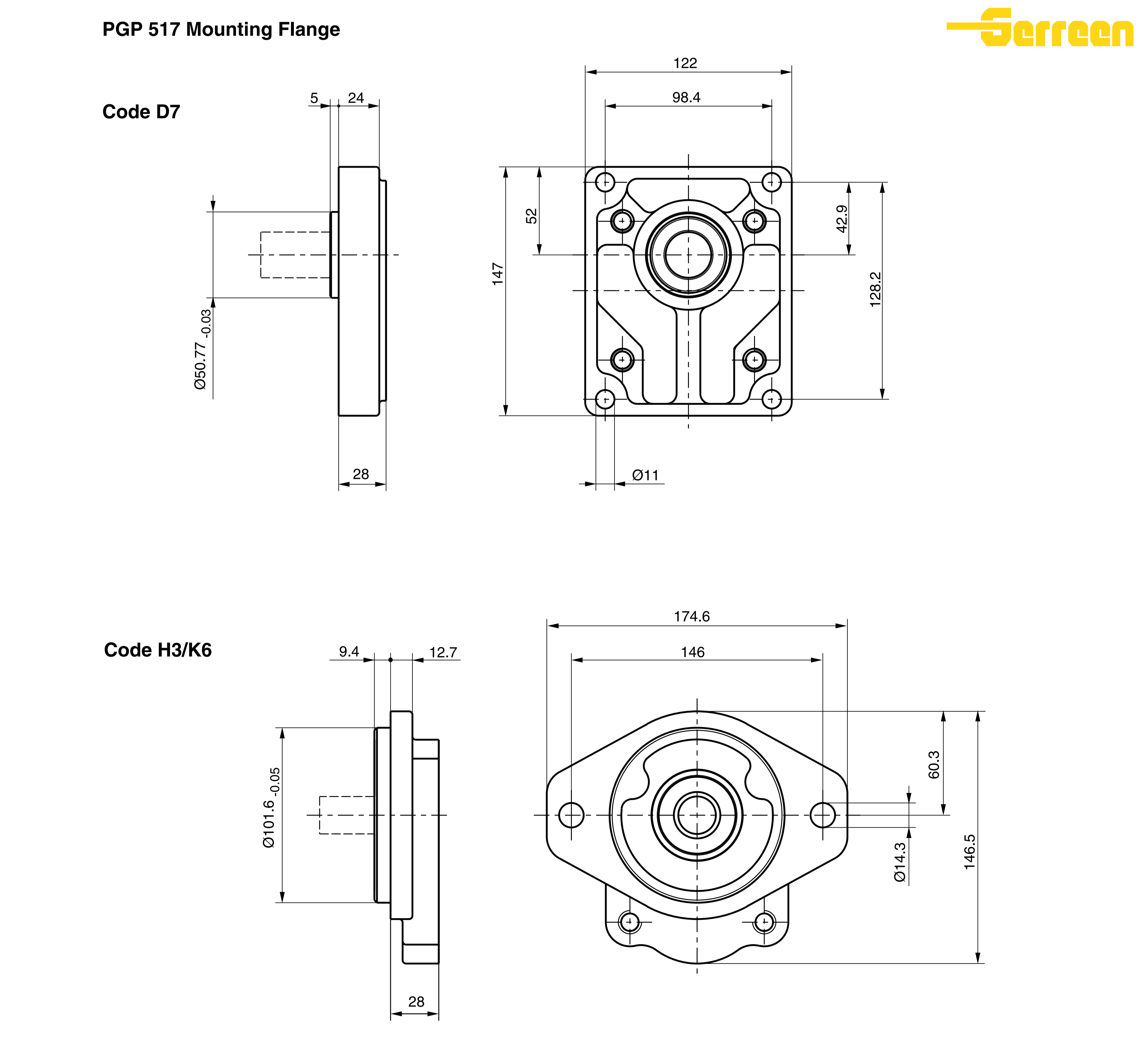

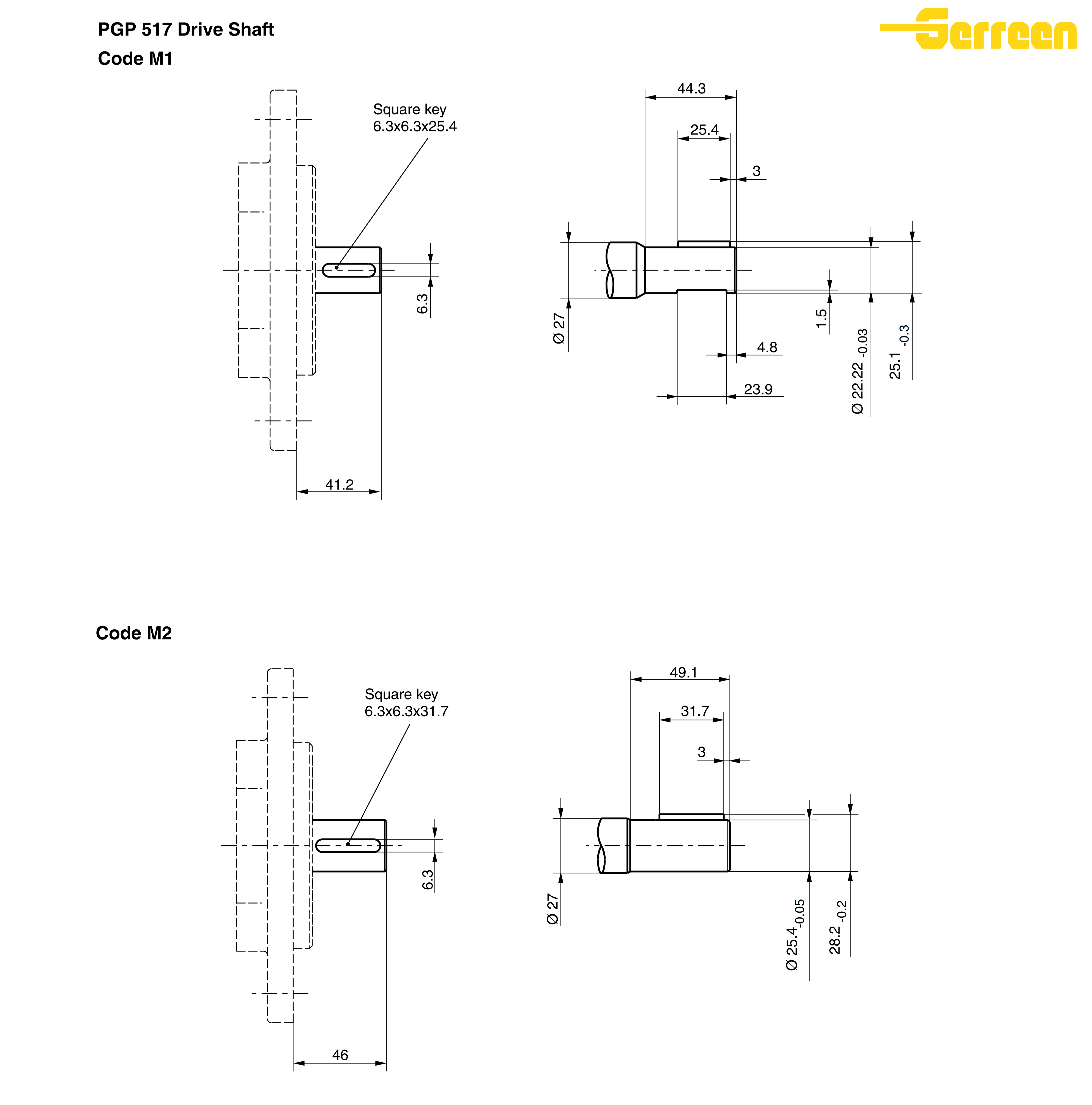

  The PGP517 series offers a wide range of displacements from 16 to 70 cc/rev, with support for standard SAE "A" and "B" mounting flanges, multiple shaft configurations (keyed, splined, tapered), and common inlet multiple pump designs. With integrated valve options and flexible porting layouts, it provides unmatched design versatility for crammed chassis environments and specialized mobile applications, including agricultural machinery, construction equipment, and material handling systems.

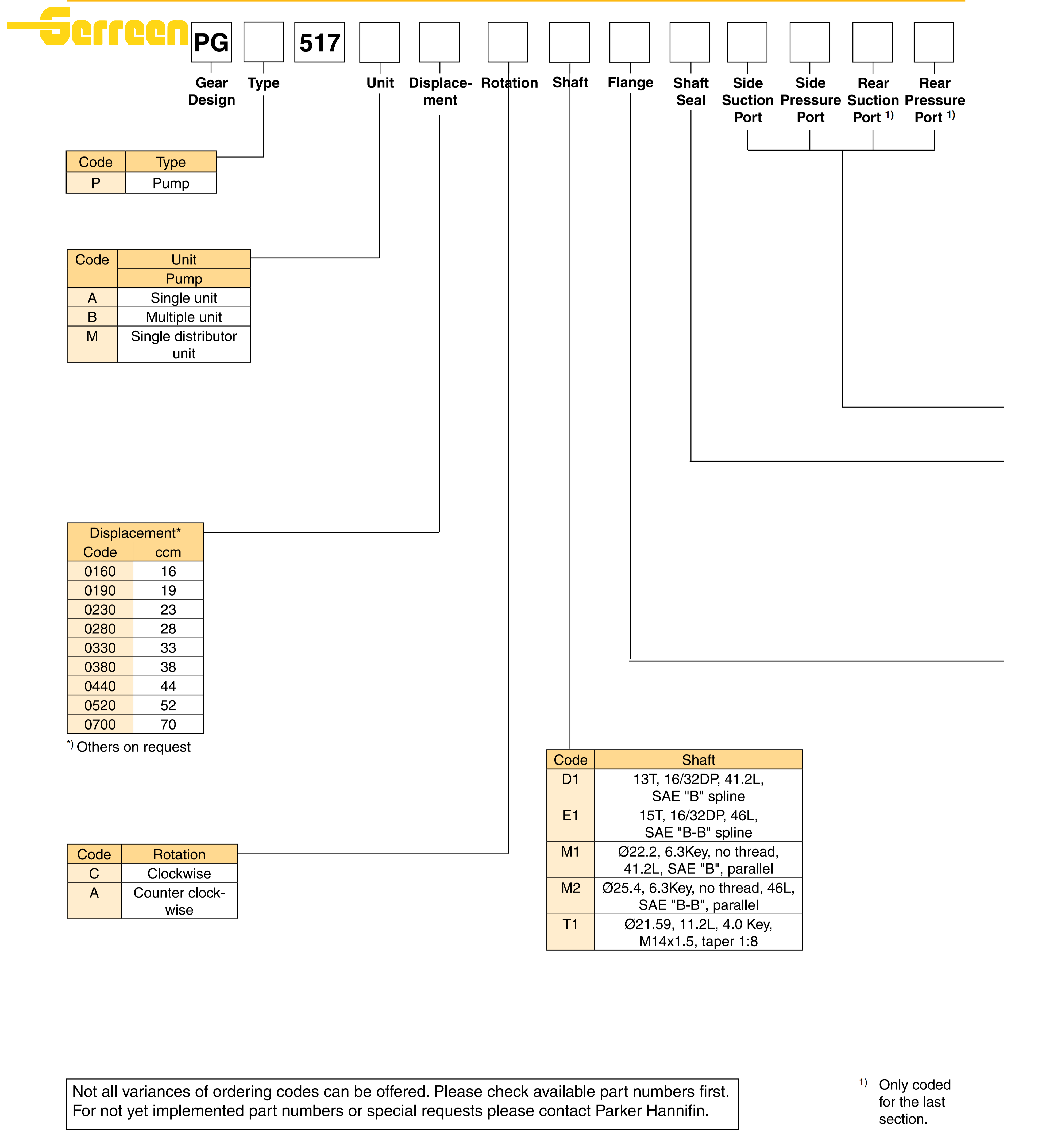

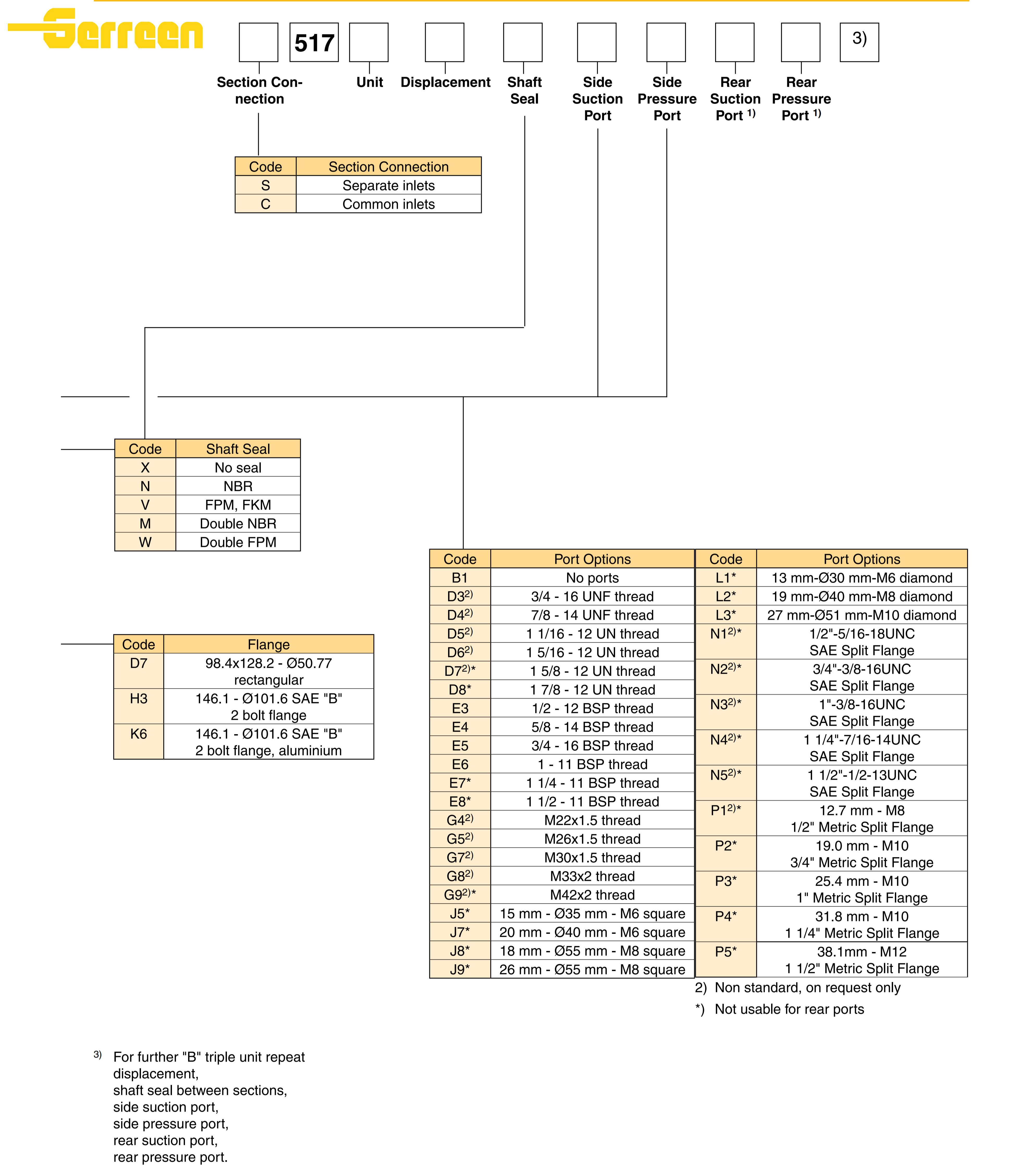

Model Codes

Applications

Packaging & Delivery

PGP517 pumps are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

PGP517 Gear Pump  FAQ

1. What are PGP517 series gear pumps

2. What makes the PGP517 different from standard aluminum gear pumps

Yes, we support OEM and customization, including nameplate, packaging, and specific performance requirements. Send us your drawings or specifications for evaluation.

8. How can I get a quotation quickly

Please provide the following details:

• Model or displacement

• Working pressure

• Speed

• Quantity
  We will reply within 12 hours with a competitive quotation.




Certifications & Quality Assurance

PGP517 pumps are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.

FAQ

1.How does the variable displacement work?

The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.

2.What's our advantages?

Factory established in 2005;

With a great deal of production experience;

80+ employees become the professional team;

Constant updated ERP system ensure efficiency of work;

Sophisticated equipment ehanced the accuracy of products;

Professional salesmen provide the greast service;

With a large number of famous customers all over the world;

Great after-sales service;

With the long term cooperation with famous logistics and express company in China,provide the better goods service.

3.What is your payment terms?

Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.

4.Can you make my own brand on the products?

Of course we can. Just send me your logo  we can make it for you.

5.What is our main export market?

America(40.5%):USA, Canada, Argentina, Brazil

Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.

Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.

Others(5.8%).

The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.

The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.

Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.

All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.

To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.

Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
