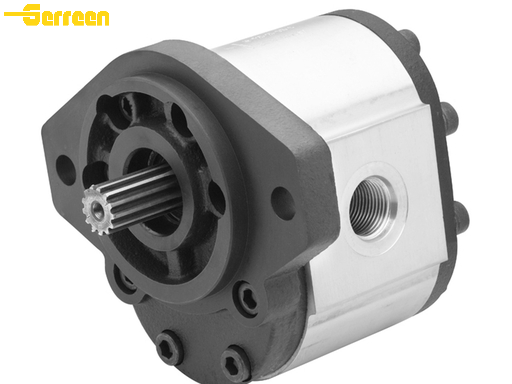

PGP511 SERIES Gear Pump  Overview

The Parker PGP511 is a high-performance, fixed-displacement aluminum gear pump designed for demanding hydraulic systems that require high power density in a lightweight package. As a cornerstone of the PGP500 series, the PGP511 features a high-strength, three-piece aluminum construction that offers exceptional efficiency and reliability. It is the industry-standard choice for mobile and industrial applications where weight savings, heat dissipation, and continuous high-pressure performance are critical.

Features and Benefits

• High-Strength Three-Piece Aluminum Construction:
  The PGP511 is engineered with high-tensile, extruded aluminum bodies and die-cast aluminum covers, providing an excellent strength-to-weight ratio. This three-piece design enhances structural integrity and heat dissipation, allowing the pump to remain cool and efficient during prolonged operation in challenging environments.
• Advanced Pressure-Balanced Bearing Blocks:
  To ensure maximum productivity, the PGP511 utilizes sophisticated pressure-balanced bearing blocks. This technology automatically maintain optimal internal clearances, significantly reducing internal fluid bypass and friction. The result is consistently high volumetric and mechanical efficiency (often exceeding 95%) across a wide range of operating conditions.
• Precision-Engineered Low-Noise Gear Sets:
  Equipped with hardened steel gears featuring an optimized tooth profile, the PGP511 is designed to minimize pressure pulsations and operational vibration. This precision engineering leads to ultra-quiet operation, making it ideal for noise-sensitive applications and improving operator comfort in mobile machinery.
• Exceptional Durability and High-Pressure Capability:
  Despite its lightweight aluminum frame, the PGP511 is built for high-intensity duty cycles, capable of handling continuous operating pressures of up to  250 bar (3,625 psi). High-load capacity journal bushings and premium sealing systems ensure long-term durability and minimal wear under high-pressure service.
• Global Modular Versatility and Integration:

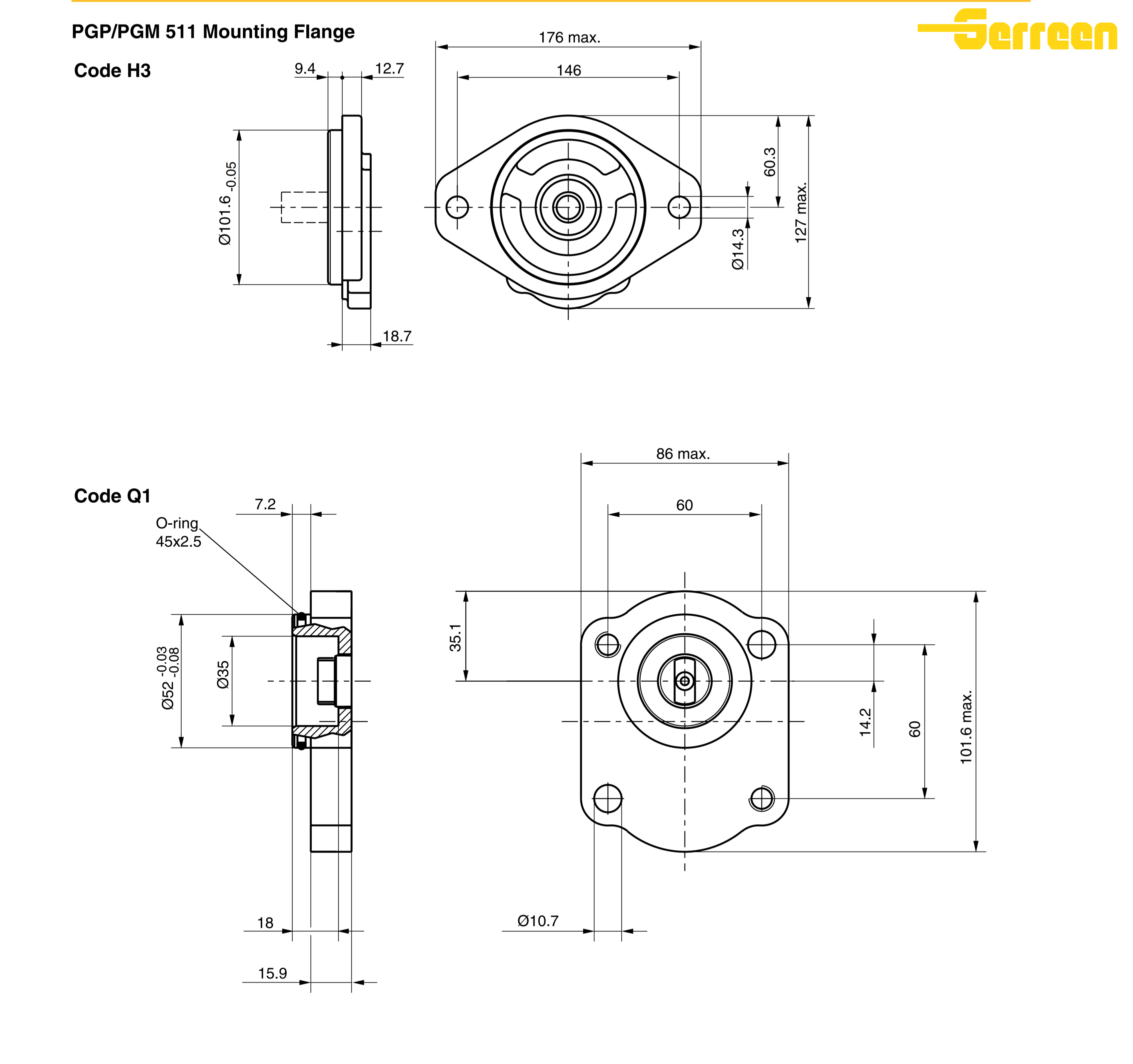

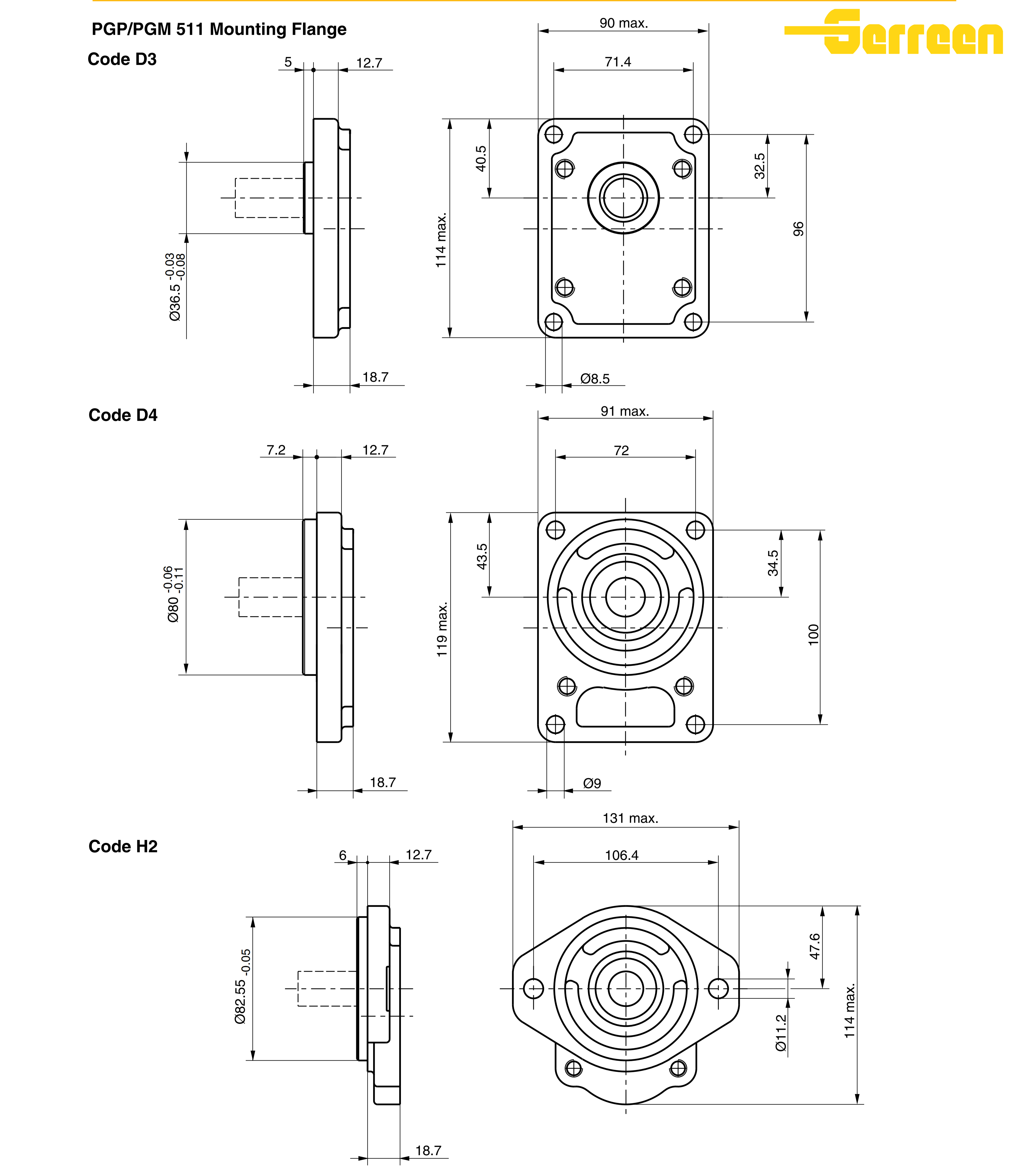

  The PGP511 series offers a comprehensive range of displacements (from  6.0 to 33.0 cc/rev) and supports a vast array of international mounting standards, including SAE, DIN, and ISO flanges. Its modular architecture allows for the easy configuration of multiple-stage (tandem or triple) pumps and the integration of specialized relief or priority valves.

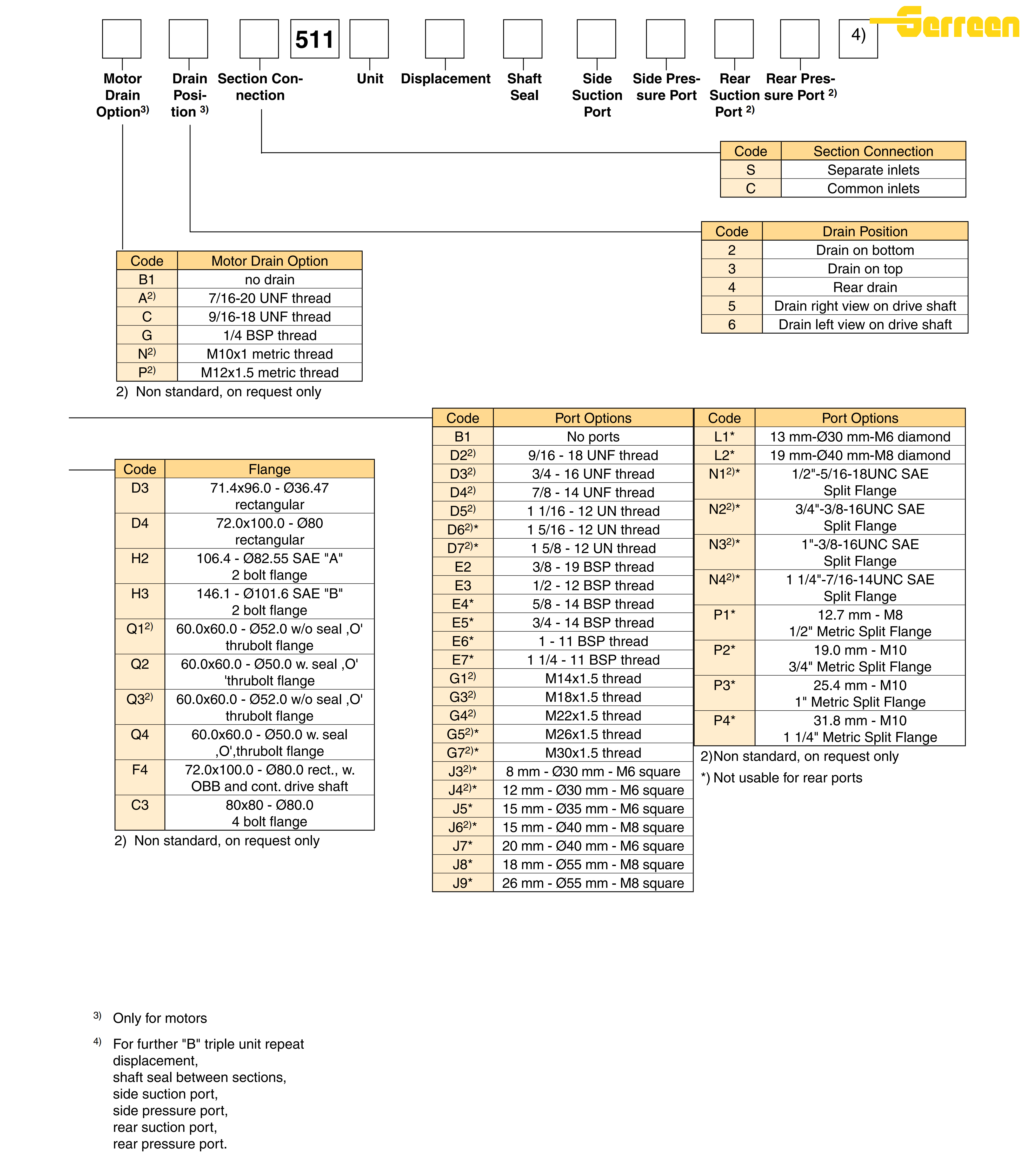

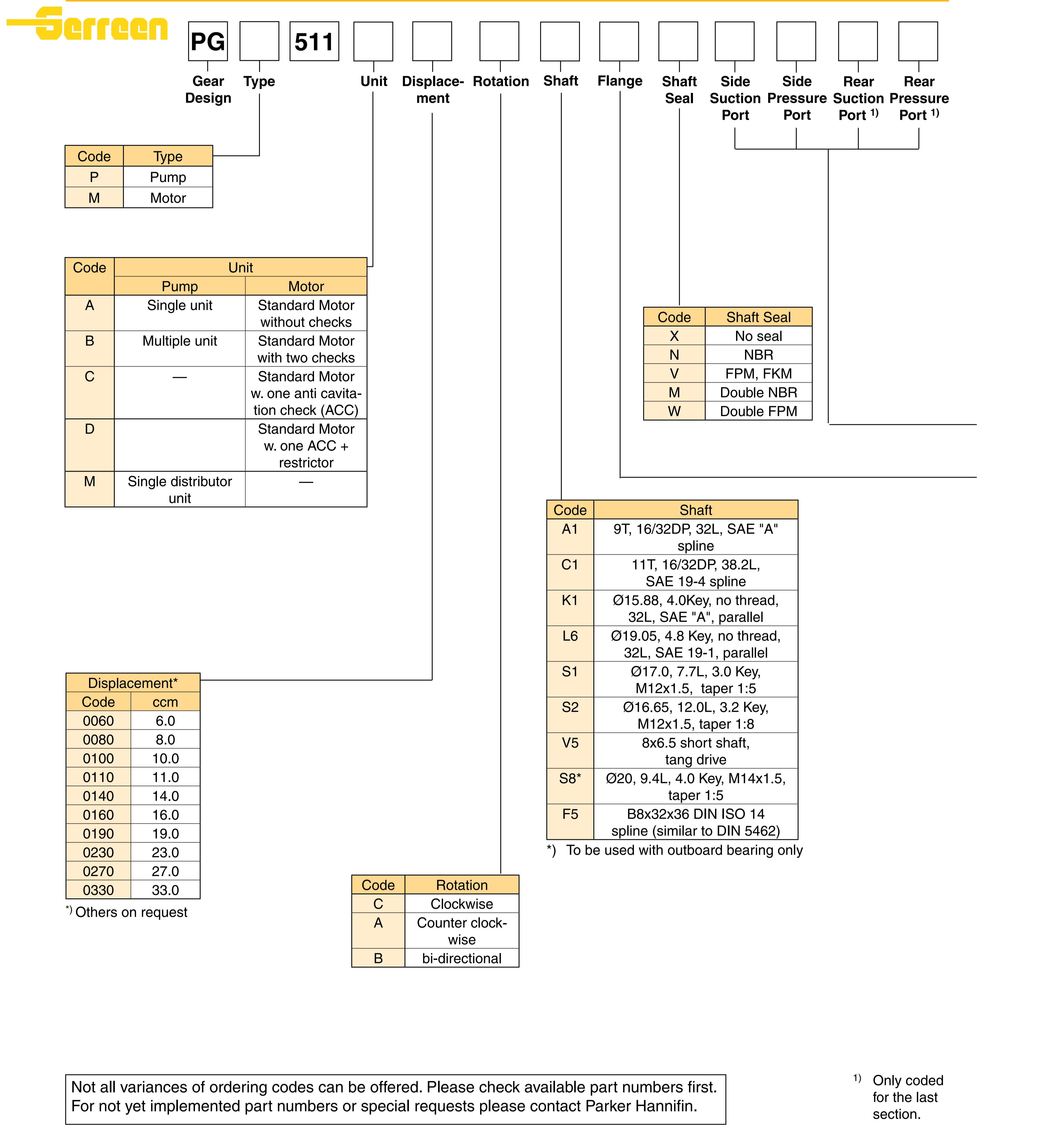

Model Codes

Applications

Packaging & Delivery

PGP511 pumps are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

PGP511 Gear Pump  FAQ

1. What are PGP511 series gear pumps

2. What makes the PGP511 different from standard aluminum gear pumps

Yes, we support OEM and customization, including nameplate, packaging, and specific performance requirements. Send us your drawings or specifications for evaluation.

8. How can I get a quotation quickly

Please provide the following details:

• Model or displacement

• Working pressure

• Speed

• Quantity
  We will reply within 12 hours with a competitive quotation.




Certifications & Quality Assurance

PGP511 pumps are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.

FAQ

1.How does the variable displacement work?

The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.

2.What's our advantages?

Factory established in 2005;

With a great deal of production experience;

80+ employees become the professional team;

Constant updated ERP system ensure efficiency of work;

Sophisticated equipment ehanced the accuracy of products;

Professional salesmen provide the greast service;

With a large number of famous customers all over the world;

Great after-sales service;

With the long term cooperation with famous logistics and express company in China,provide the better goods service.

3.What is your payment terms?

Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.

4.Can you make my own brand on the products?

Of course we can. Just send me your logo  we can make it for you.

5.What is our main export market?

America(40.5%):USA, Canada, Argentina, Brazil

Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.

Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.

Others(5.8%).

The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.

The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.

Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.

All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.

To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.

Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
