Product Description

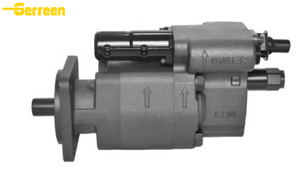

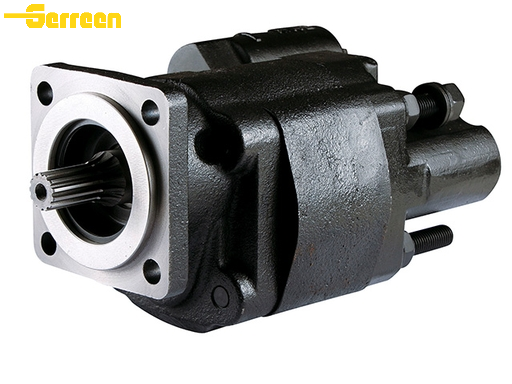

The Parker G101/G102 series are heavy-duty, fixed-displacement cast iron gear pumps purpose-built for vocational and municipal mobile hydraulic systems, particularly dump trucks and trailers. Designed for durability and reliability in rugged environments, these pumps feature integrated control valves and robust construction to deliver consistent performance for lifting and lowering dump beds, making them a staple in on/off-highway equipment where uptime is critical.C101/C102 dump truck pump (Manual / Airshift control) Parker Commercial pump can be replaced with Permco DM-640-25, DM-512-20, DMD-20, DMD-25, Parker C101/102, Metaris MH101/102.
Rugged Cast Iron Construction:
The G101/G102 series is built with high-tensile cast iron bodies and covers, providing superior structural rigidity and long-term durability. This heavy-duty construction minimizes deflection and mechanical fatigue under repeated high-pressure cycles, ensuring stable performance and extended service life in demanding work environments.
Integrated Control & Relief Valve System:
Unlike basic pumps that require external components, the G101/G102 C101/C102 features an integrated raise/neutral/lower control valve with a factory-set relief valve. This all-in-one design protects the pump and hydraulic cylinder from overpressure while simplifying installation and reducing maintenance needs.
Heavy-Duty Gear & Bearing Design:
Utilizing hardened alloy steel gears and heavy-duty roller bearings, the G101/G102 is built to withstand high loads, fluid contamination, and thermal shock. Precision-machined components minimize internal leakage and friction, maintaining high volumetric efficiency even during continuous, high-cycle use.
Proven Medium-Pressure Capability:
Engineered for reliable operation in typical dump truck applications, the G101/G102 handles continuous pressures up to 2,500 psi (172 bar) with peak pressures up to 3,000 psi (207 bar). This capability delivers consistent, smooth power to single-acting cylinders under heavy loads.
Modular Versatility & Installation Flexibility:
The series offers flexible mounting configurations to suit diverse chassis layouts: the G101 features a dual-shaft design for remote PTO mounting, while the G102 uses a single-shaft design for direct driveline installation. Both support standard SAE "B" mounting and a range of displacements, making them adaptable to a wide variety of vocational truck applications.

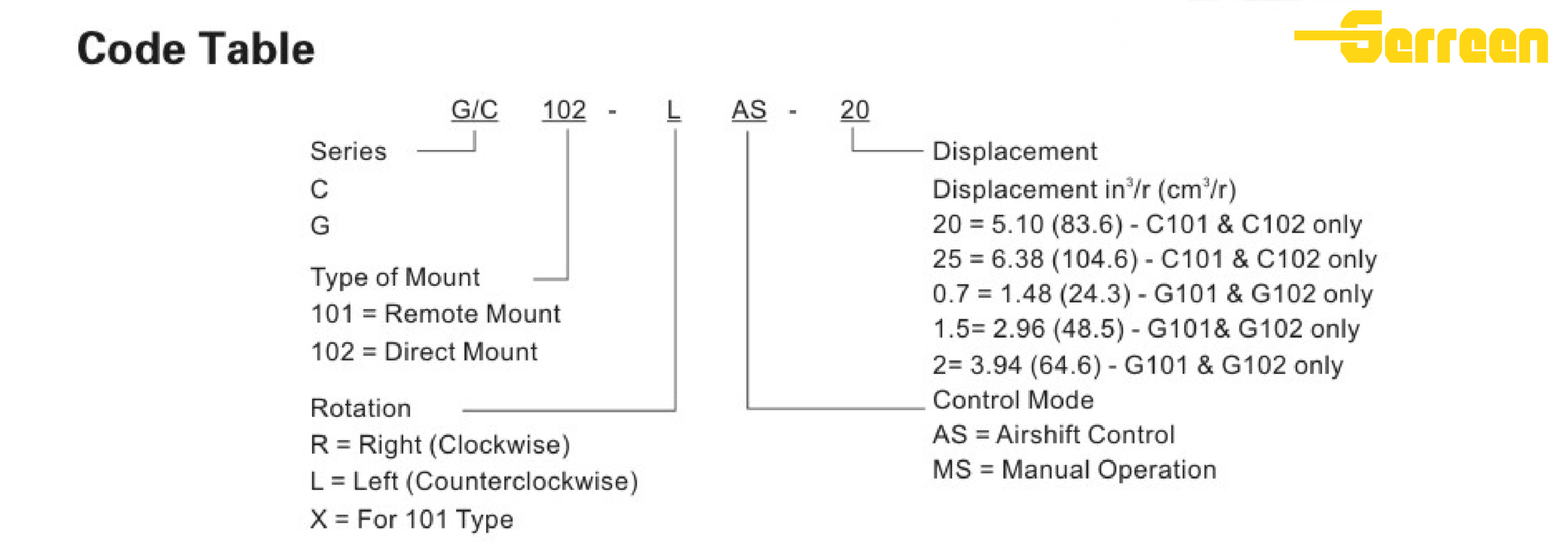

| C102 | -2.5 | L | AS | -3 | -20 |
| Model | Gear Width | Rotation | Operation style | Line No | Relief Valve Setting |
| G101 G102 | 0.75″ | L: CW Rotation R: CCW Rotation | MS: Manual AS: Airshift | 2:2 Line installation 3:3 Line installation | 20: 137bar(2000PSI) 25: 172bar(2500PSI) |
| 1.5〃 | |||||
| 2.0″ | |||||
| C101 C102 | 2.0″ | ||||
| 2.5〃 |
Applications
The Parker G101/G102 series provides a rugged, cost-effective power solution specifically tailored for vocational truck-mounted hydraulic systems, where reliable lifting performance and uptime are critical:
Dump & Tipper Trucks: The primary application for the G101/G102 series, delivering consistent, high-flow power to raise and lower dump beds on both light-duty and heavy-duty tipper trucks. The integrated relief valve protects the cylinder from overpressure during tipping operations.
Refuse & Waste Collection Vehicles: Widely used in front-load and rear-load garbage trucks, powering bin lifts, compactors, and tailgate mechanisms. The robust construction handles frequent, high-cycle operations common in refuse routes.
Utility & Service Trucks: Ideal for service bodies, utility trucks, and work trucks equipped with cranes, winches, or tool lifts. The dual-shaft G101 and direct-mount G102 offer flexible installation to fit various chassis layouts.
Agricultural & Farm Equipment: Commonly used in farm trucks and trailers for grain tippers, livestock feeders, and small-scale material handling systems, where the pump’s tolerance to fluid contamination ensures reliable performance in harsh, outdoor environments.
Municipal & Road Maintenance Vehicles: Suited for salt spreaders, de-icing equipment, and small plow systems, delivering power for material distribution and accessory functions in cold, corrosive winter conditions.
G101/G102 C101/C102 pumps are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
Integrated Valve Design: Unlike basic pumps that require external valves, the G101/G102 come factory-equipped with a relief valve and a raise/neutral/lower control valve, simplifying installation and reducing parts count.
Built for Dump Cycle Durability: With heavy-duty cast iron construction and hardened gears, they are engineered to handle the high-cycle, shock-loaded operation common in repeated tipping cycles.
Application-Specific Mounting: The G101 features a dual-shaft design for remote PTO mounting, while the G102 uses a single-shaft design for direct driveline mounting, offering flexible installation for different truck chassis configurations.
The G101/G102 series is rated for reliable performance in medium-pressure applications:
Continuous Pressure: Up to 2,500 PSI (172 bar).
Intermittent/Peak Pressure: Up to 3,000 PSI (207 bar).
This pressure range is perfectly suited for the lifting requirements of most on-highway and light-to-medium duty off-highway dump trucks.
4. Can G101/G102 pumps replace other brands?
Yes, the G101/G102 series is a common direct replacement for many OEM and aftermarket dump pumps. It is often used as a replacement or upgrade for:
Muncie: PH-Series dump pumps.
Permco: PTO-driven dump pumps.
Commercial Intertech / Parker: Similar cast iron truck pumps.
To ensure a successful swap, verify the required Displacement (cm³/rev or gpm), Mounting Flange (SAE “B”), Shaft Type, and control valve configuration (air, cable, or electric).
To protect the gears, bearings, and integrated valves, the following is recommended:
Oil Type: Premium anti-wear (AW) hydraulic fluids designed for mobile equipment.
Viscosity: Standard ISO VG32 to VG68. The optimal operating range is 100 to 150 SUS (20 to 30 cSt).
Filtration: A 10-micron return line filter is recommended to keep the fluid clean and prevent premature wear of the pump components.
The G101/G102 pumps are optimized for standard PTO speeds:
Maximum Speed: 2,400 RPM (continuous).
Minimum Speed: 500 RPM (for proper lubrication).
The pump’s flow rate is directly proportional to its speed, making it important to match the pump’s displacement to the engine’s PTO speed to achieve the required cylinder cycle time.
Yes, we support OEM and customization, including nameplate, packaging, and specific performance requirements. Send us your drawings or specifications for evaluation.
Please provide the following details:
Model or displacement
Working pressure
Speed
Quantity
We will reply within 12 hours with a competitive quotation.
G101/G102 C101/C102 pumps are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
