CBHY-GF Gear Pump Types

CBHY-GF Gear Pump Type Overview

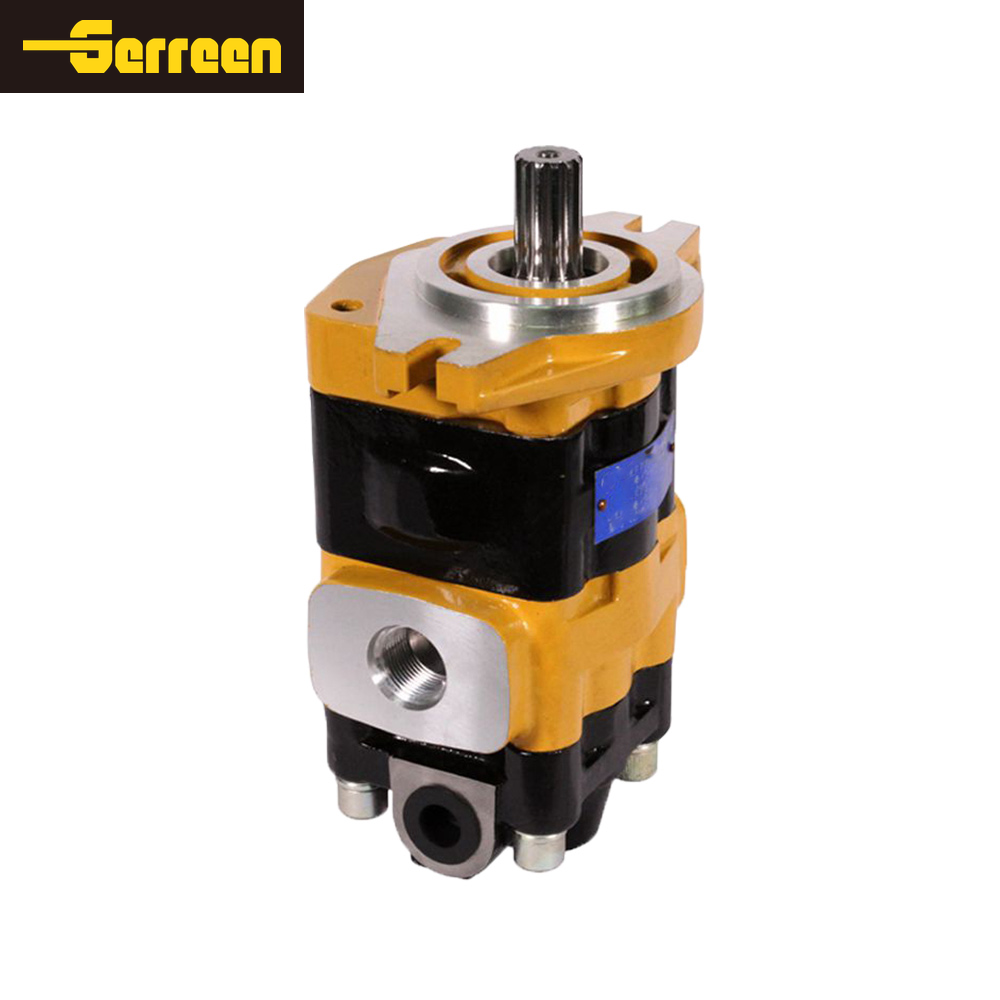

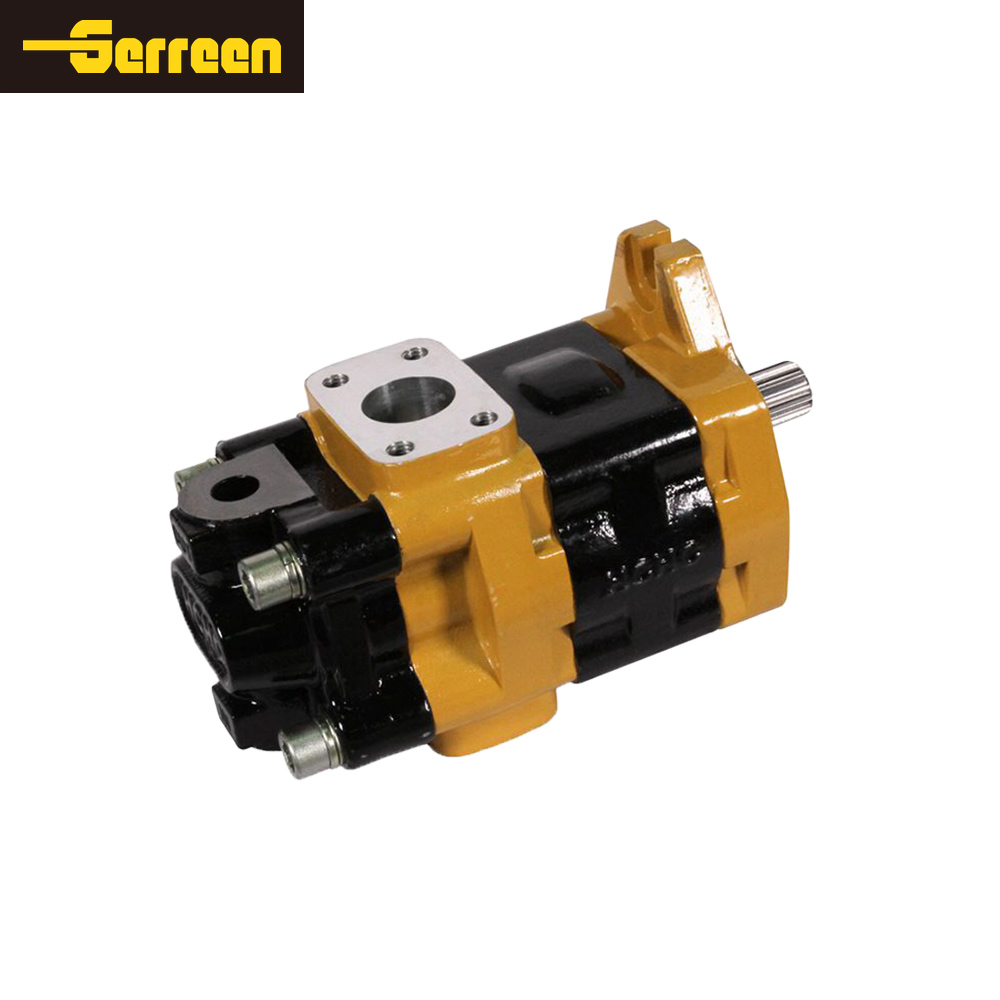

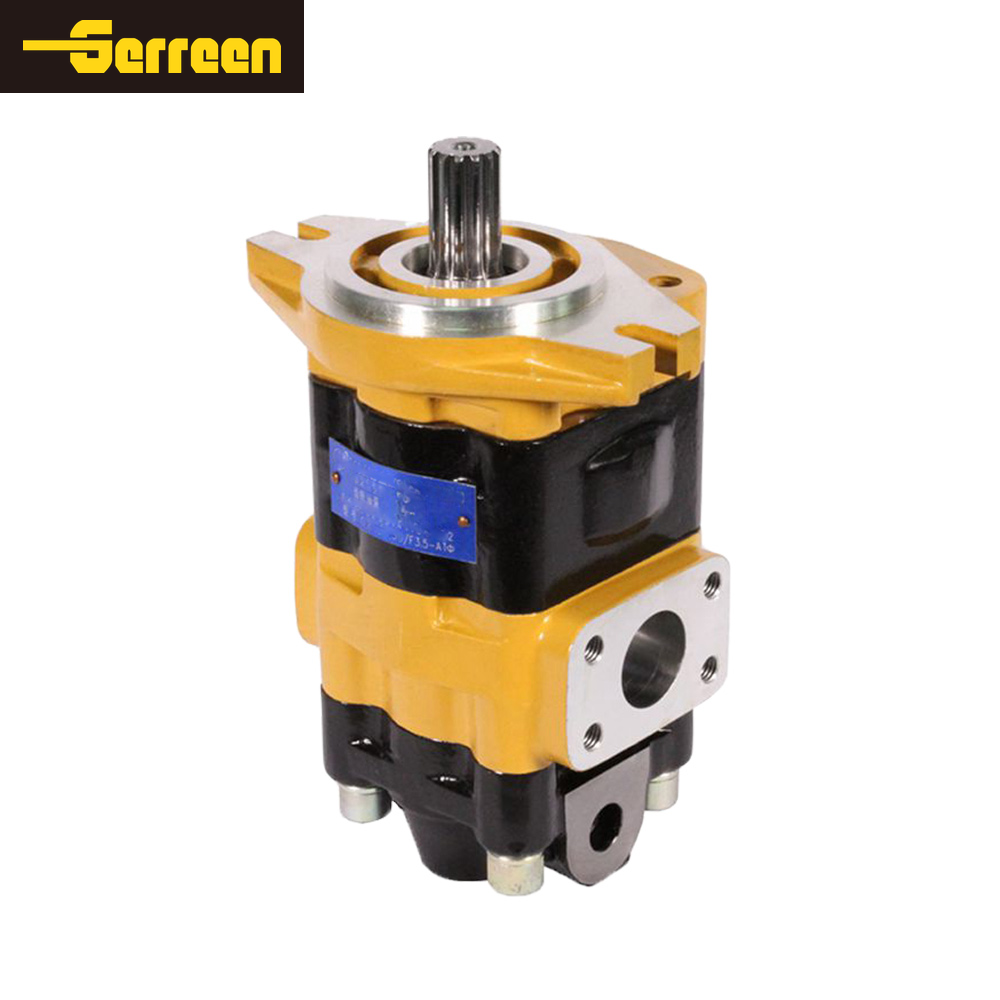

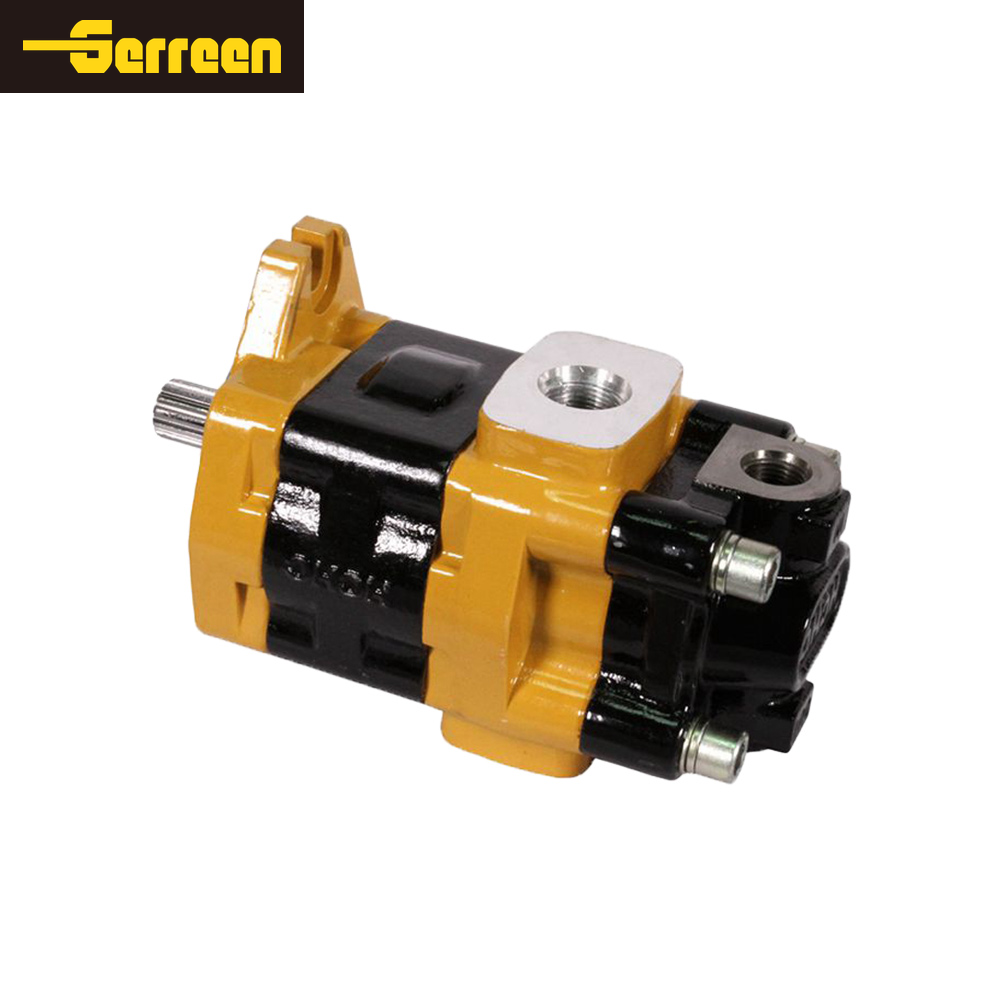

CBHY-GF hydraulic gear pump is a compact and durable external gear pump designed for stable oil flow and reliable hydraulic power transmission. It features a high-strength housing, precision gear structure, good sealing performance, and easy installation. This series is widely used in mobile machinery, agricultural equipment, forklifts, small hydraulic systems, and industrial hydraulic power units.

Features and Benefits

• Compact structure for easy installation

• Stable flow output for smooth operation

• High efficiency and reliable performance

• Durable construction for long service life

• Suitable for various hydraulic applications

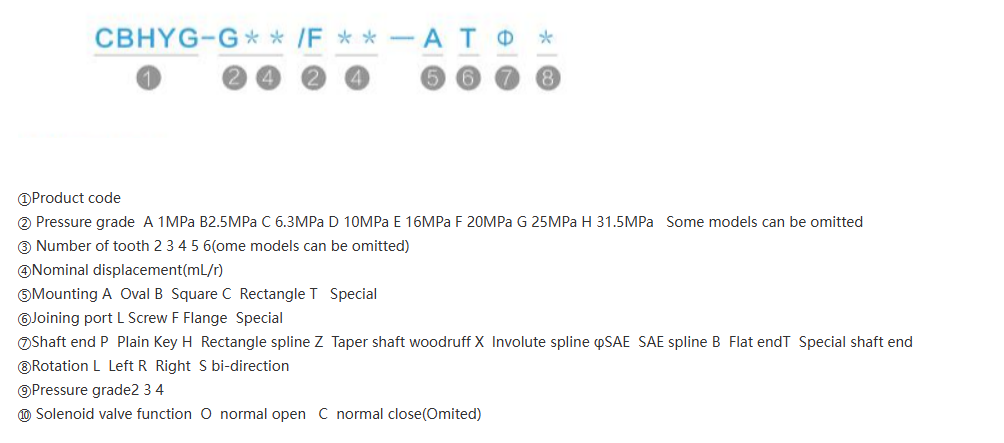

Model Codes

Applications

• Construction Machinery

• Agricultural Equipment

• Forklifts and Material Handling

• Hydraulic Power Units

• Industrial Hydraulic Systems

Packaging & Delivery

CBHY-GF pumps are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

CBHY-GF Gear Pump  FAQ

1.What type of pump is the CBHY-GF?
CBHY-GF is an external hydraulic gear pump designed for stable fluid power transmission.

2. What is the pressure range of CBHY-GF pumps?
Rated pressure is up to 25 MPa, with maximum pressure up to 28 MPa depending on model.

3. What displacement options are available?
Common displacement options include 25, 28.2, 32, and 36 mL/r for the fore pump section.

4. What equipment uses CBHY-GF gear pumps?
They are widely used in construction machinery, tractors, forklifts, and hydraulic power units.

5. Does the pump support different shaft types?
Yes, key shaft and spline shaft options are available depending on application needs.

6. Can CBHY-GF pumps support clockwise and counterclockwise rotation?
Yes, both rotation directions are available.

7. What hydraulic oil is suitable for this pump?
Standard anti-wear hydraulic oil is generally recommended.

8. Can you provide OEM or replacement models?
Yes, OEM customization and replacement solutions are available

Certifications & Quality Assurance

CBHY-GF pumps are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.

FAQ

1.How does the variable displacement work?

The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.

2.What's our advantages?

Factory established in 2005;

With a great deal of production experience;

80+ employees become the professional team;

Constant updated ERP system ensure efficiency of work;

Sophisticated equipment ehanced the accuracy of products;

Professional salesmen provide the greast service;

With a large number of famous customers all over the world;

Great after-sales service;

With the long term cooperation with famous logistics and express company in China,provide the better goods service.

3.What is your payment terms?

Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.

4.Can you make my own brand on the products?

Of course we can. Just send me your logo  we can make it for you.

5.What is our main export market?

America(40.5%):USA, Canada, Argentina, Brazil

Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.

Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.

Others(5.8%).

The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.

The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.

Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.

All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.

To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.

Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
