HGP-1A
Green Hydraulic
Yes
ISO9001，CE
• Industrial • Energy • Government (Non Aerospace) • HVAC • Mobile • Natural Resources • Transportation (Non Aerospace)
1.Agricultural Equipment 2.Industrial Machinery 3.Construction Equipment 4.Material Handling
Key Shaft and Spline shaft
1 set
Product Description

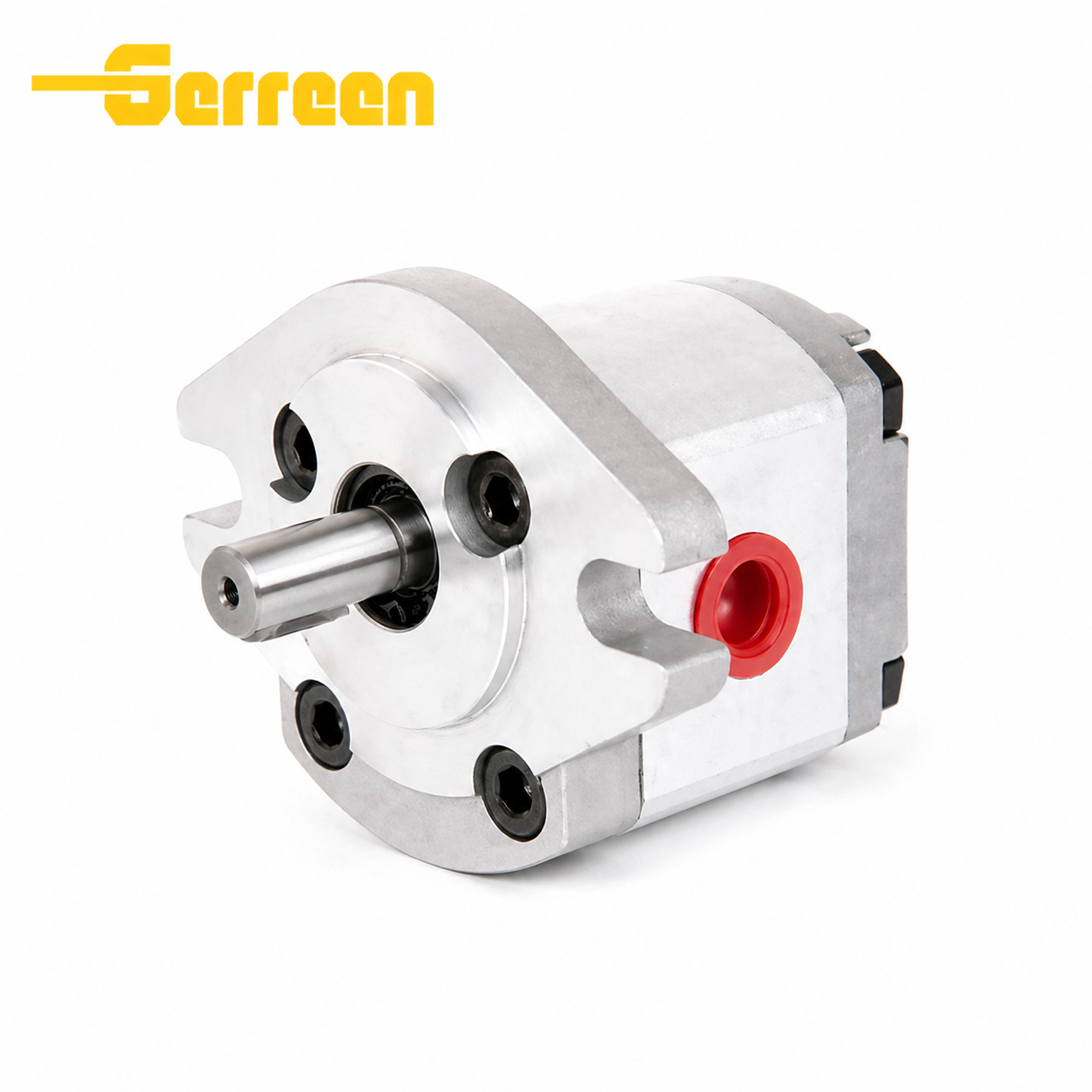

HGP-1A Hydraulic Gear Pumps are engineered for high efficiency, stable pressure control, and long service life. Designed with a pressure-compensated variable displacement mechanism, these pumps automatically adjust output flow according to system demand, making them an ideal solution for modern energy-saving hydraulic systems.
Features and Benefits
• The HGP-1A features a small footprint, making it ideal for applications with limited space.
• It is engineered to provide consistent and reliable performance with minimal energy loss, ensuring optimal hydraulic system efficiency.
• Built with high-quality materials, the HGP-1A is designed to withstand demanding environments and deliver long-lasting performance.
• The robust construction ensures a long service life with minimal maintenance.
• Designed for straightforward installation and integration into existing hydraulic systems.
| Model | Accurate Displacement Capacity (cc/rev) | Operational Pressure (kgf/cm²) | Max. Pressure (kgf/cm²) | Rate | Max. | Min. | Weight (kg) |
|---|---|---|---|---|---|---|---|
| HGP-1A-05 | 0.5 | 210 | 250 | 1800 | 4500 | 1000 | 1.0 |
| HGP-1A-08 | 0.8 | 210 | 250 | 1800 | 4500 | 1000 | 1.0 |
| HGP-1A-1 | 1 | 210 | 250 | 1800 | 4500 | 1000 | 1.05 |
| HGP-1A-2 | 2.6 | 210 | 250 | 1800 | 4500 | 600 | 1.15 |
| HGP-1A-3 | 3 | 210 | 250 | 1800 | 4500 | 600 | 1.15 |
| HGP-1A-4 | 4 | 210 | 250 | 1800 | 4500 | 600 | 1.18 |
| HGP-1A-5 | 5 | 210 | 250 | 1800 | 3200 | 600 | 1.2 |
| HGP-1A-6 | 6 | 210 | 250 | 1800 | 3200 | 600 | 1.3 |
| HGP-1A-8 | 7.8 | 170 | 210 | 1800 | 3200 | 600 | 1.4 |
Applications
Used in tractors, harvesters, and sprayers to drive hydraulic systems.
Suitable for injection molding machines, presses, and other heavy-duty industrial applications.
HGP-1A Hydraulic Gear Pumps are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
The HGP-1A is commonly used in agricultural equipment (tractors, harvesters), industrial machinery (injection molding machines, presses), construction equipment (excavators, cranes), and material handling (forklifts, pallet trucks).
The HGP-1A is designed to handle high-pressure operations, typically reaching up to 250 bar (3625 psi) or more, depending on the specific configuration.
The HGP-1A offers a compact design and high efficiency, making it an excellent choice for systems with limited space. It provides consistent performance with low noise and vibration, unlike some other hydraulic gear pumps that may have higher operating noise.
The HGP-1A is made from high-quality materials, including durable metals like cast iron and aluminum, to ensure long-lasting operation in demanding environments.
Yes, the HGP-1A is designed for easy maintenance. Regular checks on fluid levels and periodic inspections can ensure smooth operation. The durable construction reduces the need for frequent maintenance or replacement of parts.
The HGP-1A is engineered for high efficiency, providing minimal energy loss during operation. Its performance is designed to optimize hydraulic fluid flow while minimizing waste, making it energy-efficient and cost-effective.
Yes, we support OEM and customization, including nameplate, packaging, and specific performance requirements. Send us your drawings or specifications for evaluation.
Please provide the following details:
Model or displacement
Working pressure
Speed
Quantity
We will reply within 12 hours with a competitive quotation.
The HGP-1A pumps are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.
All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.
To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.
Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
