PGP075 PGP076
Green Hydraulic
PGP075 PGP076
Standard export carton/plywood case
Yes
ISO9001，CE
• Industrial • Energy • Government (Non Aerospace) • HVAC • Mobile • Natural Resources • Transportation (Non Aerospace)
1. Industrial Hydraulic Systems 2. Mobile Equipment (Industrial Vehicles) 3. Construction and Engineering Machinery 4. Metallurgy Industry
Key Shaft and Spline shaft
1 set

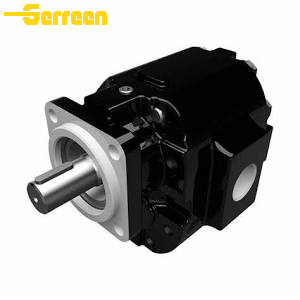

Product Description
Massive Three-Piece Cast Iron Construction:
The PGP075/076 are built with oversized, high-tensile cast iron bodies and covers. This ultra-rigid construction virtually eliminates body stretching and internal deflection even at peak pressures, maintaining precise gear alignment and consistent performance over thousands of operating hours.
Heavy-Duty Roller Bearing Design:
Specifically engineered for "dirty" environments and high side-load applications, these pumps utilize high-capacity roller bearings. This design offers superior durability compared to bushing pumps when operating with fluids that may contain trace contaminants and provides the mechanical strength needed for belt or gear-driven installations.
Precision-Machined High-Strength Gears:
Equipped with large-diameter, high-strength alloy steel gears and integral drive shafts, the PGP075/076 ensures massive torque transmission capacity. The precision-ground gear teeth minimize friction and noise while maximizing volumetric efficiency across a broad range of operating temperatures.
Exceptional High-Flow Performance:
Designed for large-scale hydraulic systems, the 075/076 series can deliver flow rates exceeding 100 GPM (380 LPM). Their internal porting is optimized for high-volume fluid transfer, making them the ideal choice for driving large hydraulic cylinders and high-torque motors.
Modular Versatility and Multi-Unit Capability:
The series offers unmatched flexibility with a wide range of displacements (up to 121.3 cc/rev) and supports standard SAE "C" and "D" mounting options. They are frequently configured as tandem or triple units, allowing multiple hydraulic circuits to be powered by a single drive source.
| Gear Width (in) | Displacement | Displacement (cc/rev) | Max. Pressure (psi/bar) | Max. Speed (RPM) |
| 1.00" | 3.86 | 63.3 | 2500 / 172 | 2400 |
| 1.25" | 4.82 | 79.1 | 2500 / 172 | 2400 |
| 1.50" | 5.79 | 94.9 | 2500 / 172 | 2400 |
| 1.75" | 6.75 | 110.7 | 2500 / 172 | 2400 |
| 2.00" | 7.72 | 126.5 | 2500 / 172 | 2400 |
| 2.25" | 8.68 | 142.3 | 2250 / 155 | 2400 |
| 2.50" | 9.65 | 158.1 | 2000 / 138 | 2400 |
Applications
Heavy Mining & Earthmoving: The preferred choice for large off-highway dump trucks, dozers, and excavators, where the rugged roller-bearing design powers massive steering and hoist systems in abrasive environments.
Large-Scale Forestry Machinery: Optimized for heavy-duty feller bunchers, large log loaders, and debarkers that require continuous high-flow hydraulic power to manage massive timber loads.
Oil & Gas Field Equipment: Widely used in mobile drilling rigs, fracturing pumps, and large winches that operate in extreme outdoor conditions and require maximum mechanical reliability.
Industrial Power Units: Ideal for large hydraulic presses, scrap metal balers, and heavy-duty industrial shredders, providing a robust and dependable flow source for high-force stationary machinery.
Large Marine & Dredging: Frequently employed in deck machinery, large winches, and dredging pumps, where the cast iron construction resists the harsh vibrations and mechanical stresses of maritime operations.
PGP075/PGP076 pumps are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
Permco: P7500 / P7600 Series.
Metaris: MH75 / MH76 Series.
Commercial Intertech: Original 075/076 units.
Always verify the SAE "C" or "D" mount and the specific spline/keyed shaft configuration.
Oil Type: Premium mineral-based hydraulic fluids with strong Anti-Wear (AW) additive packages to maintain the lubricating film on bearing races under massive loads.
Viscosity: Standard ISO VG32 to VG68. The optimal operating range is 100 to 150 SUS (20 to 30 cSt), while maintaining a minimum viscosity of 60 SUS (10 cSt) at peak temperatures.
Filtration: Cleanliness is vital. A minimum filtration of ISO 4406 18/16/13 is recommended to prevent "spalling" of the roller bearings and premature wear of the gear teeth.
Speed: Up to 2,400 RPM.
Filtration: A minimum of ISO 4406 18/16/13 is recommended. Despite being robust, clean oil ensures the massive roller bearings achieve their maximum rated service life.
Yes, we support OEM and customization, including nameplate, packaging, and specific performance requirements. Send us your drawings or specifications for evaluation.
Please provide the following details:
Model or displacement
Working pressure
Speed
Quantity
We will reply within 12 hours with a competitive quotation.
PGP075/PGP076 pumps are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.
All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.
To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.
Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
