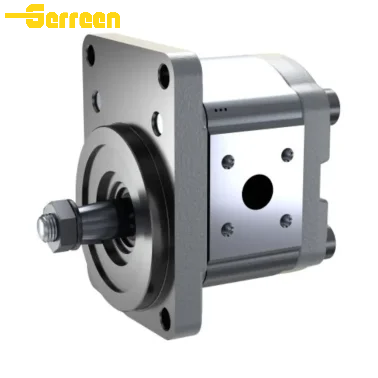

AZPF10 Series
Green Hydraulic
AZPF10 Series
Standard export carton/plywood case
Yes
ISO9001，CE
• Industrial • Energy • Government (Non Aerospace) • HVAC • Mobile • Natural Resources • Transportation (Non Aerospace)
1. Industrial Hydraulic Systems 2. Mobile Equipment (Industrial Vehicles) 3. Construction and Engineering Machinery 4. Metallurgy Industry
Key Shaft and Spline shaft
1 set
Product Description
| Size | Displacement | Maximum Continuous Pressure | Maximum Peak Pressure | Max. Speed | Min. Speed |
| - | cm³/rev (cc/rev) | bar (psi) | bar (psi) | rpm | rpm |
| 4 | 4 | 250 (3625) | 280 (4060) | 4000 | 700 |
| 5 | 5.5 | 250 (3625) | 280 (4060) | 4000 | 700 |
| 8 | 8 | 250 (3625) | 280 (4060) | 4000 | 700 |
| 11 | 11 | 250 (3625) | 280 (4060) | 3500 | 700 |
| 14 | 14 | 250 (3625) | 280 (4060) | 3500 | 600 |
| 16 | 16 | 250 (3625) | 280 (4060) | 3000 | 600 |
| 19 | 19 | 250 (3625) | 280 (4060) | 3000 | 600 |
| 22 | 22.5 | 210 (3045) | 250 (3625) | 2500 | 500 |
| 25 | 25 | 180 (2610) | 210 (3045) | 2500 | 500 |
| 28 | 28 | 160 (2320) | 190 (2755) | 2000 | 500 |
Applications
Modern Agricultural Machinery: A primary choice for tractor hitch controls, seed drills, and small harvesting equipment, where the aluminum body's excellent heat dissipation and high efficiency ensure reliable performance during long field operations.
Mobile Material Handling: Optimized for standard forklifts, electric stackers, and tail-lifts, providing the smooth, low-noise hydraulic power necessary for precise positioning and quiet operation in warehouse environments.
Precision Machine Tools: Widely used in hydraulic clamping units, tool changers, and lubrication circuits, where the AZPF-10’s hydrostatic axial compensation ensures stable power delivery and high volumetric efficiency for delicate machining processes.
Compact Industrial Power Packs: Ideal for small hydraulic presses, plastic processing auxiliaries, and lift tables, offering a cost-effective and highly reliable power source that fits easily into modular HPU designs.
Turf Care & Utility Vehicles: Frequently employed in professional lawn mowers, municipal sweepers, and utility vehicles to drive steering and auxiliary functions, where its high power-to-weight ratio and low-noise gear profile enhance overall vehicle performance.
AZPF-10 pumps are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
Hydrostatic Axial Compensation: Unlike economy aluminum pumps, the AZPF uses pressure-balanced sealing zones that automatically adjust to minimize internal leakage, ensuring consistently high volumetric efficiency over time.
Optimized Power-to-Weight Ratio: The die-cast aluminum construction provides a lightweight frame with excellent thermal conductivity, allowing the pump to dissipate heat more effectively than cast iron models.
Quiet Technology: It features a specialized gear tooth profile that reduces pressure pulsations and operational vibration, resulting in one of the quietest running Group 2 pumps on the market.
Continuous Pressure: Up to 250 bar (3,625 PSI).
Intermittent/Peak Pressure: Up to 280 bar (4,060 PSI).
This makes it capable of powering a wide array of industrial and mobile actuators while maintaining a compact and lightweight installation.

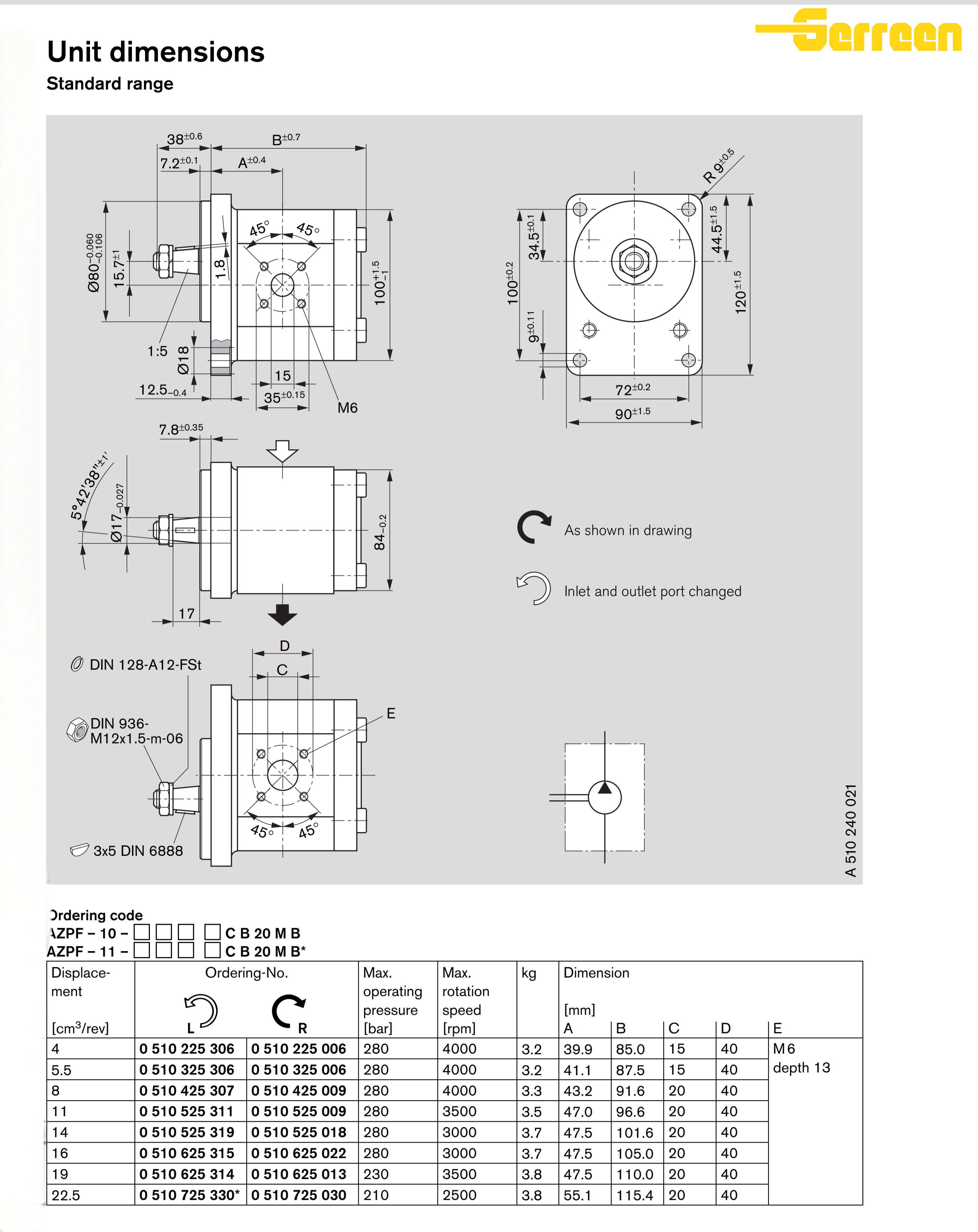

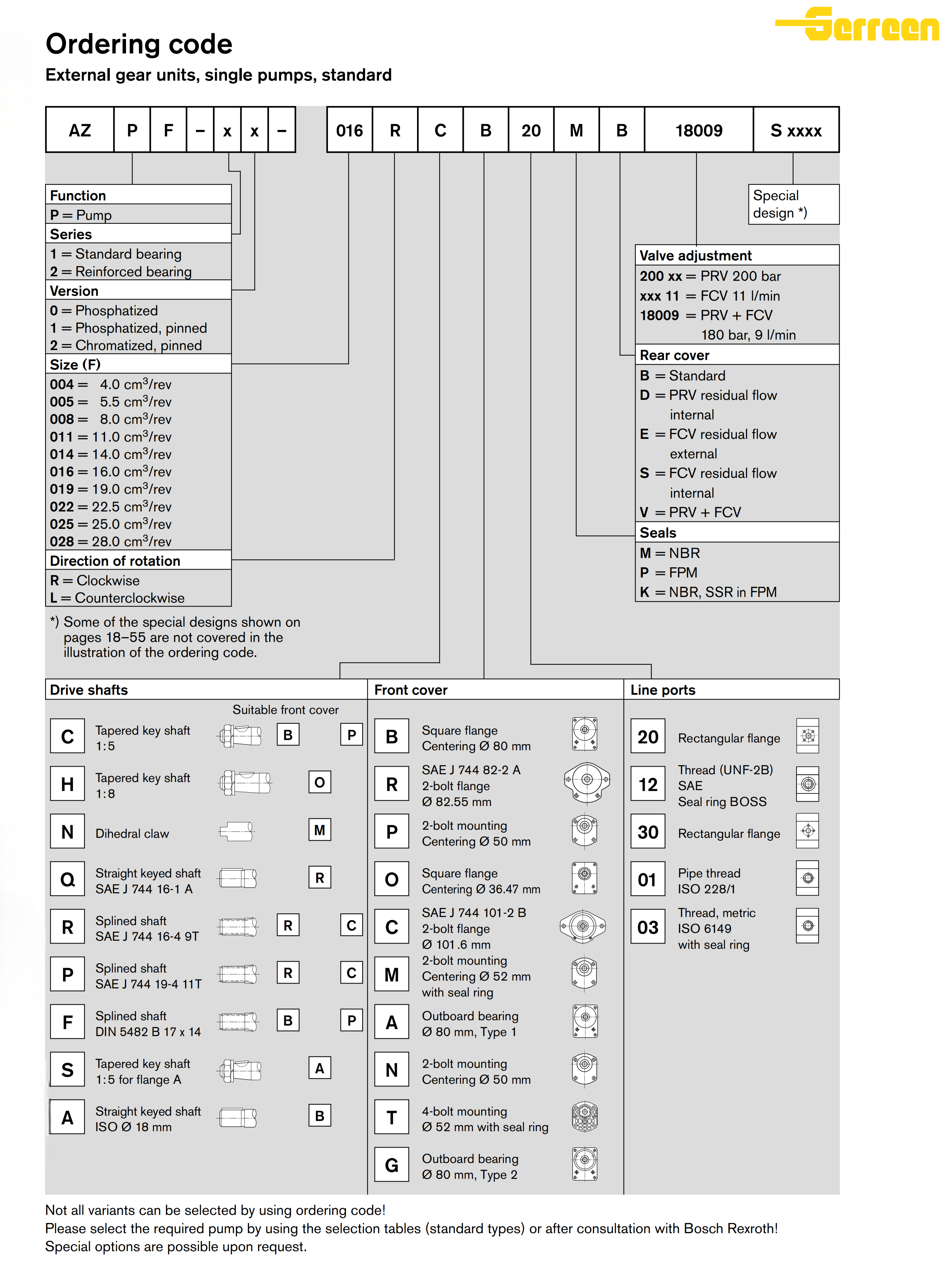

Mounting Flange: European 4-bolt rectangular, SAE A 2-bolt, or other specialized layouts.
Shaft Type: 1:8 Tapered, 9/11-tooth spline, or parallel keyed shafts.
Porting: DIN 4-bolt flange ports, BSPP threaded ports, or SAE O-ring ports.
Oil Type: High-quality mineral-based hydraulic fluids (HLP) with Anti-Wear (AW) additives.
Viscosity: Standard ISO VG32 to VG46. The optimal operating viscosity range is 20 to 100 cSt, though it can handle up to 800 cSt during cold starts.
Filtration: Maintaining fluid cleanliness is vital for the axial compensation system. Rexroth recommends a minimum filtration level of ISO 4406 20/18/15 for pressures above 210 bar.
Yes, we support OEM and customization, including nameplate, packaging, and specific performance requirements. Send us your drawings or specifications for evaluation.
Please provide the following details:
Model or displacement
Working pressure
Speed
Quantity
We will reply within 12 hours with a competitive quotation.
AZPF-10 pumps are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.
All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.
To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.
Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
