MH315
Green Hydraulic
MH315
Standard export carton/plywood case
Yes
ISO9001，CE
• Industrial • Energy • Government (Non Aerospace) • HVAC • Mobile • Natural Resources • Transportation (Non Aerospace)
1. Industrial Hydraulic Systems 2. Mobile Equipment (Industrial Vehicles) 3. Construction and Engineering Machinery 4. Metallurgy Industry
Key Shaft and Spline shaft
1 set
Product Description

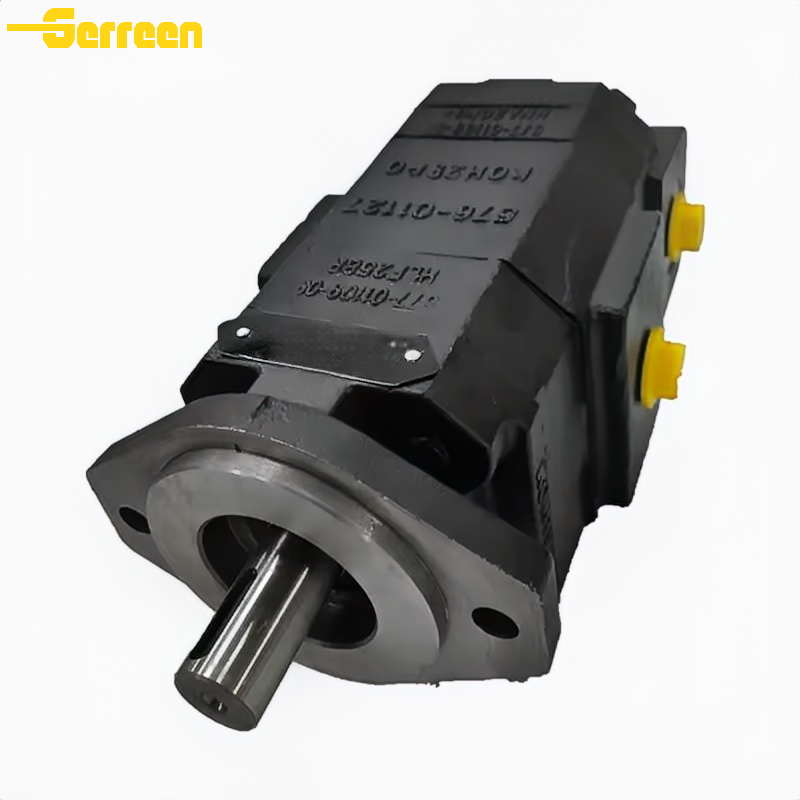

The Metaris MH315 is a premium, high-pressure bushing-style external gear pump engineered for compact hydraulic systems that demand peak performance and high volumetric efficiency. Designed as a 100% interchangeable alternative to the industry-standard Parker/Commercial P315 series, the MH315 combines a space-saving frame with the ruggedness of a heavy-duty cast iron construction. It is the ideal solution for high-intensity applications where space is limited but high-pressure durability is essential.
| Gear Width | Displacement | Max. Pressure | Max. Speed | Flow (1500 rpm) |
| inch (mm) | in⊃3;/rev (cc/rev) | psi (bar) | RPM | gpm (lpm) |
| 0.50" (12.7) | 0.62 (10.2) | 3500 (241) | 3000 | 4.0 (15.1) |
| 0.75" (19.1) | 0.93 (15.2) | 3500 (241) | 3000 | 6.0 (22.7) |
| 1.00" (25.4) | 1.24 (20.3) | 3500 (241) | 3000 | 8.1 (30.7) |
| 1.25" (31.8) | 1.55 (25.4) | 3500 (241) | 3000 | 10.1 (38.2) |
| 1.50" (38.1) | 1.86 (30.5) | 3250 (224) | 3000 | 12.1 (45.8) |
| 1.75" (44.5) | 2.17 (35.6) | 3000 (207) | 3000 | 14.1 (53.4) |
| 2.00" (50.8) | 2.48 (40.6) | 2750 (190) | 3000 | 16.1 (60.9) |
Applications
Construction & Compact Earthmoving: A top choice for mini-excavators, skid steer loaders, and trenching equipment, where the bushing-style design handles high-pressure spikes and thermal shocks in tight engine compartments.
Specialized Waste Management: Optimized for side-load refuse trucks, organic waste compactors, and container lifters that require high-cycle, high-pressure operation (up to 3,500 psi) within a small installation footprint.
High-Intensity Material Handling: Widely used in narrow-aisle forklifts, reach trucks, and heavy-duty lift tables that demand precise control and consistent volumetric efficiency during rapid lifting and lowering cycles.
Road Maintenance & Utility Equipment: Ideal for asphalt pavers, road rollers, and truck-mounted salt spreaders, where the cast iron construction and pressure-balanced bushings ensure reliability under continuous high-load service.
High-Pressure Industrial Power Units: Frequently employed in hydraulic clamping systems, small plastic injection machines, and compact metal-forming presses where space is limited but high-pressure power and minimal pressure pulsations are critical.
MH315 pumps are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
Superior Pressure Rating: While standard aluminum pumps often peak at 3,000 psi, the MH315 is rated for continuous operation at 3,500 psi, thanks to its rigid cast iron housing that prevents body "stretching."
Bushing Design vs. Bearings: Unlike the roller bearings in the MH15, the MH315 uses high-performance bushings. This provides a larger surface area to support the gears, offering better resistance to thermal shock and a higher tolerance for fluid contamination.
Pressure-Balanced Efficiency: It features advanced pressure-balanced thrust plates that automatically adjust to operating conditions, ensuring maximum power output and minimal heat generation.
Continuous Pressure: Up to 3,500 PSI (241 bar).
Intermittent/Peak Pressure: Up to 3,750 PSI (258 bar).
This capability makes the MH315 one of the most powerful pumps available in its size class, ideal for high-force actuators and compact machinery.
Parker/Commercial Intertec: P315 Series.
Permco: P1900 Series.
Muncie: PK Series.
To ensure a successful swap, verify the Mounting Flange (SAE A or B), Shaft Type (splined or keyed), and Gear Width to match the required displacement.
Oil Type: High-quality mineral-based hydraulic oils with robust Anti-Wear (AW) packages.
Viscosity: Standard ISO VG32 to VG68. The optimal operating viscosity range is 100 to 150 SUS (20 to 30 cSt).
Filtration: Because bushing-style pumps rely on a thin film of oil for lubrication, cleanliness is vital. A minimum filtration of ISO 4406 18/16/13 is recommended to prevent abrasive wear on the bushing faces and gear journals.
Yes, we support OEM and customization, including nameplate, packaging, and specific performance requirements. Send us your drawings or specifications for evaluation.
Please provide the following details:
Model or displacement
Working pressure
Speed
Quantity
We will reply within 12 hours with a competitive quotation.
MH315 pumps are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.
All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.
To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.
Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
