1GG Series Gear Pump
Green Hydraulic

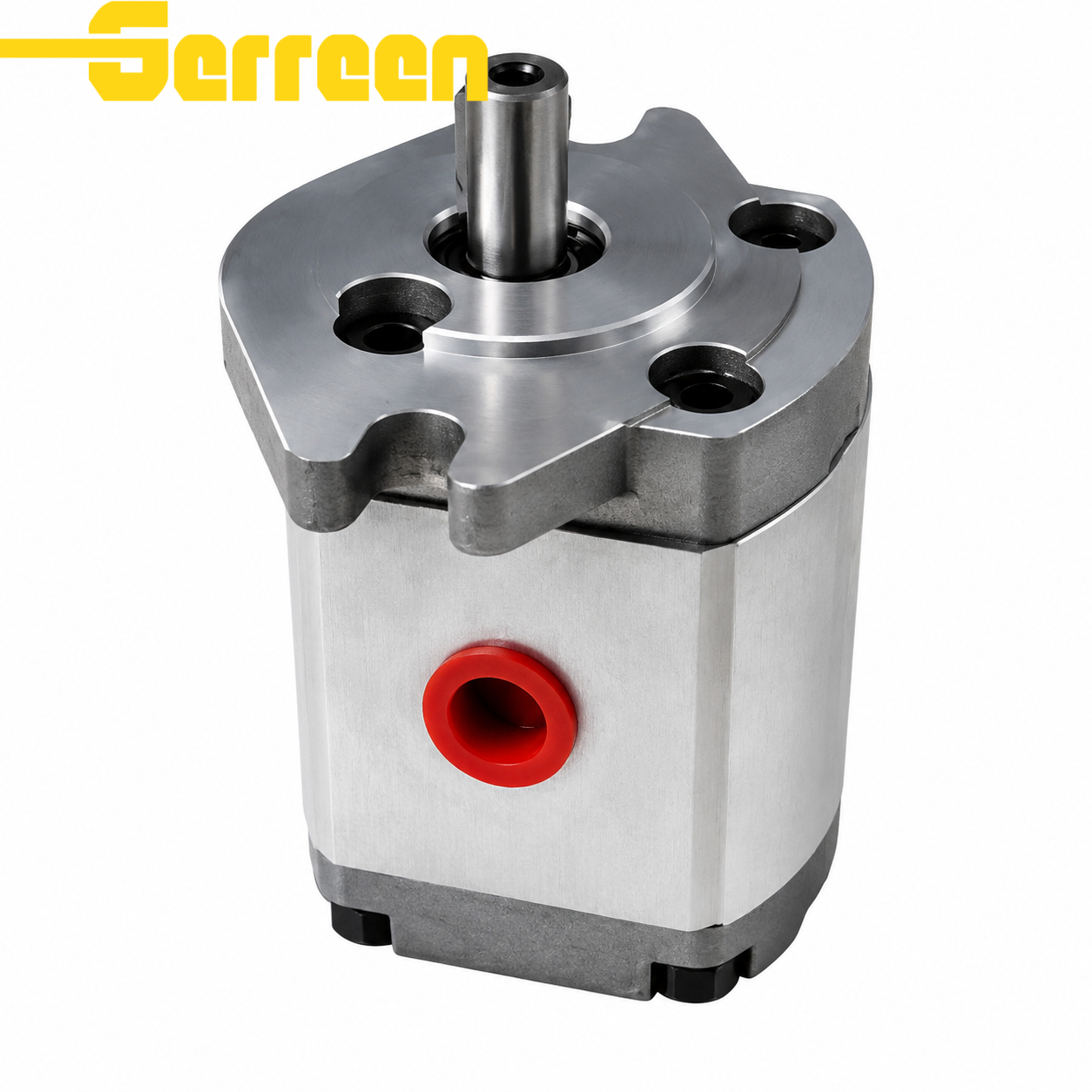

1GG Series Gear Pump
Yes
ISO9001，CE
• Industrial • Energy • Government (Non Aerospace) • HVAC • Mobile • Natural Resources • Transportation (Non Aerospace)
1. Industrial Hydraulic Systems 2. Mobile Equipment (Industrial Vehicles) 3. Construction and Engineering Machinery 4. Metallurgy Industry
Key Shaft and Spline shaft
1 set
Product Description
Specification

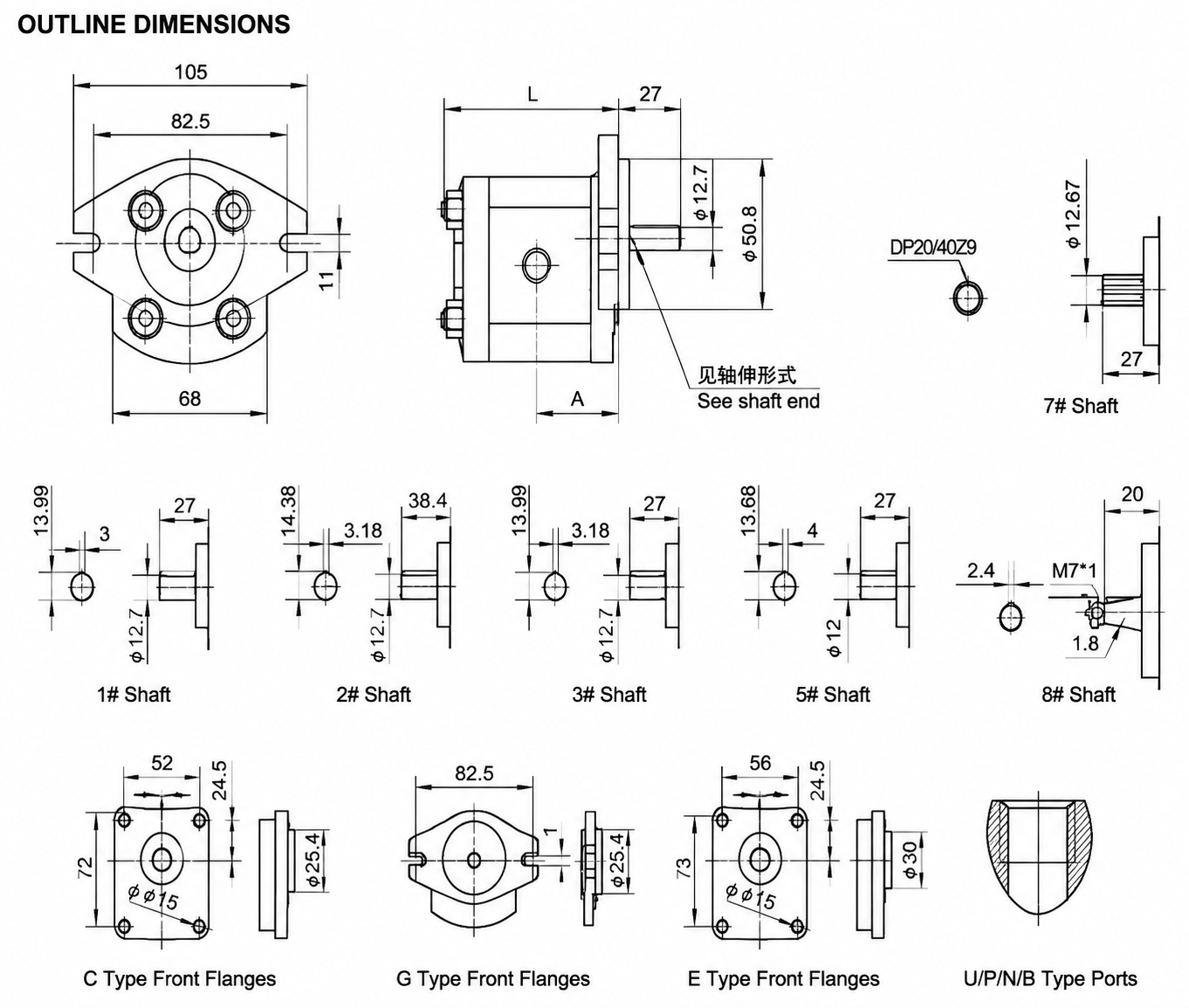

| Model | Displacement (mL/r) | Rated Pressure (MPa) | Max Pressure (MPa) | Speed (r/min) | A (mm) | L (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| 01 | 1.3 | 23 | 27 | 600–4000 | 42.0 | 83.1 | 1.75 |
| 02 | 2.0 | 23 | 27 | 600–4000 | 43.0 | 85.1 | 1.79 |
| 27 | 2.7 | 23 | 27 | 600–4000 | 44.0 | 87.1 | 1.83 |
| 35 | 3.4 | 23 | 27 | 600–4000 | 45.0 | 89.1 | 1.86 |
| 04 | 4.1 | 23 | 27 | 600–4000 | 46.0 | 91.1 | 1.90 |
| 05 | 5.1 | 23 | 27 | 600–4000 | 47.5 | 94.1 | 1.95 |
| 06 | 6.1 | 23 | 27 | 600–4000 | 49.0 | 97.1 | 2.00 |
| 07 | 7.4 | 22 | 25 | 600–2500 | 51.0 | 101.1 | 2.06 |
| 09 | 9.1 | 20 | 22 | 600–2500 | 53.5 | 106.1 | 2.14 |
| 11 | 11.0 | 18 | 20 | 600–2500 | 56.5 | 112.1 | 2.23 |
| 13 | 13.5 | 18 | 20 | 600–2500 | 60.0 | 119.1 | 2.34 |
| Code | Model “01–06” Inlet | Model “01–06” Outlet | Model “07–13” Inlet | Model “07–13” Outlet |
|---|---|---|---|---|
| U | UNF#8 3/4”-16 | UNF#6 9/16”-18 | UNF#8 7/8”-18 | UNF#6 3/4”-16 |
| P | PT 1/2” | PT 3/8” | PT 3/4” | PT 1/2” |
| N | NPT 1/2” | NPT 3/8” | NPT 3/4” | NPT 1/2” |
| B | BSPF 1/2” | BSPF 3/8” | BSPF 3/4” | BSPF 1/2” |
Application
Applications
Winches, oil field and drilling
equipment, earthmoving and
construction equipment, die
casting, molding machines, press
machines, trash compactors, balers
and primary metals
Gear Pumps are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the high-precision pump body and shaft from moisture and environmental damage.
Custom Cartons or Crates: Individual reinforced packaging with shock-absorbent inserts for single pumps, and sturdy wooden crates for bulk or tandem pump orders to ensure safe handling.
Documentation: Includes technical data sheets, installation guides, and quality inspection certificates.
Delivery time depends on the specific model, port configurations, and destination but typically ranges from 1 to 4 weeks from the order date.
Factory & FAQ
The 1GG Series is a compact external hydraulic gear pump used for hydraulic oil transmission in mobile and industrial hydraulic systems.
Main features include:
Compact and lightweight design
High volumetric efficiency
Low noise operation
Stable pressure performance
Durable aluminum alloy housing
Long service life
Typical applications include:
Agricultural machinery
Forklifts
Construction equipment
Hydraulic power units
Industrial hydraulic systems
Common displacement options include:
1.3 mL/r
2.0 mL/r
2.7 mL/r
3.4 mL/r
4.1 mL/r
5.1 mL/r
6.1 mL/r
7.4 mL/r
9.1 mL/r
11.0 mL/r
13.5 mL/r
Depending on the model:
Rated pressure: 18–23 MPa
Maximum pressure: 20–27 MPa
The 1GG Series generally supports:
Minimum speed: 600 r/min
Maximum speed: up to 4000 r/min
Available oil port forms include:
UNF
PT
NPT
BSPF
The pump can be supplied with:
Plain key shaft
Spline shaft
Customized shaft configurations
Yes. Clockwise (R) and counterclockwise (L) rotation options are available according to installation requirements.
Recommended maintenance includes:
Keeping hydraulic oil clean
Avoiding dry running
Checking seals and fittings regularly
Using proper filtration systems
Performing routine maintenance regularly
