CBQ-F500 Series Gear Pump
Green Hydraulic
CBQ-F500 Series Gear Pump
Yes
ISO9001，CE
• Industrial • Energy • Government (Non Aerospace) • HVAC • Mobile • Natural Resources • Transportation (Non Aerospace)
1. Industrial Hydraulic Systems 2. Mobile Equipment (Industrial Vehicles) 3. Construction and Engineering Machinery 4. Metallurgy Industry
Key Shaft and Spline shaft
1 set
Product Description

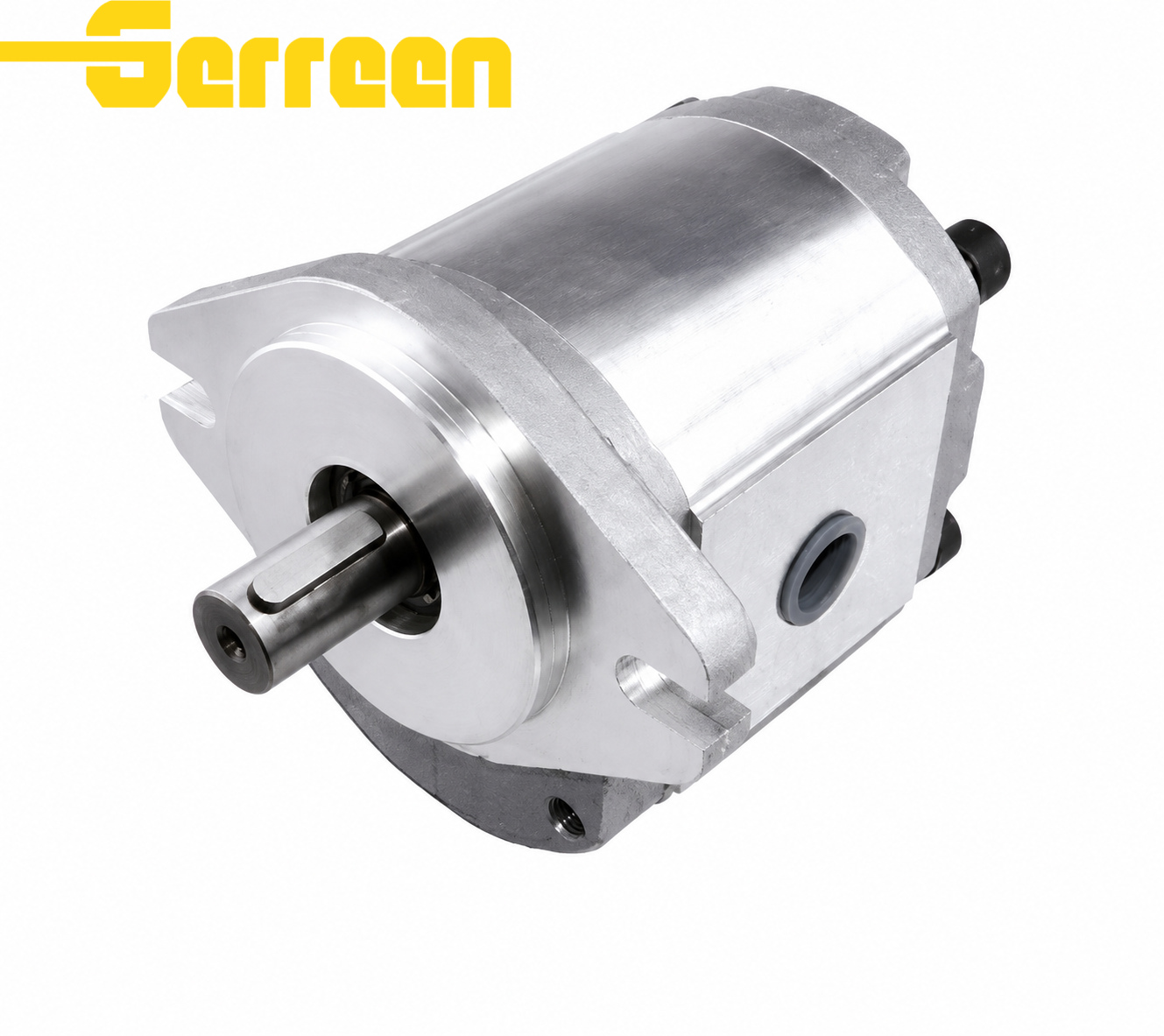

The CBQ-F500 Series Gear Pump is a high-pressure external hydraulic gear pump designed for stable flow output and reliable hydraulic power transmission. Featuring a high-strength aluminum alloy housing, precision-machined gears, high volumetric efficiency, and low noise operation, the CBQ-F500 Series is widely used in forklifts, construction machinery, agricultural equipment, hydraulic power units, and industrial hydraulic systems. It offers compact structure, smooth performance, easy installation, and long service life under demanding working conditions.
Specification
| Parameter | CBQ-F520-F* | CBQ-F525-F* | CBQ-F532.5-F* | CBQ-F540-F* | CBQ-F550-F* | CBQ-F563-F* |
|---|---|---|---|---|---|---|
| Nominal Displacement (mL/r) | 20 | 25 | 32 | 40 | 50 | 63 |
| Rated Pressure (MPa) | 25 | 25 | 25 | 25 | 20 | 20 |
| Max Pressure (MPa) | 28 | 28 | 28 | 28 | 25 | 25 |
| Min Rotation Speed (r/min) | 600 | 600 | 600 | 600 | 500 | 500 |
| Rated Rotation Speed (r/min) | 2500 | 2500 | 2500 | 2500 | 2000 | 2000 |
| Max Rotation Speed (r/min) | 3000 | 3000 | 3000 | 3000 | 2500 | 2500 |
| Volumetric Efficiency (%) | 92 | 92 | 92 | 93 | 93 | 93 |

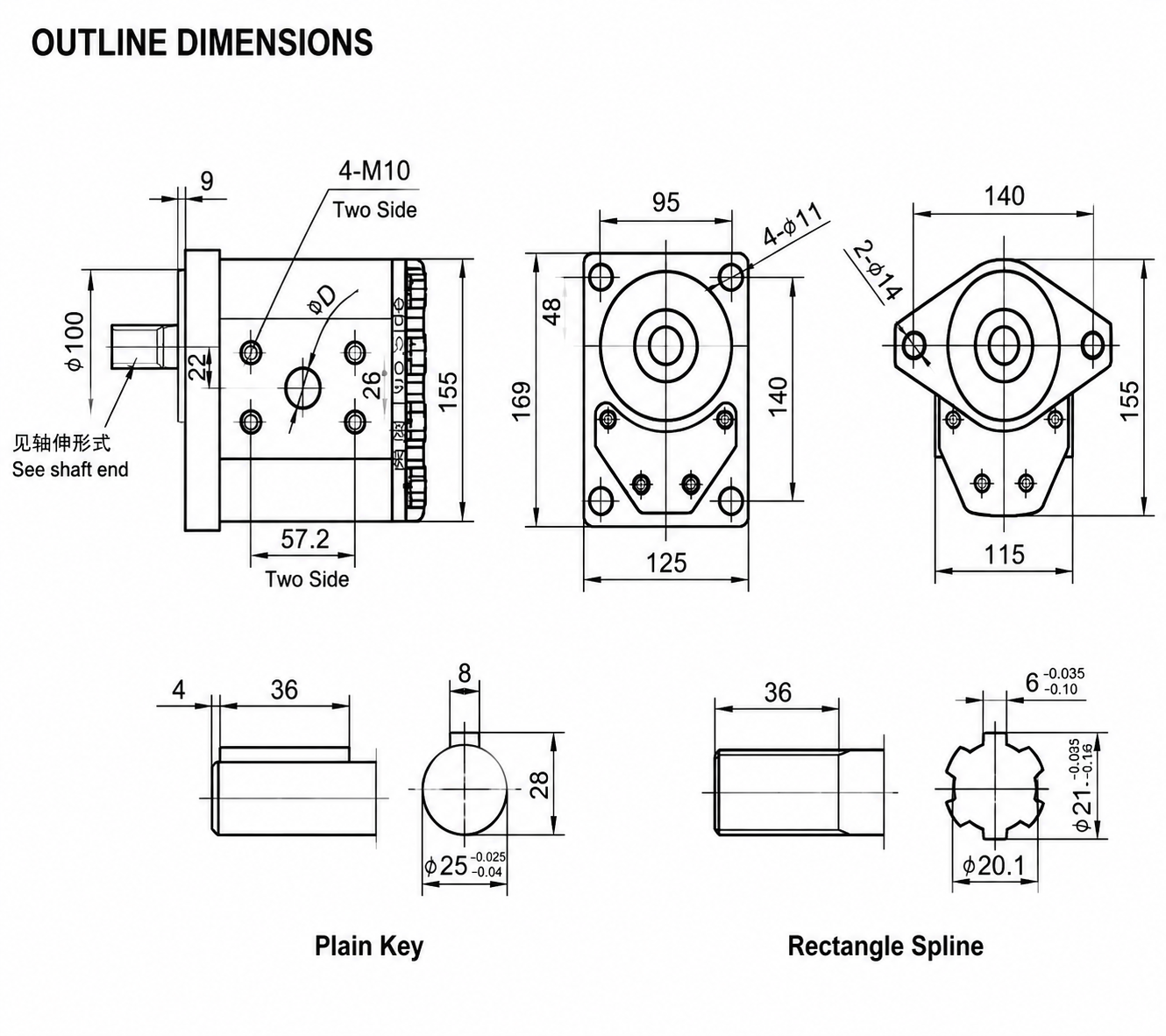

| L1 | 62.5 | 64.5 | 67 | 69.5 | 73 | 77.5 |
| L | 129 | 133 | 138 | 143 | 150 | 159 |
| Rectangle Spline | 23 | 23 | 23 | 23 | 23 | 23 |
| Oval | 15 | 15 | 15 | 15 | 15 | 15 |
| Inlet | 25 | 25 | 30 | 30 | 35 | 35 |
| Outlet | 20 | 20 | 20 | 20 | 25 | 25 |
| Weight (kg) | 5.7 | 6.0 | 6.3 | 6.8 | 7.3 | 8.0 |
Application
Applications
Winches, oil field and drilling
equipment, earthmoving and
construction equipment, die
casting, molding machines, press
machines, trash compactors, balers
and primary metals
Gear Pumps are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the high-precision pump body and shaft from moisture and environmental damage.
Custom Cartons or Crates: Individual reinforced packaging with shock-absorbent inserts for single pumps, and sturdy wooden crates for bulk or tandem pump orders to ensure safe handling.
Documentation: Includes technical data sheets, installation guides, and quality inspection certificates.
Delivery time depends on the specific model, port configurations, and destination but typically ranges from 1 to 4 weeks from the order date.
