20/925578
Green Hydraulic
20/925578
Yes
ISO9001，CE
• Industrial • Energy • Government (Non Aerospace) • HVAC • Mobile • Natural Resources • Transportation (Non Aerospace)
JCB 4C,4CX-PC,3CX,214-4,215S,217-4.
Key Shaft and Spline shaft
1 set
Product Description

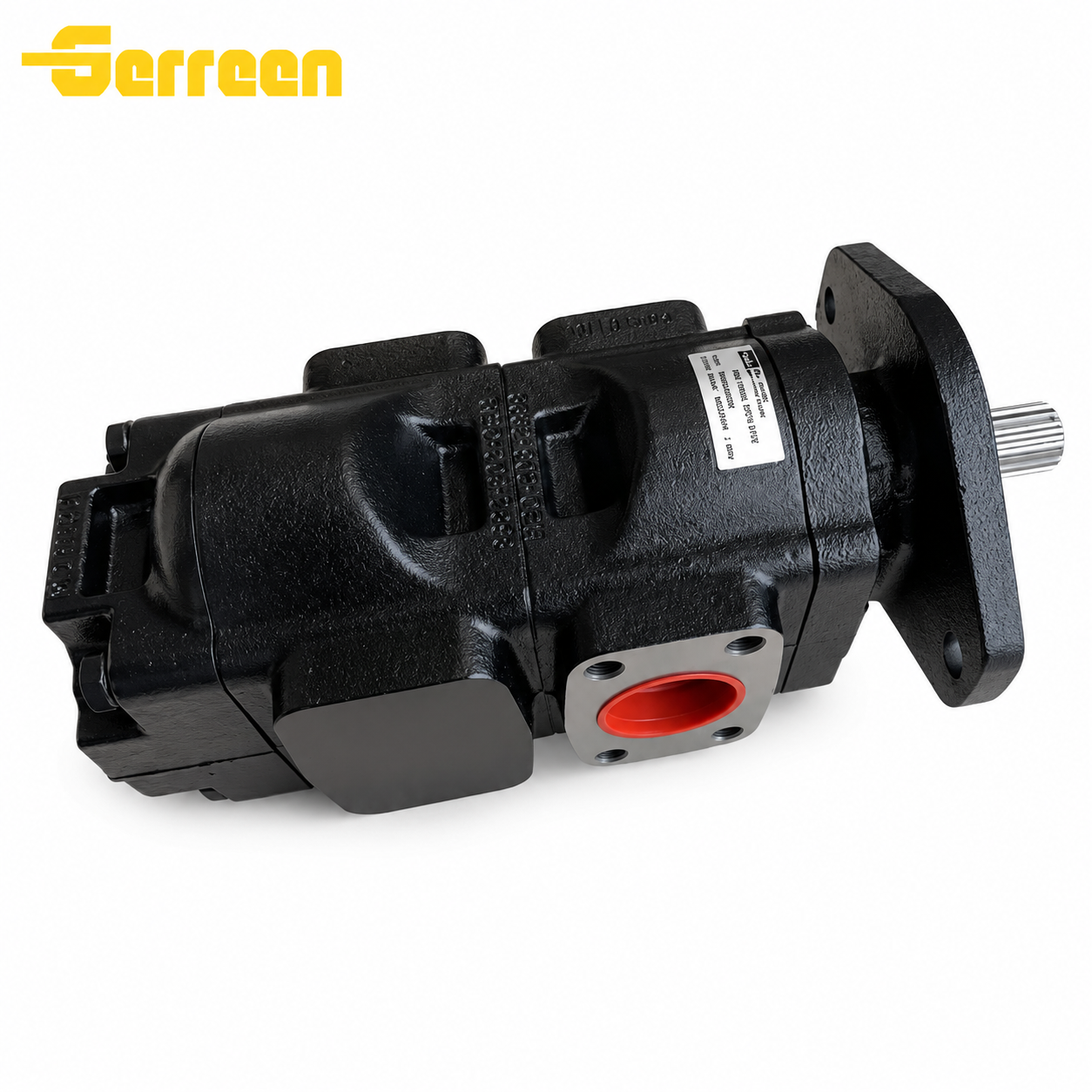

The 20/925578 Hydraulic Gear Pump is a high-performance twin hydraulic gear pump designed for reliable hydraulic power transmission in construction and mobile hydraulic machinery. Manufactured with a robust cast iron housing and precision-engineered internal gears, the pump delivers stable flow output, high volumetric efficiency, and excellent durability under demanding working conditions.
OEM-Level Compatibility
Direct replacement for JCB original hydraulic pumps
Heavy-Duty Construction
Durable cast iron housing for long service life
Stable Hydraulic Output
Ensures smooth and consistent system performance
High Efficiency Design
Reduced internal leakage and energy loss
Low Maintenance Requirement
Simple structure for easy service and replacement
Specification
| Parameter | Specification |
| Rotation | Clockwise (looking from shaft end) |
| Shaft | 1” Diameter 15T SAE Splined Shaft (16/32 Pitch) |
| Mounting Flange | SAE B 2-Hole |
| Front Pump Displacement | 33 cc/rev (33 L/min @ 1000 rpm) |
| Rear Pump Displacement | 23 cc/rev (23 L/min @ 1000 rpm) |
| Flange Inlet | Single 2” SAE |
| Front Pump Outlet | 1-1/16”-12 UNF Threaded |
| Rear Pump Outlet | 7/8”-14 UNF Threaded |
| Maximum Working Pressure (Front Pump) | 275 bar |
| Maximum Working Pressure (Rear Pump) | 275 bar |
| Max. Input Shaft Torque | 460 Nm |
Applications
JCB Backhoe Loaders
Excavators
Wheel Loaders
Telehandlers
Construction Machinery
Hydraulic Power Units
Agricultural Equipment
Material Handling Systems
The pump is mainly used in JCB construction machinery, including backhoe loaders and excavators.
Yes, it is designed as an OEM-equivalent replacement with compatible dimensions and performance.
It is a twin external hydraulic gear pump designed for dual-circuit hydraulic systems.
· Stable hydraulic performance
· High efficiency
· Durable construction
· Long service life
· Competitive price
Yes, it is designed for heavy-duty hydraulic systems with excellent pressure resistance.
Yes, OEM manufacturing and customized solutions are available for bulk orders.
Factory & FAQ
The 20/925578 Hydraulic Gear Pumps are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.
All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.
To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.
Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
