DVA35/DVG35 Series Valves Factory

Green Hydraulic’s DVA35/DVG35 is a sectional, open center, CF (constant flow), directional control valve for mobile machines. It is typically applied between 20 and 45 GPM pump flow.
Built-in, full fow relief valves. Parallel and series circuits in one bank. Manual, hydraulic, electric or pneumatic operation

Model:
VA35 / VG35 Series


Availability:



Inquiry

Product Description

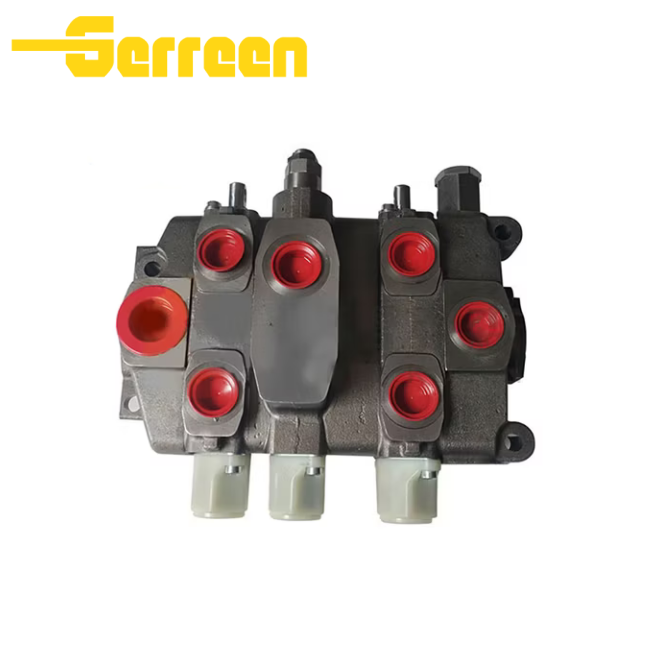

dva35 hydraulic valve

DVA35/DVG35 Series Valves Introduction

VA20/VG20, VA35/VG35/VG80

Green Hydraulic’s VA20/VG20,VA35/VG35/VG80 is a sectional, open center, CF (constant flow), directional control valve for mobile machines. It is typically applied between 20 and 45 GPM pump flow.

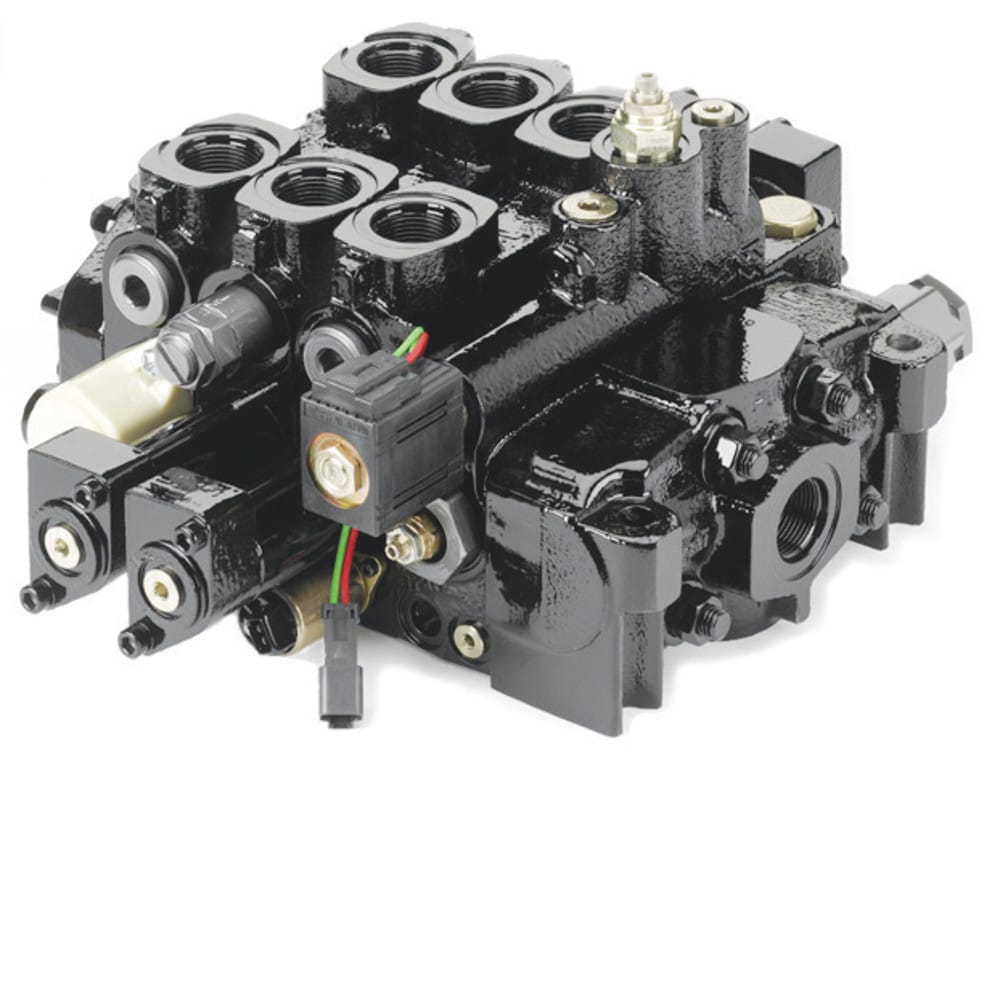

DVG35 Series Valve Factory

Feature/Benefits:

• Dirt tolerant, quick response
• Differential area main relief valves
• Outstanding pressure drop and balance
• The standard maximum work port size is SAE-12
• Inlets are typically ported SAE-16 and the outlets SAE-20
• Provides excellent feathering control and low spool force
• Rated at 2500 PSI inlet and 45 GPM maximum pump flow
• Minimizes heat generation especially when retracting cylinders
• Standard actuation methods are spring return, detent, pneumatic, and hydraulic remote

Specifications

VA20/VG20, VA35/VG35/VG80 Technical Specifications

For Fluid Type:	Hydraulic Oil
Body Material:	Low Pressure Gray Iron, High Pressure Compacted Graphite
Maximum Operating Temperature:	+200 °F
Maximum Flow Rate:	246 L/min, 65 gal/min
Configuration:	Sectional
Minimum Operating Temperature:	-40 °F

Mounting Type:	Inline
Actuation Type:	Solenoid Operated
Maximum Operating Pressure:	Pressures up to 3500 psi, Pressures up to 240 lpm bar
Seal Material:	Nitrile
Function:	Open-Center, Closed Center Directional Control Valve

PDF

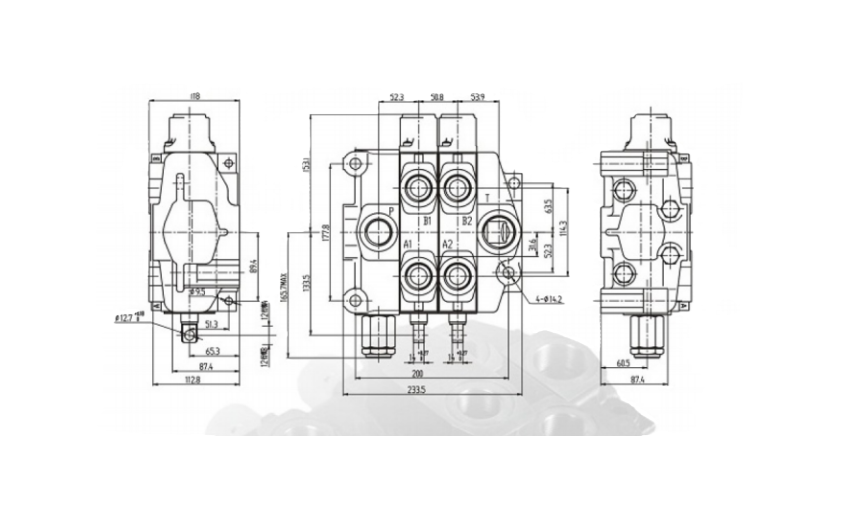

VA35/VG35 Valve CAD Drawings + Files PDF

Dump truck parts and trailer parts Green Hydraulic.pdf

Applications

VA35/VG35 valve Applications

Green Hydraulic's VA35/VG35 valve is a sectional, “stack-type” open center, directional control valve for mobile machines. Work sections are offered in many functional types and inlet/outlet sections. Working sections are available in either series or parallel and can be assembled in any combination or sequence without affecting the performance of other work sections on the valve bank.

Markets:

• Construction Equipment
• Material Handling Equipment
• Mining
• Other Mobile
• Other Natural Resources
• Refuse
• Vocational & Municipal Equipment

HEAVY TRUCK HYDRAULIC PARTS Green hydraulic

Factory & FAQ

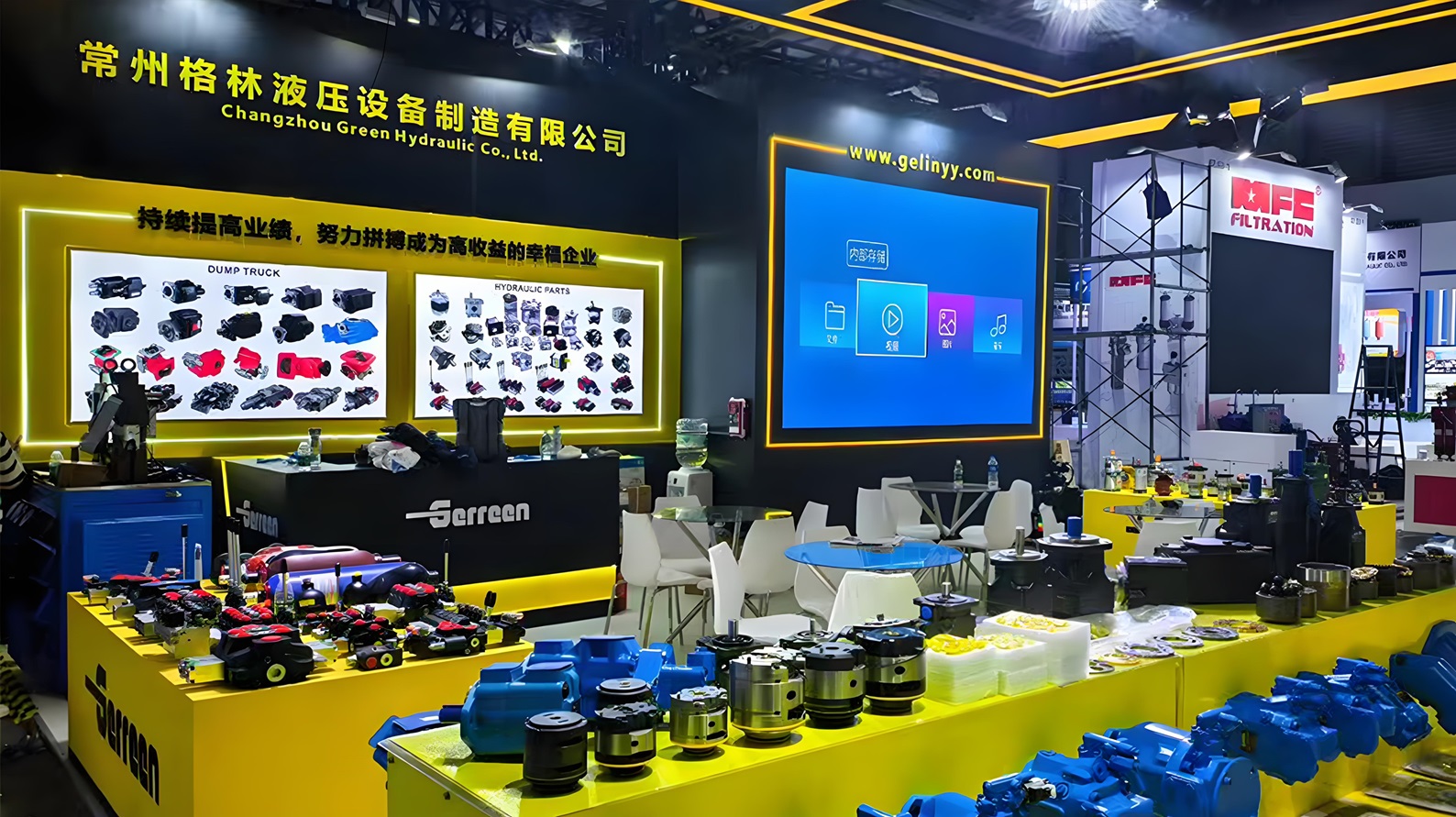

Why Choose Green Hydraulic VA35 / VG35 Series

Green Hydraulic is a specialized manufacturer dedicated to the research, development, and production of high-performance hydraulic components. With years of industry experience and a strong commitment to innovation, we deliver reliable and efficient solutions tailored to meet the evolving demands of global customers.

Our VA35 / VG35 Series is designed with advanced engineering and precision manufacturing to ensure superior performance, durability, and energy efficiency. These products are widely applied in construction machinery, agricultural equipment, and industrial systems, offering stable operation even under demanding working conditions.

At Green Hydraulic, we prioritize quality at every stage of production. From raw material selection to final testing, each product undergoes strict quality control to guarantee consistency and reliability. Our modern manufacturing facilities, skilled technical team, and continuous improvement processes enable us to maintain high standards and competitive lead times.
We are committed to providing not only high-quality products but also excellent customer service. With flexible customization options and responsive technical support, Green Hydraulic aims to build long-term partnerships and create sustainable value for our clients worldwide.
