CBD1-F200 Series Gear Pump
Green Hydraulic
CBD1-F200 Series Gear Pump
Yes
ISO9001，CE
• Industrial • Energy • Government (Non Aerospace) • HVAC • Mobile • Natural Resources • Transportation (Non Aerospace)
1. Industrial Hydraulic Systems 2. Mobile Equipment (Industrial Vehicles) 3. Construction and Engineering Machinery 4. Metallurgy Industry
Key Shaft and Spline shaft
1 set
Product Description

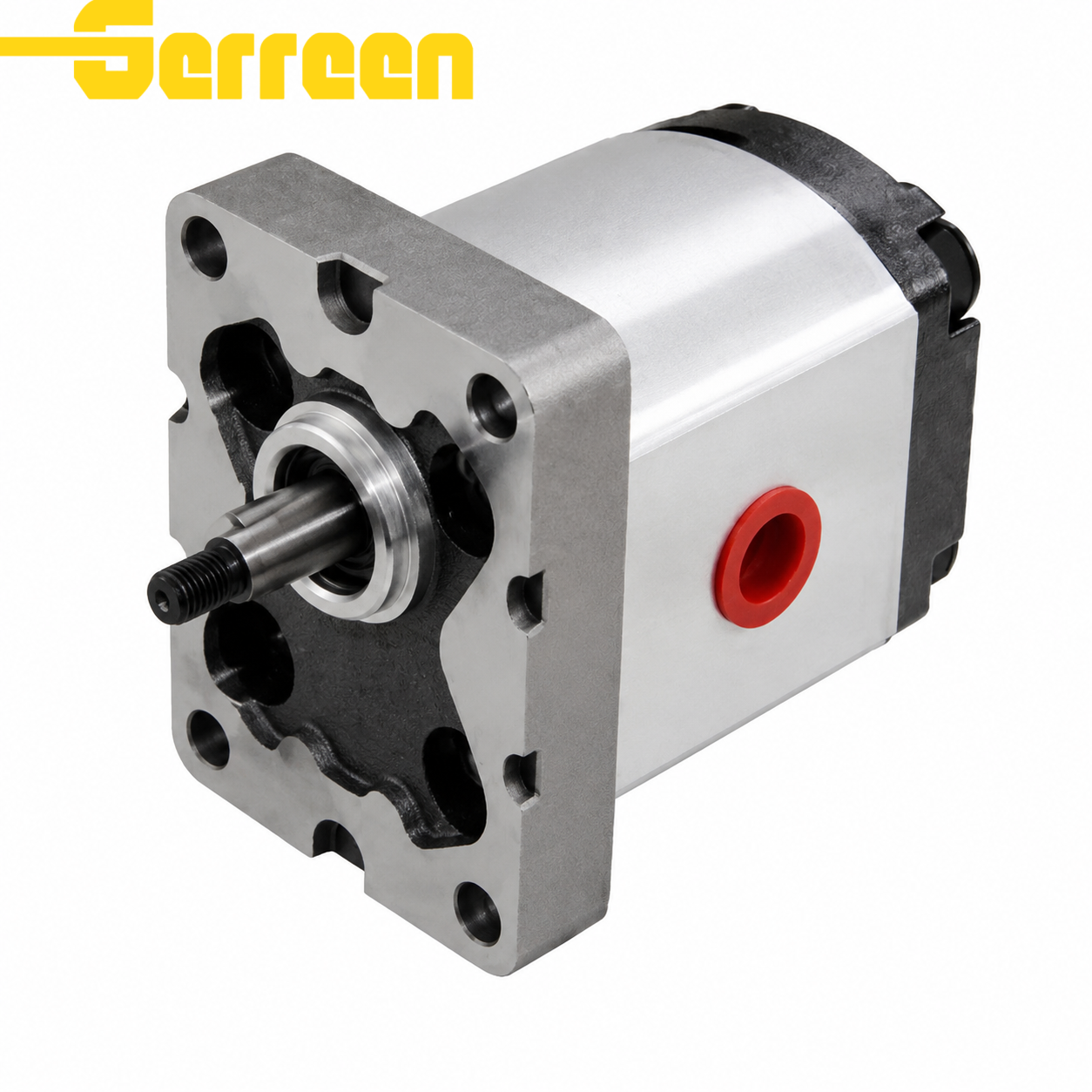

The CBD1-F200 Series Gear Pump is a compact external hydraulic gear pump designed for stable hydraulic power transmission in mobile and industrial hydraulic systems. It features a high-strength aluminum alloy housing, high volumetric efficiency, low noise operation, and reliable pressure performance. Widely used in forklifts, agricultural machinery, construction equipment, and hydraulic power units, the CBD1-F200 Series offers smooth operation, easy installation, and long service life under demanding working conditions.
Specification
| Models | Nominal Displacement (mL/r) | Rated Pressure (MPa) | Max Pressure (MPa) | Rated Rotation Speed (r/min) | Max Rotation Speed (r/min) | Min Rotation Speed (r/min) |
|---|---|---|---|---|---|---|
| CBD1-F201.1 | 1.1 | 20 | 25 | 2000 | 6000 | 600 |
| CBD1-F201.3 | 1.3 | 20 | 25 | 2000 | 6000 | 600 |
| CBD1-F201.6 | 1.6 | 20 | 25 | 2000 | 6000 | 600 |
| CBD1-F202.1 | 2.1 | 20 | 25 | 2000 | 6000 | 600 |
| CBD1-F202.7 | 2.7 | 20 | 25 | 2000 | 6000 | 600 |
| CBD1-F203.2 | 3.2 | 20 | 25 | 2000 | 6000 | 600 |
| CBD1-F203.7 | 3.7 | 20 | 25 | 2000 | 6000 | 600 |
| CBD1-F204.2 | 4.2 | 20 | 25 | 2000 | 6000 | 600 |
| CBD1-F204.8 | 4.8 | 16 | 20 | 2000 | 6000 | 600 |
| CBD1-F205.8 | 5.8 | 16 | 20 | 2000 | 6000 | 600 |
| CBD1-F208.0 | 8.0 | 16 | 20 | 2000 | 6000 | 600 |
FDP
Application
Applications
Winches, oil field and drilling
equipment, earthmoving and
construction equipment, die
casting, molding machines, press
machines, trash compactors, balers
and primary metals
Gear Pumps are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the high-precision pump body and shaft from moisture and environmental damage.
Custom Cartons or Crates: Individual reinforced packaging with shock-absorbent inserts for single pumps, and sturdy wooden crates for bulk or tandem pump orders to ensure safe handling.
Documentation: Includes technical data sheets, installation guides, and quality inspection certificates.
Delivery time depends on the specific model, port configurations, and destination but typically ranges from 1 to 4 weeks from the order date.
Factory & FAQ
The CBD1-F200 Series is a compact external hydraulic gear pump designed for stable hydraulic power transmission in mobile and industrial hydraulic systems.
The series offers displacement options from 1.1 mL/r to 8.0 mL/r to meet different hydraulic flow requirements.
Most models have a rated pressure of 20 MPa and a maximum pressure of 25 MPa. Some larger displacement models are rated at 16 MPa with a maximum pressure of 20 MPa.
The pump supports:
Rated speed: 2000 r/min
Maximum speed: up to 6000 r/min
Minimum speed: 600 r/min
Main features include:
High-strength aluminum alloy housing
High volumetric efficiency
Low noise operation
Compact structure
Stable performance at low speed
Long service life
It is widely used in:
Agricultural machinery
Construction equipment
Forklifts
Hydraulic power units
Industrial hydraulic systems

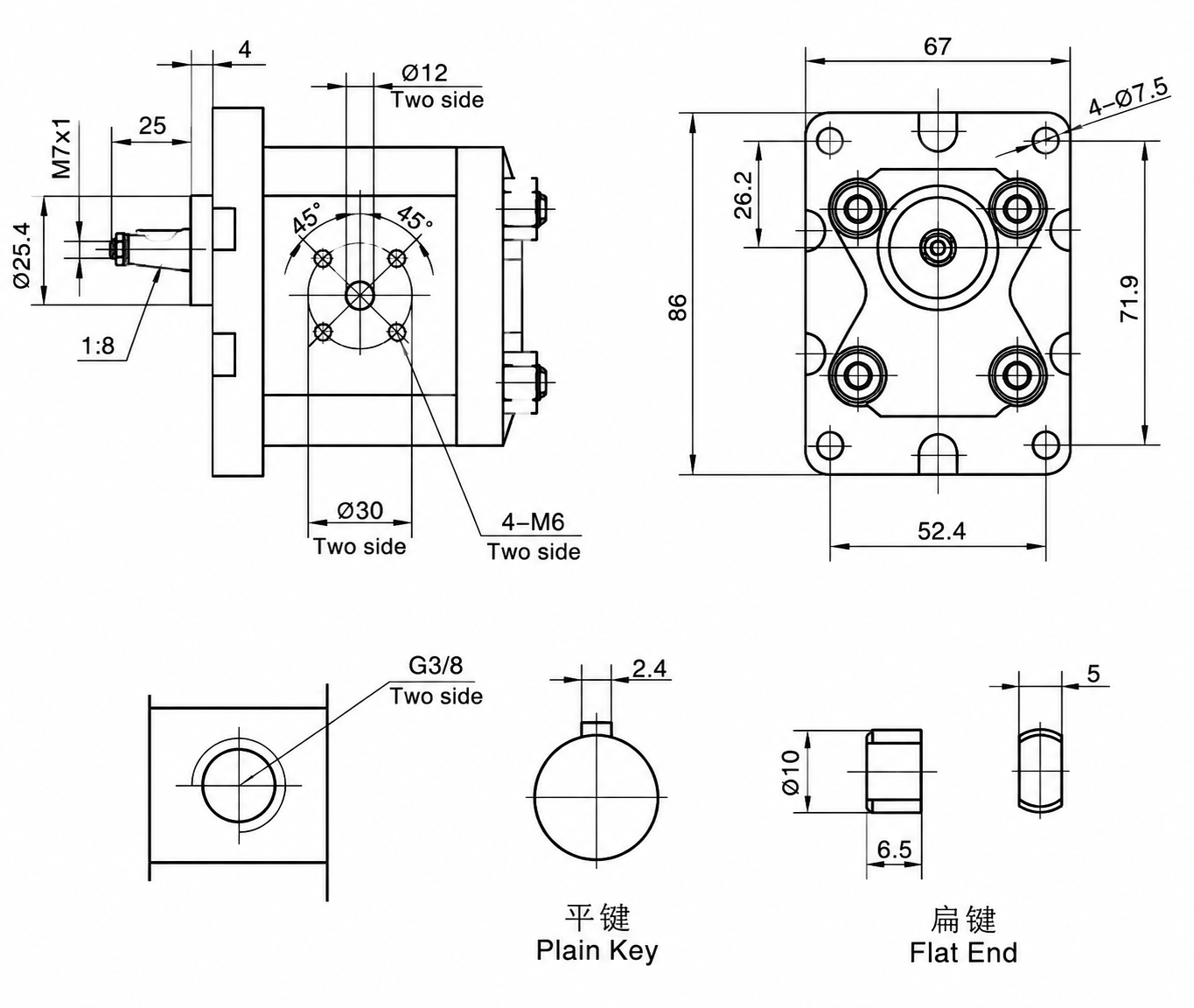

The CBD1-F200 Series can be supplied with flat key shafts, rectangle spline shafts, taper shafts, and flat end shaft configurations depending on application requirements.
Yes. The pump is available in clockwise (R) and counterclockwise (L) rotation versions.
The pump is suitable for standard hydraulic oils and anti-wear hydraulic fluids commonly used in industrial and mobile hydraulic systems.
Regular maintenance is recommended, including:
Keeping hydraulic oil clean
Inspecting seals and fittings regularly
Avoiding dry running
Replacing worn parts in time
Maintaining proper lubrication and filtration
