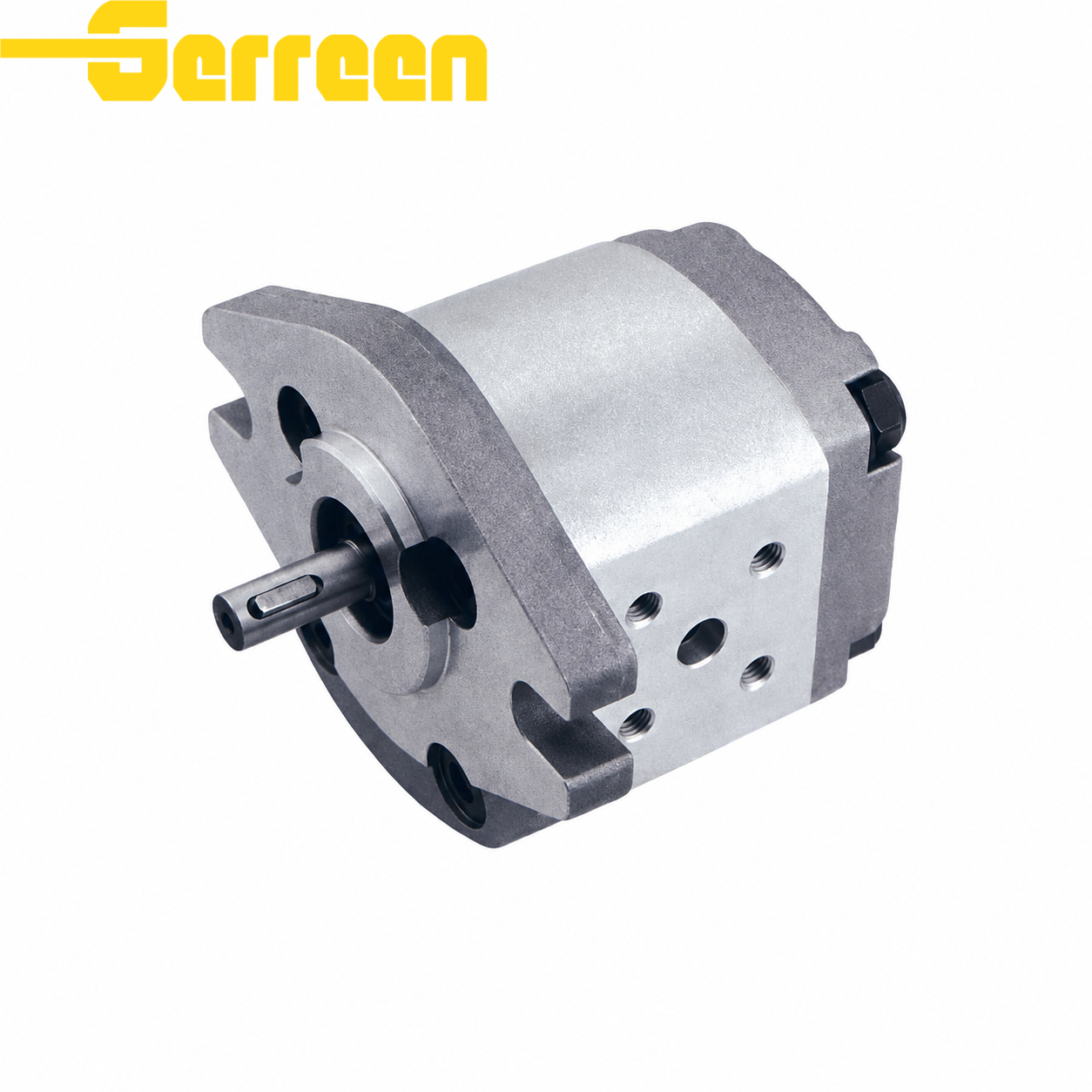

CBW-F200 Series Gear Pump
Green Hydraulic
CBW-F200 Series Gear Pump
Yes
ISO9001，CE
• Industrial • Energy • Government (Non Aerospace) • HVAC • Mobile • Natural Resources • Transportation (Non Aerospace)
1. Industrial Hydraulic Systems 2. Mobile Equipment (Industrial Vehicles) 3. Construction and Engineering Machinery 4. Metallurgy Industry
Key Shaft and Spline shaft
1 set
Product Description
The CBW-F200 Series Gear Pump is a compact external hydraulic gear pump designed for stable and efficient hydraulic power transmission. It features high volumetric efficiency, low noise, reliable pressure performance, and a lightweight structure. Widely used in agricultural machinery, construction equipment, forklifts, and hydraulic power units, the CBW-F200 Series offers reliable operation, easy installation, and long service life for mobile and industrial hydraulic systems.
Specification
| Parameter | CBW-F201.5-A*** | CBW-F202-A*** | CBW-F202.5-A*** | CBW-F203-A*** | CBW-F204-A*** | CBW-F205-A*** | CBW-F206-A*** |
|---|---|---|---|---|---|---|---|
| Nominal Displacement (mL/r) | 1.5 | 2.0 | 2.5 | 3.0 | 4.0 | 5.0 | 6.0 |
| Rated Pressure (MPa) | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Max Pressure (MPa) | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Min Rotation Speed (r/min) | 800 | 800 | 800 | 800 | 800 | 800 | 800 |
| Rated Rotation Speed (r/min) | 2500 | 2500 | 2500 | 2500 | 2500 | 2500 | 2500 |
| Max Rotation Speed (r/min) | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 |
| Volumetric Efficiency (%) | 83 | 83 | 85 | 85 | 90 | 90 | 90 |
| Inlet | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| Outlet | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Weight (kg) | 0.7 | 0.8 | 0.9 | 1.0 | 1.1 | 1.2 | 1.3 |
Application
Applications
Winches, oil field and drilling
equipment, earthmoving and
construction equipment, die
casting, molding machines, press
machines, trash compactors, balers
and primary metals
Gear Pumps are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the high-precision pump body and shaft from moisture and environmental damage.
Custom Cartons or Crates: Individual reinforced packaging with shock-absorbent inserts for single pumps, and sturdy wooden crates for bulk or tandem pump orders to ensure safe handling.
Documentation: Includes technical data sheets, installation guides, and quality inspection certificates.
Delivery time depends on the specific model, port configurations, and destination but typically ranges from 1 to 4 weeks from the order date.
Factory & FAQ
The CBW-F200 Series is a compact external hydraulic gear pump designed for stable oil flow and reliable hydraulic power transmission in agricultural, industrial, and mobile hydraulic systems.
The series includes multiple displacement options such as:
CBW-F201.5-A***
CBW-F202-A***
CBW-F202.5-A***
CBW-F203-A***
CBW-F204-A***
CBW-F205-A***
CBW-F206-A***
The rated pressure is 20 MPa, and the maximum pressure can reach 25 MPa depending on operating conditions.
The CBW-F200 Series supports:
Minimum speed: 800 r/min
Rated speed: 2500 r/min
Maximum speed: 3000 r/min
Main features include:
Compact and lightweight aluminum alloy housing
High volumetric efficiency
Low noise operation
Stable performance under continuous duty
Easy installation and maintenance
The pump is generally compatible with standard hydraulic oils and anti-wear hydraulic fluids recommended for mobile and industrial hydraulic systems.
Typical applications include:
Agricultural machinery
Construction equipment
Forklifts
Industrial hydraulic stations
Light machinery
Mobile hydraulic systems
Yes. The pump can normally be supplied in clockwise (R) or counterclockwise (L) rotation configurations depending on installation requirements.
Yes. Many manufacturers provide OEM services including customized logos, nameplates, shaft types, and port configurations.
Recommended maintenance includes:
Keeping hydraulic oil clean
Regularly checking seals and fittings
Avoiding dry running
Replacing worn components in time
Maintaining proper lubrication and filtration
