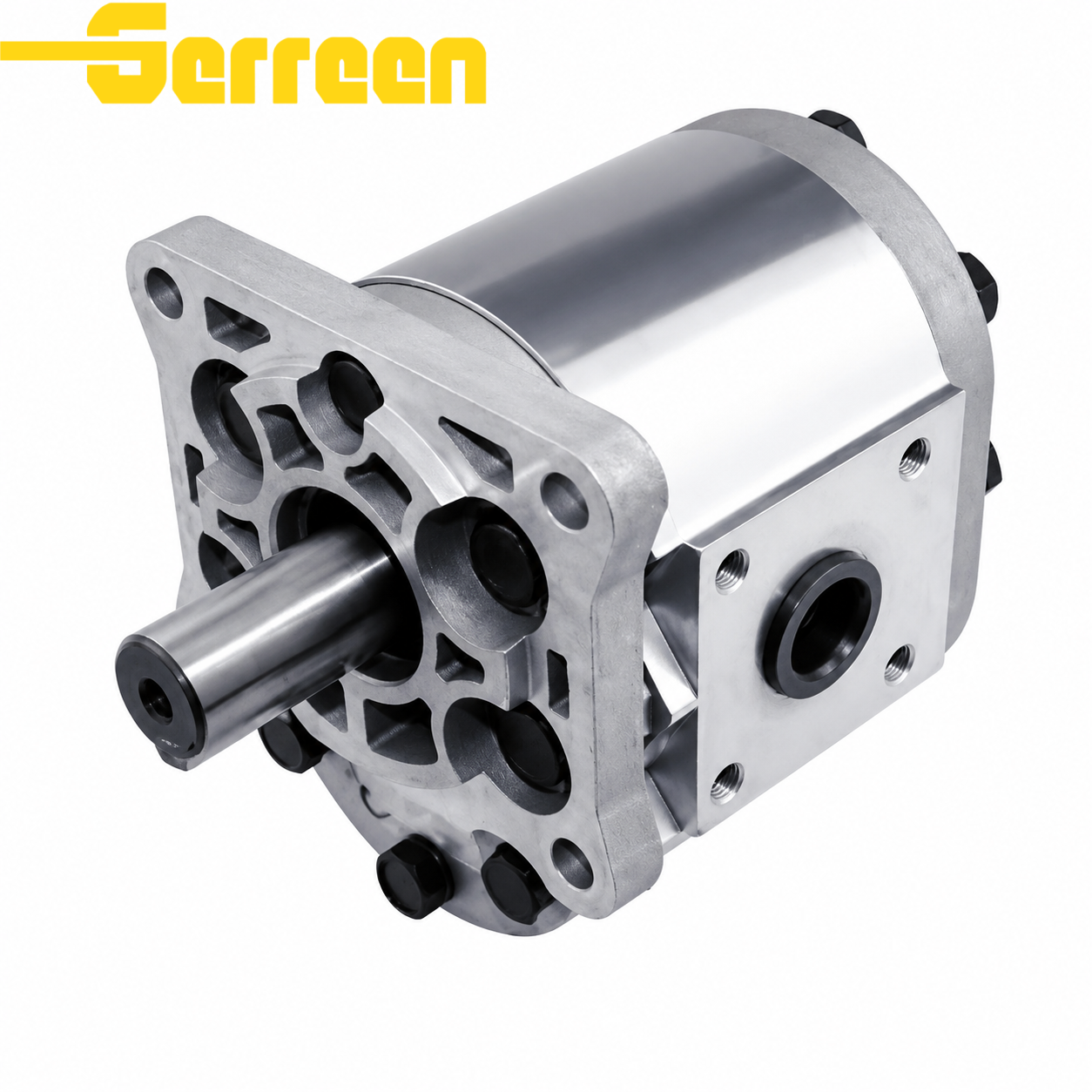

CBT-F500 Series Gear Pump
CBT-F500 Series Gear Pump
Yes
ISO9001，CE
• Industrial • Energy • Government (Non Aerospace) • HVAC • Mobile • Natural Resources • Transportation (Non Aerospace)
1. Industrial Hydraulic Systems 2. Mobile Equipment (Industrial Vehicles) 3. Construction and Engineering Machinery 4. Metallurgy Industry
Key Shaft and Spline shaft
1 set
Product Description
The CBT-F500 Series Gear Pump is a high-pressure external hydraulic gear pump designed for stable hydraulic power transmission and efficient oil flow output. Featuring a compact structure, high-strength aluminum alloy housing, precision-machined gears, and high volumetric efficiency, the CBT-F500 Series delivers reliable performance, low noise operation, and long service life in demanding hydraulic applications.
Widely used in construction machinery, agricultural equipment, forklifts, dump trucks, hydraulic power units, and industrial hydraulic systems, the CBT-F500 Series offers stable pressure performance, easy installation, and multiple shaft and port configurations to meet various working
Specification
| Parameter | CBT-F525 | CBT-F532 | CBT-F540 | CBT-F550 | CBT-F563 |
|---|---|---|---|---|---|
| Nominal Displacement (mL/r) | 25 | 32 | 40 | 50 | 63 |
| Rated Pressure (MPa) | 20 | 20 | 20 | 20 | 20 |
| Max Pressure (MPa) | 25 | 25 | 25 | 25 | 25 |
| Min Rotation Speed (r/min) | 600 | 600 | 600 | 600 | 600 |
| Rated Rotation Speed (r/min) | 2000 | 2000 | 2000 | 2000 | 2000 |
| Max Rotation Speed (r/min) | 3000 | 3000 | 3000 | 3000 | 3000 |

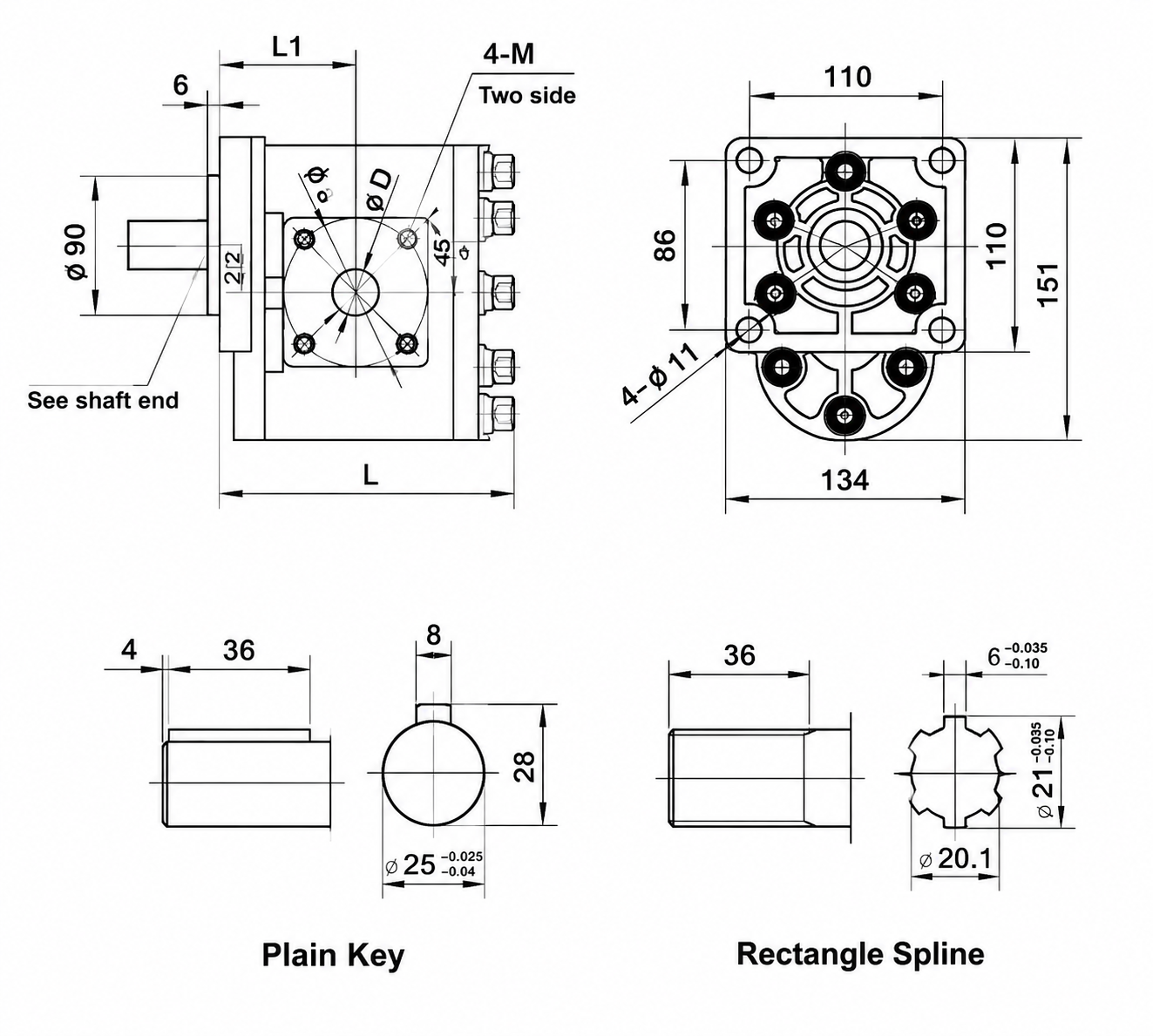

| L | 127 | 130 | 132 | 136 | 142 |
| L1 | 66 | 66 | 66 | 72 | 72 |
| φd | 50 | 65 | 65 | 76 | 76 |
| Inlet | Φ20 | Φ24 | Φ30 | Φ30 | Φ30 |
| Outlet | Φ20 | Φ20 | Φ24 | Φ30 | Φ24 |
| M | M8 | M8 | M8/10 | M8/10 | M8/10 |
Application
Applications
Winches, oil field and drilling
equipment, earthmoving and
construction equipment, die
casting, molding machines, press
machines, trash compactors, balers
and primary metals
Gear Pumps are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the high-precision pump body and shaft from moisture and environmental damage.
Custom Cartons or Crates: Individual reinforced packaging with shock-absorbent inserts for single pumps, and sturdy wooden crates for bulk or tandem pump orders to ensure safe handling.
Documentation: Includes technical data sheets, installation guides, and quality inspection certificates.
Delivery time depends on the specific model, port configurations, and destination but typically ranges from 1 to 4 weeks from the order date.
