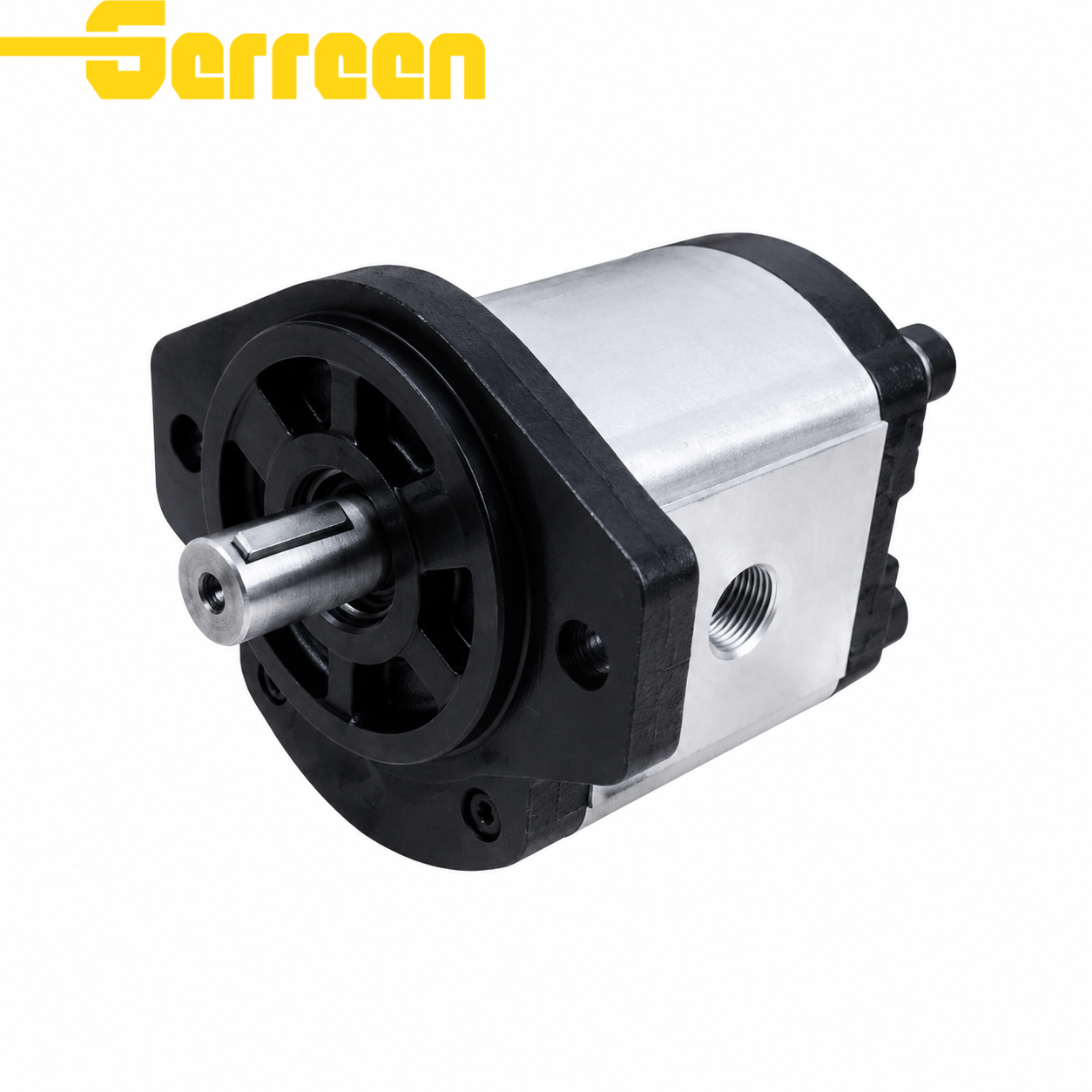

2GG Series Gear Pump
Green Hydraulic
2GG Series Gear Pump
Yes
ISO9001，CE
• Industrial • Energy • Government (Non Aerospace) • HVAC • Mobile • Natural Resources • Transportation (Non Aerospace)
1. Industrial Hydraulic Systems 2. Mobile Equipment (Industrial Vehicles) 3. Construction and Engineering Machinery 4. Metallurgy Industry
Key Shaft and Spline shaft
1 set
Product Description
The 2GG Series Gear Pump is a high-pressure double external hydraulic gear pump designed for stable flow output and efficient hydraulic power transmission. Featuring a compact structure, precision-machined gears, high volumetric efficiency, and low noise operation, the 2GG Series delivers reliable performance and long service life in demanding hydraulic systems.
Widely used in construction machinery, agricultural equipment, forklifts, dump trucks, hydraulic power units, and industrial hydraulic systems, the 2GG Series offers smooth operation, stable pressure performance, easy installation, and multiple displacement combinations to meet different application requirements.
Specification

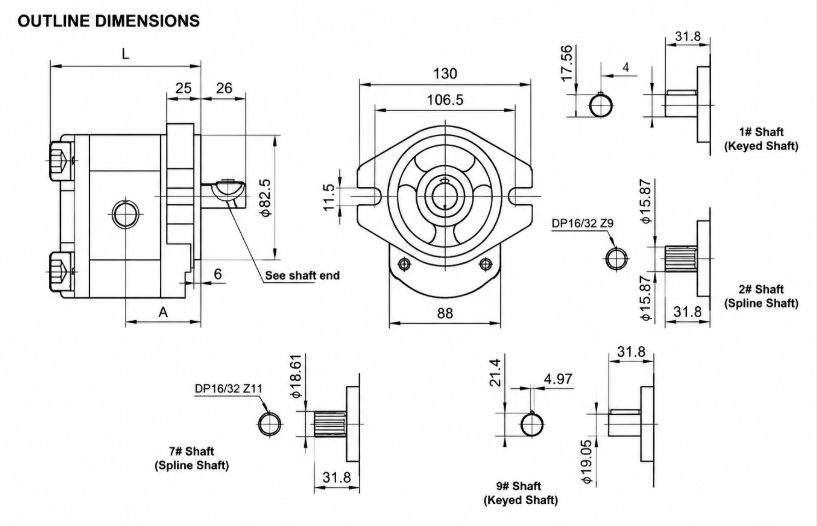

| Model | Displacement (ml/r) | Rated Pressure (MPa) | Max Pressure (MPa) | Rated Speed (r/min) | Max Speed (r/min) | Min Speed (r/min) | Volumetric Efficiency (%) | L (mm) | A (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 2GG | 4 ~ 25 | 20 | 25 | 2000 | 3000 | 600 | ≥90 | 106 + 11.2 × n | 47 + 5.6 × n |
Application
Applications
Winches, oil field and drilling
equipment, earthmoving and
construction equipment, die
casting, molding machines, press
machines, trash compactors, balers
and primary metals
Gear Pumps are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the high-precision pump body and shaft from moisture and environmental damage.
Custom Cartons or Crates: Individual reinforced packaging with shock-absorbent inserts for single pumps, and sturdy wooden crates for bulk or tandem pump orders to ensure safe handling.
Documentation: Includes technical data sheets, installation guides, and quality inspection certificates.
Delivery time depends on the specific model, port configurations, and destination but typically ranges from 1 to 4 weeks from the order date.
Factory & FAQ
The 2GG Series is a double external hydraulic gear pump used for hydraulic oil transmission in mobile and industrial hydraulic systems.
Main features include:
Double pump structure
High volumetric efficiency
Compact and lightweight design
Low noise operation
Stable pressure performance
Long service life
Typical applications include:
Construction machinery
Agricultural machinery
Forklifts
Dump trucks
Hydraulic power units
Industrial hydraulic systems
The 2GG Series is designed for medium and high-pressure hydraulic applications with stable pressure output and reliable operation.
The series supports multiple displacement combinations to meet different hydraulic flow requirements and dual-circuit systems.
Typical operating speeds include:
Minimum speed: 500–600 r/min
Rated speed: 2000–2500 r/min
Maximum speed: up to 3000 r/min
Available shaft types include:
Plain key shaft
Spline shaft
Taper shaft
Customized shaft configurations
Yes. Clockwise (R) and counterclockwise (L) rotation options are available according to customer requirements.
The pump is suitable for standard hydraulic oil and anti-wear hydraulic fluids used in industrial and mobile hydraulic systems.
Recommended maintenance includes:
Keeping hydraulic oil clean
Avoiding dry running
Regularly checking seals and fittings
Using proper filtration systems
Performing routine maintenance regularly
