TG-06
Green Hydraulic
TG-06
Standard export carton/plywood case
Yes
ISO9001，CE
• Industrial • Energy • Government (Non Aerospace) • HVAC • Mobile • Natural Resources • Transportation (Non Aerospace)
1. Industrial Hydraulic Systems 2. Mobile Equipment (Industrial Vehicles) 3. Construction and Engineering Machinery 4. Metallurgy Industry
Key Shaft and Spline shaft
1 set
Product Description

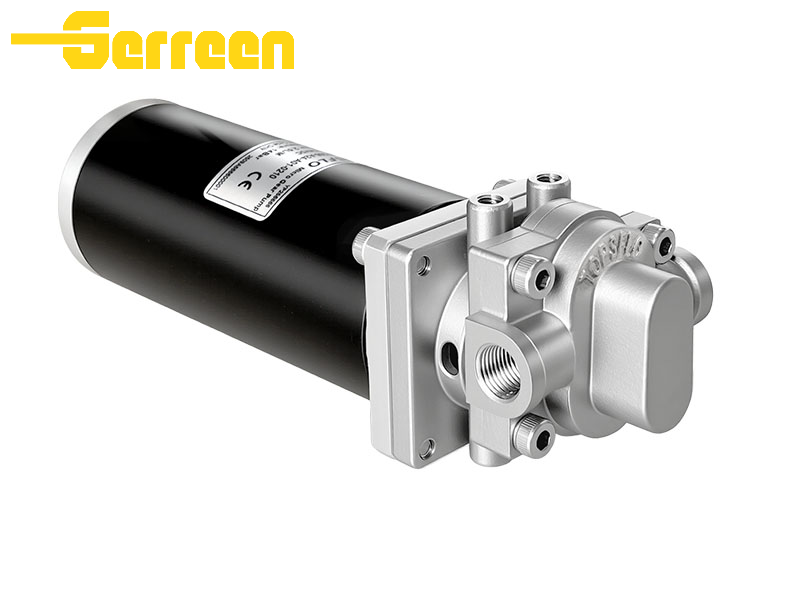

The TOPSFLO TG-06 is a high-performance, fixed-displacement direct-drive micro gear pump engineered for compact fluid handling systems that demand reliable high-pressure delivery and food-grade safety. Featuring a rugged, precision-machined aluminum alloy construction with wear-resistant polymer gears, the TG-06 is specifically designed to deliver stable flow with minimal pulsation, making it an ideal choice for direct integration into commercial coffee machines, beverage dispensing systems, and compact mobile equipment where space efficiency and hygienic performance are non-negotiable.
Specifications
| Parameter | Specification |

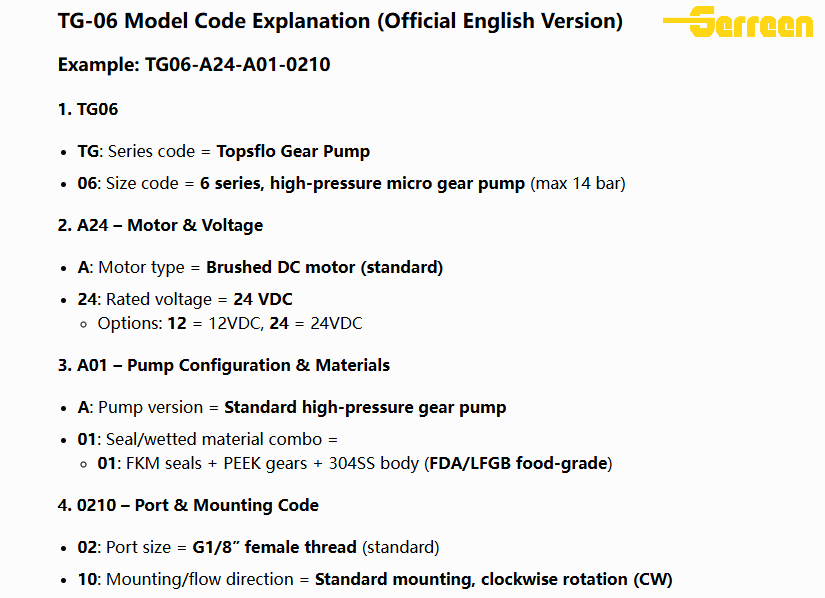

| Model | TG-06 (Standard variant: TG06-A24-A01-0210) |
| Pump Type | Direct-drive external gear pump |
| Max Flow Rate | 2.8 L/min (0.168 m³/h) @ 0 bar, 24 VDC |
| Max Continuous Pressure | 14 bar (203 psi) |
| Rated Voltage | 24 VDC (operating range: 18–28 VDC) |
| No-load Current | 1.18 A |
| Max Load Current | 4.2 A |
| Motor Type | Brushed DC motor |
| Speed | ~3000 rpm (nominal) |
| Port Connection | G1/8” female thread (side inlet/rear outlet) |
| Mounting Style | Standard foot mount with 2×M4 mounting holes |

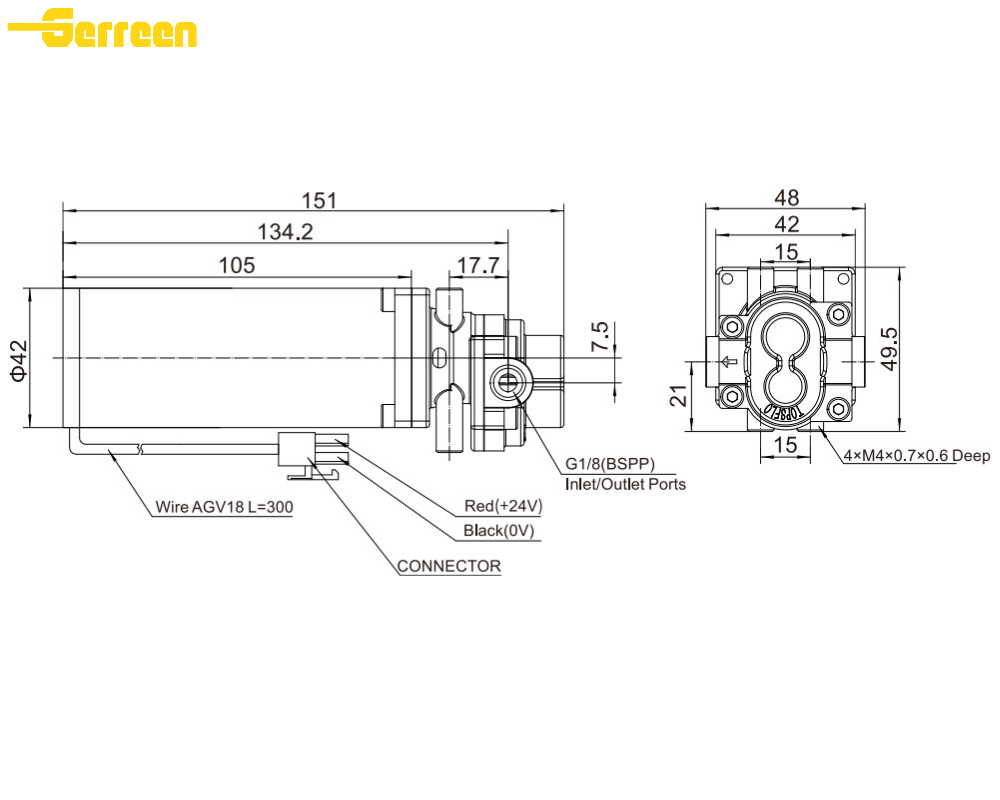

| Dimensions (L×W×H) | 156 × 52 × 48 mm |
| Weight | ~1.2 kg |
Applications
Applications
Commercial Coffee & Beverage Equipment: A primary choice for espresso machines, milk frothing systems, and high-pressure beverage dispensers, where the TG-06’s compact frame integrates easily into small machine footprints to deliver reliable, pressure-stable flow for brewing and foam generation.
Syrup & Liquid Dispensing Systems: Optimized for soda fountain syrup pumps, flavor dosing units, and concentrated beverage mixers, where the food-grade construction and low-pulsation design ensure accurate, consistent metering of viscous liquids.
Vending & Automated Retail: Widely used in hot beverage vending machines, slush machines, and self-service drink stations that require continuous, low-maintenance fluid delivery with FDA-compliant wetted parts.
Laboratory & Analytical Instruments: Ideal for small-scale liquid chromatography, reagent dosing, and portable fluid analysis systems, offering a space-efficient power source that maintains precise flow rates under varying load conditions.
Compact Hydraulic & Lubrication Systems: Frequently employed in small industrial lubricators, miniature hydraulic power packs, and precision tooling systems, where the TG-06 handles variable pressure demands and light oil contamination common in compact equipment environments.
Portable Cleaning & Mist Systems: Used in compact pressure sprayers, fogging units, and portable misting systems, leveraging the pump’s high-pressure capability to deliver fine, consistent sprays from limited-space installations.
Factory&FAQ
TG-06 pumps are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
Food-Grade Hygienic Design: Unlike generic pumps with uncertified materials, the TG-06 uses FDA/LFGB-compliant PEEK gears and FKM seals, making it safe for direct contact with food and beverages.
High-Pressure Capability: It delivers stable flow at up to 14 bar, outperforming many low-cost micro pumps that are limited to 5-7 bar.
Low-Pulsation Precision: Precision-machined gears minimize flow ripple, ensuring accurate dosing and smooth delivery, which is critical for applications like coffee extraction and syrup dispensing.
The TG-06 is a compact high-pressure specialist. For the standard model:
Continuous Pressure: Up to 14 bar (203 psi).
Intermittent/Peak Pressure: Up to 16 bar (232 psi).
This robust pressure rating makes the TG-06 ideal for espresso machine extraction, milk frothing, and other high-pressure beverage systems.
Yes, the TG-06 is a high-quality, cost-effective alternative to other premium micro gear pumps. It is often used as a replacement or upgrade for:
Nidec/Shicoh beverage pumps
Ulka compact solenoid pumps (for continuous flow applications)
Generic brushed DC gear pumps
To ensure a successful swap, verify the Voltage (12 or 24 VDC), Port Size (G1/8”), and Mounting Configuration to match your existing system.
To protect the precision gears and seals, the following is recommended:
Fluid Type: Water, milk, coffee, syrups, and light oils. It is not recommended for use with corrosive fluids, strong acids, or solvents.
Viscosity: Optimal range is 1–500 mPa·s, which covers most common beverage fluids.
Filtration: A minimum 50 µm inlet filter is recommended to prevent abrasive particles from damaging the gear faces.
The TG-06 features a fixed-speed brushed DC motor. The nominal operating speed is approximately 3000 RPM at rated voltage (24 VDC). Flow rate is directly proportional to speed, and the pump should be operated within the recommended voltage range (18–28 VDC) to maintain performance and reliability.
Yes, we support OEM and customization, including nameplate, packaging, and specific performance requirements. Send us your drawings or specifications for evaluation.
Please provide the following details:
Model or displacement
Working pressure
Speed
Quantity
We will reply within 12 hours with a competitive quotation.
TG-06 pumps are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.
All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.
To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.
Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
