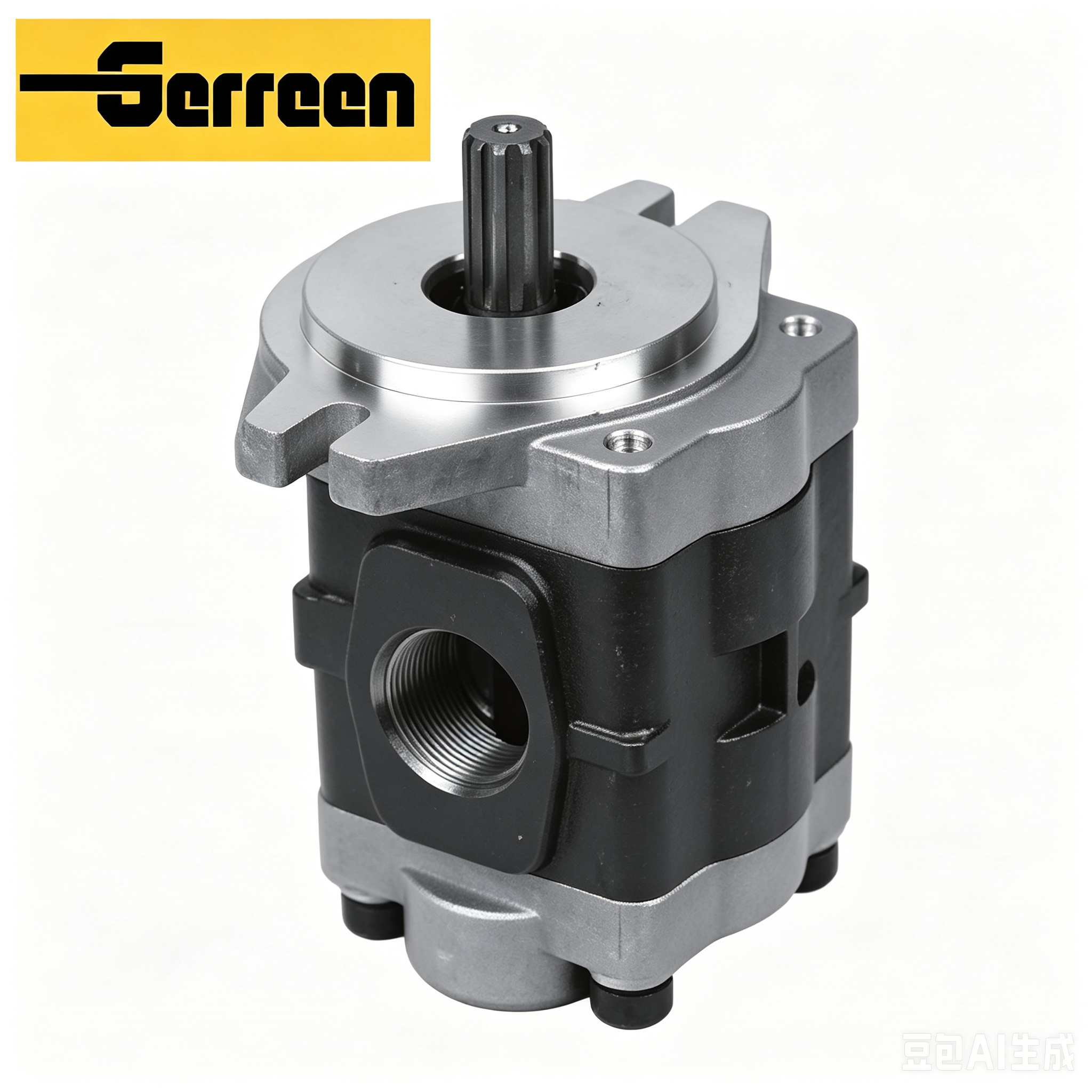

DSG06 Series Gear Pump Gear Pump Overhaul

DSG06 Series Gear Pump

Features and Benefits

• High Pressure Resistance

  Rated pressure up to 21MPa, maximum pressure 25MPa, suitable for medium‑heavy‑load working conditions.

• Compact & Lightweight

  Small overall size and light weight, easy to install in narrow equipment space.

• High Efficiency & Stable Performance

  Optimized gear tooth profile ensures high volumetric efficiency, small flow pulsation and long‑term stable operation.

• Low Noise & Long Service Life

  Precision‑matched bearings and wear‑resistant gears reduce meshing noise and extend service life.

• Strong Adaptability

  Good tolerance to impure hydraulic oil, perfect for construction sites, farms and other complex working environments.

• High Interchangeability

  Standardized mounting flange and spline shaft, compatible with mainstream models on the market for direct replacement.

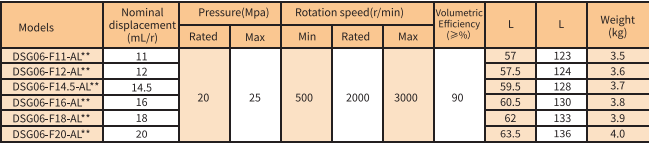

Model Codes

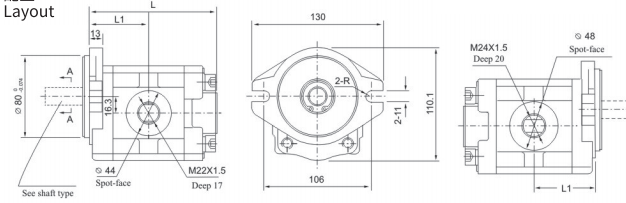

DSG06 Series Gear Pump Installation Dimensions

gear pump.pdf

Applications

• Material‑handling equipment: Forklifts, pallet trucks, small stackers

• Construction machinery: Mini excavators, road rollers, aerial work platforms

• Agricultural machinery: Tractors, harvesters, irrigation equipment

• Industrial equipment: Small hydraulic stations, hydraulic presses, packaging machinery

• Special vehicles: Sanitation vehicles, small engineering vehicles

Packaging & Delivery

DSG06 Series Gear Pump are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

DSG06 Series Gear Pump FAQ

1. What is the working pressure of DSG06 gear pump?

Rated pressure: 21MPa; Maximum pressure: 25MPa.

2.What is the maximum rotating speed?

1800‑3500 r/min, depending on different displacement models.

3.What hydraulic oil should be used?

32# or 46# anti‑wear hydraulic oil, working temperature 0‑60℃.

4.What is the displacement range?

Covers 16‑63 ml/r, complete specifications for different flow demands.

5.How to deal with oil leakage?

Check oil seals, O‑rings and mounting bolts; replace damaged seals and fasten bolts evenly.

6.Is it interchangeable with other brands?

Yes, standard installation size, can replace mainstream international brand gear pumps directly.

7. What are the installation requirements for VVS pumps

Standard mounting: ISO 3019/2 or SAE flange

Rotation direction: right-hand (clockwise)

No radial or axial load should be applied to the shaft

Proper installation is critical for performance and durability.

8. What applications are VVS variable vane pumps commonly used in

They are widely used in:

CNC machine tools

Injection molding machines

Hydraulic power units

Industrial automation systems

Press machinery

Certifications & Quality Assurance

DSG06 Series Gear Pump are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.

FAQ

1.How does the variable displacement work?

The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.

2.What's our advantages?

Factory established in 2005;

With a great deal of production experience;

80+ employees become the professional team;

Constant updated ERP system ensure efficiency of work;

Sophisticated equipment ehanced the accuracy of products;

Professional salesmen provide the greast service;

With a large number of famous customers all over the world;

Great after-sales service;

With the long term cooperation with famous logistics and express company in China,provide the better goods service.

3.What is your payment terms?

Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.

4.Can you make my own brand on the products?

Of course we can. Just send me your logo  we can make it for you.

5.What is our main export market?

America(40.5%):USA, Canada, Argentina, Brazil

Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.

Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.

Others(5.8%).

The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.

The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.

Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.

All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.

To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.

Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
