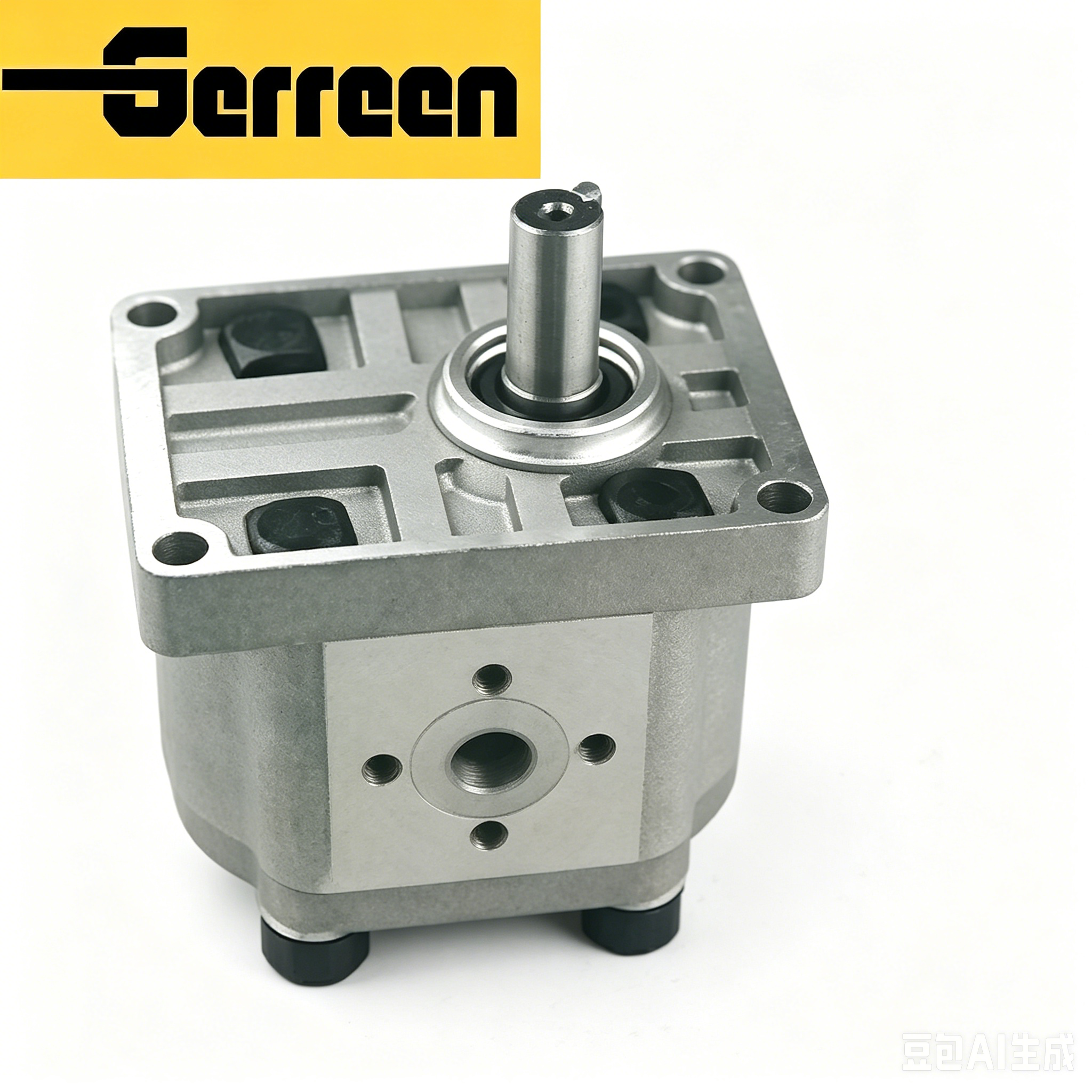

CBN‑300 Series Gear Pump Material

CBN‑300 Series Gear Pump

Features and Benefits

• High Pressure Performance

  Rated pressure: 16‑20MPa, maximum pressure up to 25MPa, stable under long‑time heavy‑load working conditions.

• High Efficiency & Stable Output

  Precision‑machined gears ensure high volumetric efficiency, small flow pulsation and consistent oil supply.

• Compact & Easy Installation

  Small overall size, light weight, standard flange and shaft end, convenient for installation, maintenance and replacement.

• Low Noise & Long Service Life

  Optimized gear tooth profile reduces meshing impact; wear‑resistant materials extend service life significantly.

• Strong Environmental Adaptability

  Good tolerance to impure hydraulic oil, suitable for construction sites, farms and other complex working environments.

• Complete Displacement Range

  Displacement covers 20‑63 ml/r, multiple specifications to meet different flow and power requirements.

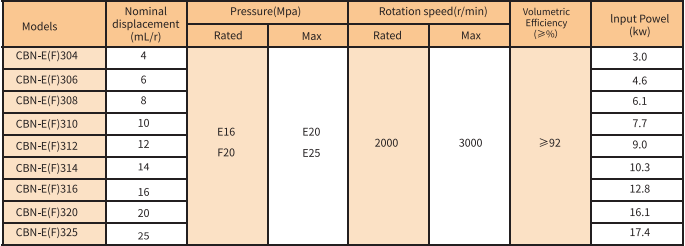

Model Codes

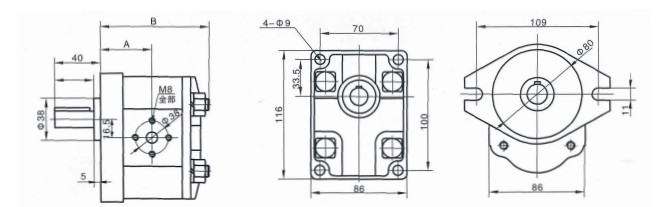

CBN‑300 Series Gear Pump Installation Dimensions

gear pump.pdf

Applications

• Construction Machinery: Mini excavators, loaders, road rollers, aerial work platforms

• Agricultural Machinery: Tractors, harvesters, irrigation equipment, agricultural transport vehicles

• Industrial Equipment: Hydraulic presses, machine tools, packaging machinery, small hydraulic stations

• Material‑handling Equipment: Forklifts, pallet trucks, stackers

• Special Vehicles: Sanitation vehicles, small engineering vehicles

Packaging & Delivery

CBN‑300 Series Gear Pump are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

CBN‑300 Series Gear Pump FAQ

1. What is the pressure range of CBN‑300 gear pump?

Rated pressure: 16‑20MPa; Maximum pressure: 25MPa.

2.What is the maximum rotating speed?

1800‑3000 r/min, varies by different displacement models.

3.What hydraulic oil is recommended?

32# or 46# anti‑wear hydraulic oil, working temperature 0‑60℃.

4.What is the displacement range?

6.Is it interchangeable with other brands?

7. What are the installation requirements for VVS pumps

Standard mounting: ISO 3019/2 or SAE flange

Rotation direction: right-hand (clockwise)

No radial or axial load should be applied to the shaft

Proper installation is critical for performance and durability.

8. What applications are VVS variable vane pumps commonly used in

They are widely used in:

CNC machine tools

Injection molding machines

Hydraulic power units

Industrial automation systems

Press machinery

Certifications & Quality Assurance

CBN‑300 Series Gear Pump are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.

FAQ

1.How does the variable displacement work?

The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.

2.What's our advantages?

Factory established in 2005;

With a great deal of production experience;

80+ employees become the professional team;

Constant updated ERP system ensure efficiency of work;

Sophisticated equipment ehanced the accuracy of products;

Professional salesmen provide the greast service;

With a large number of famous customers all over the world;

Great after-sales service;

With the long term cooperation with famous logistics and express company in China,provide the better goods service.

3.What is your payment terms?

Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.

4.Can you make my own brand on the products?

Of course we can. Just send me your logo  we can make it for you.

5.What is our main export market?

America(40.5%):USA, Canada, Argentina, Brazil

Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.

Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.

Others(5.8%).

The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.

The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.

Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.

All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.

To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.

Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
