PF4 Series
Green Hydraulic
Yes
ISO9001，CE
• Industrial • Energy • Government (Non Aerospace) • HVAC • Mobile • Natural Resources • Transportation (Non Aerospace)
1.Agricultural Equipment 2.Industrial Machinery 3.Construction Equipment 4.Material Handling
Key Shaft and Spline shaft
1 set
Product Description

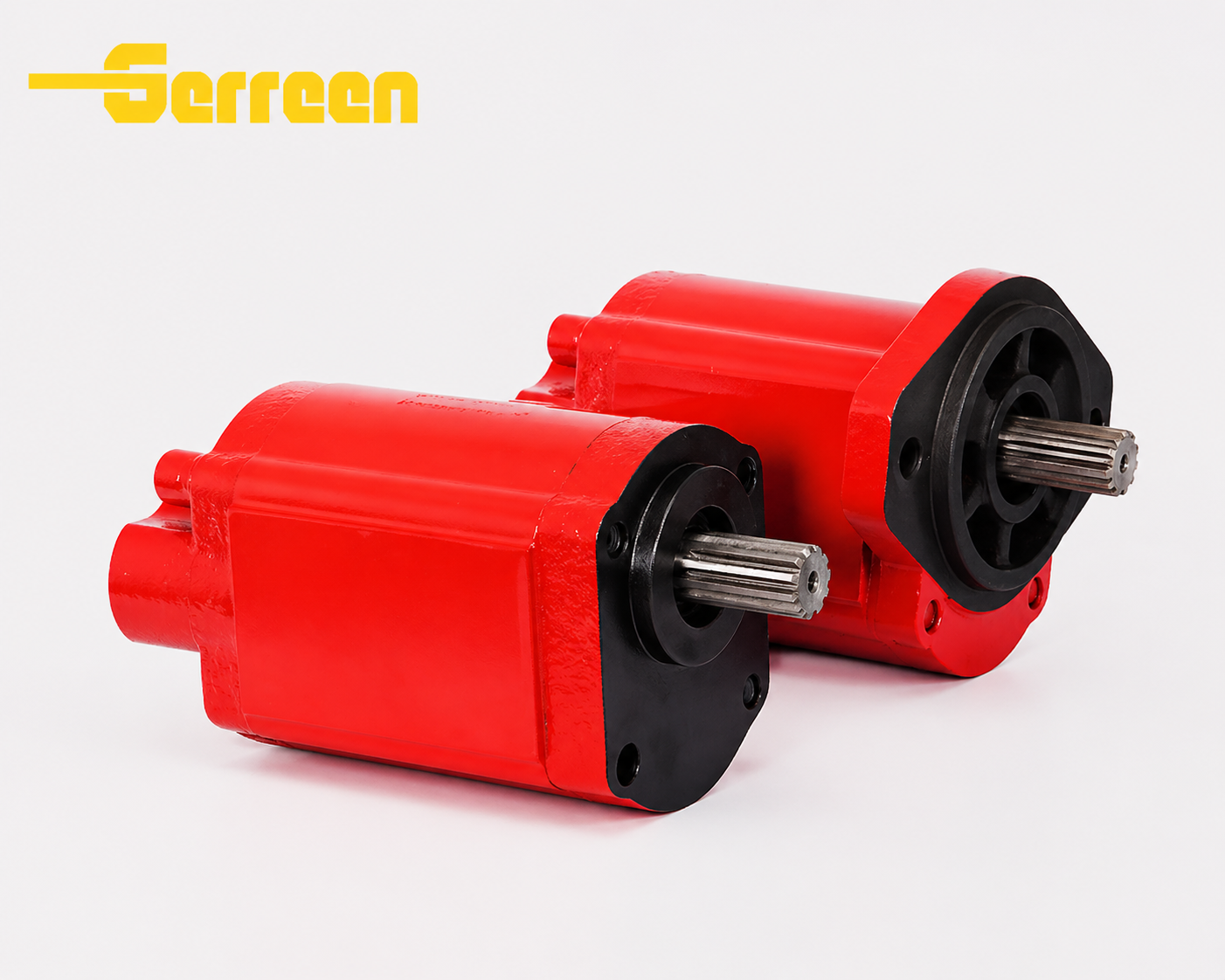

The PF4 Hydraulic Gear Pump is a high-performance external gear pump designed for medium to high-pressure hydraulic systems. It is widely recognized for its durability, stable performance, and efficient fluid delivery, making it suitable for both mobile and industrial applications.
High Pressure Capability: Supports working pressures up to 250 bar (3625 psi), suitable for heavy-duty hydraulic systems
Stable Flow Output: Provides consistent and smooth hydraulic oil delivery
Compact Structure: Easy to install in space-limited equipment
Durable Materials: High-strength housing and hardened gears for long service life
Low Noise Operation: Optimized internal design reduces vibration and noise
| MODEL NUMBER | DISPLACEMENT CUBIC IN (CC) | MAX. RPM | MIN. RPM | MAX. PRES. PSI (BAR) | O.D.T. INLET REAR | O.D.T. INLET SIDE | O.D.T. OUTLET REAR/SIDE | MAX. INLET VACUUM | WEIGHT LBS. (KG.) |
| PF4160 | 0.37 (06) | 3,000 | 500 | 3,625 (250) | 1 1/16 | 1 5/16 | 7/8 | 6 in.Hg. (.20 BAR) | 7.69 (3.49) |
| PF4212 | 0.49 (08) | 3,000 | 500 | 3,625 (250) | 1 1/16 | 1 5/16 | 7/8 | 6 in.Hg. (.20 BAR) | 7.86 (3.56) |
| PF4264 | 0.61 (10) | 3,000 | 500 | 3,625 (250) | 1 1/16 | 1 5/16 | 7/8 | 6 in.Hg. (.20 BAR) | 8.02 (3.64) |
| PF4290 | 0.73 (12) | 3,000 | 500 | 3,625 (250) | 1 1/16 | 1 5/16 | 7/8 | 6 in.Hg. (.20 BAR) | 8.12 (3.68) |
| PF4368 | 0.85 (14) | 3,000 | 500 | 3,625 (250) | 1 1/16 | 1 5/16 | 7/8 | 6 in.Hg. (.20 BAR) | 8.38 (3.80) |
| PF4424 | 0.98 (16) | 3,000 | 500 | 3,625 (250) | 1 1/16 | 1 5/16 | 7/8 | 6 in.Hg. (.20 BAR) | 8.55 (3.88) |
| PF4502 | 1.16 (19) | 3,000 | 500 | 3,625 (250) | 1 1/16 | 1 5/16 | 7/8 | 6 in.Hg. (.20 BAR) | 8.81 (4.00) |
| PF4606 | 1.40 (23) | 2,500 | 500 | 3,625 (250) | 1 1/16 | 1 5/16 | 7/8 | 6 in.Hg. (.20 BAR) | 9.15 (4.15) |
| PF4714 | 1.71 (28) | 2,500 | 500 | 2,900 (200) | 1 1/16 | 1 5/16 | 7/8 | 6 in.Hg. (.20 BAR) | 9.49 (4.30) |
| PF4818 | 1.83 (30) | 2,500 | 500 | 2,900 (200) | 1 1/16 | 1 5/16 | 7/8 | 6 in.Hg. (.20 BAR) | 9.84 (4.46) |
| PF4870 | 2.01 (33) | 2,500 | 500 | 2,320 (160) | 1 1/16 | 1 5/16 | 7/8 | 6 in.Hg. (.20 BAR) | 10.01 (4.54) |
Applications
Construction machinery: loaders, cranes, excavators
Agricultural equipment: tractors, harvesters, sprayers
Industrial machinery: presses, injection molding machines
Material handling: forklifts, lifting systems
PF4 Series Gear Pumps are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
The PF4 Series Gear Pump is widely used in construction machinery, agricultural equipment, industrial systems, and material handling equipment, providing stable hydraulic power for lifting, steering, and actuation systems.
The PF4 pump typically supports a maximum continuous pressure of 250 bar (3625 psi), with some models allowing lower pressures depending on displacement.
The PF4 Series offers a wide displacement range, typically from 0.37 to 2.01 in⊃3;/rev (6–33 cc/rev), meeting different flow requirements.
High efficiency and stable output
Compact and robust structure
Low noise and smooth operation
Long service life with durable materials

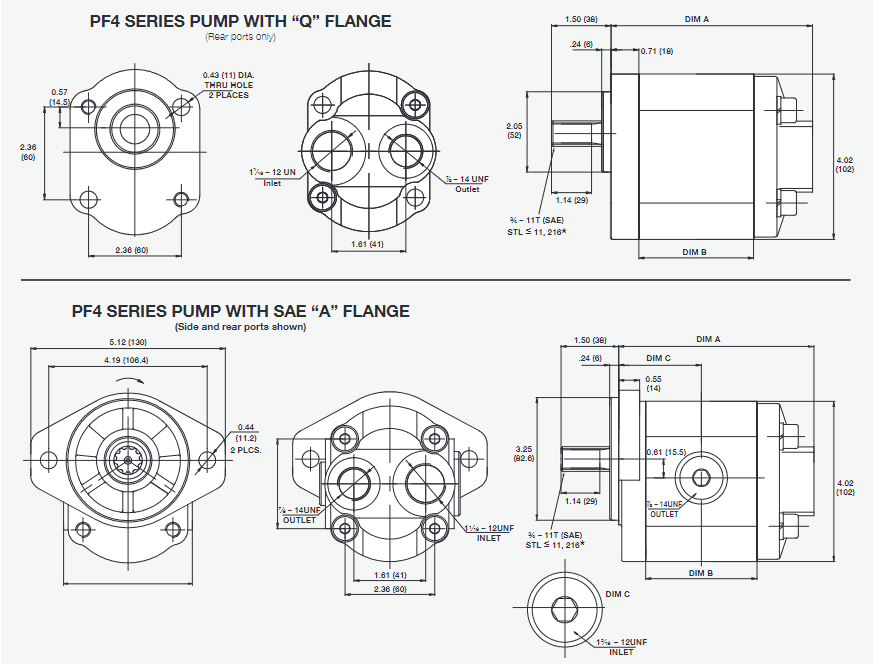

The PF4 pump usually features standard flange mounting and SAE/standard threaded ports, ensuring easy installation and compatibility with most hydraulic systems.
Yes, the PF4 pump is designed for low maintenance. With proper filtration and clean hydraulic oil, it provides long-term reliable operation with minimal servicing.
Yes, we support OEM and customization, including nameplate, packaging, and specific performance requirements. Send us your drawings or specifications for evaluation.
Please provide the following details:
Model or displacement
Working pressure
Speed
Quantity
We will reply within 12 hours with a competitive quotation.
The PF4 pumps are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.
All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.
To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.
Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
