SGP1
Green Hydraulic
Yes
ISO9001，CE
• Industrial • Energy • Government (Non Aerospace) • HVAC • Mobile • Natural Resources • Transportation (Non Aerospace)
1.Agricultural Equipment 2.Industrial Machinery 3.Construction Equipment 4.Material Handling
Key Shaft and Spline shaft
1 set
Product Description

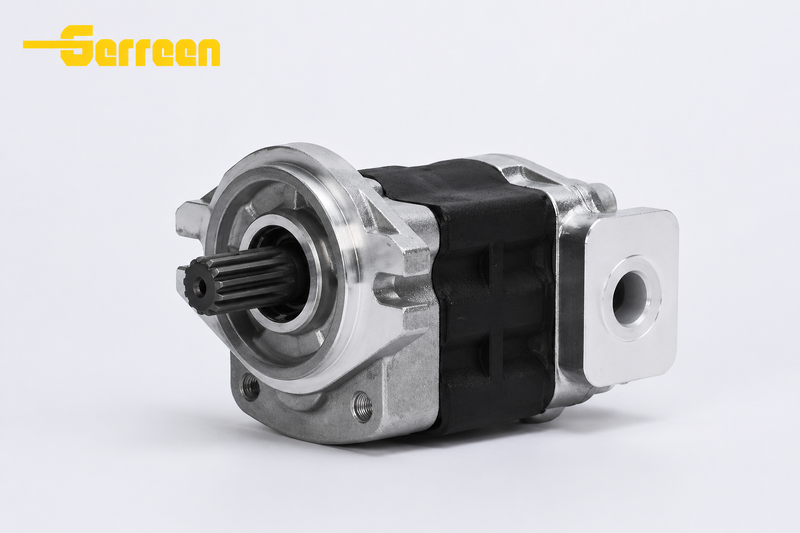

The SGP1 Hydraulic Gear Pump is a high-performance, reliable, and compact hydraulic pump designed for industrial applications requiring efficient fluid transfer and pressure generation. It is part of a series known for its robust construction and versatility, making it ideal for both stationary and mobile hydraulic systems.
Compact Design: The SGP1 pump is designed to fit into tight spaces, providing an excellent solution for hydraulic systems where space is limited without compromising performance.
High Efficiency: It offers efficient fluid flow with minimal energy loss, which helps reduce operational costs and improve overall system efficiency.
Durable Construction: Built from high-quality materials, the SGP1 pump is designed to handle demanding operational environments and provide reliable performance over time.
Reliable Performance: The SGP1 pump ensures a steady hydraulic fluid flow, ensuring stable operation in a wide range of applications.
Long Service Life: Its durable construction guarantees a long service life, even in harsh environments, reducing the need for frequent repairs and replacements.
Technical Data
| Size | Displacement (cm³) | Displacement (in⊃3;) | Rated pressure (MPa) | Rated pressure (bar) | Rated pressure (psi) | Max. peak pressure (MPa) | Max. peak pressure (bar) | Max. peak pressure (psi) | Speed (min⁻⊃1;) MIN. | Speed (min⁻⊃1;) MAX. | Inlet pressure | Mass (kg) | Mass (lb) |
| 16 | 16.2 | 0.988 | 20.6 | 206 | 2987 | 24.5 | 245 | 3553 | 500 | 4000 | bar -0.20~2.0 / MPa -0.02~0.2 / psi -2.9 ~29 | 3.3 | 7.26 |
| 18 | 18.3 | 1.116 | 20.6 | 206 | 2987 | 24.5 | 245 | 3553 | 500 | 4000 | 3.4 | 7.48 | |
| 20 | 20.4 | 1.244 | 20.6 | 206 | 2987 | 24.5 | 245 | 3553 | 500 | 4000 | 3.5 | 7.7 | |
| 23 | 23.7 | 1.446 | 20.6 | 206 | 2987 | 24.5 | 245 | 3553 | 400 | 3500 | 3.7 | 8.14 | |
| 25 | 24.9 | 1.519 | 20.6 | 206 | 2987 | 24.5 | 245 | 3553 | 400 | 3500 | 3.8 | 8.36 | |
| 27 | 27.8 | 1.696 | 20.6 | 206 | 2987 | 24.5 | 245 | 3553 | 400 | 3500 | 4 | 8.8 | |
| 30 | 29.9 | 1.824 | 20.6 | 206 | 2987 | 24.5 | 245 | 3553 | 400 | 3000 | 4.1 | 9.02 | |
| 32 | 33.2 | 2.025 | 20.6 | 206 | 2987 | 24.5 | 245 | 3553 | 400 | 3000 | 4.2 | 9.24 | |
| 34 | 34.1 | 2.08 | 20.6 (18.6) | 206 (186) | 2987 (2697) | 24.5 | 245 | 3553 | 400 | 3000 | 4.3 | 9.46 | |
| 36 | 36.6 | 2.233 | 20.6 (17.2) | 206 (172) | 2987 (2494) | 22.6 | 226 | 3277 | 400 | 3000 | 4.5 | 9.9 |

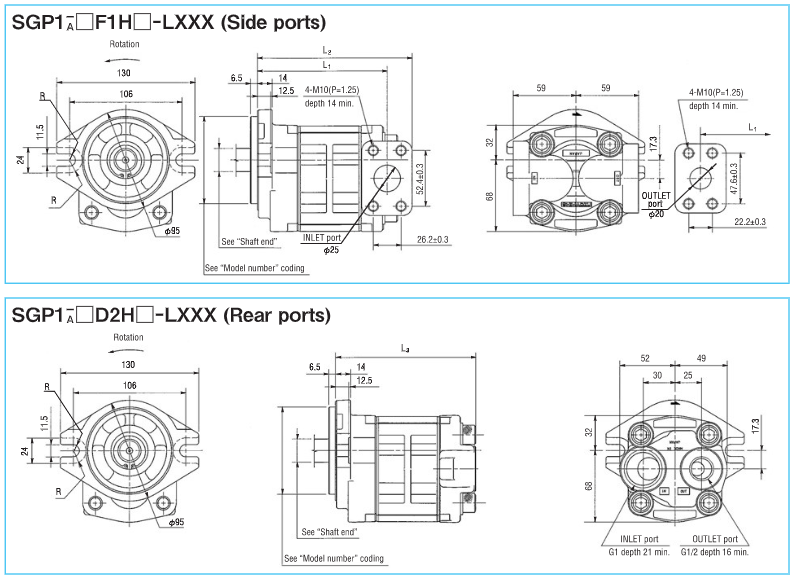

The SGP1 Hydraulic Gear Pump Installation Dimensions
Applications
Construction Machinery: Used in cranes, excavators, bulldozers, and other heavy-duty equipment for lifting, digging, and other hydraulic functions.
Agricultural Equipment:Powers hydraulic systems in tractors, sprayers, and harvesters for efficient fluid movement and operation.
The SGP1 Hydraulic Gear Pumps are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
The SGP1 Hydraulic Gear Pump is used in a variety of applications that require hydraulic fluid transfer and pressure generation. It is commonly used in industrial machinery, construction equipment, agricultural machinery, and material handling systems.
Some examples include presses, forklifts, excavators, and tractors.
The SGP1 Hydraulic Gear Pump can handle a maximum operating pressure of up to 250 bar (3625 psi). It is designed for medium-pre
ssure hydraulic systems, making it ideal for most standard industrial and agricultural applications.
Durability: Built from high-quality materials, the SGP1 pump is durable and designed to operate in tough environments.
Efficiency: The pump delivers efficient performance, ensuring consistent fluid flow and minimizing energy consumption.
Compact Design: Its small form factor makes it suitable for applications where space is limited, without sacrificing performance.
The flow rate of the SGP1 varies depending on the displacement model, but typically ranges from 10 L/min to 100 L/min at the rated pressure. It ensures efficient fluid movement in hydraulic systems across various industries.
The SGP1 is designed for low maintenance. Routine checks, such as monitoring fluid levels and ensuring proper alignment, are sufficient to keep it running smoothly. The durable construction reduces the need for frequent maintenance.
Yes, the SGP1 Hydraulic Gear Pump is capable of operating in high-temperature environments, typically between -20°C to +80°C, depending on the specific seals and system used. It’s important to use the right type of hydraulic fluid to prevent overheating and ensure optimal performance.
Yes, we support OEM and customization, including nameplate, packaging, and specific performance requirements. Send us your drawings or specifications for evaluation.
Please provide the following details:
Model or displacement
Working pressure
Speed
Quantity
We will reply within 12 hours with a competitive quotation.
The SGP1 Hydraulic Gear Pumps are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.
All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.
To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.
Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
