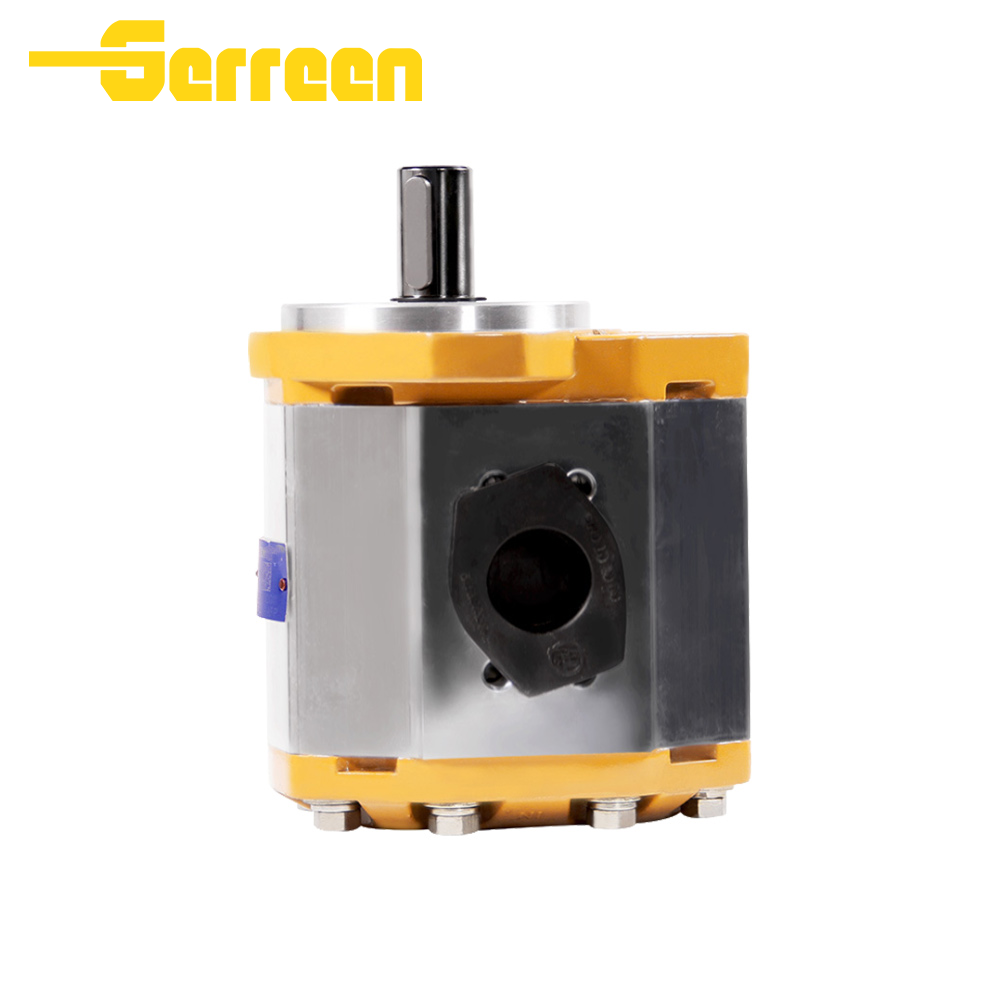

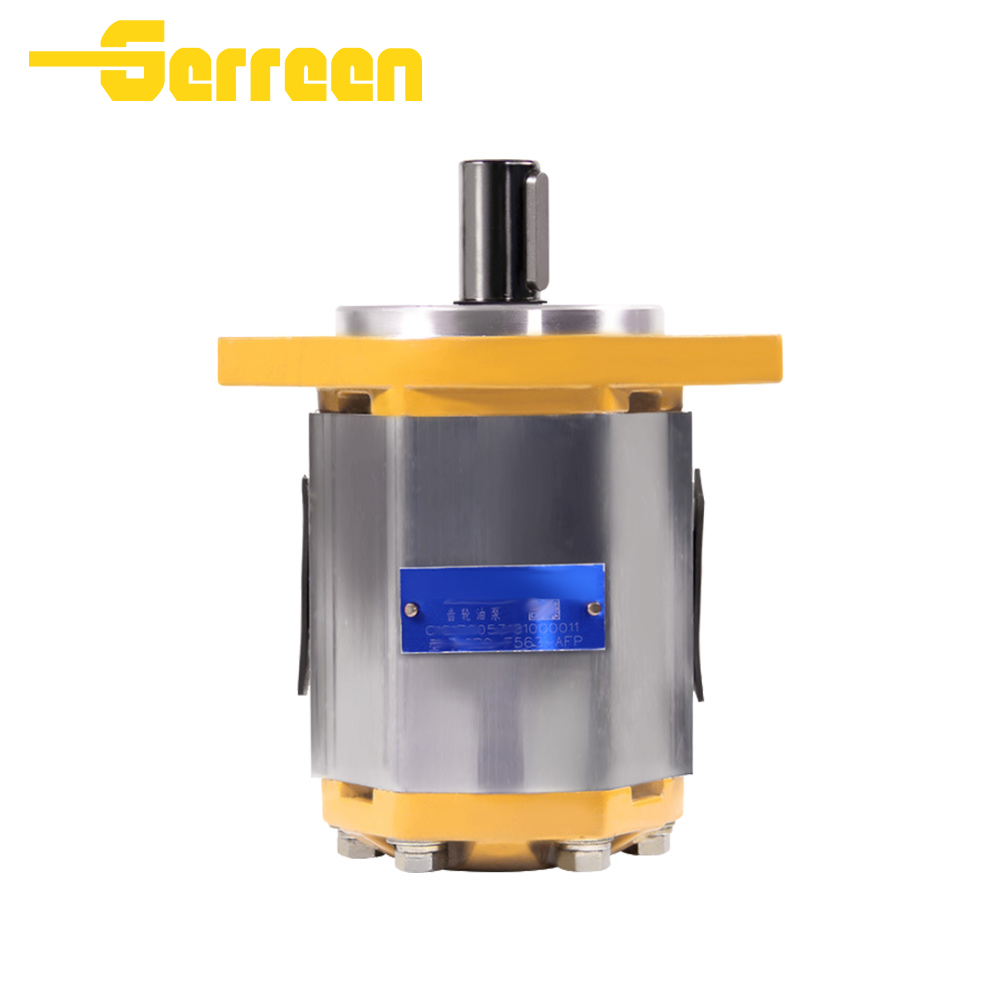

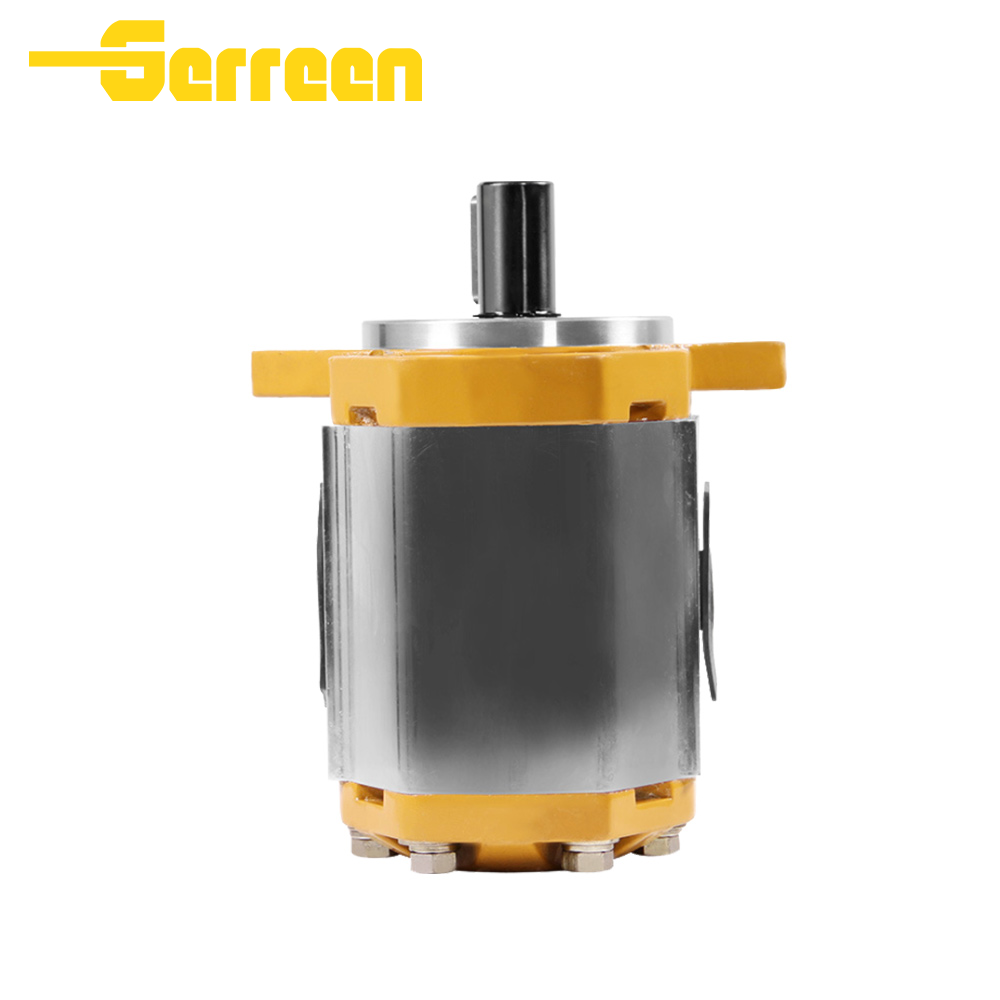

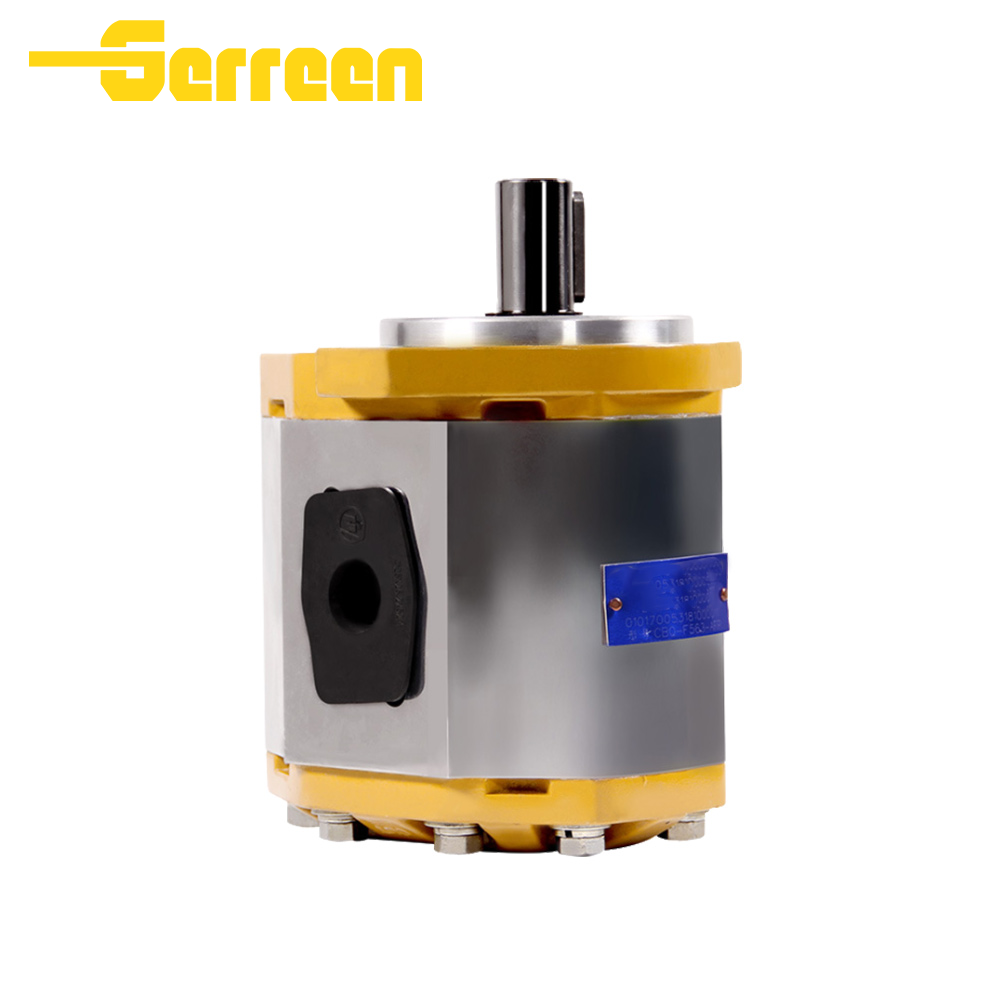

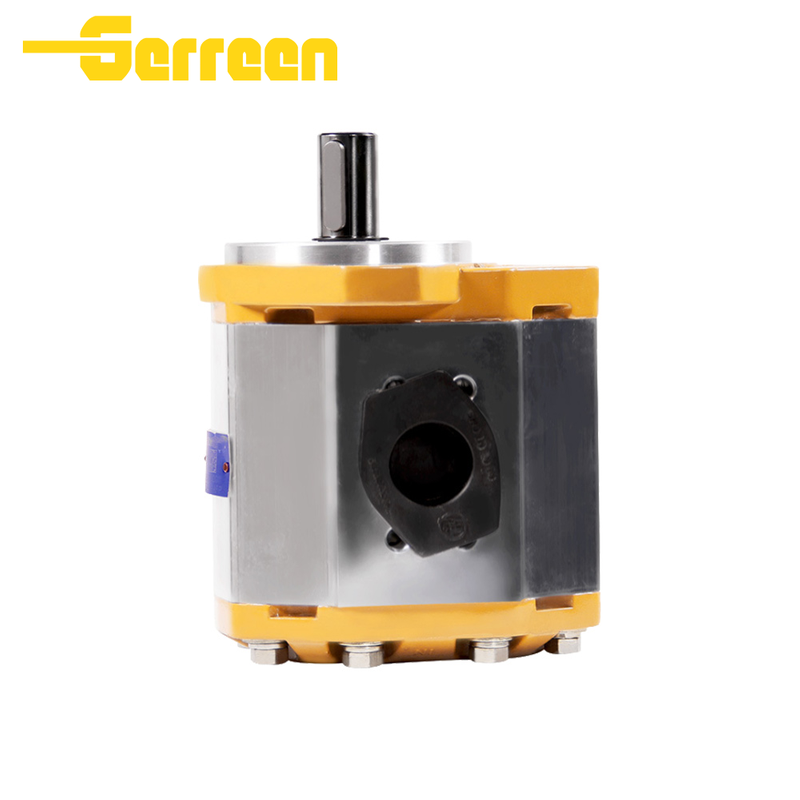

CBQ-G5F5 G520 F550 Aluminium Gear Pump

CBQ-G5/F5 Gear Pump  Overview

CBQ-G5/F5 hydraulic gear pump is a high-pressure external gear pump designed for stable flow output and efficient hydraulic power transmission. Models such as CBQ-G520 and CBQ-F550 feature compact structure, reliable sealing, high volumetric efficiency, and durable construction, making them suitable for construction machinery, agricultural equipment, forklifts, and hydraulic power units.

Features and Benefits

• High-strength aluminum alloy housing for durability

• Stable flow output with high volumetric efficiency (≥92%)

• Axial clearance auto-compensation for improved performance

• Wide speed range and high-pressure capability for demanding applications

• Multiple shaft and port options for flexible installation

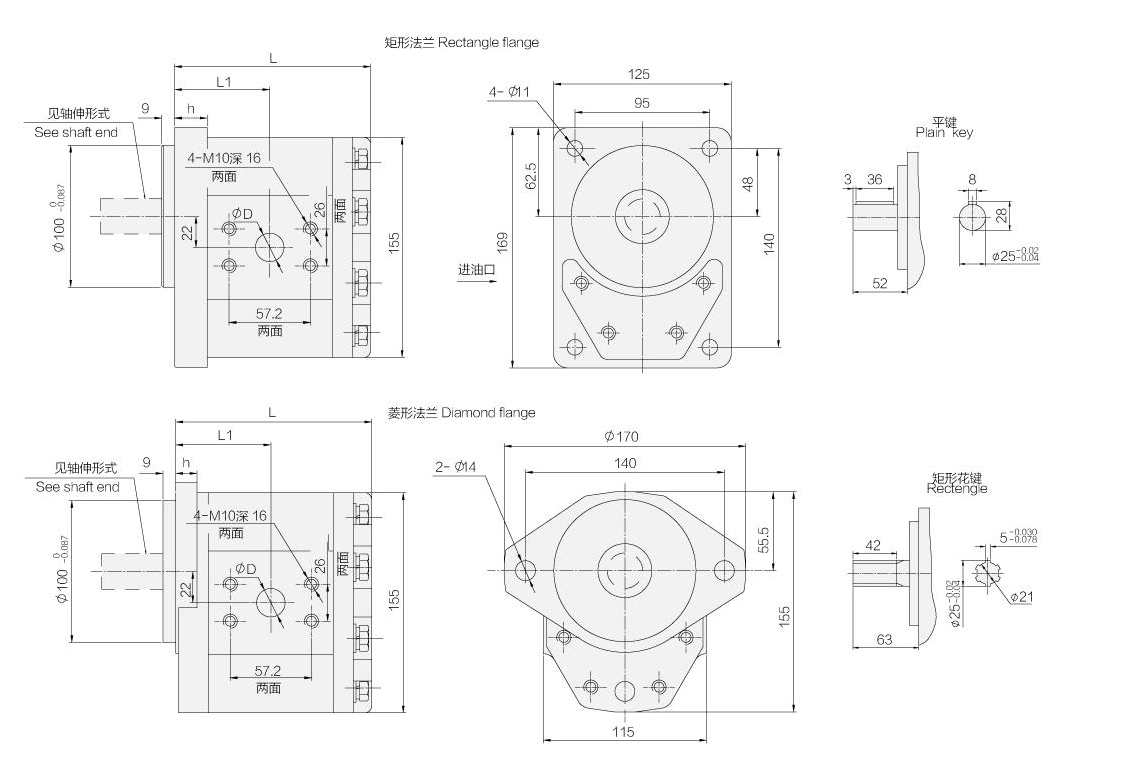

Technical Data

Applications

Packaging & Delivery

CBQ-G5/F5 pumps are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

CBQ-G5/F5 Gear Pump  FAQ

1. What type of pump is CBQ-G5/F5?
CBQ-G5/F5 is a high-pressure external hydraulic gear pump designed for reliable fluid power transmission.

2. What displacement range is available?
Displacement options range from 20 mL/r to 63 mL/r.

3. What is the maximum working pressure?
Maximum pressure can reach up to 28 MPa, depending on model.

4. What applications is CBQ-G5/F5 used for?
It is widely used in construction machinery, agricultural equipment, forklifts, and hydraulic power units.

5. What is the maximum operating speed?
Maximum operating speed is up to 3000 RPM.

6. Does the pump support different shaft and port options?
Yes, multiple shaft types and port configurations are available.

7. What hydraulic oil is recommended?
Standard anti-wear hydraulic oil is generally recommended.

8. Can you provide OEM replacement solutions?
Yes, OEM and customized replacement services are available.

Certifications & Quality Assurance

CBQ-G5/F5 pumps are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.

FAQ

1.How does the variable displacement work?

The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.

2.What's our advantages?

Factory established in 2005;

With a great deal of production experience;

80+ employees become the professional team;

Constant updated ERP system ensure efficiency of work;

Sophisticated equipment ehanced the accuracy of products;

Professional salesmen provide the greast service;

With a large number of famous customers all over the world;

Great after-sales service;

With the long term cooperation with famous logistics and express company in China,provide the better goods service.

3.What is your payment terms?

Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.

4.Can you make my own brand on the products?

Of course we can. Just send me your logo  we can make it for you.

5.What is our main export market?

America(40.5%):USA, Canada, Argentina, Brazil

Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.

Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.

Others(5.8%).

The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.

The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.

Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.

All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.

To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.

Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
