Packaging & Delivery
DZ pressure valve are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
DZ pressure valve FAQ:

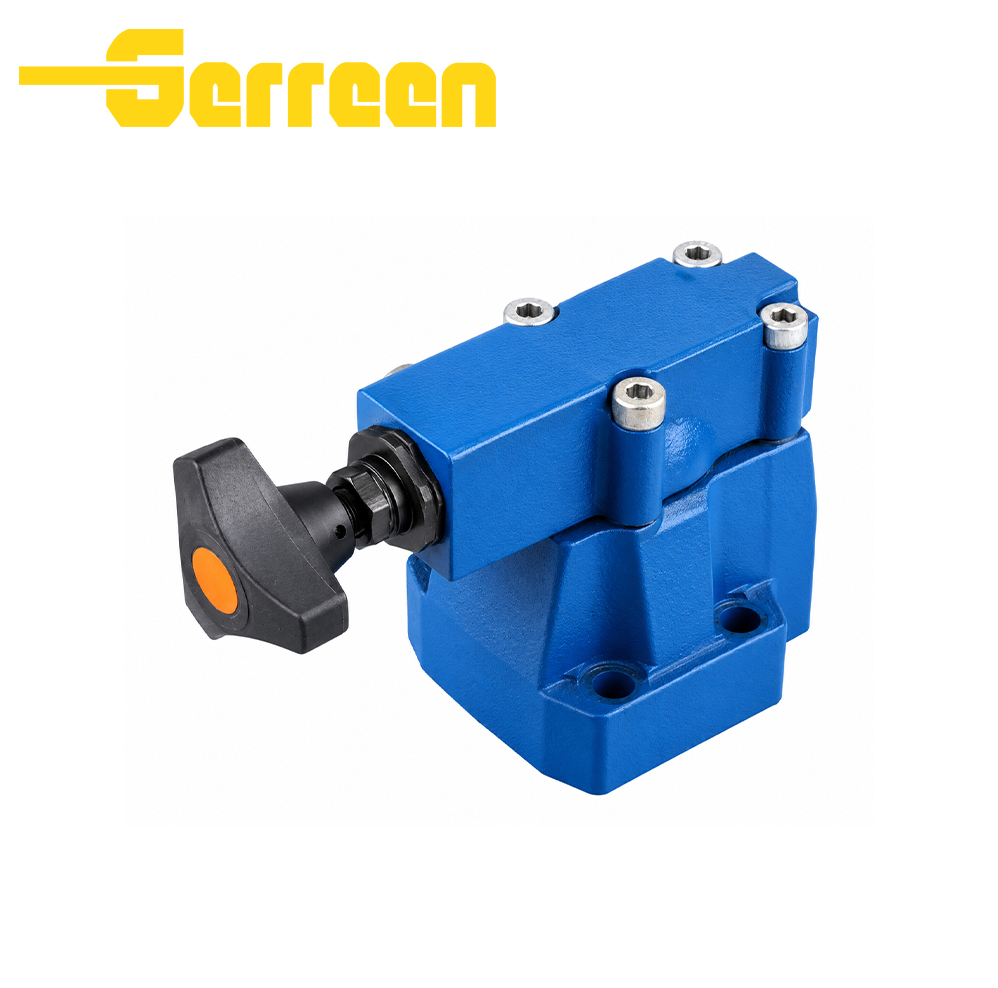

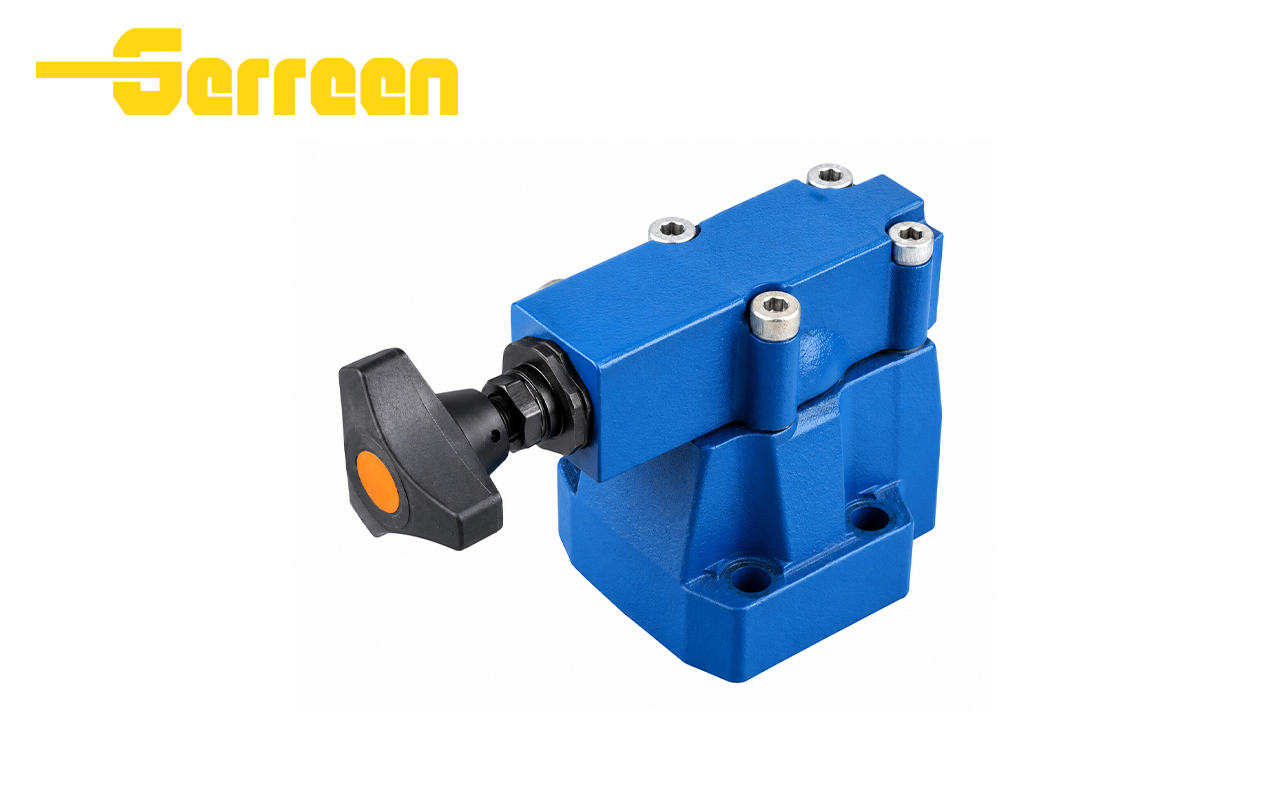

1. What is the DZ pressure valve ?
It is a pilot‑operated hydraulic sequence valve with ISO standard subplate mounting. The valve stays closed until system pressure reaches preset value, then opens to activate the secondary hydraulic circuit. It is composed of main spool assembly and pilot pressure adjustment unit. Optional built‑in check valve permits free reverse flow for load return. It supports multiple pilot control modes to satisfy diverse circuit requirements.
2. What makes the DZ pressure valve ?
It adopts pilot‑operated structure for accurate and stable pressure‑sequence control, supports internal / external pilot and drain modes for flexible hydraulic circuit design, and optional built‑in check valve enables free reverse oil flow for load return. Hardened main spool reduces internal leakage and extends service life, multiple pressure grades and various adjustment forms meet different operation demands. With ISO 5781 standard subplate mounting for quick installation and interchangeability, it is compatible with diverse hydraulic fluids and fits compact‑space industrial and mobile hydraulic systems.
3. What is the working pressure range of DZ pressure valve ?
The maximum operating pressure for port A, B and X reaches 315 bar, its adjustable sequence pressure ranges from 10‑315 bar with multiple optional pressure grades. The drain port Y can also bear maximum back‑pressure up to 315 bar. The actual opening pressure setting must be lower than the maximum system pressure for proper sequence‑control performance.
4. Can DZ pressure valve replace other brands?
It can serve as an alternative to other‑brand sequence valves under ISO 5781 standard mounting dimensions. Before replacement, please check key parameters including working pressure range, flow capacity, pressure grade, pilot‑control mode and whether a built‑in check valve is required. Customized solutions are available to meet special system requirements.
5. What is the Response / Switching frequency of DZ pressure valve ?
As a pilot‑operated hydraulic sequence valve, it has typical pressure‑response time of 50‑150 ms. It is designed for steady‑state sequential control rather than high‑frequency cyclic switching. Its actual response performance will be influenced by system flow rate, oil viscosity and pipeline layout. Frequent rapid switching is not recommended for long‑term service life.
6. Do you provide OEM or customized services?
Yes, we support OEM and customized services. We can customize pressure grades, seal materials, adjustment styles, pilot and drain control modes as well as port configurations according to your technical requirements. Please provide your detailed specifications or drawings for accurate quotation.
7. How can I get a quotation quickly
Please provide the following details:
Certifications & Quality Assurance
DZ pressure valve are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
FAQ
1.What's our advantages?
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
2.What is your payment terms?
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
3.Can you make my own brand on the products?
Of course we can. Just send me your logo we can make it for you.
4.What is our main export market?
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
