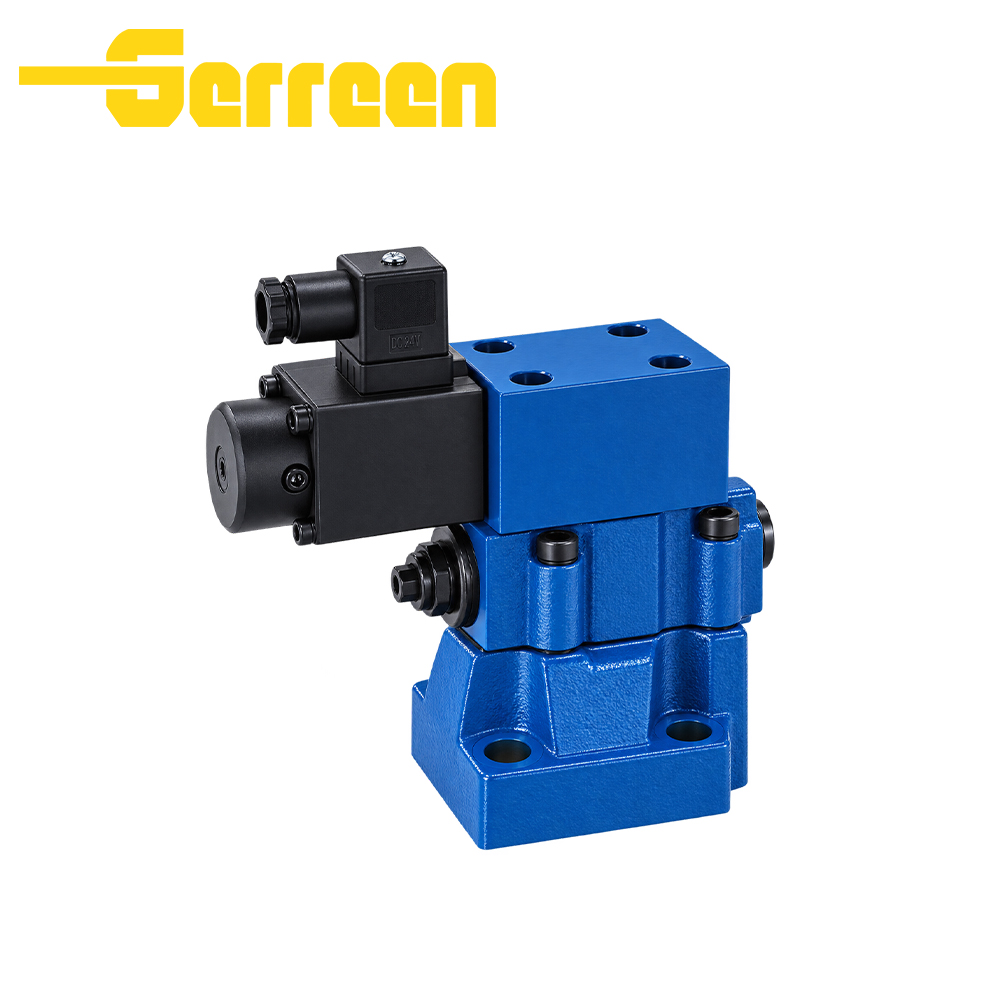

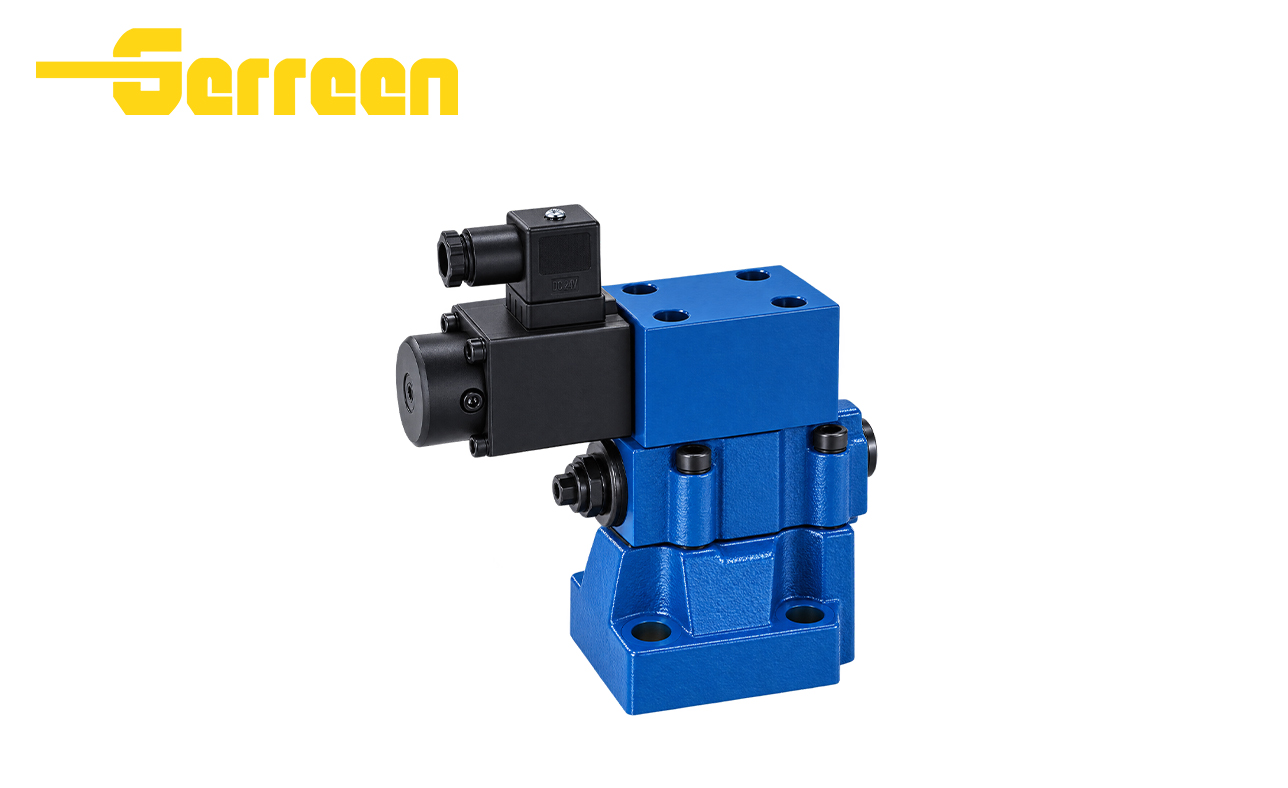

DBE(M)EDG pressure valve OVERVIEW

DBE(M)/EDG pressure valves are proportional pressure control valves. DBE(M) is pilot‑operated proportional relief valve; EDG is direct‑acting proportional relief valve. They realize stepless continuous pressure adjustment according to electric input signal. DBE(M) version can be equipped with mechanical over‑pressure safety protection. Integrated or external amplifier options are available. With ISO standard sub‑plate mounting, they feature high pressure control accuracy and good linear performance. Widely adopted for variable pressure setting in hydraulic test benches, injection molding machines and automated hydraulic power units.

Features and Benefits

• DBE(M) adopts pilot‑operated structure while EDG uses direct‑acting design, both provide excellent linear performance and low hysteresis for accurate proportional pressure control.

• Stepless pressure adjustment via analog electrical input signal enables flexible remote pressure setting to match varying cycle requirements of automated systems.

• DBE(M) version supports optional mechanical over‑pressure safety protection, offering double‑safety guarantee for hydraulic equipment.

• Integrated amplifier or external drive options accommodate different electrical cabinet layout demands.

• ISO standard sub‑plate mounting ensures high interchangeability with mainstream brand valves for convenient installation and replacement.

• Various pressure ranges and multiple signal types (0‑10 V, 4‑20 mA) fit global industrial control standards.

• Optional FKM seals support special hydraulic media to extend application scope.

• DBE(M) covers large‑flow conditions with NG10, NG20, NG30 sizes; compact EDG is optimized for small‑flow systems with fast‑response demands.

Specifications DBE(M)EDG pressure valve

Valve Type: DBE(M): Pilot‑operated proportional relief valve; EDG: Direct‑acting proportional relief valve

Mounting: ISO standard sub‑plate mounting

Nominal Sizes: DBE(M): NG10, NG20, NG30; EDG: NG6
Max. Operating Pressure (Port P/A): 31.5 MPa (315 bar)
Max. Pressure (Port T): 10 MPa (100 bar)
Pressure Setting Ranges: 50 bar, 100 bar, 200 bar, 315 bar

Max. Flow Rate: DBE(M): NG10‑100 L/min; NG20‑200 L/min; NG30‑400 L/min; EDG‑15 L/min
Control Signal: 0‑10 V or 4‑20 mA
Amplifier: Integrated amplifier or external drive optional for DBE(M)
Over‑pressure protection: Mechanical safety relief optional for DBE(M)

Hydraulic Fluid: Standard mineral hydraulic oil (HL/HLP); FKM seals for special media optional
Viscosity Range: 10‑800 mm²/s
Fluid Temperature: ‑30 ~ +80 °C (NBR seals); ‑20 ~ +80 °C (FKM seals)
Filtration Requirement: ISO 4406 20/18/15 or better

Weight:
                  ‑ NG10 DBE(M): 3.2 kg
                  ‑ NG20 DBE(M): 6.5 kg
                  ‑ NG30 DBE(M): 12.0 kg
                  ‑ NG6 EDG: 1.4 kg

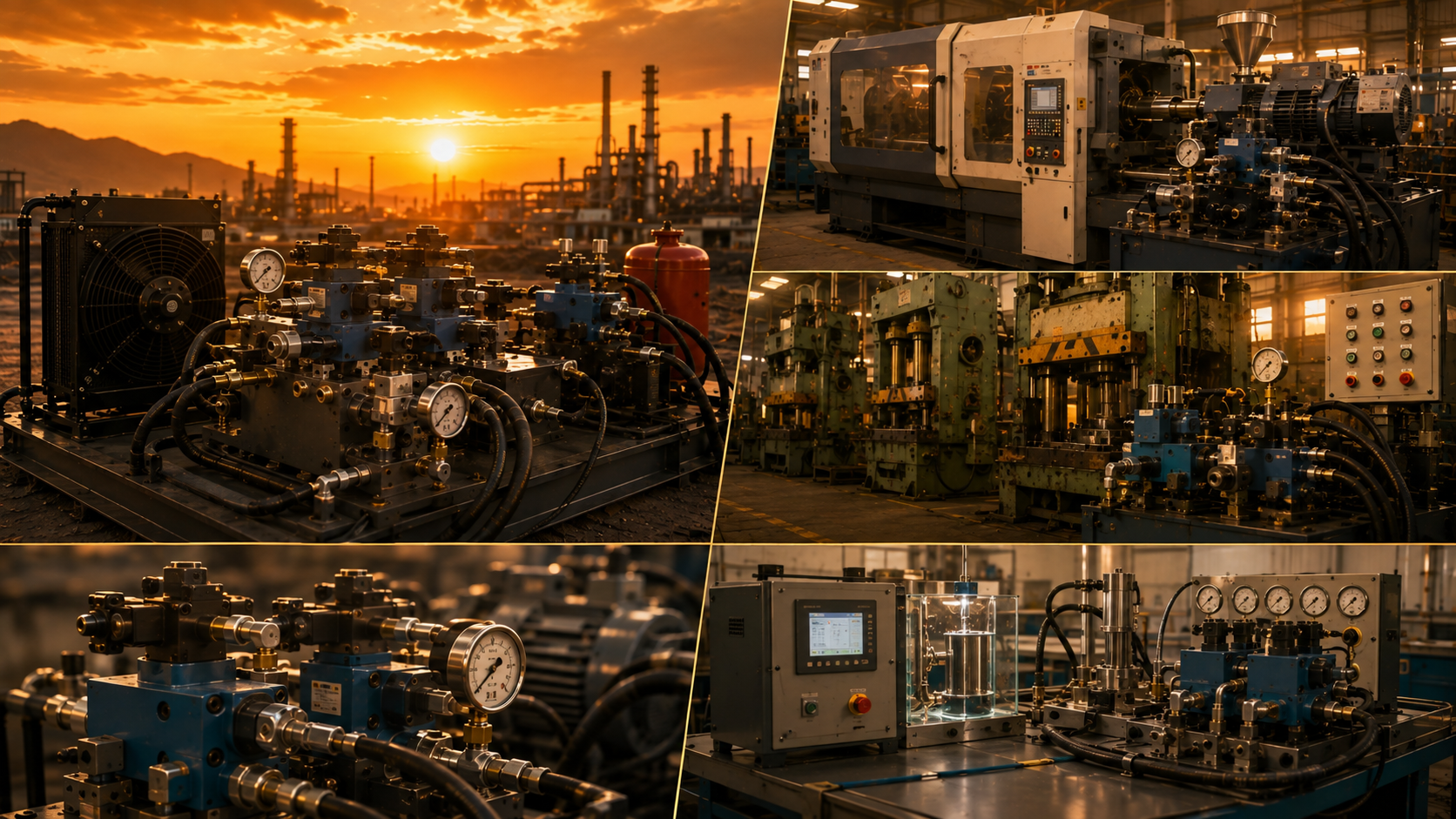

Applications

• DBE(M)/EDG pressure valves are high‑precision proportional pressure control components. DBE(M) pilot‑operated type is suitable for large‑flow hydraulic systems, widely used in hydraulic test benches, metallurgical machinery, injection molding machines and automated hydraulic power units. It realizes stepless remote pressure adjustment, and optional mechanical over‑pressure protection provides double safety for equipment.

• EDG direct‑acting proportional relief valve is designed for small‑flow systems requiring fast response. It fits laboratory test equipment, precision pressure calibration devices and compact hydraulic stations. Both valves are perfect for applications where pressure needs continuous, programmable adjustment according to working cycles.

Packaging & Delivery

DBE(M)EDG pressure valve are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

DBE(M)EDG pressure valve FAQ:

1. What is the DBE(M)EDG pressure valve ?

DBE(M)/EDG pressure valves are proportional relief valves. DBE(M) is pilot‑operated type for large‑flow systems; EDG is direct‑acting type for small‑flow applications. They achieve stepless continuous pressure adjustment via analog electric input signal. DBE(M) supports optional mechanical over‑pressure safety protection, with integrated or external amplifier available. ISO standard sub‑plate mounting, they are core proportional pressure control parts for automated hydraulic systems and test benches.

2. What makes the DBE(M)EDG pressure valve ?

3. What is the working pressure range of DBE(M)EDG pressure valve ?

The maximum working pressure at main ports P/A is up to 31.5 MPa (315 bar). The maximum allowable pressure for return port T is 10 MPa (100 bar). Multiple pressure setting options including 50 bar, 100 bar, 200 bar and 315 bar are available to meet different system demands.
