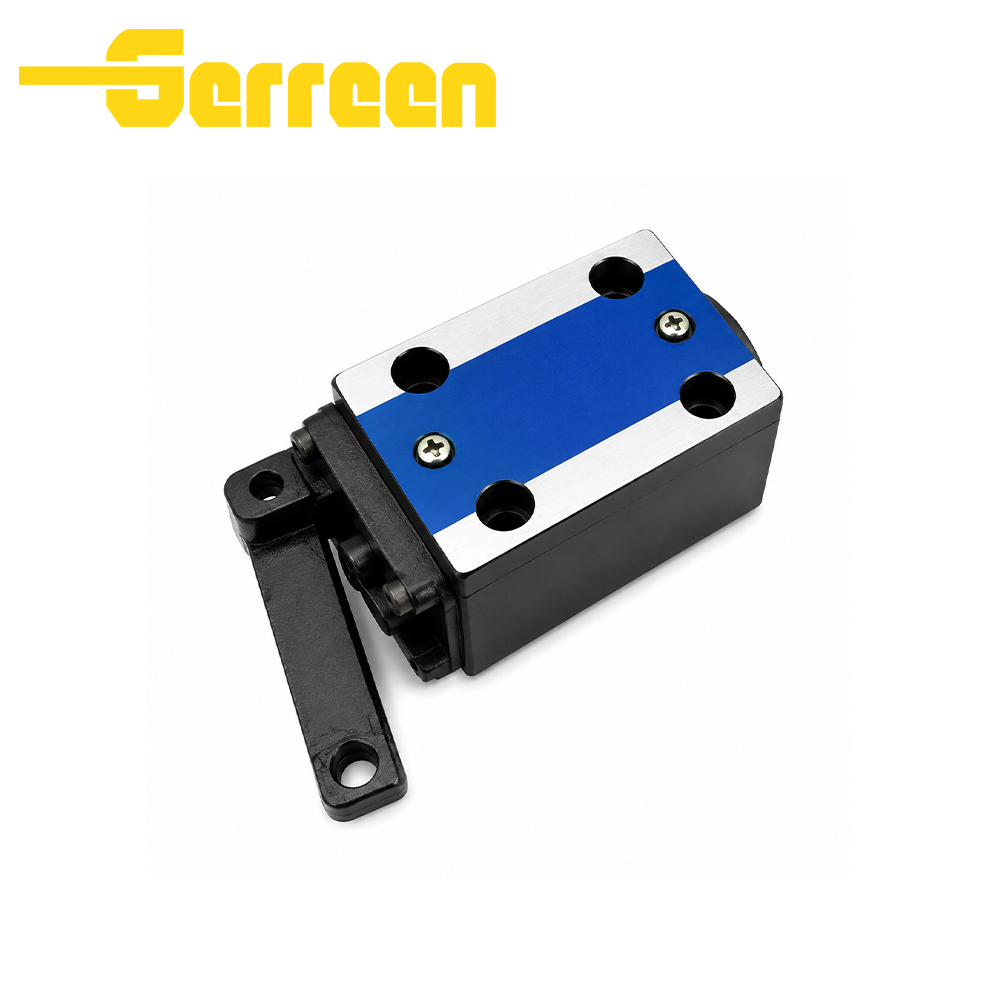

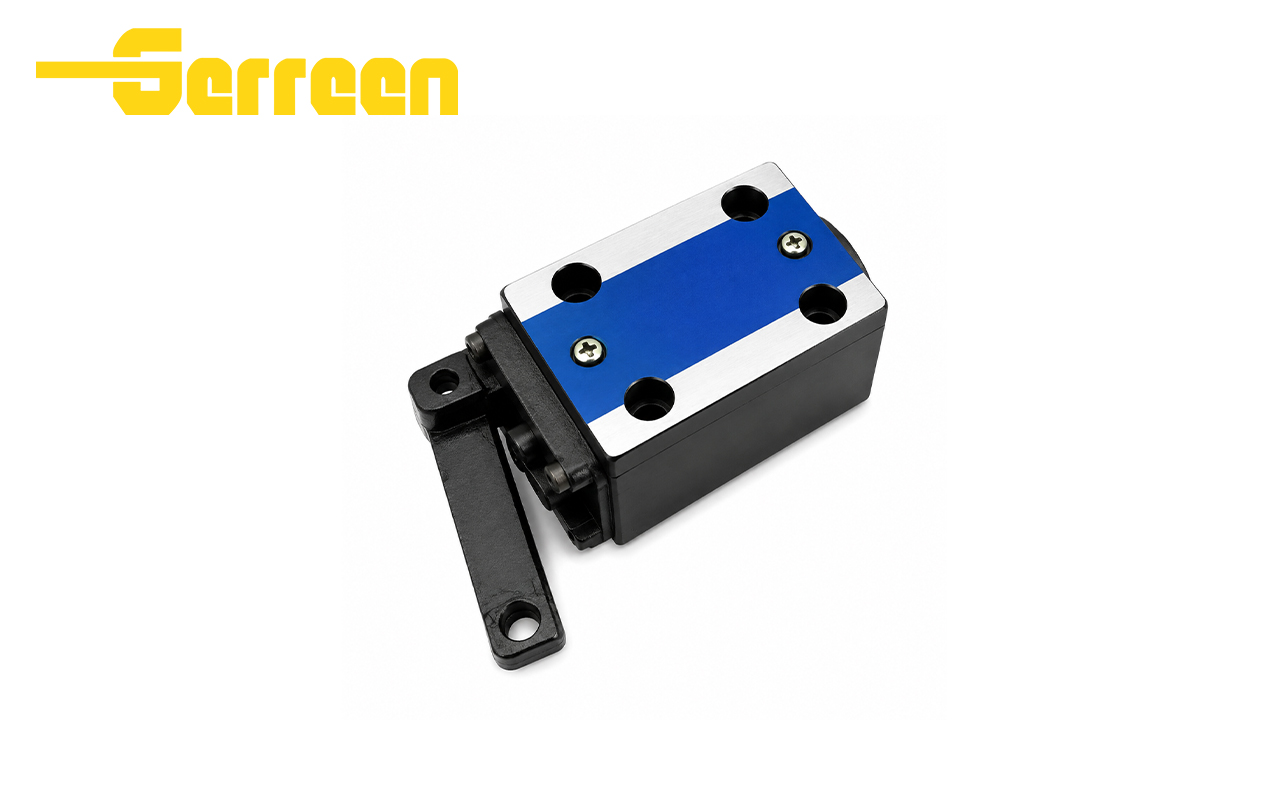

DCG Directional Valve OVERVIEW

DCG directional valve is mechanically cam‑actuated hydraulic directional control valve. It adopts threaded port connection and spring‑return reset structure. Spool movement is driven by external mechanical cam mechanism instead of manual lever or solenoid. It achieves automatic oil‑flow direction switching following mechanical motion. Compact structure, reliable mechanical actuation, widely used for industrial and mobile hydraulic equipment.

Features and Benefits

• Cam‑driven mechanical actuation, triggered by external machinery movement, no manual or solenoid operation required

• Spring‑return structure, automatically resets spool position when cam force disappears

• Optimized internal flow passage, low pressure loss, stable flow performance

• Threaded port connection, easy installation and maintenance

• Solid valve body construction, good shock‑resistance, suitable for vibrating working conditions

• Compatible with standard mineral hydraulic oil; special sealing materials are available for special media

Specifications DCG Directional Valve

Valve Type: Cam‑actuated mechanically‑driven hydraulic directional control valve
Max Working Pressure: 31.5 MPa for P/A/B ports; 16 MPa for T return port
Nominal Flow: Up to 80 L/min
Operation Mode: Cam mechanical actuation, spring‑return reset
Mounting Pattern: Threaded port connection
Cam Stroke: Standard cam stroke available
Hydraulic Fluid: Standard mineral hydraulic oil; special seals for alternative media available
Fluid Viscosity: 2.8‑380 mm²/s
Fluid Temperature: ‑20 ℃ ~ +70 ℃
Filtration Requirement: NAS 1638 class 8 recommended
Feature: Mechanical cam triggering, no electric power needed, shock‑resistant compact threaded design, stable performance under vibration environments

Applications

• DCG directional valve is cam‑actuated mechanical directional control valve. It achieves automatic oil‑flow switching triggered by external mechanical cam movement, no electric power or manual operation required. With threaded‑port construction and excellent vibration resistance, it fits industrial and mobile hydraulic environments.

• It is widely adopted for machine tools, automated production lines, hydraulic test benches, construction machinery and agricultural equipment. Perfect for hydraulic systems that need automatic directional switching controlled by mechanical travel position. Filtered hydraulic oil is required to guarantee long‑term service life.

Packaging & Delivery

DCG Directional Valve are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

DCG Directional Valve FAQ:

1. What is the DCG Directional Valve ?

DCG directional valve is cam‑actuated mechanical hydraulic directional control valve with threaded ports. It works by external cam pushing the spool to realize oil‑flow switching, and returns to initial position by spring force after cam force disappears. It requires neither solenoid power supply nor manual lever operation. Compact threaded‑port structure, good vibration resistance. It is commonly used in industrial and mobile hydraulic systems for automatic directional switching triggered by mechanical travel motion.

2. What makes the DCG Directional Valve ?

3. What is the working pressure range of DCG Directional Valve ?

For DCG directional valve, the maximum working pressure for P/A/B ports is 31.5 MPa, and the maximum allowable back‑pressure at T return port is 16 MPa. It maintains stable performance under rated pressure in industrial and vibration‑prone mobile hydraulic systems.

4. Can DCG Directional Valve replace other brands?

7. How can I get a quotation quickly

Please provide the following details:

• Model or displacement

• Working pressure

• Speed

• Quantity
  We will reply within 12 hours with a competitive quotation.




Certifications & Quality Assurance

DCG Directional Valve are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
