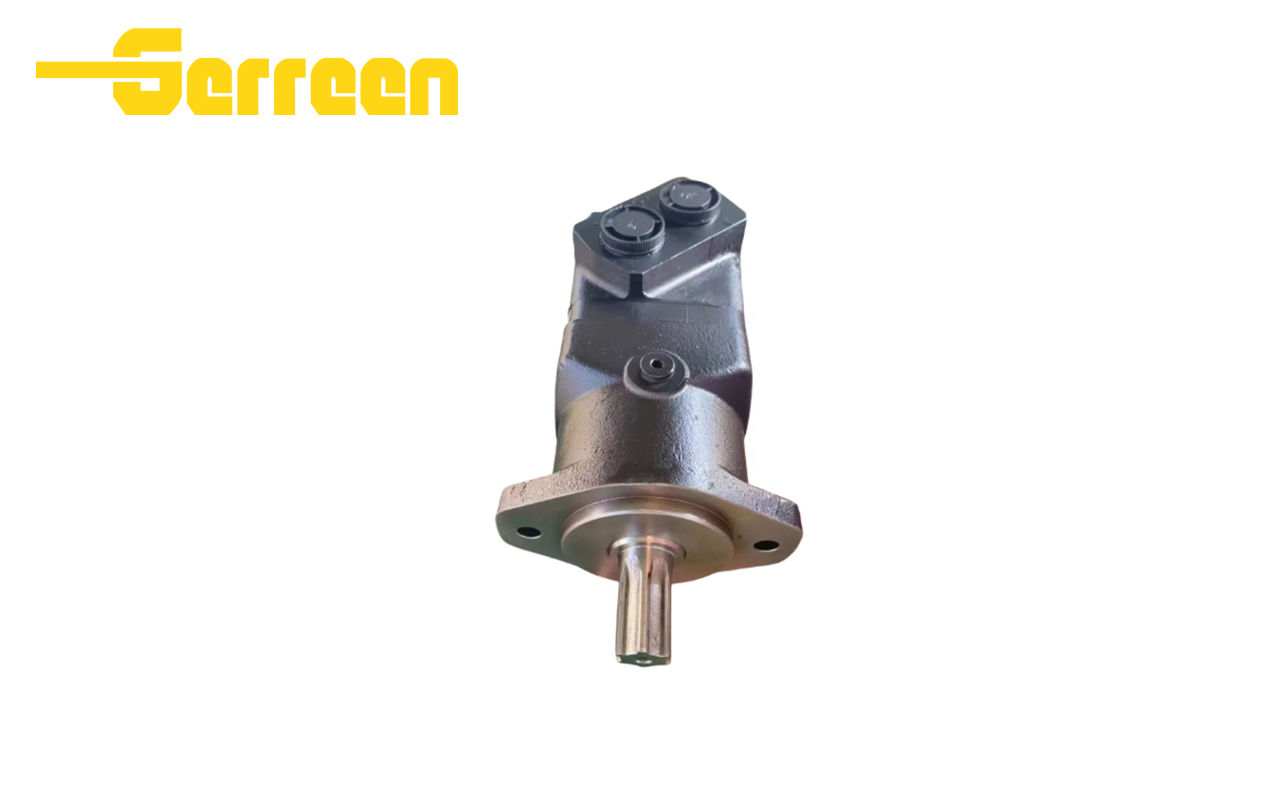

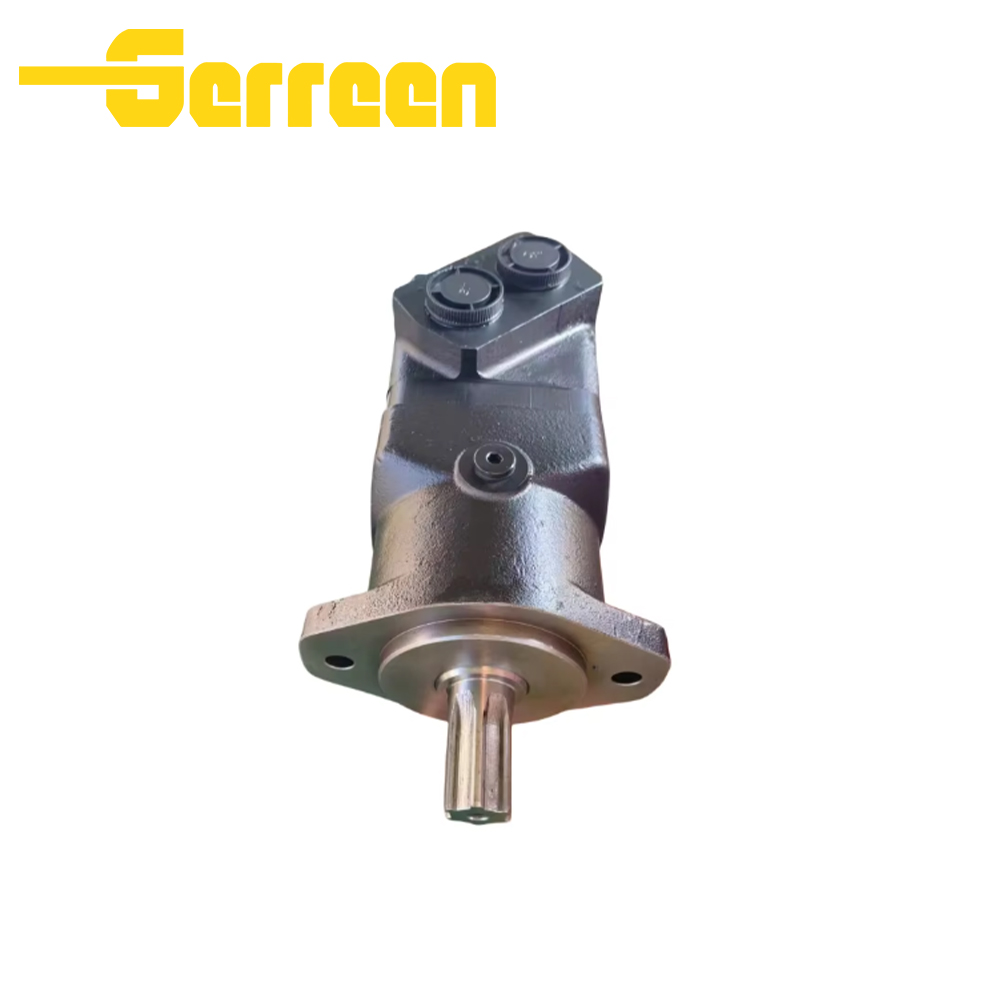

BMTE Orbit Motor OVERVIEW

BMTE Orbit Motor is heavy-duty geroler hydraulic orbit motor with disc flow distribution. It converts hydraulic energy into low-speed high-torque mechanical power. It adopts roller geroler assembly with automatic wear compensation structure. Tapered roller bearings support large radial and axial external loads. Compact monoblock design saves installation space for mobile equipment. It runs smoothly at low speed with low starting pressure and high efficiency.

Features and Benefits

• Disc valve distribution design with automatic wear compensation

• Roller geroler unit reduces friction and extends service life

• Heavy-duty tapered roller bearings withstand heavy side loads

• Stable low-speed operation without crawling and vibration

• Bidirectional rotation, easy speed control by hydraulic flow

• Multiple displacements, flange and shaft options for selection


Specifications BMTE Orbit Motor

• Structure: Geroler orbit motor, disc flow distribution

• Displacement: Multiple specifications available

• Rated Pressure: 16–21 MPa

• Max. Intermittent Pressure: 21–25 MPa

• Typical Speed Range: 0–625 rpm

• Rotation: Reversible clockwise & counter-clockwise

• Ports: Optional BSP or SAE thread connections

Applications

• BMTE Orbit Motor is a low-speed high-torque hydraulic drive unit.  It works for sanitation vehicles and material handling devices.

• It provides stable rotary power for various mobile machinery.

• It is widely matched with different agricultural machinery.

• It fits construction equipment including road rollers and sweepers.

• It can drive augers, winches, conveyors and rotary working heads.

• It is also suitable for forestry machinery and small engineering attachments.



Packaging & Delivery

BMTE Orbit Motor are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

BMTE Orbit Motor FAQ:

1. What is the BMTE Orbit Motor ?

BMTE Orbit Motor is a heavy-duty low-speed high-torque geroler hydraulic motor. It adopts disc flow distribution and roller geroler structure. It converts hydraulic energy into high torque rotary power. Heavy-duty bearings support large radial and axial loads. It operates smoothly at low speed with low starting pressure. It serves as the rotary power source for various mobile machinery.

2. What makes the BMTE Orbit Motor ?

3. What is the working pressure range of BMTE Orbit Motor ?

The rated working pressure ranges from 16 MPa to 21 MPa. The maximum intermittent pressure reaches 21 MPa to 25 MPa. Choose the proper model based on your hydraulic system conditions.

4. Can BMTE Orbit Motor replace other brands?

7. How can I get a quotation quickly

Please provide the following details:

• Model or displacement

• Working pressure

• Speed

• Quantity
  We will reply within 12 hours with a competitive quotation.




Certifications & Quality Assurance

BMTE Orbit Motor are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.

FAQ

1.What's our advantages?

Factory established in 2005;

With a great deal of production experience;

80+ employees become the professional team;

Constant updated ERP system ensure efficiency of work;

Sophisticated equipment ehanced the accuracy of products;

Professional salesmen provide the greast service;

With a large number of famous customers all over the world;

Great after-sales service;

With the long term cooperation with famous logistics and express company in China,provide the better goods service.

2.What is your payment terms?

Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.

3.Can you make my own brand on the products?

Of course we can. Just send me your logo  we can make it for you.

4.What is our main export market?

America(40.5%):USA, Canada, Argentina, Brazil

Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.

Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.

Others(5.8%).

The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.

The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
