Travel motor OVERVIEW

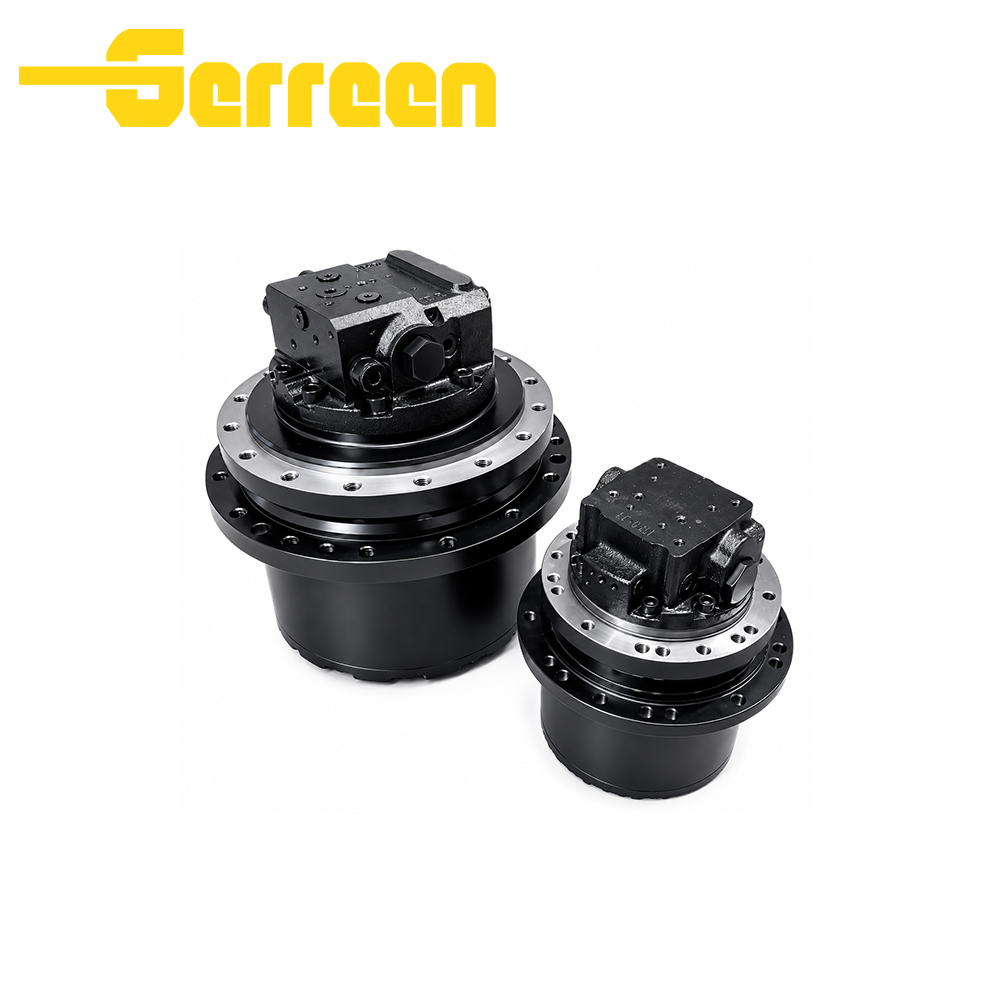

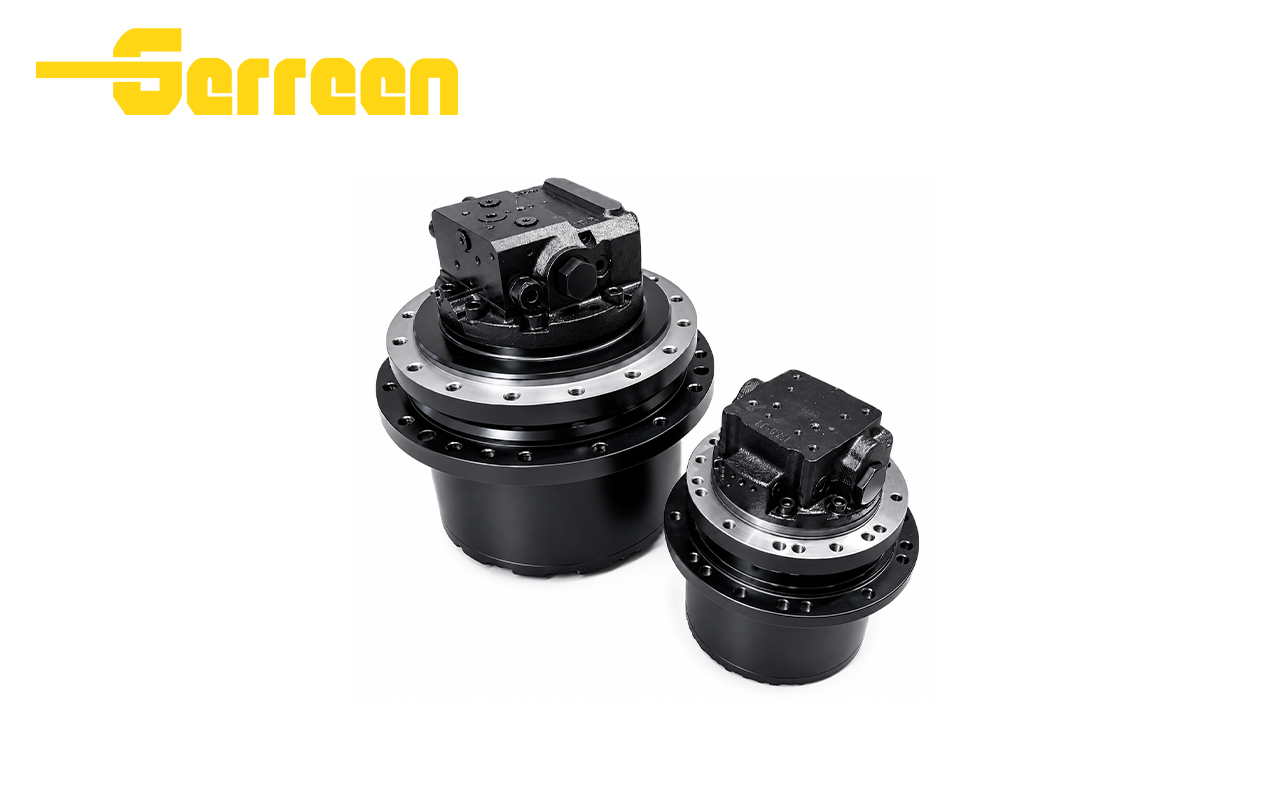

Hydraulic travel motor (also named final drive, track motor) is an integrated crawler driving unit, combining axial piston hydraulic motor, multi-stage planetary reducer and built-in spring parking brake as one compact assembly. It converts hydraulic pressure into low-speed high-torque mechanical power to drive crawler undercarriage of construction machinery. Equipped with two-speed shifting function, it switches freely between high-torque climbing mode and fast flat-ground travel mode, delivering stable, smooth and efficient driving performance for all-terrain working conditions.

Features and Benefits

• Dual-speed adjustable design: Low speed for steep slope climbing & heavy load dragging; high speed for flat-site quick transfer;

• Ultra-compact integrated structure: Easy installation, small occupation space for mini to large crawler machines;

• Heavy-duty durable parts: High-strength cast housing, hardening gear teeth, imported floating oil seals to reduce leakage failure;

• Low noise & stable running: Precision matching internal components, less vibration during frequent forward/reverse switching;


• Full OEM interchangeability: Perfectly replace original travel motors of CAT, Komatsu, Hitachi, Volvo, Doosan, Sany, XCMG and other mainstream excavator brands;


• Strict factory testing: Every unit undergoes pressure, speed and leakage test before delivery, test videos available upon request.

Specifications Travel motor

Core Structure
Integrated assembly of swash-plate axial piston motor together with multi-stage planetary reduction gearbox. It is equipped with built-in balance valve, two-speed shift valve and spring-applied mechanical parking brake.

Main Technical Parameters
Motor Type: Dual-displacement axial piston hydraulic motor
Displacement: Variable from 16/9 cc/rev to 337/228 cc/rev, suitable for machinery from 1.5 ton to 130 ton excavators
Rated Working Pressure: 21 MPa to 34.5 MPa
Maximum Input Flow: 23 L/min to 494 L/min Two-speed
Control Pressure: 2 MPa to 7 MPa
Reduction Ratio: 39 up to 100.98 with three-stage planetary gear structure
Maximum Output Torque: 2100 N·m to 185790 N·m
Maximum Output Speed: 24 rpm to 113 rpm
Brake Type: Built-in spring parking brake, automatically locked when hydraulic supply is cut off
Brake Release Pressure: 1.6 MPa to 3.9 MPa
Operating Temperature: -20℃ ~ +80℃
Oil Port Thread: Optional G, UNF, M and NPT thread types
Housing Material: High-strength cast iron; gears and sun shaft adopt forged alloy material
Weight Range: 25 kg to 420 kg

Key Performance Advantages
Dual-speed switching function enables low-speed high-torque mode for climbing and heavy-load operation, as well as high-speed mode for rapid transfer on flat ground. The integrated balance valve effectively prevents sliding and impact during startup and stopping. Hardened gear teeth and high-precision bearings offer outstanding wear resistance under long-term heavy-duty working conditions. Compact integrated structure facilitates installation and can be directly interchanged with original OEM final drives. It runs smoothly with low vibration and low noise during forward and reverse rotation.

Applicable Equipment
Covers full range of crawler machinery including mini, medium and large excavators, crawler loaders, drilling rigs, crawler cranes, trenchers, underground mining crawler vehicles and agricultural tracked tractors.

Quality Standard Products are manufactured under ISO9001 quality system and available with CE certification. Every travel motor undergoes complete pressure, speed and leakage inspection before delivery. We provide 12-month quality warranty.

Customizable Options Support customization of displacement and reduction ratio. Oil port thread, mounting flange size and sprocket size can be modified as required. Optional accessories include automatic two-speed shift sensor and free-wheel device. A wide range of OEM replacement models compatible with CAT, Komatsu, Hitachi, Volvo, Doosan, Sany, XCMG and other mainstream brands are available.

Applications

• Compatible with mini, medium and large excavators of all tonnages.

• Matched for crawler loaders, drilling rigs and crawler cranes.

• Applied to trenchers and underground mining crawler vehicles.

• Suitable for tracked tractors and other agricultural machinery.

• Fit for all-terrain operations including earthwork, mining, infrastructure and farm work.

• Direct replacement for original travel motors of mainstream brands such as CAT, Komatsu, Sany and XCMG.



Packaging & Delivery

Travel motor are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

Travel motor FAQ:

1. What is the Travel motor ?

A travel motor, also known as final drive, is an integrated hydraulic drive assembly for crawler‑type machinery. It consists of an axial piston hydraulic motor, multi‑stage planetary reducer and built‑in spring parking brake. It converts hydraulic energy into low‑speed high‑torque mechanical power to drive vehicle tracks. Most models support two‑speed shifting for climbing and fast travelling. Widely used on excavators, crawler loaders, drilling rigs and other tracked construction equipment.

2. What makes the Travel motor ?

3. What is the working pressure range of Travel motor ?

The rated working pressure of travel motor ranges from 21 MPa to 34.5 MPa, and the peak pressure can reach up to 37 MPa. The two‑speed control pressure is 2‑7 MPa, and brake release pressure is 1.6‑3.9 MPa. Specific values vary according to different motor models and matching machine tonnages.

4. Can Travel motor replace other brands?

7. How can I get a quotation quickly

Please provide the following details:

• Model or displacement

• Working pressure

• Speed

• Quantity
  We will reply within 12 hours with a competitive quotation.




Certifications & Quality Assurance

Travel motor are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
