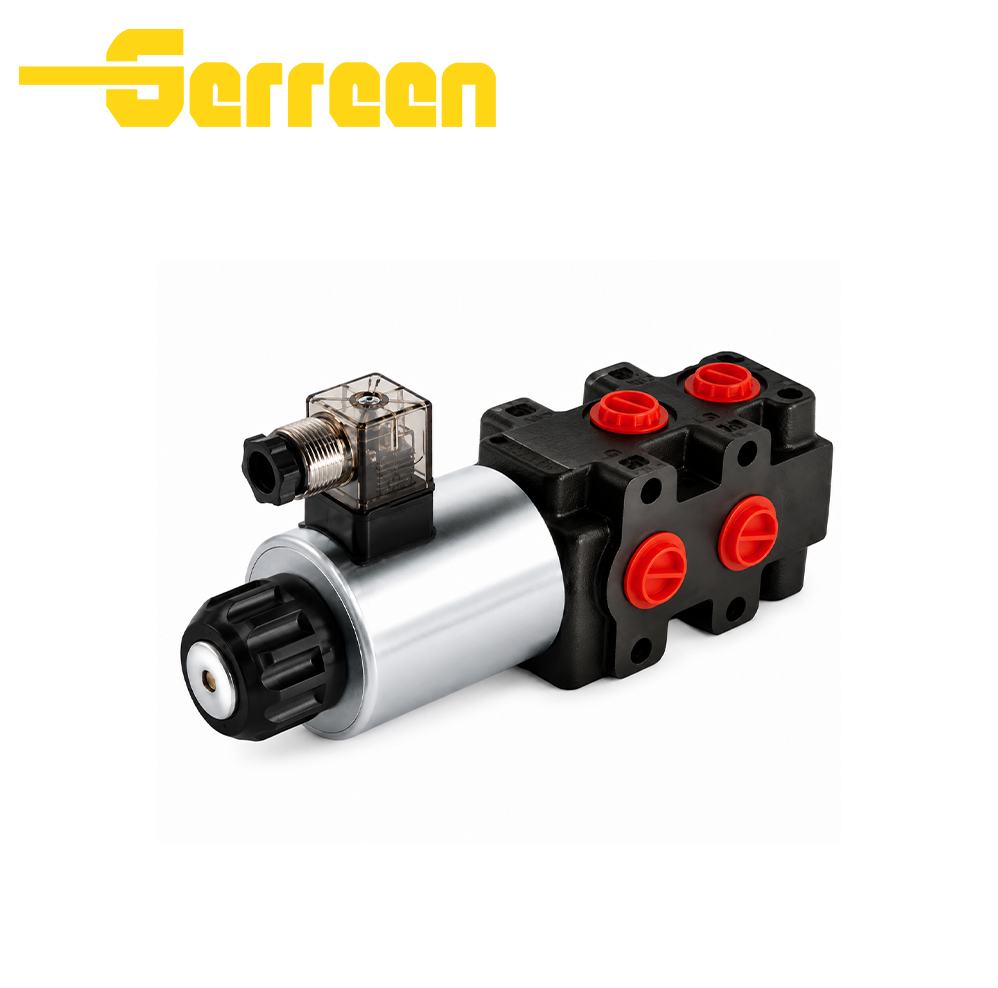

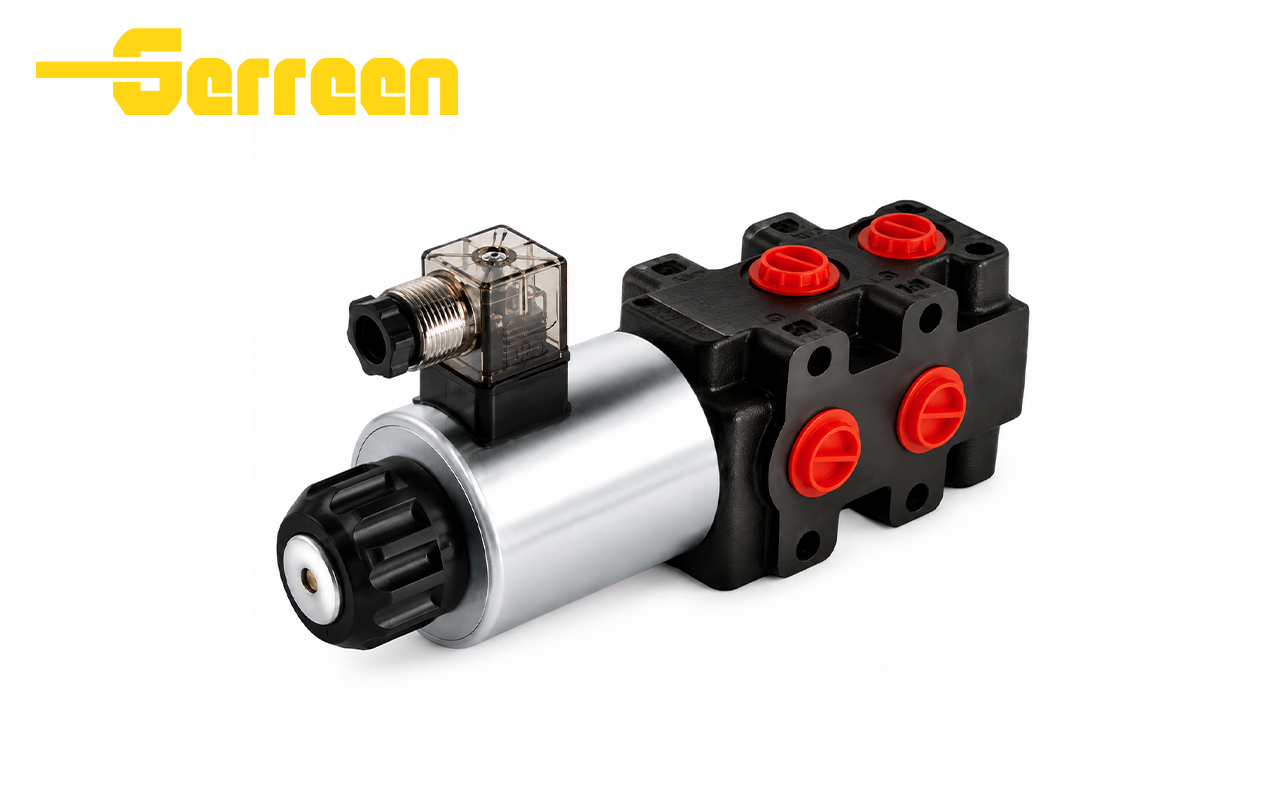

SVV 90 Selector Valve OVERVIEW

SVV90 is a stackable 6-way/2-position solenoid hydraulic change-over valve. It enables one control lever to operate two separate double-acting hydraulic circuits, greatly expanding machine hydraulic functions without extra main valve sections.

Manufactured with high-strength cast iron valve body, advanced spool design ensures fast stable switching, no separate drain line required. Supports stacking up to 3 units for multi-direction flow diversion. Widely adopted on tractors, front loaders, telescopic handlers and agricultural attachments.

Features and Benefits

• Stackable modular design allows up to three valves to be combined for multi-circuit flow selection

• Compact structure saves installation space on agricultural and construction machinery

• Low pressure drop ensures efficient hydraulic power transmission during frequent switching

• High-strength cast iron valve body delivers long service life under harsh working conditions

• Available with 12VDC and 24VDC solenoid coils to match different machine electrical systems

• Direct interchangeability with original SVV90, consistent mounting dimensions and port layout


• No separate drain line needed, simplifying hydraulic pipeline arrangement

• Enables single joystick to control two double-acting circuits to expand machine working functions

Specifications SVV 90 Selector Valve

SVV 90 Selector Valve
Rated Flow: 90 L/min
Maximum Working Pressure: 280 bar

Solenoid Voltage: 12VDC, 24VDC optional
Port Size: G1/2", G3/4" Valve
Type: 6-way 2-position solenoid selector valve
Maximum Stack Quantity: 3 units
Fluid Medium: Mineral hydraulic oil
Operating Temperature: -20℃ ~ +70℃

Seal Material: Nitrile rubber (NBR)
Installation: Modular stack mounting

Applications

• Agricultural tractors and supporting farm attachments

• Front end loaders and telescopic handlers.

• Forklifts and auxiliary hydraulic working equipment

• Harvesters and other agricultural machinery

• Small construction machinery auxiliary hydraulic circuits

• Used for hydraulic circuit switching and function expansion



Packaging & Delivery

SVV 90 Selector Valve are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

SVV 90 Selector Valve FAQ:

1. What is the SVV 90 Selector Valve ?

The SVV 90 Selector Valve is a modular stackable 6/2 solenoid hydraulic selector valve with a nominal flow of 90 L/min and maximum working pressure of 280 bar. It supports 12VDC and 24VDC solenoid options, and maximum 3 valves can be stacked together. This valve allows a single control joystick to switch between two double-acting hydraulic circuits, ideal for agricultural tractors, front loaders and telescopic handlers to expand hydraulic working functions.

2. What makes the SVV 90 Selector Valve ?

3. What is the working pressure range of SVV 90 Selector Valve ?

Its maximum working pressure reaches 280 bar. The valve works steadily under normal agricultural hydraulic system pressure and supports continuous frequent switching within the rated pressure range.

4. Can SVV 90 Selector Valve replace other brands?

7. How can I get a quotation quickly

Please provide the following details:

• Model or displacement

• Working pressure

• Speed

• Quantity
  We will reply within 12 hours with a competitive quotation.




Certifications & Quality Assurance

SVV 90 Selector Valve are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
