3GP
Green Hydraulic
3GP
Standard export carton/plywood case
Yes
ISO9001，CE
• Industrial • Energy • Government (Non Aerospace) • HVAC • Mobile • Natural Resources • Transportation (Non Aerospace)
1. Industrial Hydraulic Systems 2. Mobile Equipment (Industrial Vehicles) 3. Construction and Engineering Machinery 4. Metallurgy Industry
Key Shaft and Spline shaft
1 set
Product Description

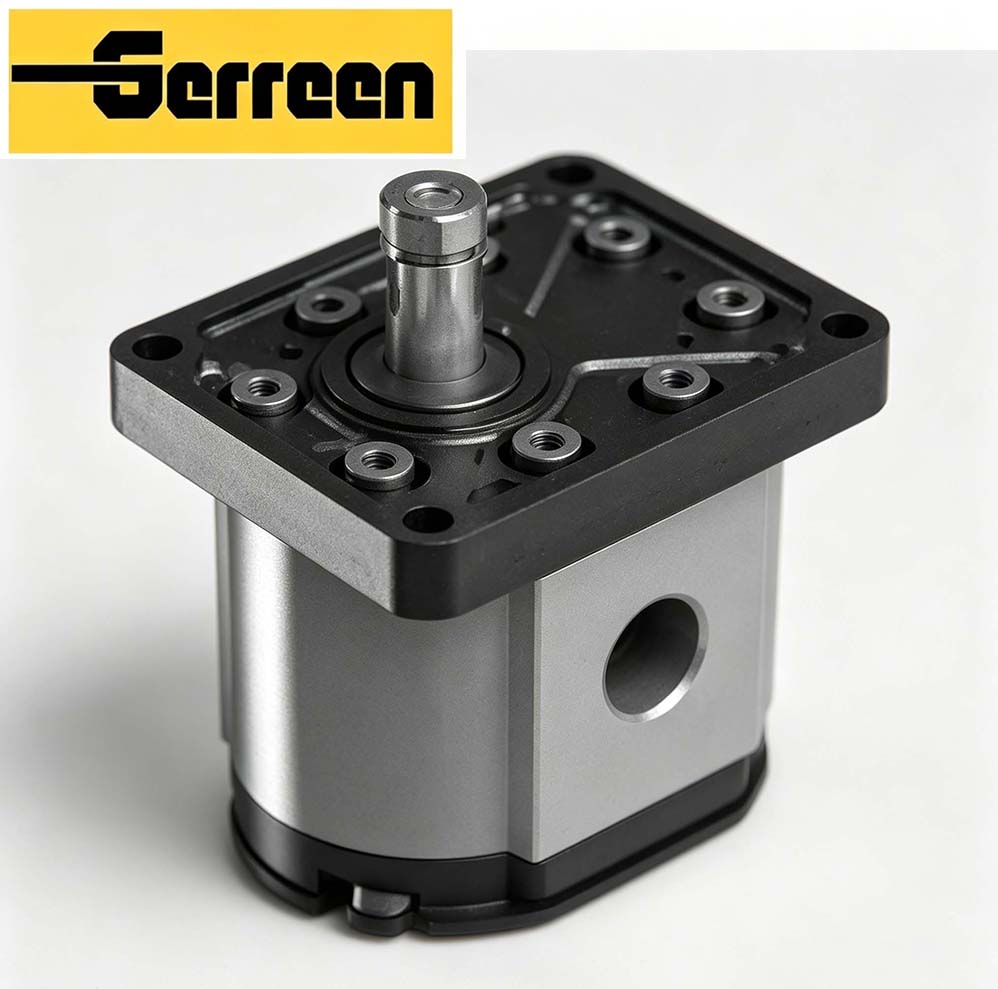

The Galtech 3GP is a high-performance, fixed-displacement gear pump engineered for compact hydraulic systems that demand maximum durability and reliable high-pressure output. Featuring a rugged three-piece construction, the 3GP is specifically designed to provide a high power-to-weight ratio, making it an ideal choice for direct mounting to truck Power Take-Offs (PTOs) in mobile equipment where space is at a premium and performance is non-negotiable.
Specifications
| Parameter | Value |
| Series | 3GP (Group 3, successor to 3SP) |
| Type | External fixed-displacement gear pump |
| Construction | 3-piece aluminum body with cast iron/aluminum flanges |
| Displacement Range | 19.3–77.2 cc/rev (1.2–4.7 in⊃3;/rev) |
| Max Continuous Pressure | Up to 250 bar (3,600 psi) |
| Max Speed | 2,200–3,500 rpm (speed varies with displacement) |
| Efficiency | Volumetric efficiency ≥92% |
| Shaft Options | Keyed, 13T/14R splined (SAE standard) |
| Flange Options | SAE “B”, European 4-bolt |
| Port Options | Side/rear ports, BSP or flanged connections |
| Rotation | Clockwise (D) / Counterclockwise (S) |
| Seals | NBR (standard) / FKM (optional) |
| Weight | 3.8–7.3 kg (varies with displacement) |
Applications
Applications
Construction & Road Machinery: A primary choice for excavator attachments, concrete mixers, and mobile cranes, where the compact 3GP frame integrates easily with Power Take-Off (PTO) units to provide reliable lifting and positioning power.
Agricultural Equipment: Optimized for tractors, harvesters, and sprayer systems, where the robust construction and bushing design ensure long-term durability against fluid contamination and high-frequency cycles of outdoor use.
Commercial Refuse & Recycling: Widely used in refuse trucks and compactors that require high-cycle, high-pressure stability to manage rapid compaction and unloading operations.
Material Handling & Logistics: Ideal for forklifts, truck tail-lifts, and hydraulic ramp systems, offering a durable and space-efficient power source that maintains high efficiency under heavy load conditions.
Specialized Industrial & Off-Highway Equipment: Frequently employed in forestry machinery, utility vehicles, and drilling rigs, where the 3GP handles variable load shocks and thermal stress common in demanding work environments.
Factory&FAQ
3GP pumps are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
Robust Construction: The three-piece aluminum body with cast iron covers minimizes deflection under high pressure, maintaining tight clearances and longer service life.
Pressure-Balanced Bushing & Wear Plate Design: It uses advanced pressure-balanced components to reduce friction, improve efficiency, and resist thermal shock and fluid contamination better than many standard gear pumps.
Modular Installation Flexibility: It supports multiple flange options (SAE B, European), shaft configurations (keyed, splined), and port orientations, offering unmatched adaptability in cramped chassis environments.
The 3GP is a compact high-pressure specialist. Depending on the specific displacement, the series typically handles:
Continuous Pressure: Up to 3,600 PSI (250 bar).
Intermittent/Peak Pressure: Up to 3,900 PSI (270 bar) (varies by model).
This robust pressure rating makes the 3GP ideal for driving high-force lifting, compaction, and actuation systems on professional-grade utility vehicles.
Yes, the 3GP is a high-quality alternative to other premium Group 3 gear pumps. It is often used as a replacement or upgrade for:
Old Galtech 3SP Series.
Parker/Commercial Intertech P330 Series.
Metaris MH330 Series.
Casappa KP30 Series.
To ensure a successful swap, verify the Mounting Flange (SAE B or European), Shaft Type (keyed, splined), and Displacement to match your existing system.
To protect the precision bushings and hardened steel gears, the following is recommended:
Oil Type: Premium mineral-based hydraulic fluids with strong Anti-Wear (AW) additive packages.
Viscosity: Standard ISO VG32 to VG68. The optimal operating range is 100 to 150 SUS (20 to 30 cSt), though it can handle cold starts up to 2,000 SUS (430 cSt).
Filtration: Cleanliness is vital for bushing lubrication. A minimum filtration of ISO 4406 18/16/13 is recommended to prevent abrasive particles from damaging the pump components.
The maximum speed varies with displacement:
Low Displacement (19–34 cc/rev): Up to 3,500 RPM.
Mid Displacement (37–53 cc/rev): Up to 3,300–3,000 RPM.
High Displacement (62–77 cc/rev): Up to 2,500–2,200 RPM.
Operating within these ranges ensures optimal performance, efficiency, and service life.
Yes, we support OEM and customization, including nameplate, packaging, and specific performance requirements. Send us your drawings or specifications for evaluation.
Please provide the following details:
Model or displacement
Working pressure
Speed
Quantity
We will reply within 12 hours with a competitive quotation.
3GP pumps are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.
All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.
To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.
Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
