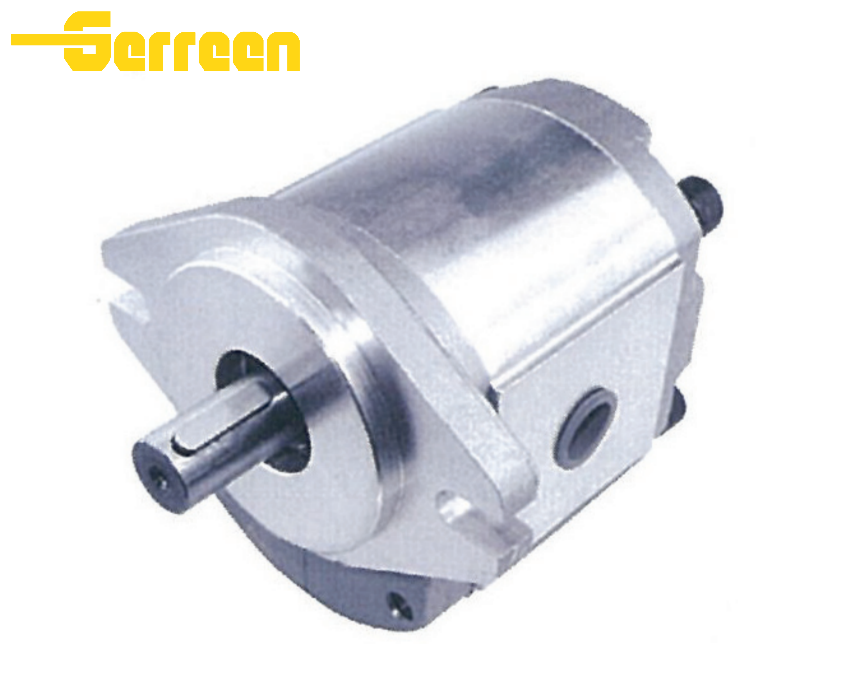

CBY2 Fixed Gear Pump

CBY2 Gear Pump  Overview

The CBY2 is a high-performance, fixed-displacement external gear pump engineered for demanding industrial and mobile hydraulic systems that require reliable high-pressure output and long service life. Built with robust construction and optimized hydraulic design, the CBY2 is specifically designed to deliver consistent power in compact installations, making it ideal for use in construction machinery, agricultural equipment, and industrial machinery where performance and durability are critical.

Features and Benefits

• Rugged High-Strength Construction

  The CBY2 is built with high-grade cast iron bodies and covers, offering superior structural rigidity compared to lighter alternatives. This heavy-duty construction minimizes deflection under high-pressure loads, reducing mechanical fatigue and ensuring stable, leak-free performance in harsh operating environments.

• High-Efficiency Gear and Bearing Design

  Featuring precision-machined alloy steel gears and pressure-balanced support elements, the CBY2 maintains high volumetric efficiency even at continuous high pressures. The design effectively reduces internal leakage and friction, supporting long-term operation with minimal wear and consistent output flow.

• Advanced Axial Compensation Technology

  Equipped with pressure-balanced wear plates, the CBY2 automatically adjusts internal clearances between the gear faces and housing. This minimizes fluid bypass and mechanical friction, delivering exceptional mechanical efficiency and reliable power delivery across a wide range of operating temperatures and load conditions.

• Superior High-Pressure Capability

  Despite its compact footprint, the CBY2 is engineered to handle continuous operating pressures of up to 25 MPa (250 bar). Its precision components and robust design allow it to power high-force actuators and complex hydraulic circuits with smooth, dependable flow in demanding applications.

• Modular Versatility and Installation Flexibility

  The CBY2 series offers a versatile range of displacements (typically from 4 to 100 cc/rev) and supports standard SAE and common industry mounting configurations. With multiple porting options and a compact form factor, it provides excellent installation flexibility for space-constrained mobile equipment and industrial systems.

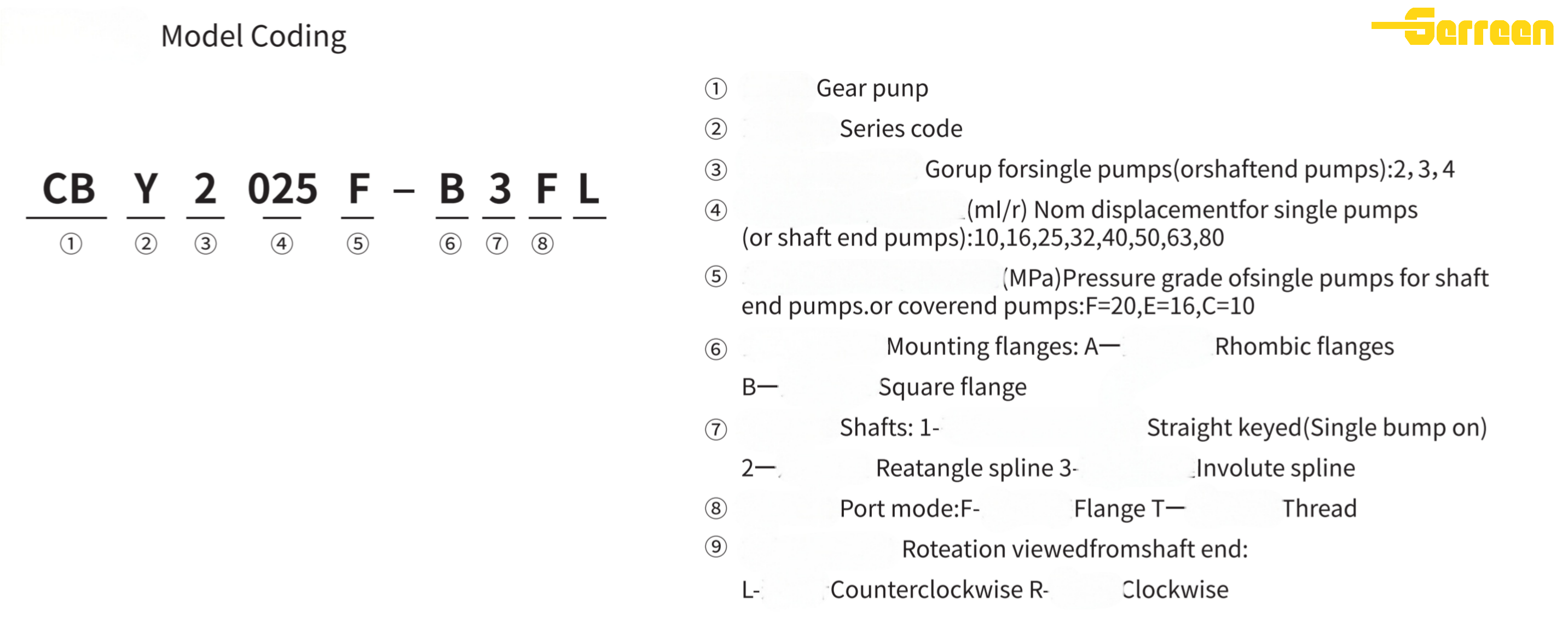

Model Codes

Applications

Packaging & Delivery

CBY2 pumps are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

CBY2 Gear Pump  FAQ

1. What are CBY2 series gear pumps

2. What makes the CBY2 different from standard gear pumps

4. Can CBY2 pumps replace other brands

5. What hydraulic oil is suitable for CBY2 gear pumps

• Rated Speed: 2,000 rpm (standard).

• Maximum Continuous Speed: Up to 3,000 rpm (depending on displacement).

Operating within the recommended speed range ensures optimal lubrication, noise performance, and component longevity.

7. Do you provide OEM or customized services

Yes, we support OEM and customization, including nameplate, packaging, and specific performance requirements. Send us your drawings or specifications for evaluation.

8. How can I get a quotation quickly

Please provide the following details:

• Model or displacement

• Working pressure

• Speed

• Quantity
  We will reply within 12 hours with a competitive quotation.




Certifications & Quality Assurance

CBY2 pumps are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.

FAQ

1.How does the variable displacement work?

The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.

2.What's our advantages?

Factory established in 2005;

With a great deal of production experience;

80+ employees become the professional team;

Constant updated ERP system ensure efficiency of work;

Sophisticated equipment ehanced the accuracy of products;

Professional salesmen provide the greast service;

With a large number of famous customers all over the world;

Great after-sales service;

With the long term cooperation with famous logistics and express company in China,provide the better goods service.

3.What is your payment terms?

Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.

4.Can you make my own brand on the products?

Of course we can. Just send me your logo  we can make it for you.

5.What is our main export market?

America(40.5%):USA, Canada, Argentina, Brazil

Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.

Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.

Others(5.8%).

The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.

The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.

Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.

All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.

To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.

Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
