1GG External Gear Pump Manufacturers

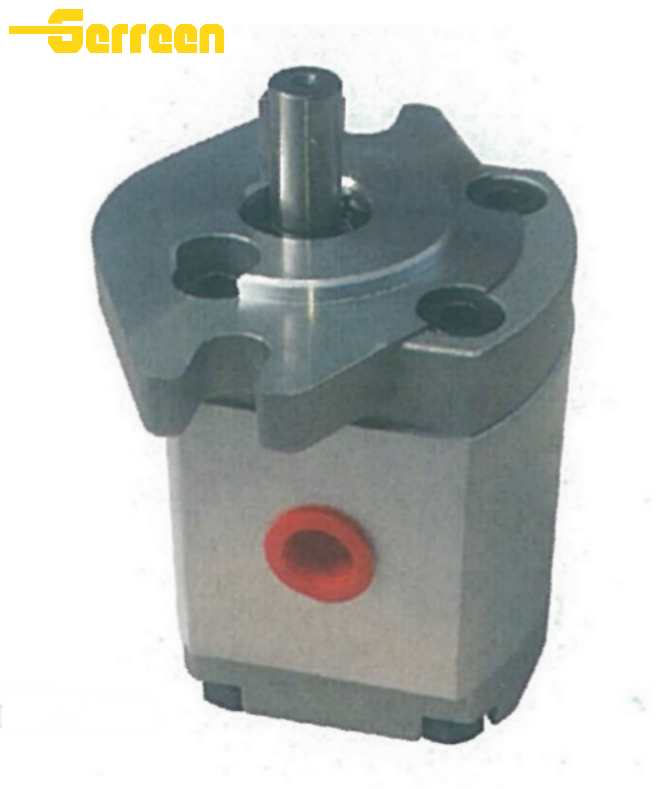

1GG Gear Pump  Overview

The 1GG series is a compact, high-efficiency fixed-displacement external gear pump engineered for cost-effective, reliable performance in a wide range of hydraulic systems. Designed for space-constrained applications, it delivers an excellent power-to-weight ratio, making it an ideal choice for direct mounting on power take-offs (PTOs) and mobile equipment where dependability and efficiency are key.

Features and Benefits

• Compact, Lightweight Construction:

  The 1GG series features a rugged, die-cast aluminum alloy body and end covers, providing a high strength-to-weight ratio compared to heavier alternatives. This robust yet lightweight design minimizes installation footprint, reduces overall system weight, and ensures structural integrity under typical operating conditions, supporting long service life in various industrial and mobile environments.

• High-Efficiency External Gear Design:

  Utilizing precision-machined external gear pairs, the 1GG series delivers consistent, smooth fluid flow with low pulsation. The design inherently provides reliable performance with standard hydraulic fluids, offering excellent volumetric efficiency at typical operating pressures. This simple, proven design is easy to maintain and tolerant of a wide range of operating conditions.
• Pressure-Compensated Axial Clearance Control:

  Equipped with pressure-balanced wear plates or bushings, the 1GG series automatically optimizes internal clearances between gear faces and the housing. This minimizes internal fluid bypass and friction, maintaining high mechanical efficiency and consistent power delivery across a broad range of operating temperatures and pressures.
• Reliable Pressure Capability:

  Engineered to handle continuous operating pressures up to 210 bar (3,000 psi), the 1GG series features high-quality alloy steel gears and precision components. It provides stable, reliable power for standard hydraulic actuators and circuits, ensuring dependable performance in light to medium-duty applications.
• Versatile Displacement and Installation Flexibility:

  The 1GG series offers a versatile range of displacements (from 1.3 to 13.5 cc/rev) and supports standard SAE mounting and port configurations. With multiple shaft and port options, it provides excellent installation flexibility for a wide variety of mobile machinery, agricultural equipment, and general industrial applications.

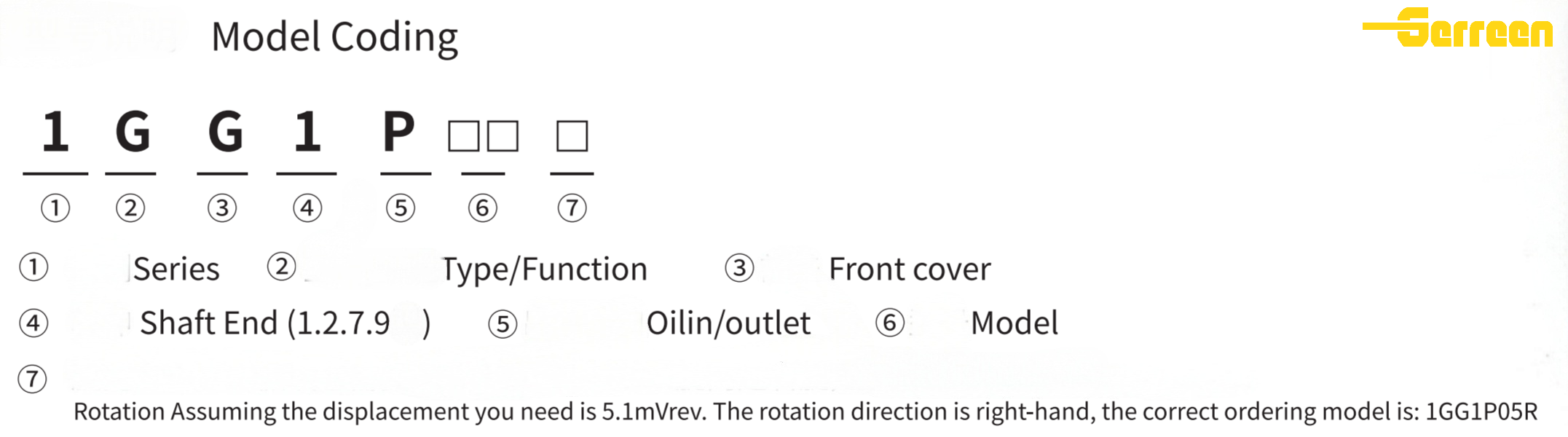

Model Codes

Applications

Packaging & Delivery

1GG pumps are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

1GG Gear Pump  FAQ

1. What are 1GG series gear pumps

2. What makes the 1GG different from standard gear pumps

4. Can 1GG pumps replace other brands

5. What hydraulic oil is suitable for 1GG gear pumps

The standard operating speed range for the 1GG series is 500–3,000 RPM, with a maximum continuous speed of 3,500 RPM (dependent on fluid viscosity and operating pressure). Operating outside this range may reduce efficiency or shorten service life.

7. Do you provide OEM or customized services

Yes, we support OEM and customization, including nameplate, packaging, and specific performance requirements. Send us your drawings or specifications for evaluation.

8. How can I get a quotation quickly

Please provide the following details:

• Model or displacement

• Working pressure

• Speed

• Quantity
  We will reply within 12 hours with a competitive quotation.




Certifications & Quality Assurance

1GG pumps are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.

FAQ

1.How does the variable displacement work?

The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.

2.What's our advantages?

Factory established in 2005;

With a great deal of production experience;

80+ employees become the professional team;

Constant updated ERP system ensure efficiency of work;

Sophisticated equipment ehanced the accuracy of products;

Professional salesmen provide the greast service;

With a large number of famous customers all over the world;

Great after-sales service;

With the long term cooperation with famous logistics and express company in China,provide the better goods service.

3.What is your payment terms?

Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.

4.Can you make my own brand on the products?

Of course we can. Just send me your logo  we can make it for you.

5.What is our main export market?

America(40.5%):USA, Canada, Argentina, Brazil

Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.

Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.

Others(5.8%).

The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.

The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.

Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.

All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.

To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.

Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
