CB32
Green Hydraulic
CB32
Standard export carton/plywood case
Yes
ISO9001，CE
• Industrial • Energy • Government (Non Aerospace) • HVAC • Mobile • Natural Resources • Transportation (Non Aerospace)
1. Industrial Hydraulic Systems 2. Mobile Equipment (Industrial Vehicles) 3. Construction and Engineering Machinery 4. Metallurgy Industry
Key Shaft and Spline shaft
1 set
Product Description

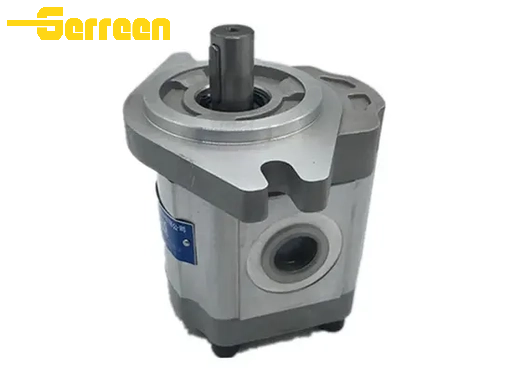

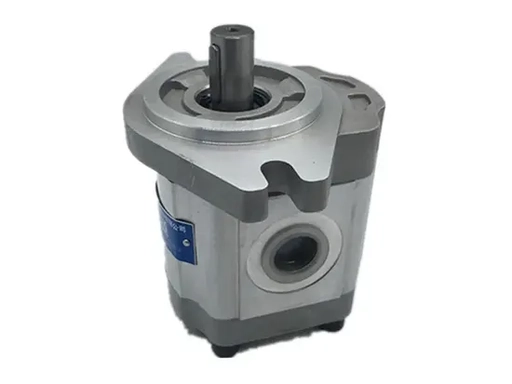

The CB32 is a high-performance, fixed-displacement external gear pump engineered for compact hydraulic systems requiring reliable high-pressure output and long service life. Featuring a rugged cast iron construction, the CB32 is specifically designed for direct mounting to engine power take-offs (PTOs) in mobile equipment, including trucks, construction machinery, and material-handling vehicles where space is limited and performance is critical.
Rugged Cast Iron Construction
Specifications
| Parameter | Specification |
| Model Series | CB32 (Tandem gear pump: 32 mL/r main + 20 mL/r auxiliary) |
| Displacement | 32 cm³/rev (main pump) / 20 cm³/rev (auxiliary pump) |
| Rated Pressure | 16 MPa (2,320 psi) |
| Maximum Pressure | 20 MPa (2,900 psi) |
| Rated Speed | 2,000 rpm |
| Maximum Speed | 2,500 rpm |
| Volumetric Efficiency | ≥ 90% |
| Total Efficiency | ≥ 84% |
| Flow Rate (Theoretical) | 48 L/min @ 1,500 rpm (main pump only) |
| Recommended Fluid | Anti-wear hydraulic oil (ISO VG 32 / 46) |
| Operating Viscosity | 10–100 mm²/s |
| Fluid Temperature Range | -20 °C to +80 °C (-4 °F to +176 °F) |
| Shaft Rotation | Clockwise (CW, right-hand drive) |
| Shaft Type | Keyed shaft (Ø25 mm, key 8×7 mm) |
| Mounting Flange | SAE standard flange (4×M8 bolt pattern) |
| Port Connections | Inlet: G1" BSPP / Outlet: G3/4" BSPP |
| Construction Material | Cast iron body, alloy steel gears, pressure-balanced wear plates |
| Seal Type | Double lip NBR oil seal |
| Weight (approx.) | 10 kg (22 lbs) |
| Typical Applications | Cummins 6BT / QSB3.9 / QSB5.9 engine steering, auxiliary hydraulics, and truck PTO systems |
Applications
Applications
Engine-Driven Steering & Auxiliary Systems: The primary choice for Cummins 6BT / QSB3.9 / QSB5.9 engine applications, including heavy-duty truck power steering and auxiliary hydraulic circuits, where the pump’s high efficiency ensures stable control even at varying engine speeds.
Construction & Utility Vehicles: Widely used in small excavators, backhoe loaders, and utility trucks, powering boom arms, outriggers, and auxiliary functions. Its cast iron construction and pressure-balanced design withstand shock loads and harsh site conditions.
Material Handling Equipment: Ideal for forklifts, truck tail-lifts, and hydraulic ramp systems, offering consistent high-pressure output for lifting and lowering operations while maintaining high efficiency under continuous, heavy-duty cycles.
Agricultural Machinery: Commonly integrated into tractors, harvesters, and fertilizer spreaders, where it powers steering, lift arms, and implement control systems. The pump’s contamination tolerance handles the dirty, high-dust environments common in field operations.
Commercial & Light Industrial Applications: Suitable for small-scale presses, power units, and general-purpose hydraulic systems, providing reliable performance for clamping, pressing, and actuation tasks in workshops and mobile service units.
Factory&FAQ
CB32 pumps are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
The CB32 is a high-performance, fixed-displacement external gear pump, widely used as a reliable hydraulic power source for Cummins 6BT/QSB series engines and other mobile equipment. Built with a rugged cast iron body and pressure-balanced wear plates, it is engineered for compact hydraulic systems requiring stable high-pressure output and long service life, especially in truck-mounted and construction applications.
Rugged Cast Iron Housing: Unlike aluminum pumps that can deflect or distort under high pressure, the CB32’s cast iron construction maintains tight internal clearances, reducing leakage and extending service life under continuous high-pressure cycles.
Pressure-Balanced Wear Plates: Its advanced axial compensation design automatically adjusts clearances to minimize internal bypass, maintaining high efficiency even as components wear, unlike basic aluminum pumps with fixed clearances.
Proven Compatibility with Diesel Engines: Optimized for direct coupling to diesel engine PTOs and power take-off units, the CB32 is built to handle engine vibration, thermal cycling, and varying speed conditions common in heavy-duty mobile applications.
Continuous Pressure: Up to 2,320 PSI (160 bar).
Intermittent/Peak Pressure: Up to 2,900 PSI (200 bar).
This robust pressure rating makes it ideal for power steering, lifting, and auxiliary hydraulic circuits in trucks and construction machinery.
Parker/Commercial Intertech P30/P31 series
Metaris MH300 series
HGP and CBT series pumps with similar mounting configurations
To ensure a successful swap, verify the Mounting Flange, Shaft Type, and Displacement (cc/rev) to match your existing system.
Oil Type: Premium anti-wear (AW) mineral-based hydraulic fluids, compatible with common diesel engine environments.
Viscosity: Standard ISO VG32 to VG68. The optimal operating range is 10–100 cSt, suitable for typical mobile equipment working temperatures.
Filtration: Cleanliness is critical for pump life. A minimum filtration level of ISO 4406 18/16/13 is recommended to prevent abrasive contamination from damaging the gears and wear plates.
Rated Speed: 1,500–2,000 RPM
Maximum Continuous Speed: 2,500 RPM
Operating outside this range (too low or too high) can reduce efficiency or shorten service life.
Yes, we support OEM and customization, including nameplate, packaging, and specific performance requirements. Send us your drawings or specifications for evaluation.
Please provide the following details:
Model or displacement
Working pressure
Speed
Quantity
We will reply within 12 hours with a competitive quotation.
CB32 pumps are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
1.What's our advantages?
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.
All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.
To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.
Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
