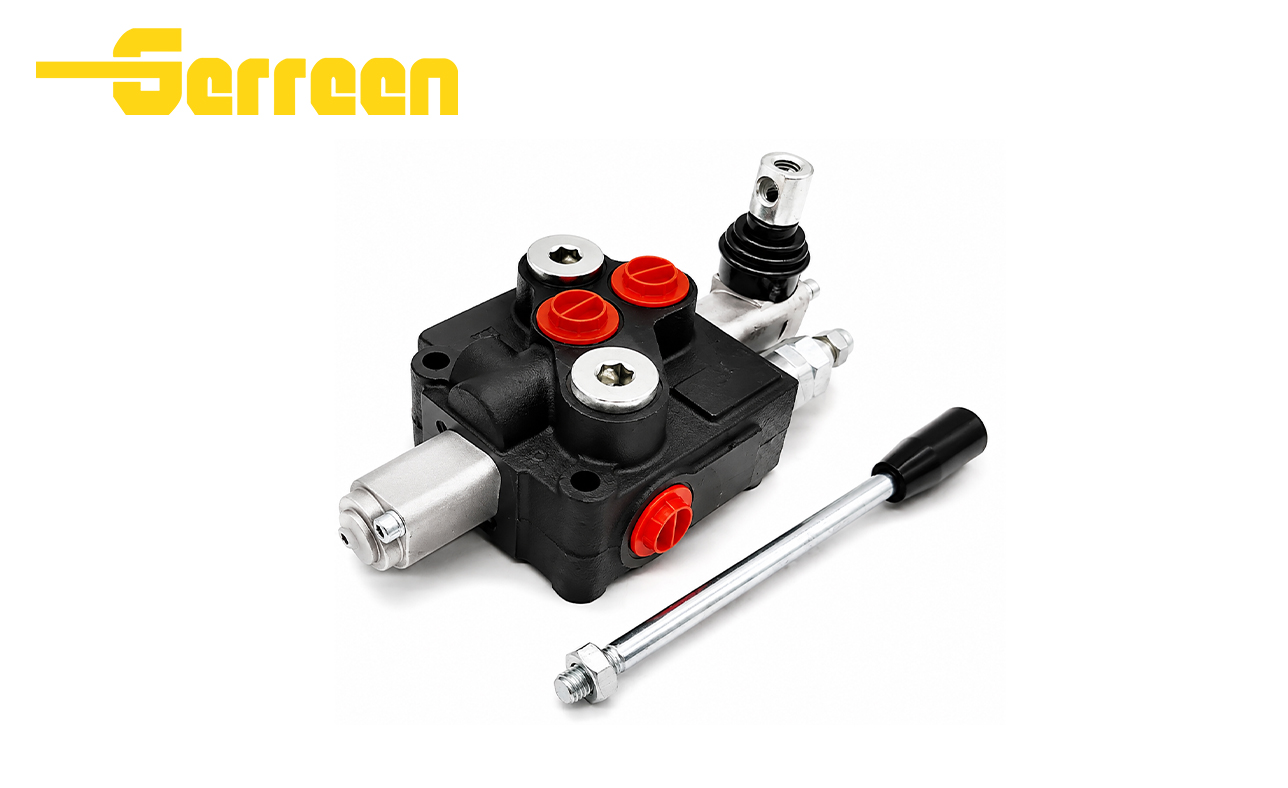

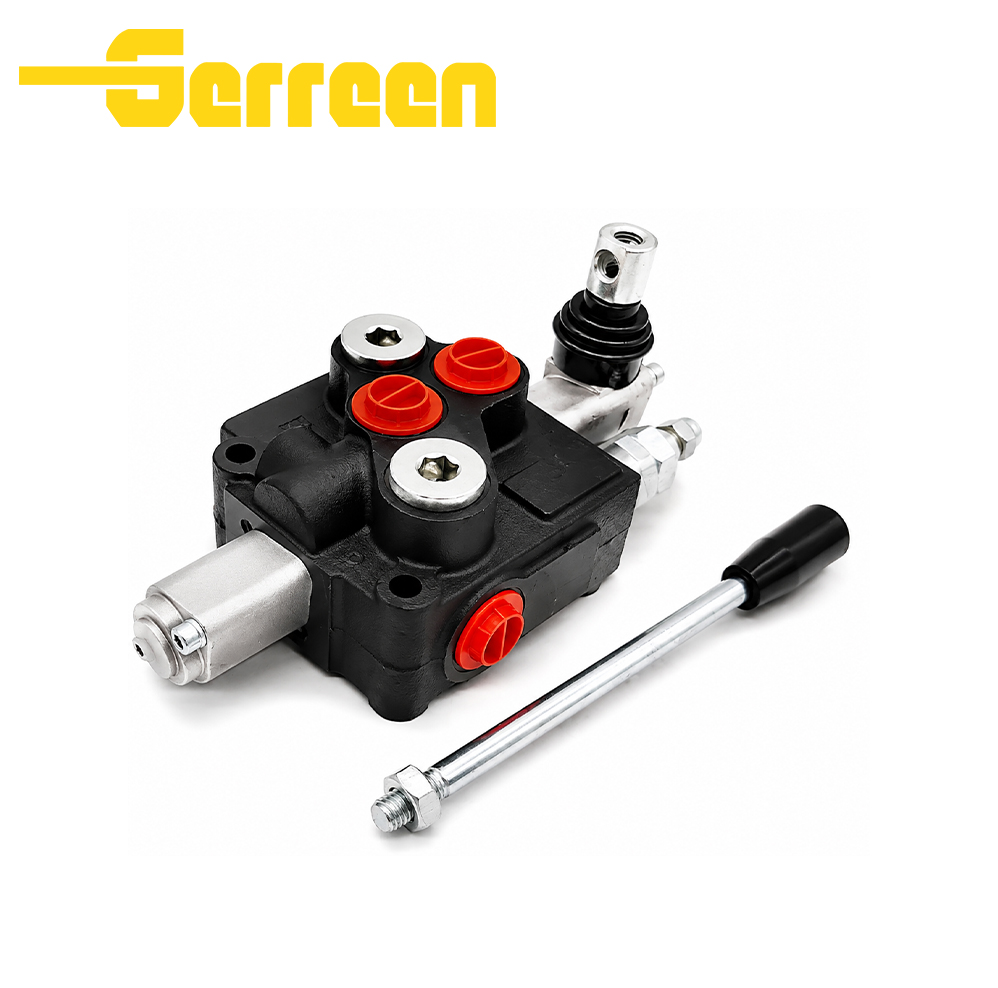

DCV40 Hydraulic Valve OVERVIEW

The DCV40 series monoblock multi-way valves are integrated high-pressure hydraulic control components with a rated flow of 40L/min and maximum working pressure up to 35MPa. Manufactured with one-piece cast iron valve bodies, they feature compact structure and high integration. Available in 1 to 7 sections for customized configuration, the valves can synchronously control multiple hydraulic cylinders and motors, serving as core control parts for small and medium-flow hydraulic systems.

Equipped with an integrated main relief valve for stepless system pressure adjustment, the valve supports parallel and series-parallel composite oil circuits. A standard power beyond port is reserved to supply oil to external hydraulic components. Multiple control options are available, including manual, pneumatic, hydraulic and electro-hydraulic control, suitable for local operation, remote electric control and wireless pneumatic control. Widely applied to truck-mounted cranes, wreckers, sanitation vehicles, water well drilling rigs, tractors, loaders and other small construction machinery.

Features and Benefits

• Feature: Integrated phosphated cast iron body & balanced nickel-plated spool Benefit: Low leakage, smooth operation and extended service life

• Feature: Multiple control modes and customizable spool center functions Benefit: Suitable for different on-site and remote operation requirements

• Feature: 40L/min rated flow with 35MPa peak pressure and built-in relief valve Benefit: Stable heavy-load movement and overpressure protection for hydraulic systems

• Feature: 1–7 combinable sections with optional port threads and safety valves Benefit: Flexible matching for various hydraulic cylinders and motors

• Feature: Compatible with hydraulic oil viscosity of 12–400 cSt Benefit: Stable performance under harsh outdoor temperature conditions

Specifications DCV40 Hydraulic Valve

Applications

• DCV40 Hydraulic Manual control valves are widely used in medium‑pressure mobile hydraulic systems.

• Suitable for compact agricultural machinery such as small tractors and farm implements.

• Applicable to light construction equipment including mini excavators and front‑end loaders.

• Ideal for sanitation vehicles such as garbage trucks and municipal service machines.

• Applied to drilling machinery and forestry equipment like log splitters.

• Fit for material‑handling machinery including forklifts and aerial work platforms.

• Deliver reliable manual hydraulic performance for diverse outdoor working conditions.



Packaging & Delivery

DCV40 Hydraulic Valve are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

DCV40 Hydraulic Valve FAQ:

1. What is the DCV40 Hydraulic Valve ?

The DCV40 is a compact monoblock multi-way hydraulic directional control valve for medium-flow high-pressure hydraulic systems.

It has a rated flow of 40 L/min and a maximum working pressure of 35 MPa, available in 1 to 7 customizable spool sections to separately drive hydraulic cylinders and motors.

Built with an integrated cast iron body and internal relief valve, it supports parallel oil circuits with a power beyond port to supply extra hydraulic attachments. Multiple control options are offered: manual joystick, pneumatic pilot, hydraulic pilot, and 12V/24V electro-hydraulic control. Spools can be spring return or ball detent locking, with O/A/Y/Q center functions customizable on request.

Widely applied to truck-mounted cranes, drilling rigs, sanitation trucks, small loaders and agricultural machinery for precise hydraulic motion control under harsh outdoor working conditions.

2. What makes the DCV40 Hydraulic Valve ?

3. What is the working pressure range of DCV40 Hydraulic Valve ?

Nominal working pressure: 31.5
MPa Maximum peak pressure: 35 MPa

4. Can DCV40 Hydraulic Valve replace other brands?

7. How can I get a quotation quickly

Please provide the following details:

• Model or displacement

• Working pressure

• Speed

• Quantity
  We will reply within 12 hours with a competitive quotation.




Certifications & Quality Assurance

DCV40 Hydraulic Valve are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
