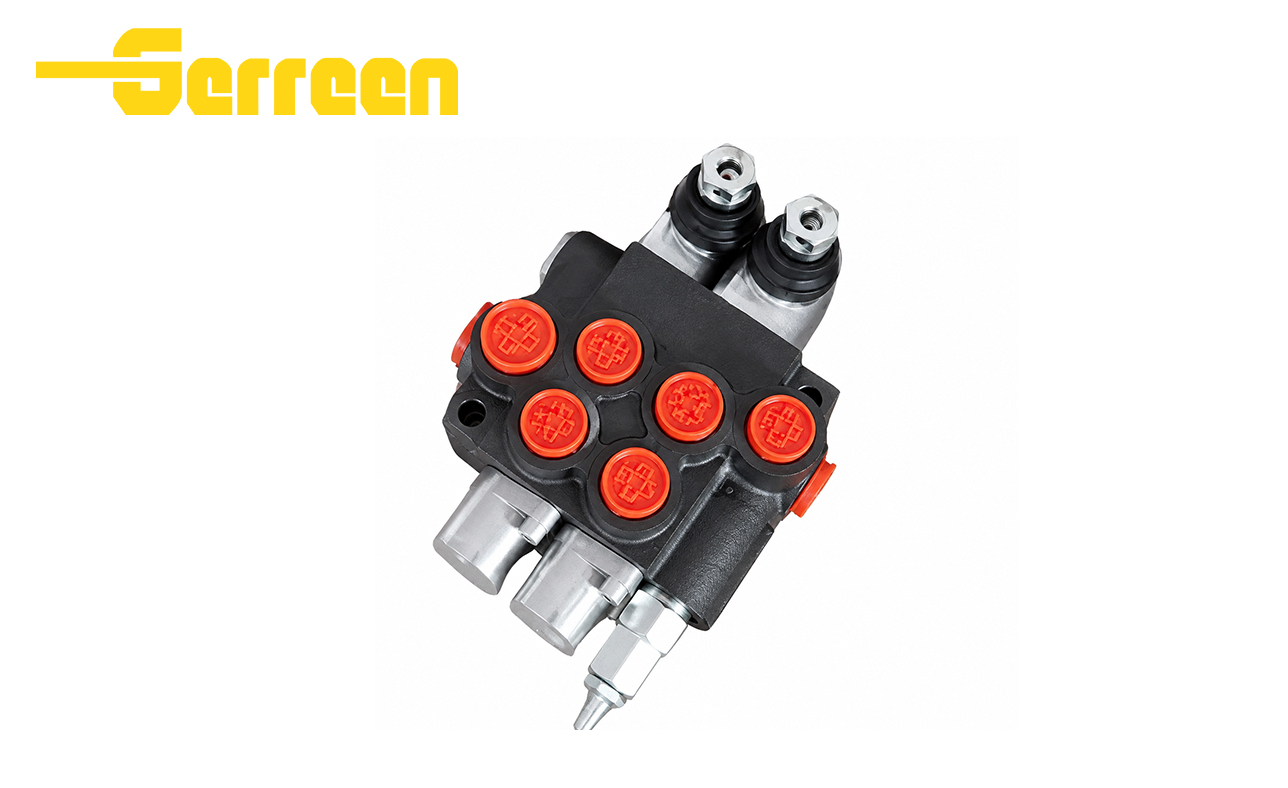

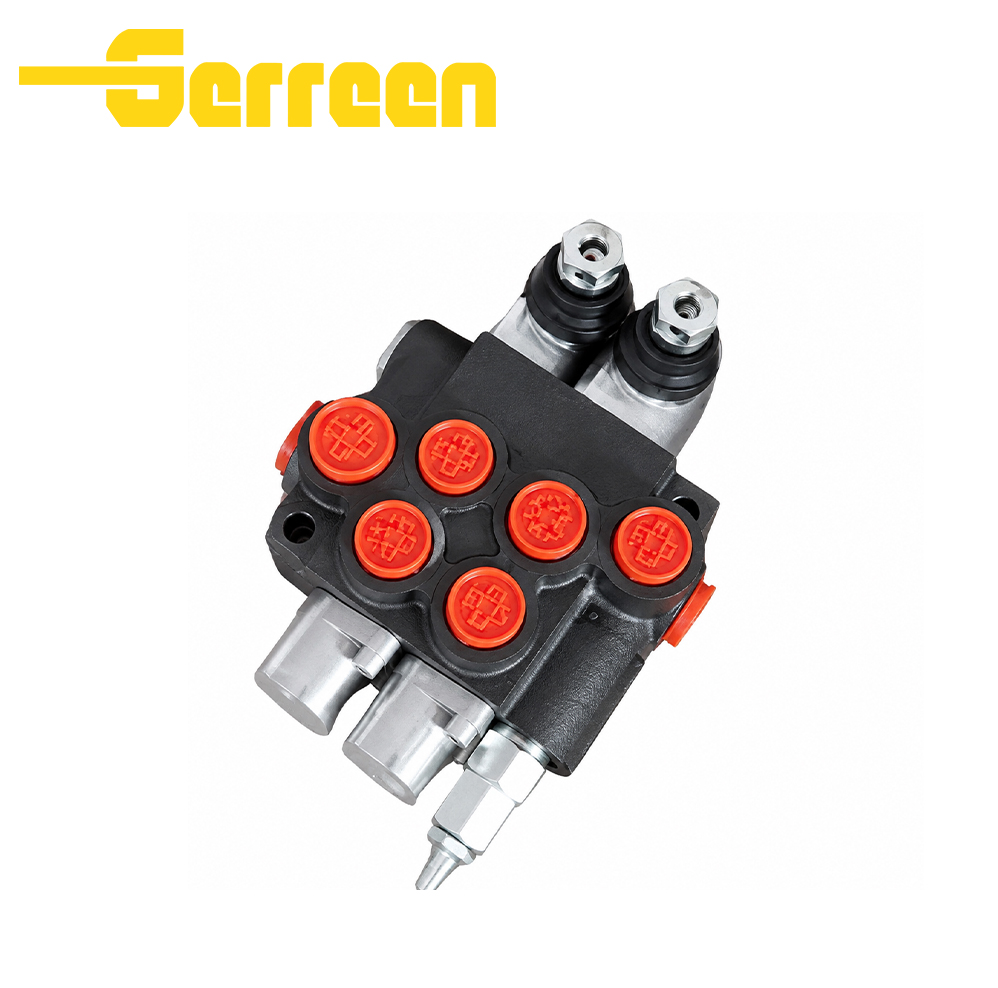

PC100 Control Valve OVERVIEW

PC100 modular sectional multi‑way valve is engineered for mobile hydraulic machinery with nominal flow 100 L/min. It supports open‑center and closed‑center circuits. Flexible modular design enables 1‑8 working sections assembly. Multiple actuation options: manual, pneumatic, electro‑pneumatic, hydraulic pilot and electro‑hydraulic control. Integrated main relief valve and individual load‑check valves prevent load dropping, delivering stable performance for harsh off‑road working conditions。

Features and Benefits

• Modular sectional construction, freely combine 1‑8 sections, convenient for on‑site modification and maintenance

• Built‑in main relief valve plus independent load‑check valve per section, effectively avoid load slipping and improve operation safety

• Rich spool selections: floating, regenerative, detent and kick‑out spools for diverse working requirements

• Diversified actuation modes, adapt to local manual operation and remote automatic control

• Precision‑machined valve body and spool, low internal leakage, smooth spool movement, low operating noise

• High pressure resistance, compact structure, long service life under severe outdoor environment

Specifications PC100 Control Valve

Applications

• Agricultural machinery Tractors, harvesters, balers, ploughing equipment and trailed farm implements.

• Construction machinery Backhoe loaders, skid‑steer loaders, mini excavators, small cranes, road maintenance machines.

• Material‑handling equipment Truck‑mounted cranes, aerial work platforms, dump trucks, forklift attachments.

• Forestry machinery Log splitters, timber loaders, forest trailers.

• Municipal & special off‑road vehicles Sanitation trucks, sweepers and other mobile hydraulic installations.




Packaging & Delivery

PC100 Control Valve are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

PC100 Control Valve FAQ:

1. What is the PC100 Control Valve ?

PC100 is a modular sectional multi‑way directional control valve for mobile hydraulic machinery, with 100 L/min nominal flow. It can be combined from 1‑8 working sections.

It supports both open‑center and closed‑center circuits. Multiple actuation options are offered: manual, pneumatic, electro‑pneumatic, hydraulic pilot and electro‑hydraulic control.

Integrated main relief valve and separate load‑check valves prevent load drop‑off. It performs reliably in harsh conditions for agriculture, construction, forestry and municipal mobile equipment.

2. What makes the PC100 Control Valve ?

3. What is the working pressure range of PC100 Control Valve ?

Max inlet pressure (P‑port): 250 bar (3625 PSI) Max working pressure (A/B service ports): 300 bar (4350 PSI) Max back pressure (T‑tank port): 50 bar (725 PSI)

The integrated main relief valve can be locally adjusted to set the system working pressure within this safe pressure scope for mobile machinery.

4. Can PC100 Control Valve replace other brands?

7. How can I get a quotation quickly

Please provide the following details:

• Model or displacement

• Working pressure

• Speed

• Quantity
  We will reply within 12 hours with a competitive quotation.




Certifications & Quality Assurance

PC100 Directional Valve are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
