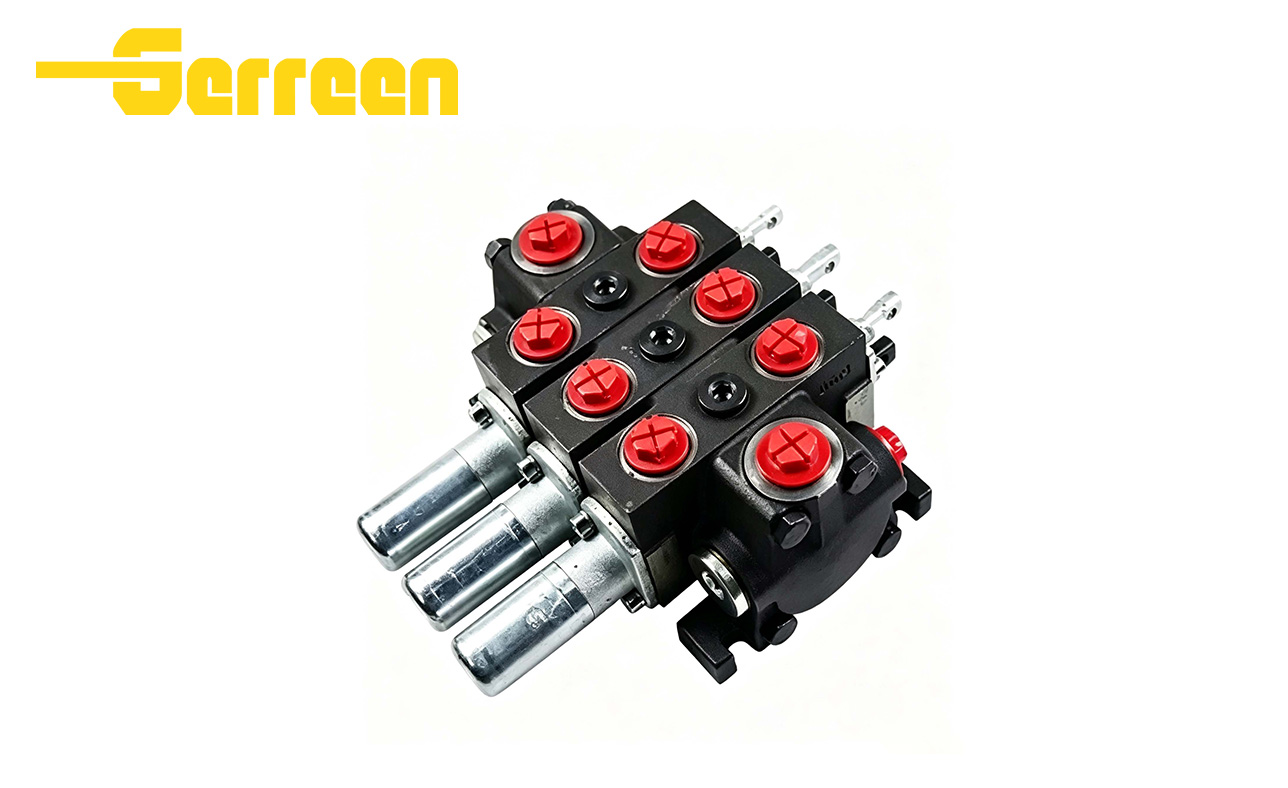

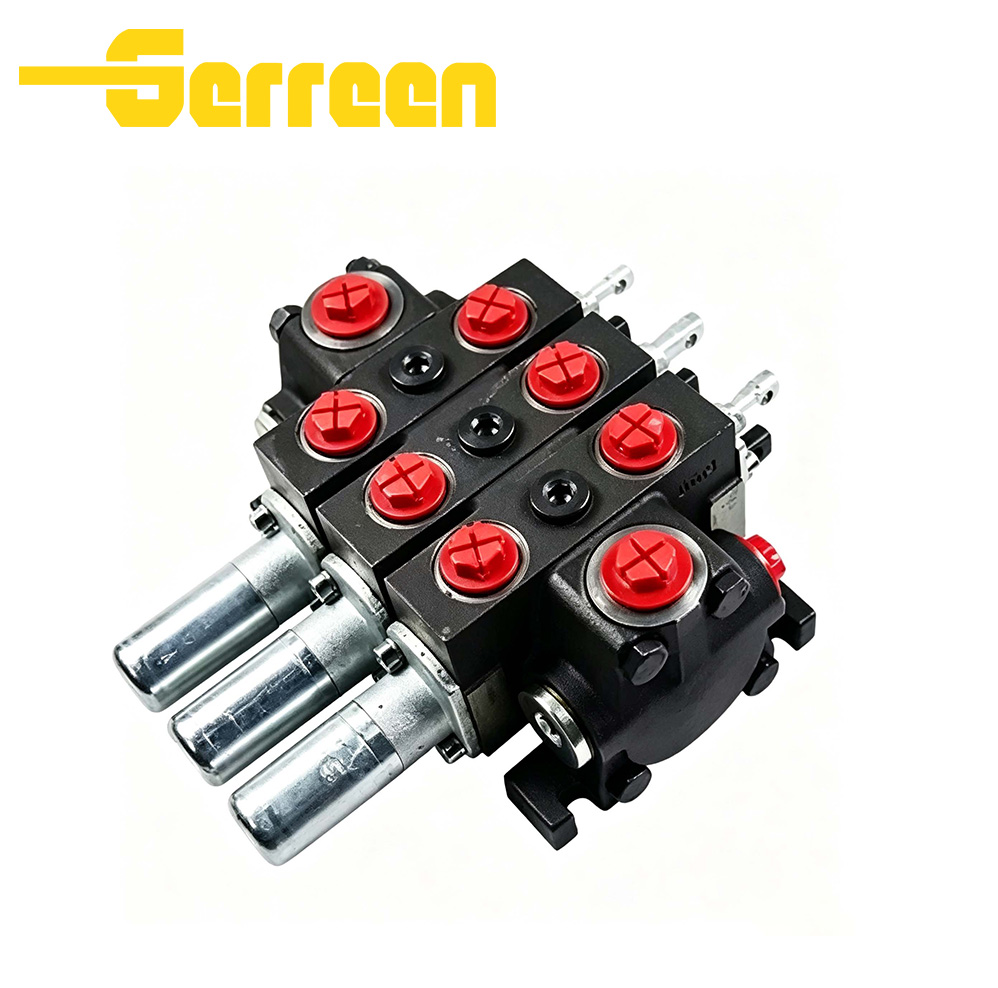

MPC 70.4 Control Valve OVERVIEW

MPC 70.4 is a sectional open‑center hydraulic directional control valve, widely used as original replacement for Russian‑style MTZ series tractors and various mobile hydraulic machines. Designed for fixed‑displacement pump systems with rated flow 70 L/min and maximum working pressure up to 250 bar, this manual multi‑section distributor controls hydraulic cylinder and motor movements, while integrating overload protection for the whole hydraulic circuit.

Modular sectional structure allows flexible combination from 1‑section up to 10‑section. Each spool section is equipped with built‑in load check valve and main relief valve to prevent load‑dropping and system overpressure. Mainly mechanical manual lever operation, optional detent positions, spring return and pneumatic control kits are available for different working requirements. Robust cast iron body adapts to harsh field working conditions, stable performance under wide temperature range, ideal for agricultural and construction mobile equipment aftermarket replacement and OEM assembly.

Features and Benefits

• Modular sectional design, easy to add or reduce valve sections according to customer demands

• Built‑in relief valve and load check valve for anti‑falling load and system overload protection

• Parallel circuit design, support simultaneous multi‑action operation

• Multiple spool configurations, support spring return, A‑position detent, B‑position detent, A+B detent

• Heavy‑duty cast iron housing, excellent shock‑resistance for outdoor harsh working environment

• Compatible with original HYDROSILA MPC70.4 units, direct replacement for aftermarket repair


• Support optional pneumatic control kits for remote operation

• Stable low‑pressure response, low pressure loss during operation

Specifications MPC 70.4 Control Valve

Applications

• Agricultural tractors (MTZ‑type tractors)

• Combine harvesters and farm machinery

• Small wheel loaders

• Motor graders and road maintenance machines

• Municipal & sanitation vehicles, garbage trucks

• Forklifts and material‑handling equipment

• Forestry mobile machinery

• Other mobile hydraulic equipment with 70‑90L/min system flow






Packaging & Delivery

MPC 70.4 Control Valve are typically packaged securely to prevent damage during transit. The packaging includes:

Protective Wrapping: To safeguard the pump from environmental damage.

Custom Crates: For larger, heavier pumps, ensuring safe handling.

Documentation: Includes installation, maintenance instructions, and warranty details.

Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.

MPC 70.4 Control Valve FAQ:

1. What is the MPC 70.4 Control Valve ?

MPC 70.4 is a sectional open‑center hydraulic directional distributor originally designed by HYDROSILA, widely used for Eastern European mobile machinery, especially MTZ‑series tractors. It is a manual multi‑section valve with nominal flow 70 L/min and max working pressure up to 250 bar. The modular structure supports 1‑10 working sections, each fitted with built‑in load check valve, together with main relief valve for system overload protection. It mainly adopts mechanical lever operation, and optional pneumatic remote control is available. This valve controls hydraulic cylinders and motors, and serves as direct OEM‑replacement unit for agricultural tractors, harvesters, small loaders and other mobile hydraulic equipment

2. What makes the MPC 70.4 Control Valve ?

3. What is the working pressure range of MPC 70.4 Control Valve ?

The rated operating pressure is 200 bar (2900 PSI).
Maximum working pressure for A and B working ports reaches 250 bar (3625 PSI).

4. Can MPC 70.4 Control Valve replace other brands?

7. How can I get a quotation quickly

Please provide the following details:

• Model or displacement

• Working pressure

• Speed

• Quantity
  We will reply within 12 hours with a competitive quotation.




Certifications & Quality Assurance

MPC 70.4 Control Valve are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
