Packaging & Delivery
Swing Motor are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
Swing Motor FAQ:
1. What is the Swing Motor ?

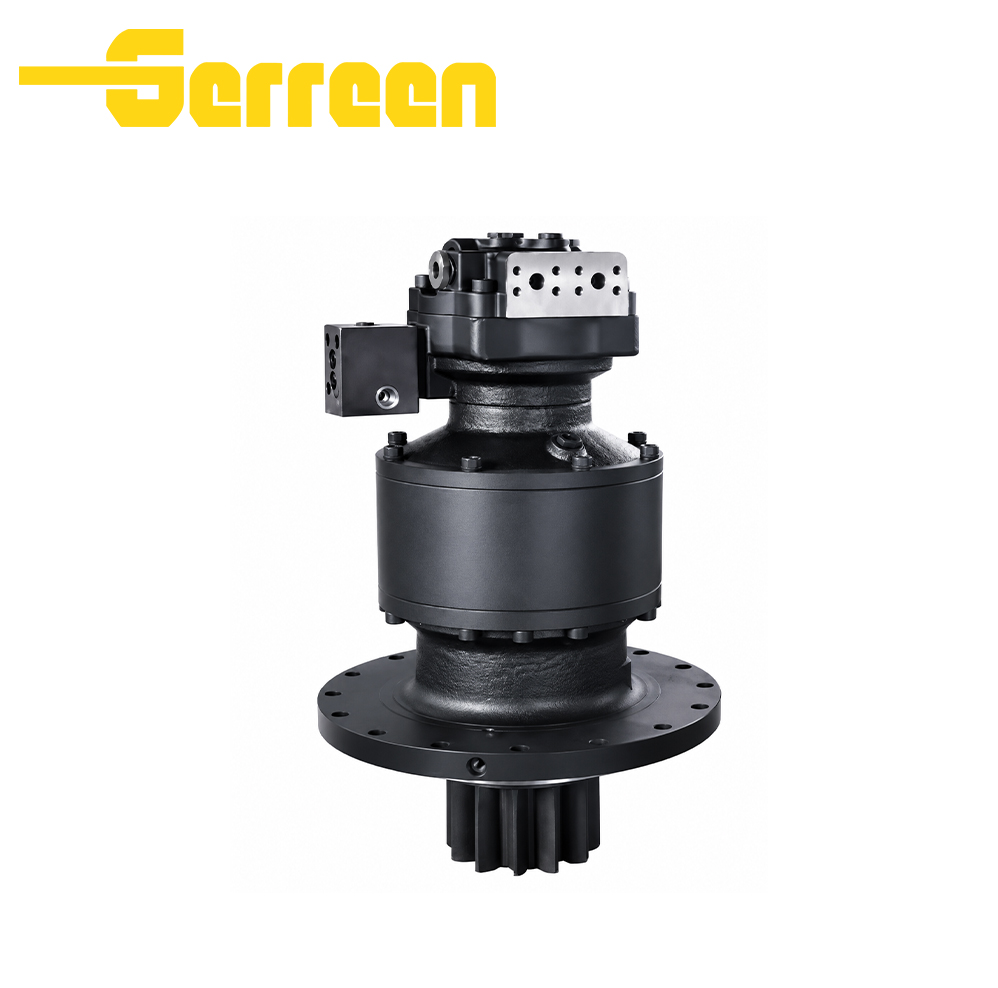

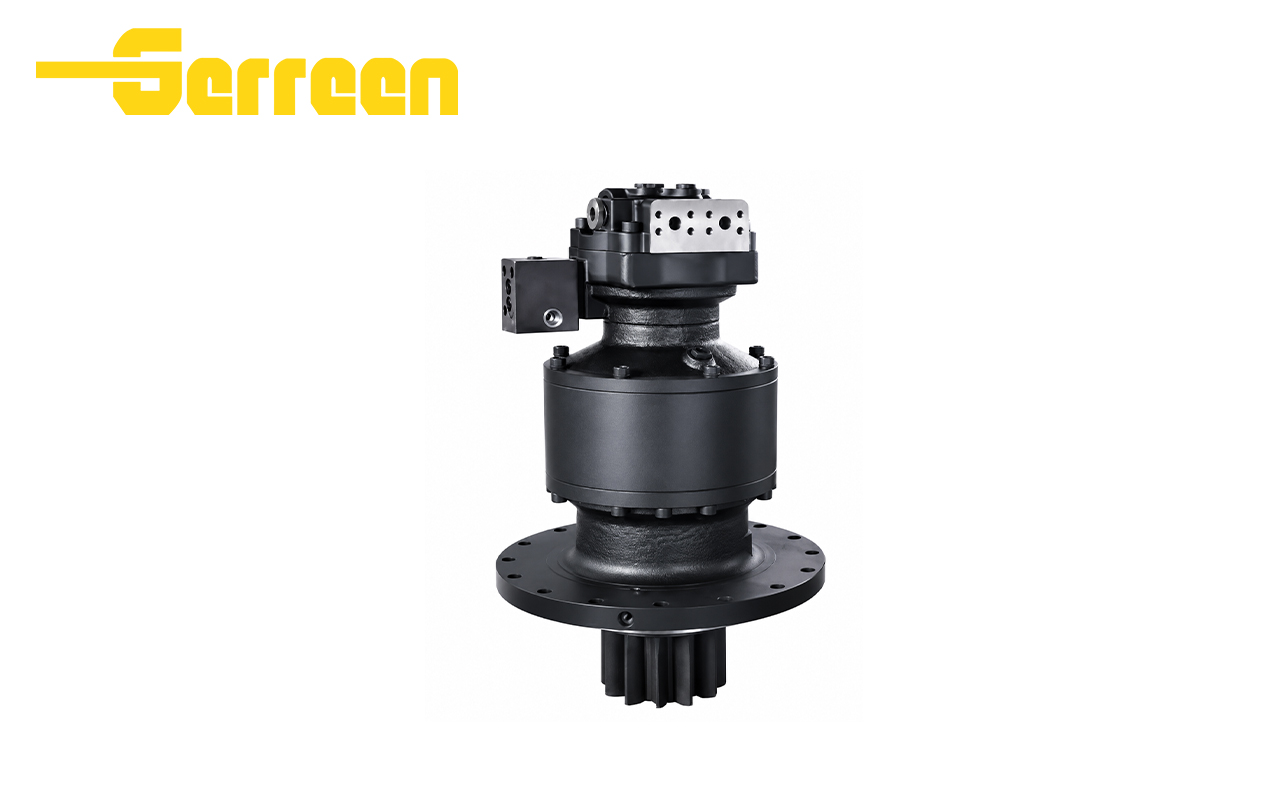

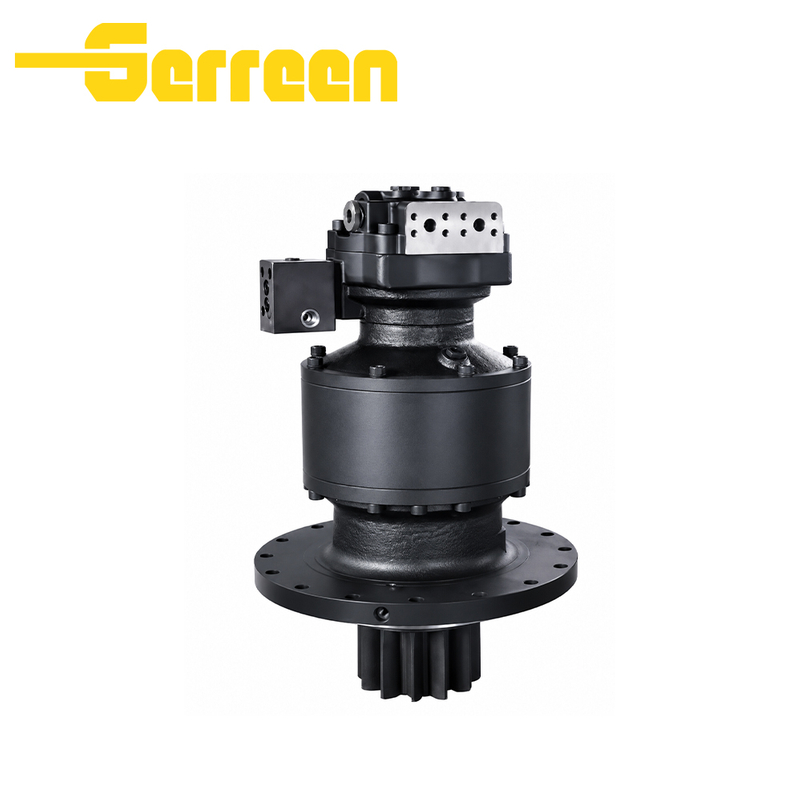

The swing motor, also named slew motor, is an integrated hydraulic rotary drive unit. It consists of piston motor, planetary reducer and built-in parking brake. It converts hydraulic energy into high torque power. It enables the upper body of excavators to rotate continuously by 360 degrees. Integrated valves protect the unit against shock and overload. It is the core component for rotary movement of construction machinery.
2. What makes the Swing Motor ?
It consists of a hydraulic piston motor, planetary reduction gearbox and built-in parking brake. Integrated multi-function valves are assembled inside the housing. Precision friction pairs and reliable sealing components are adopted. High-strength cast housing ensures stable operation under heavy loads. All components are closely matched into one compact assembly.
3. What is the working pressure range of Swing Motor ?
The rated working pressure ranges from 21 MPa to 28 MPa. The maximum instantaneous pressure can reach 28 MPa to 32 MPa. Please select the suitable model according to your machine configuration.
4. Can Swing Motor replace other brands?
Our swing motor can serve as a replacement for many mainstream brand models. It requires consistent displacement, installation dimensions and pressure parameters. Please provide the original part number or machine model for compatibility confirmation. Direct interchange is available after verifying all technical data. We support aftermarket replacement for various excavator swing drives.
5. What is the typical speed range of Swing Motor ?
The typical operating speed ranges from 0 to 120 rpm. The actual output speed depends on hydraulic flow and machine tonnage. Low-speed and high-torque performance ensures stable slewing operation.
6. Do you provide OEM or customized services?
Yes, we support OEM and customized services for swing motors. We can adjust displacement, installation size and internal parameters as required. Custom logo, packaging and technical specifications are available. Please send your detailed requirements for further quotation.
7. How can I get a quotation quickly
Please provide the following details:
Certifications & Quality Assurance
Swing Motor are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
FAQ
1.What's our advantages?
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
2.What is your payment terms?
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
3.Can you make my own brand on the products?
Of course we can. Just send me your logo we can make it for you.
4.What is our main export market?
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
