Packaging & Delivery
DSHG Directional Valve are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
DSHG Directional Valve FAQ:
1. What is the DSHG Directional Valve ?

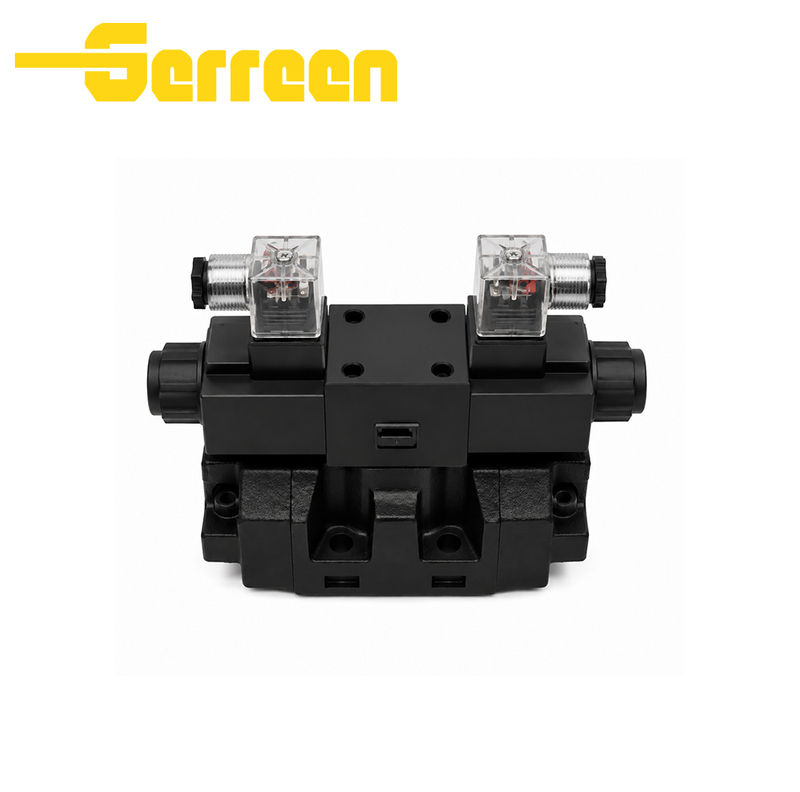

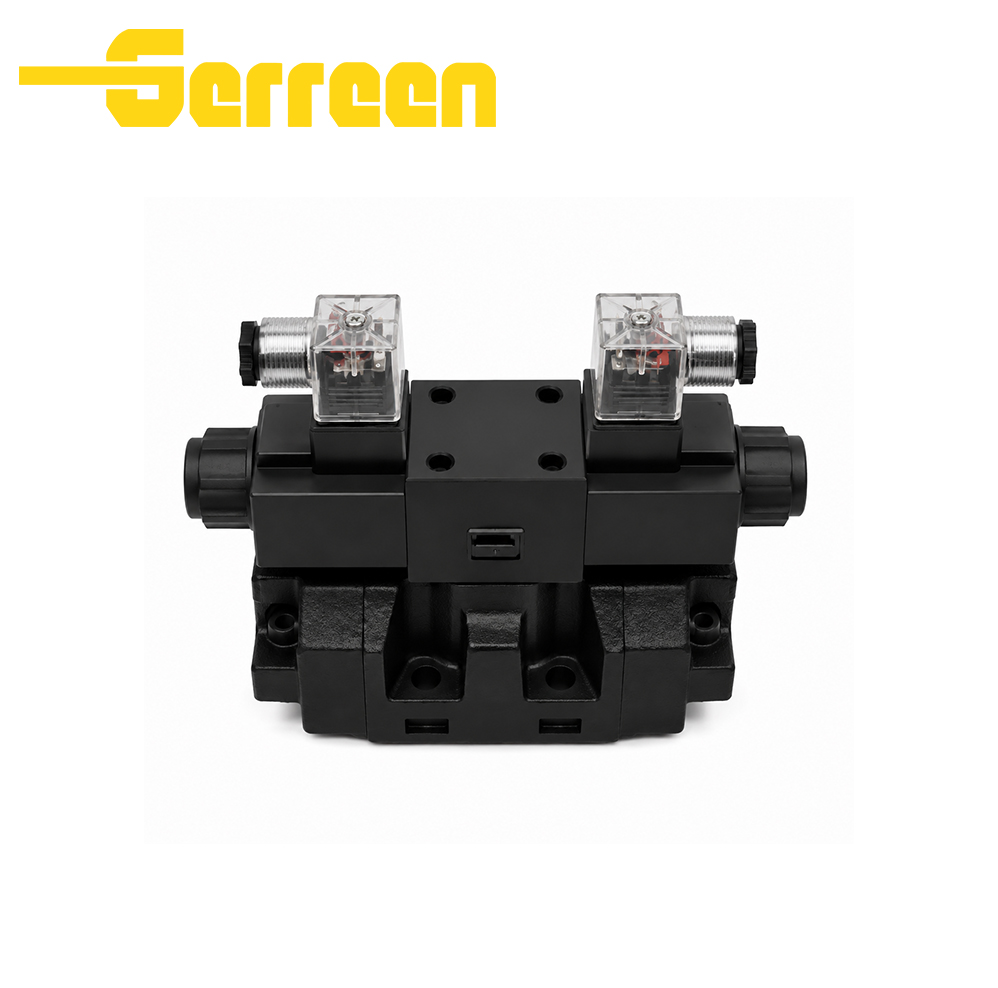

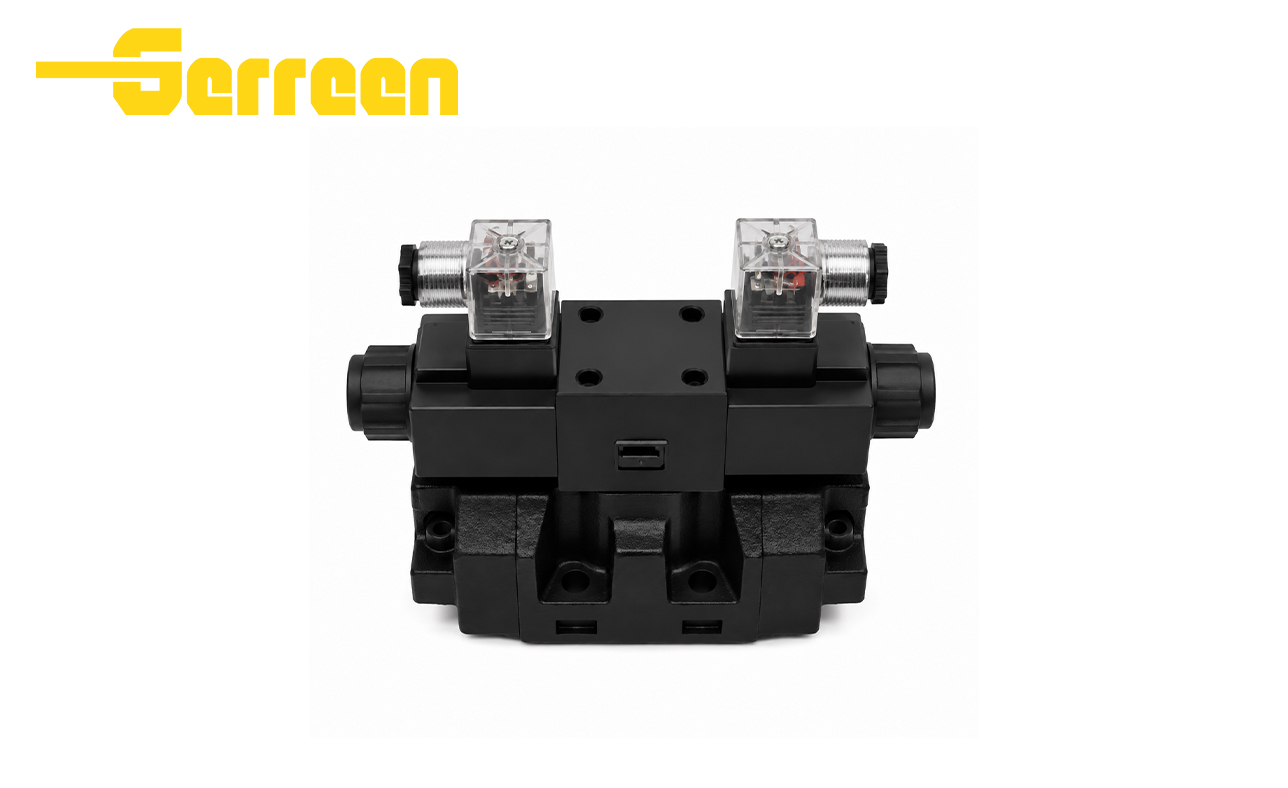

DSHG directional valve is a pilot‑operated electro‑hydraulic directional control valve with two‑stage structure. A small‑power solenoid pilot valve drives the main spool to switch oil flow direction. It adopts ISO4401 standard plate mounting, suitable for high‑pressure and large‑flow heavy‑duty hydraulic systems. Multiple spool functions and solenoid coil options are available. It is fully interchangeable with YUKEN DSHG series for injection molding machines, machine tools, metallurgical and construction machinery.
2. What makes the DSHG Directional Valve ?
It adopts two‑stage pilot‑operated electro‑hydraulic structure. Low‑power wet‑type solenoid pilot drives the main spool for high‑pressure and large‑flow switching. Optimized internal flow path brings low pressure drop and stable commutation. It supports internal / external pilot oil supply, multiple spool functions and AC/DC coil options. With ISO4401 standard mounting dimensions, it is fully interchangeable with YUKEN DSHG series for heavy‑duty hydraulic systems.
3. What is the working pressure range of DSHG Directional Valve ?
The main port maximum working pressure reaches 31.5 MPa. The required pilot pressure ranges from 0.8‑1.0 MPa for reliable spool shifting. Allowable back pressure varies with internal or external drain modes. Please do not exceed the rated pressure to maintain valve service life.
4. Can DSHG Directional Valve replace other brands?
Yes. It follows ISO4401 standard mounting dimensions and can directly replace YUKEN DSHG‑series valves without mechanical modification. Please confirm spool function, size, coil voltage, pilot and drain modes before replacement. Send over your original model number or drawing for precise matching.
5. What is the Response / Switching frequency of DSHG Directional Valve ?
Switching performance relates to valve size and pilot pressure. Max allowable switching frequency: 120 cycles/min. Larger valves have slower response. Over‑frequent switching causes heat and accelerates wear.
6. Do you provide OEM or customized services?
Yes, OEM and customized services are available for DSHG directional valve. We support custom‑made solenoid voltage, spool functions, port configurations and special‑order accessories. Please share your technical requirements or drawings for evaluation and lead‑time confirmation.
7. How can I get a quotation quickly
Please provide the following details:
Certifications & Quality Assurance
DSHG Directional Valve are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
FAQ
1.What's our advantages?
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
2.What is your payment terms?
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
3.Can you make my own brand on the products?
Of course we can. Just send me your logo we can make it for you.
4.What is our main export market?
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
