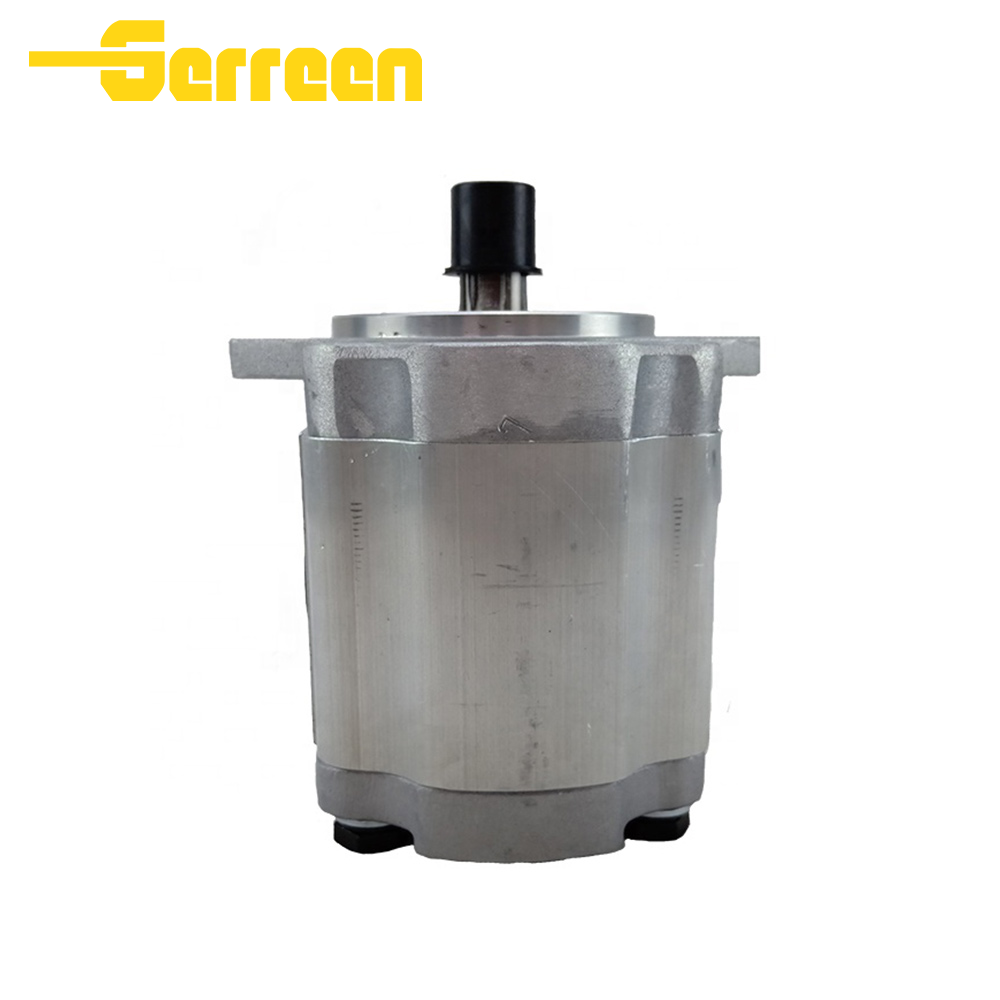

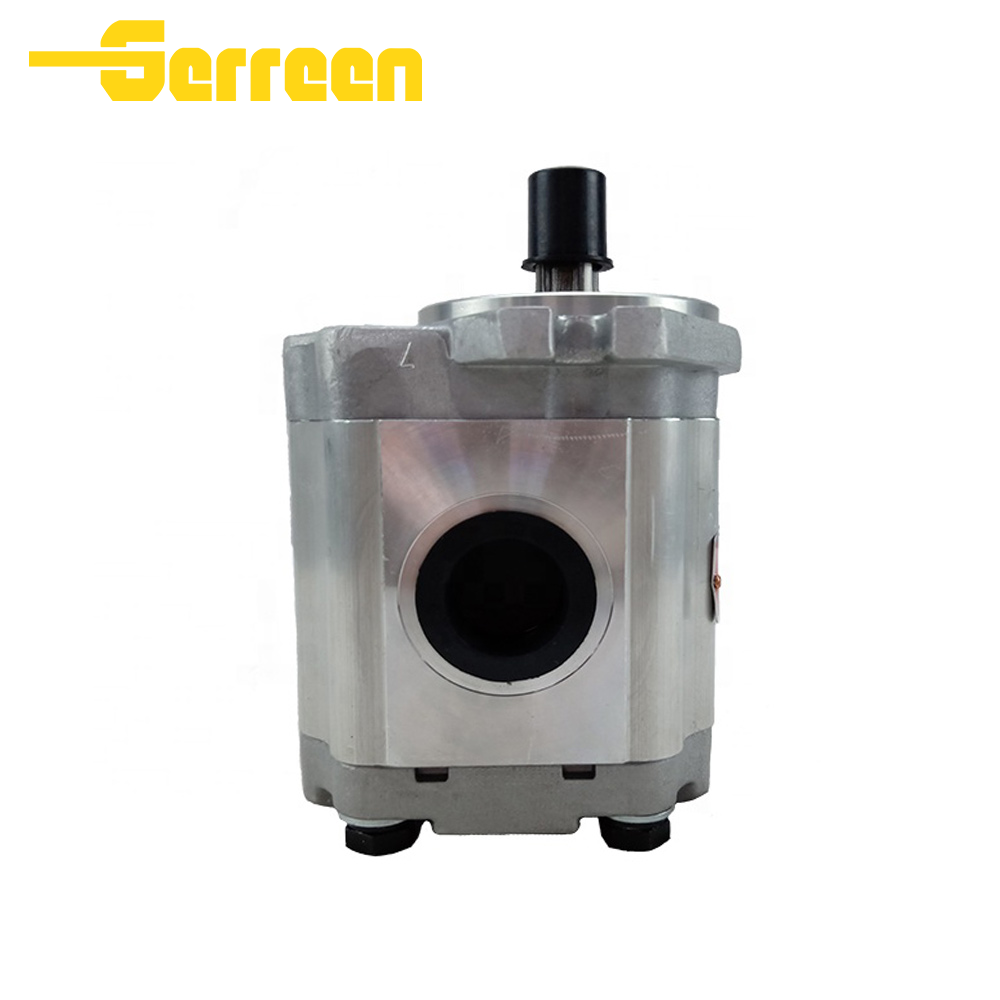

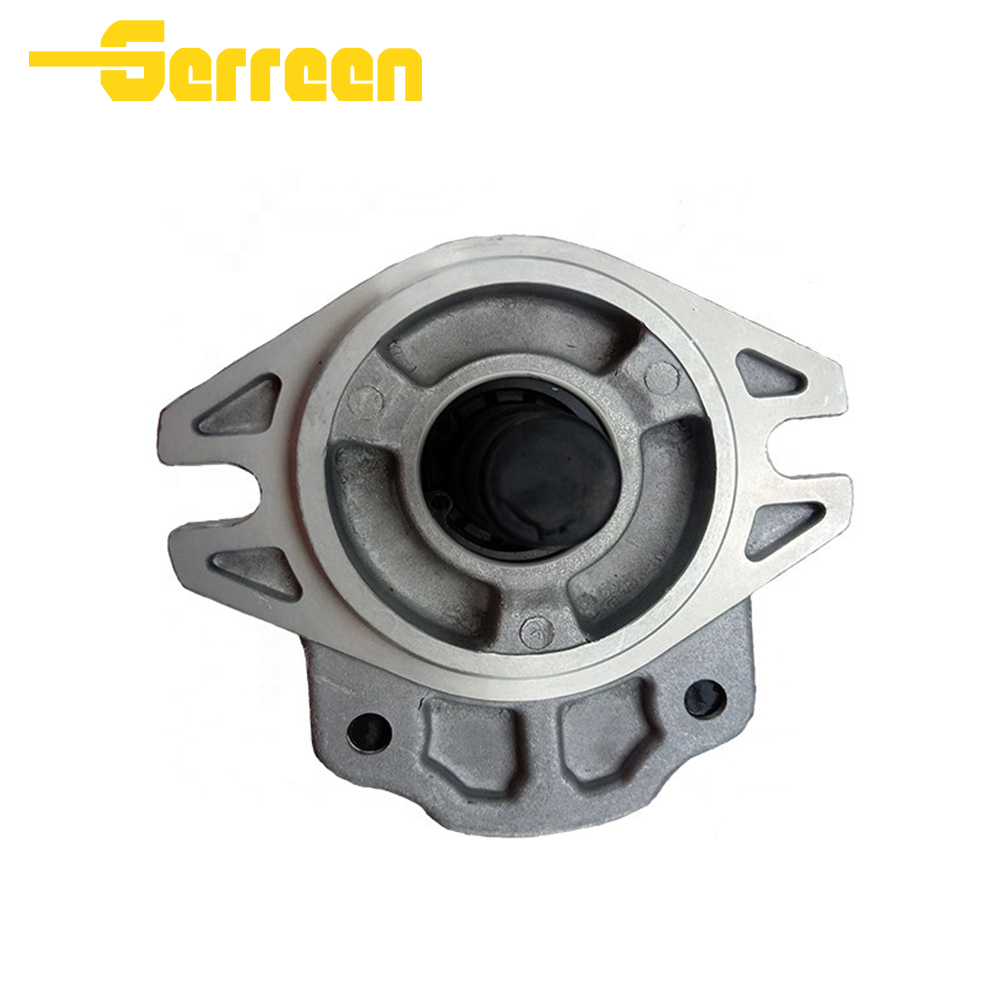

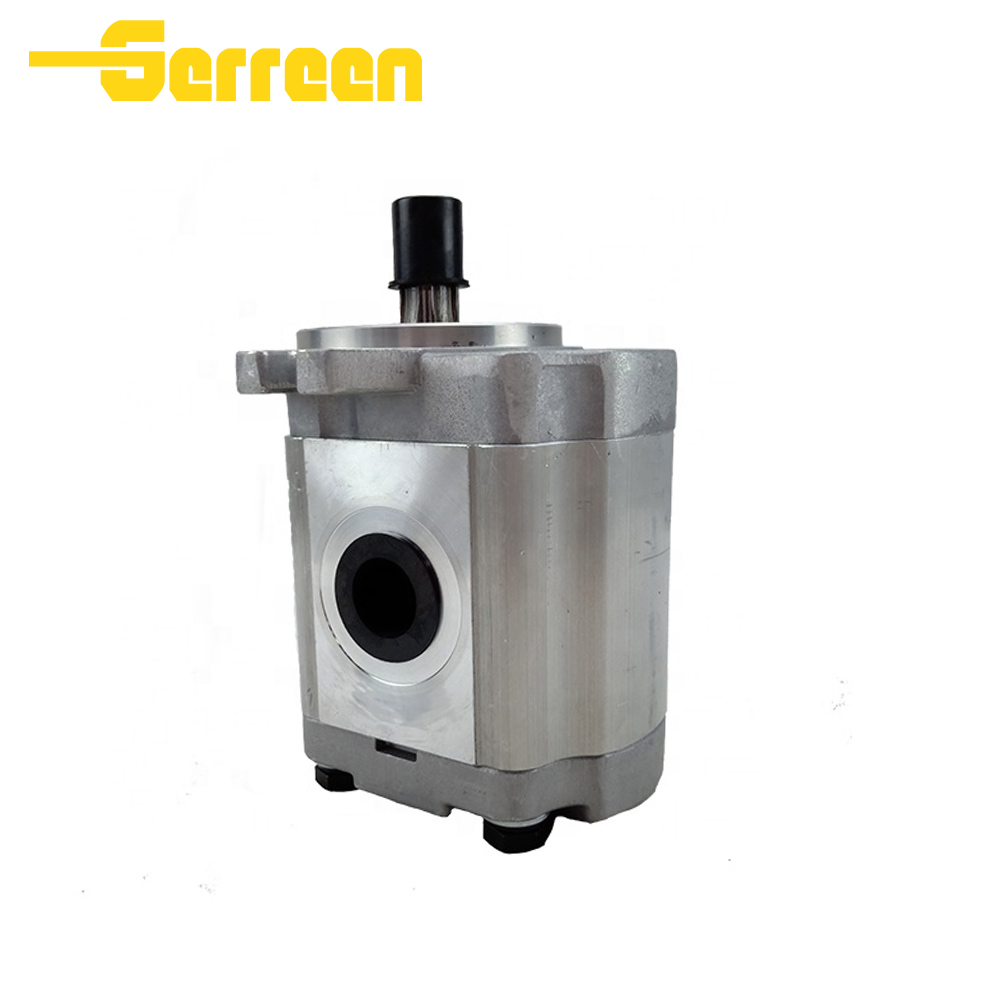

CBT CBN CBTD-F4
Green Hydraulic
1 set
Product Description
High volumetric efficiency for stable flow output
Compact and durable structure for long service life
Low noise and smooth operation
Reliable pressure performance under heavy-duty conditions
Easy installation and maintenance
Suitable for agricultural, industrial, and mobile hydraulic systems
| Model | Displacement (mL/r) | Rated Pressure (MPa) | Max Pressure (MPa) | Rated Speed (rpm) | Max Speed (rpm) | Efficiency (%) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| CBT-F410-A*** | 10 | 20 | 25 | 2500 | 3000 | 92 | 3.1 |
| CBT-F412.5-A*** | 12.5 | 20 | 25 | 2500 | 3000 | 92 | 3.2 |
| CBT-F414-A*** | 14 | 20 | 25 | 2500 | 3000 | 92 | 3.3 |
| CBT-F416-A*** | 16 | 20 | 25 | 2500 | 3000 | 92 | 3.4 |
| CBT-F419.2-A*** | 19.2 | 20 | 25 | 2500 | 3000 | 92 | 3.5 |
| CBT-F420-A*** | 20 | 20 | 25 | 2500 | 3000 | 93 | 3.5 |
| CBT-F423-A*** | 23 | 20 | 25 | 2500 | 3000 | 93 | 3.6 |
| CBT-F425-A*** | 25 | 20 | 25 | 2500 | 3000 | 93 | 3.7 |
| CBT-F426.5-A*** | 26.5 | 20 | 25 | 2500 | 3000 | 93 | 3.7 |
| CBT-F430-A*** | 30 | 20 | 25 | 2500 | 3000 | 93 | 3.9 |
| CBT-F432-A*** | 32 | 20 | 25 | 2500 | 3000 | 93 | 4.0 |
Applications
Agricultural machinery (tractors, harvesters, seeders)
Construction equipment (loaders, compact excavators, road machinery)
Industrial hydraulic power units
Forklifts and material handling equipment
Dump trucks and mobile hydraulic systems
Machine tools and lubrication systems
CBT CBN CBTD-F4 pumps are typically packaged securely to prevent damage during transit. The packaging includes:
Protective Wrapping: To safeguard the pump from environmental damage.
Custom Crates: For larger, heavier pumps, ensuring safe handling.
Documentation: Includes installation, maintenance instructions, and warranty details.
Delivery time depends on the model, customizations, and location but typically ranges from 2 to 6 weeks from the order date.
1. What type of pump is CBT / CBN / CBTD-F4?
It is an external gear hydraulic pump designed for stable flow delivery and reliable pressure performance in various hydraulic systems.
2. What is the typical working pressure of this pump?
The pump generally operates at medium to high pressure, typically around 16–25 MPa (up to about 200 bar) depending on the model and configuration.
3. What applications are CBT-F4 series pumps used for?
They are widely used in:
Construction machinery (loaders, excavators)
Agricultural equipment (tractors, harvesters)
Forklifts and material handling systems
Industrial hydraulic power units
Dump trucks and mobile hydraulic systems
4. Are different displacements available?
Yes, the CBT-F4 series offers multiple displacement options (e.g., 10–32 ml/r or more) to meet different flow and system requirements.
5. Can the pump be customized?
Yes, customization options include:
Shaft types (key shaft, spline shaft)
Mounting flange types
Port connections (flange or thread)
Rotation direction (clockwise / counterclockwise)
6. Does the pump support multiple configurations?
Yes, it can be supplied as:
Single pump
Tandem pump
Multiple-section pump
to meet complex hydraulic system demands.
7. Is it interchangeable with other brands?
In most cases, CBT/CBN/CBTD-F4 pumps can replace similar external gear pumps if specifications (displacement, pressure, mounting) match.
8. What maintenance is required?
Use clean hydraulic oil (recommended ISO VG32–68)
Keep contamination level within standards
Replace seals and wear parts periodically
Avoid dry running
9. What are the main advantages of CBT-F4 pumps?
Compact and cost-effective design
High volumetric efficiency with axial clearance compensation
Durable structure for long service life
Easy installation and maintenance
10. Do you provide spare parts and repair kits?
Yes, seal kits, repair kits, and replacement parts are available for long-term maintenance and overhaul.
CBT CBN CBTD-F4 pumps are manufactured in compliance with international standards, ensuring high performance and reliability:
ISO 9001: Certified for quality management systems.
CE Certification: Ensures compliance with European safety, health, and environmental protection standards.
RoHS Compliance: Ensures the pump does not contain hazardous materials.
Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.
The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.
Factory established in 2005;
With a great deal of production experience;
80+ employees become the professional team;
Constant updated ERP system ensure efficiency of work;
Sophisticated equipment ehanced the accuracy of products;
Professional salesmen provide the greast service;
With a large number of famous customers all over the world;
Great after-sales service;
With the long term cooperation with famous logistics and express company in China,provide the better goods service.
Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.
Of course we can. Just send me your logo we can make it for you.
America(40.5%):USA, Canada, Argentina, Brazil
Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.
Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.
Others(5.8%).
The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.
The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.
Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.
All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.
To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.
Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
