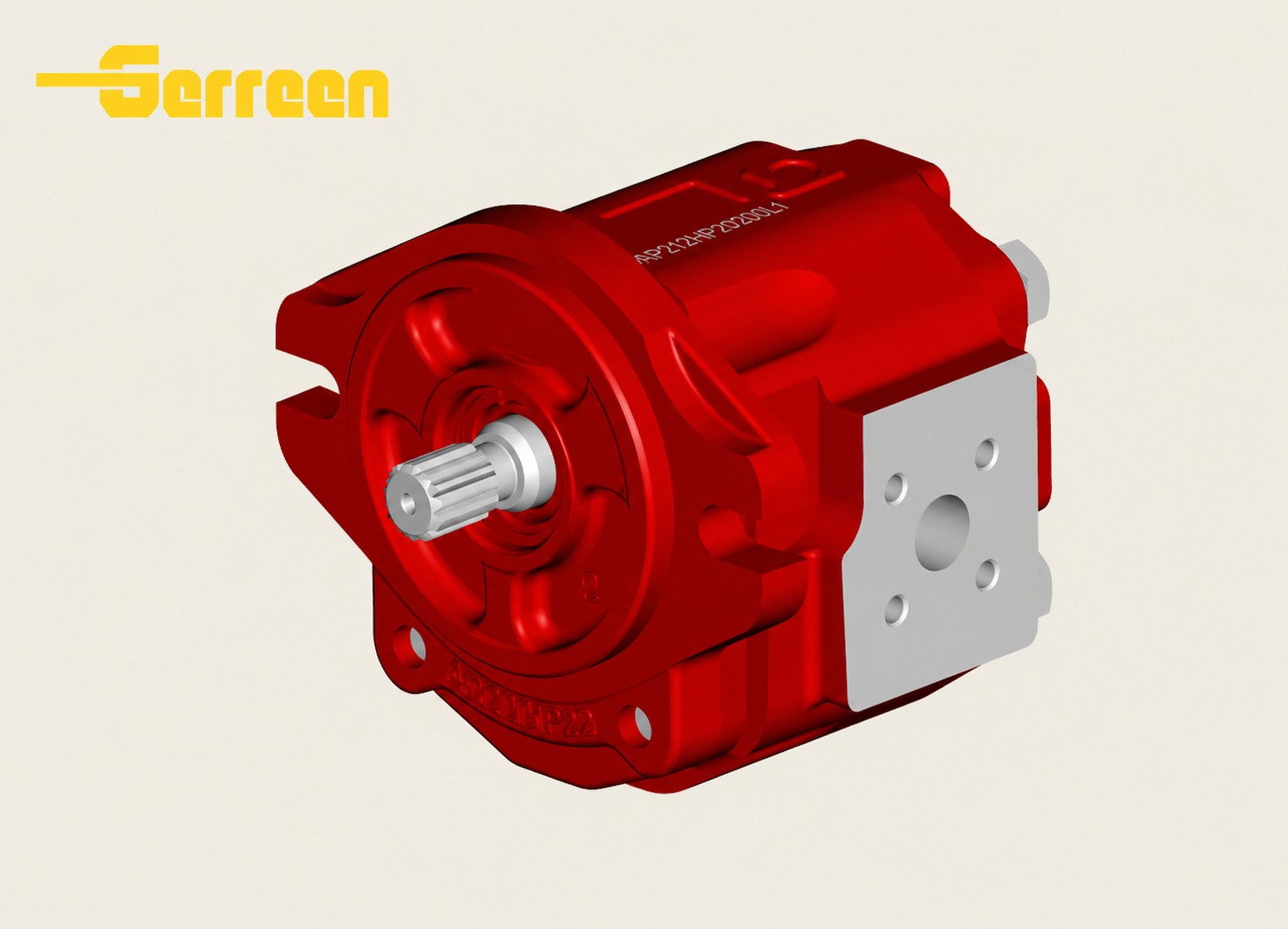

AP212HP Cast Iron Gear Pumps

AP212HP Cast Iron Gear Pumps  Overvie

The AP212HP Cast Iron Gear Pumps are heavy-duty external gear pumps designed for high-pressure hydraulic systems. With a robust cast iron construction, they provide excellent durability, stable performance, and long service life.

Based on the AP212 platform, they offer high efficiency, low noise, and flexible configurations, making them ideal for construction, agricultural, and industrial applications.

Features and Benefits

• Features

• Cast iron body and covers for high mechanical strength and durability

• Optimized hydraulic compensation design for improved efficiency

• Low noise and vibration operation due to rigid structure

• Flexible configurations (single, tandem, multiple pumps)

• Optional integrated valves and custom designs

• Benefits

• High efficiency with stable output for demanding systems

• Extended service life under high pressure conditions

• Reduced noise and smoother system performance

• Suitable for heavy-duty applications replacing aluminum pumps

• Excellent cost-performance ratio for industrial use

Technical Data

Parameter	Value

Pump Type

External Gear Pump (Cast Iron)

Displacement

15.1 – 34.1 cm³/rev

Continuous Pressure

Up to 250 bar

Peak Pressure

Up to 300 bar

Speed Range

500 – 4000 rpm

Rotation

Uni-directional / Bi-directional

Configuration

Single / Tandem / Multiple

Housing Material

Full Cast Iron Body & Covers

Fluid Type

Mineral Hydraulic Oil

Viscosity (Recommended)

20 – 120 cSt

Max Viscosity

Up to 700 cSt

Starting Viscosity

Up to 2000 cSt

Temperature Range

-15°C to +100°C

Applications

• Construction machinery (excavators, loaders, cranes)

• Agricultural equipment (tractors, harvesters)

• Material handling (forklifts, lifting systems)

• Industrial hydraulic systems

• Mobile machinery and heavy-duty equipment

Packaging & Delivery

AP212HP Cast Iron Gear Pumps are tEach pump is securely packed in an anti-rust bag with foam protection, then placed in strong export cartons or wooden cases for bulk orders. OEM/custom packaging is available. Delivery time is typically 3–7 days for stock and 15–30 days for production, with shipping options by express, air, or sea from Shanghai or Ningbo ports.

AP212HP Cast Iron Gear Pumps   FAQ

1. What is the maximum pressure of the AP212HP pump?
It supports up to 250 bar continuous pressure and 300 bar peak pressure, suitable for high-pressure systems.

2. What is the main advantage of cast iron gear pumps?
Cast iron construction provides higher strength, better wear resistance, and longer service life than aluminum pumps.

3. Can this pump be used in tandem or multiple configurations?
Yes, it supports single, tandem, and multiple pump combinations for different hydraulic systems.

4. What type of hydraulic fluid is recommended?
Standard mineral hydraulic oil is recommended for optimal performance and durability.

5. What applications is this pump suitable for?
It is widely used in construction machinery, agricultural equipment, forklifts, and industrial hydraulic systems.

6. Is OEM customization available?
Yes, shaft types, mounting flanges, ports, and branding can be customized based on requirements.

Yes, we support OEM and customization, including nameplate, packaging, and specific performance requirements. Send us your drawings or specifications for evaluation.

8. How can I get a quotation quickly

Please provide the following details:

• Model or displacement

• Working pressure

• Speed

• Quantity
  We will reply within 12 hours with a competitive quotation.




Certifications & Quality Assurance

Charge pumps are manufactured in compliance with international standards, ensuring high performance and reliability:

ISO 9001: Certified for quality management systems.

CE Certification: Ensures compliance with European safety, health, and environmental protection standards.

RoHS Compliance: Ensures the pump does not contain hazardous materials.

Factory Testing: Every pump is rigorously tested for performance, pressure, and leak integrity before shipping.

FAQ

1.How does the variable displacement work?

The pump's flow is adjusted by changing the angle of an internal swash plate. As the swash plate angle changes, the stroke length of the pistons varies, which in turn changes the volume of fluid displaced per rotation, allowing the flow rate to adapt to the system's needs.

2.What's our advantages?

Factory established in 2005;

With a great deal of production experience;

80+ employees become the professional team;

Constant updated ERP system ensure efficiency of work;

Sophisticated equipment ehanced the accuracy of products;

Professional salesmen provide the greast service;

With a large number of famous customers all over the world;

Great after-sales service;

With the long term cooperation with famous logistics and express company in China,provide the better goods service.

3.What is your payment terms?

Small order/sample order,full payment in advance; Big orders send the first payment 30% before the production,and the balance before shippment.We'll show the photos of the products and packages before delivery.

4.Can you make my own brand on the products?

Of course we can. Just send me your logo  we can make it for you.

5.What is our main export market?

America(40.5%):USA, Canada, Argentina, Brazil

Europe(30.8%):Italy,Germany,England,Holland,Spain,Swiss,Finland,Russia,Poland.

Asia(23.5%):Korea,singapore,India,Turkey,Vietnam,Saudi Arabia,Syria, Israel,Lebanon.

Others(5.8%).

The Green hydraulic pump manufacturing facility is a specialized industrial plant that focuses on producing hydraulic pumps and related components. These factories are equipped with advanced machinery and technology to fabricate high-quality pumps designed for a wide range of applications, from heavy equipment and machinery to automotive and industrial systems.

The production process typically involves precision engineering, where raw materials like metals and alloys are processed into pump components such as gears, pistons, cylinders, and seals. These parts are then assembled into fully functional hydraulic pumps, which are tested for performance and quality control to ensure reliability, efficiency, and durability under various working conditions.

Green Hydraulic's manufacturing facilities for hydraulic pumps maintain stringent quality standards, often adhering to international certifications, to meet the expectations of customers in industries such as construction, agriculture, automotive, and manufacturing.

All hydraulic pumps produced by Green Hydraulic have undergone compliance testing, ensuring their quality and reliability.

To meet the diverse needs of different industries, the green hydraulic offer customization options, such as specialized seals, materials, and pump configurations. These facilities often work closely with engineering teams to develop tailored solutions for specific applications, from high-pressure systems to low-flow, high-efficiency pumps.

Each pump undergoes a rigorous quality control process, where pressure tests and performance assessments are conducted to ensure that the pumps meet the required standards for flow rate, pressure capacity, and durability.
